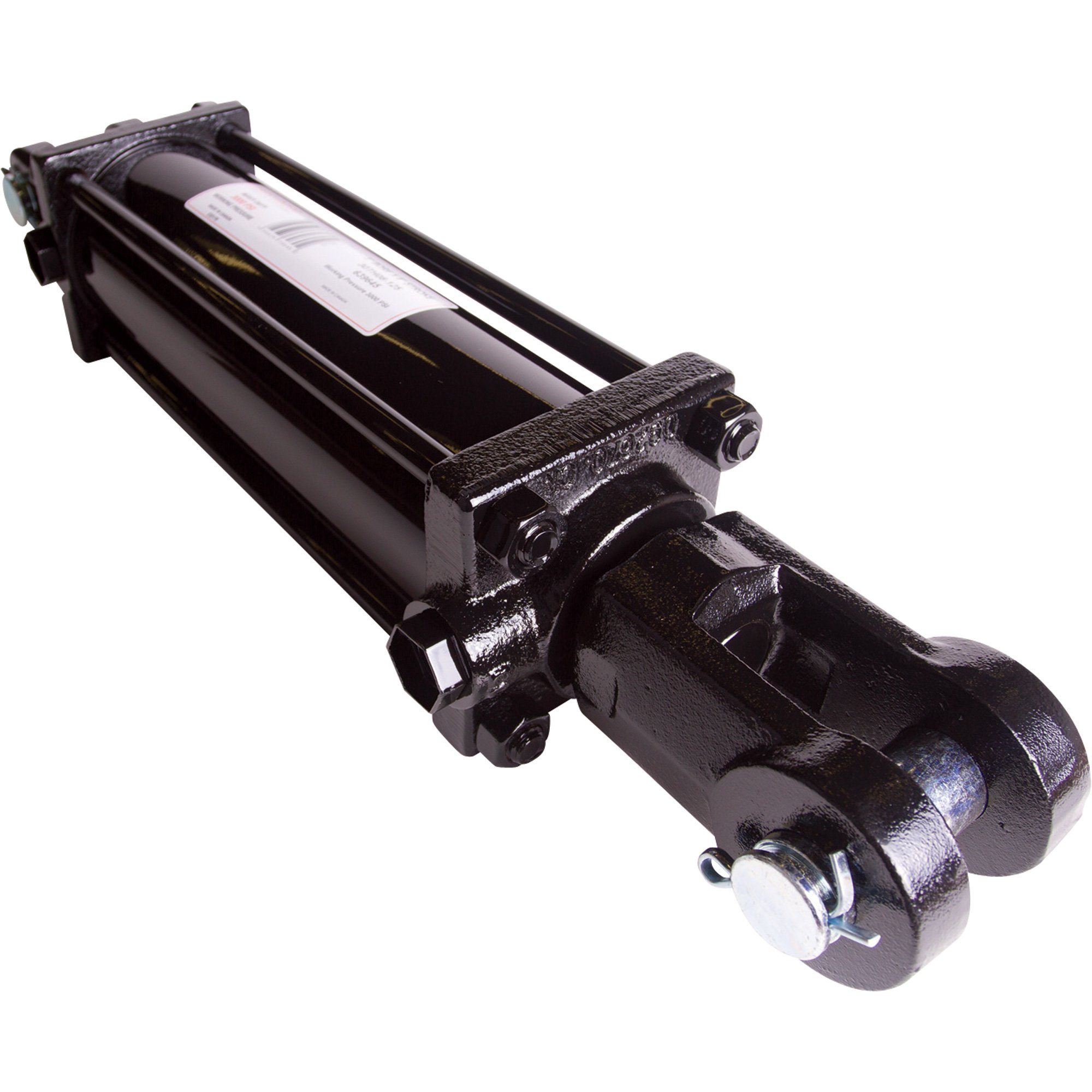

Lion Hydraulics LION TH Standard Tie-Rod Cylinder — 3,000 PSI, 3in. Bore, 8in. Stroke, Model# 30TH08-125 ORB INLN B

Item# 24617
Lion Hydraulics LION TH Standard Tie-Rod Cylinder — 3,000 PSI, 3in. Bore, 8in. Stroke, Model# 30TH08-125 ORB INLN B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lion Hydraulics LION TH Standard Tie-Rod Cylinder — 3,000 PSI, 3in. Bore, 8in. Stroke, Model# 30TH08-125 ORB INLN B

Click or Tap image to Zoom

  • State-of-the-art sealing technology
  • Double-ported ORB O-ring ports
  • 3,000 PSI working pressure
  • 6,000 PSI proof load
  • Steel piston lock nut

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The LION TH3000 hydraulic tie-rod cylinder gives you the flexibility and options you need. Designed for durability and long life, this cylinder is equipped to handle higher pressure agricultural tractor and tillage applications as well as demanding industrial applications. Complete with zinc plated pins and cotters for easy installation.

What's Included

  • (1) LION TH standard tie-rod cylinder
  • (1) Set of pins and clips

Features + Benefits

  • State-of-the-art sealing technology
  • Double-ported ORB O-ring ports
  • 3,000 PSI working pressure
  • 6,000 PSI proof load
  • Steel piston lock nut
  • Ductile iron piston
  • High-tensile steel tie-rods
  • Hard chromed cylinder shaft
  • Skive and burnished tube
  • 3/4in. 16 ORB port
  • High grade ductile iron rod cap and clevis caps
  • Threaded shaft
  • Heavy-duty ductile iron rod clevis
  • Ideal for single acting and double acting applications

Key Specs

AttributeSpecification

item#

24617

Brand

Lion Hydraulics

Manufacturer's Warranty

30 months Limited Warrany

Ship Weight

25.2 LB

Max. PSI

3,000
AttributeSpecification

Bore Diameter

3 in

Stroke Length

8 in

Shaft Diameter

1.25 in

Closed Pin Center

18.25 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. what size are eye pins

    1 answer

    1. The size of the pins are 1".

      Helpful?

  2. can i get parts for cylinder

    1 answer

    1. Parts for this cylinder are available through the manufacturer directly.

      Helpful?

  3. fitting size on hyd cyl #30-th08-125

    What is the thread size so I can match up with hoses?
    I know it is 0-ing female boss, but what thread size?

    1 answer

    1. The thread size is 3/4"-16 UN ORB.

      Helpful?

Warranty

Manufacturer's Warranty

30 months Limited Warrany
