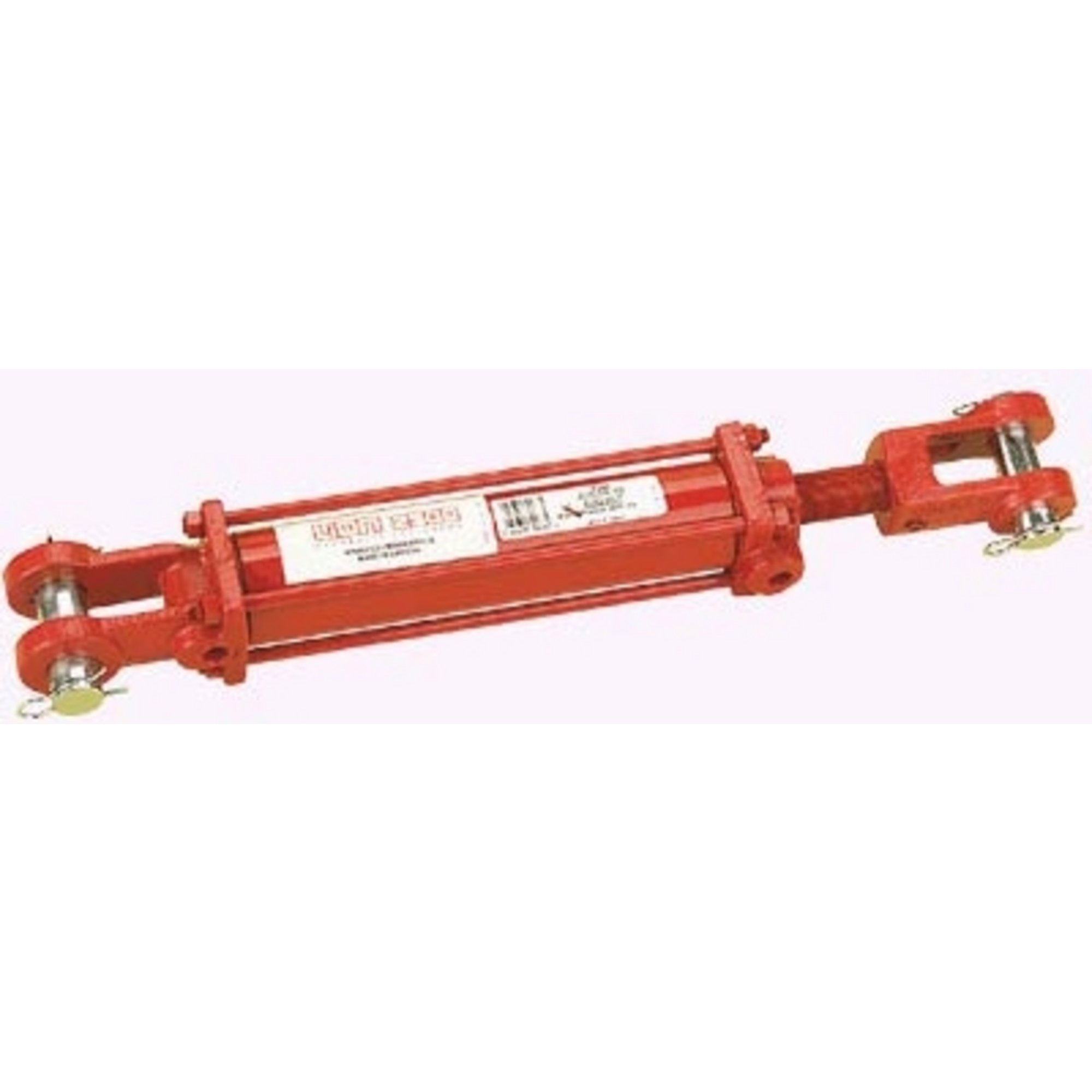

Lion Heavy-Duty Tie-Rod Cylinder — 2500 PSI, 4in.Bore, 24in.Stroke, 1 1/2in. Shaft, Model# 40TL24-150

Pins & Retainers:
All feature high-tensile steel, zinc plated, with hairpin retainers.

Ports:
Double-ported NPTF for greater assembly flexibility. Cylinders assembled with ports inline unless otherwise stated.

Piston Nut:
Heavy-duty, torqued, self-locking piston nut holds piston firm under high-cycle loading.

Piston:
Precision-machined, ductile iron provides a malleable bearing surface for extended life.

Piston Seal:
90 durometer O-ring with antiextrusion backup washers for positive piston sealing under high loads.

Tie-Rods:
High-tensile steel to prevent failure at high pressure.

Cylinder Shaft:
High strength, hard chrome-plated shaft provides extended cylinder life in harsh applications.

Tube:
Precision-finished skive and burnished heavy wall steel tubing for extended seal and cylinder life.

Tube Seal:
90 durometer O-ring with antiextrusion backup that prevents leakage under high pressure and cycle loading.

Rod Seal:
90 durometer O-ring with antiextrusion backup washer providing long-wearing, positive seal.

Rod Cap & Clevis Cap:
Ductile iron comes with drilled oil passages, offering increased bearing surface for high shock and side load applications.

Rod Wiper:
Metal-encased Nitrile, preventing contaminants from entering cylinder

Threaded Shaft (on ASAE Cylinders):
To accept optional mechanical stroke control on 8in. stroke ASAE cylinders only (not applicable to 5in. bore cylinders).

Rod Clevis:
Ductile iron comes with 360° thread contact area and positive set screw locking device, able to withstand continuous high loads without wear or fracture.
