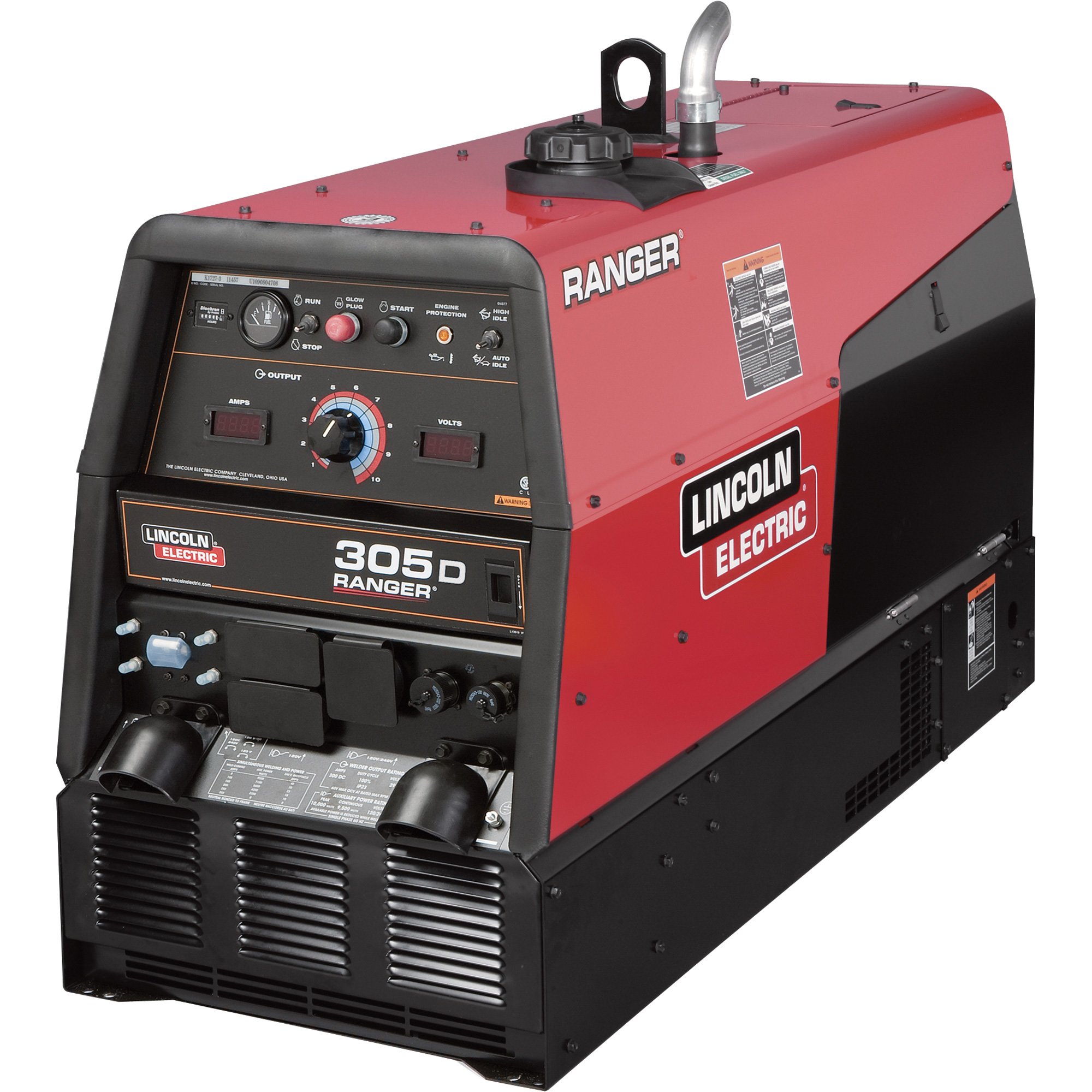

Lincoln Electric Ranger 305D Multi-Process Welder/Generator with 789CC Kubota Diesel Engine and Electric Start — 20–305 Amp DC Output, 10,000 Watt AC Power, Model# K1727-4

Item# 1647201
Lincoln Electric Ranger 305D Multi-Process Welder/Generator with 789CC Kubota Diesel Engine and Electric Start — 20–305 Amp DC Output, 10,000 Watt AC Power, Model# K1727-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Ranger 305D Multi-Process Welder/Generator with 789CC Kubota Diesel Engine and Electric Start — 20–305 Amp DC Output, 10,000 Watt AC Power, Model# K1727-4

Click or Tap image to Zoom

  • 18.8 HP, 789cc Kubota diesel engine with electric start
  • 10,000 Watts peak single-phase AC generator power, 9,500 Watts continuous for high capacity needs
  • Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging with up to 300 Amp output
  • Welds steel, stainless steel and cast iron
  • The only compact diesel welder in North America rated at 29V for 300 amps of stick or CV wire welding

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Lincoln Electric® Ranger® 305D Multi-Process Welder/Generator with Kubota is a powerful multi-process stick, TIG, wire and pipe welding engine-driven welder that is ready for all day, everyday performance. It includes Lincoln Electric Chopper Technology® for superior arc performance. This welder is Ready for a Workout!™

What's Included

    (1) Lincoln Electric Ranger 305D Multi-Process Welder/Generator with 789CC Kubota Diesel Engine and Electric Start, Model# K1727-4

Downloads

Product Manual Product Manual2

Features + Benefits

  • 18.8 HP, 789cc Kubota diesel engine with electric start
  • 10,000 Watts peak single-phase AC generator power, 9,500 Watts continuous for high capacity needs
  • Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging with up to 300 Amp output
  • Welds steel, stainless steel and cast iron
  • The only compact diesel welder in North America rated at 29V for 300 amps of stick or CV wire welding
  • CV wire welding with up to 5/64in. (2.0 mm) diameter electrodes
  • Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output
  • Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance
  • Use for lights, a grinder or other power tools
  • AC generator voltage is constant at 120V or 240V at any weld dial setting

Key Specs

AttributeSpecification

item#

1647201

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

510.0 LB
AttributeSpecification

Multi-process

Yes

Weldable Materials

Electrode, wire

Min. Amps

0

Clamp Cable Length

6 ft

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. What is the total harmonic distortion at full load

    1 answer

    1. The total harmonic distortion (THD) of this Ranger model is greater than 10% at a full load.

      Helpful?

  2. Does the 305D have enough power to operate the Easy mig 180 at max output?

    1 answer

    1. The easy MIG 180 requires a three prong plug (NEMA 6-50R). The plug on the generator is a NEMA 14-50R. An adapter kit model number K1816-1 is needed to convert the plug to be able to run the welder on this generator/welder.

      Helpful?

  3. Is this california carb compliant?

    1 answer

    1. This Lincoln Welder/Generator is California carb compliant.

      Helpful?

  4. Run time at 25% generator load, not welding.

    1 answer

    1. The run times for a full 12 gallon tank are rated at the following: 3000 Watts (17.03 hours), 7000 Watts (12.5 hours), and 9500 Watts (10.37 hours).

      Helpful?

  5. Is the diesel engine on this machine liquid or air cooled?

    1 answer

    1. The engine on this welder is liquid cooled.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

3 year limited warranty
