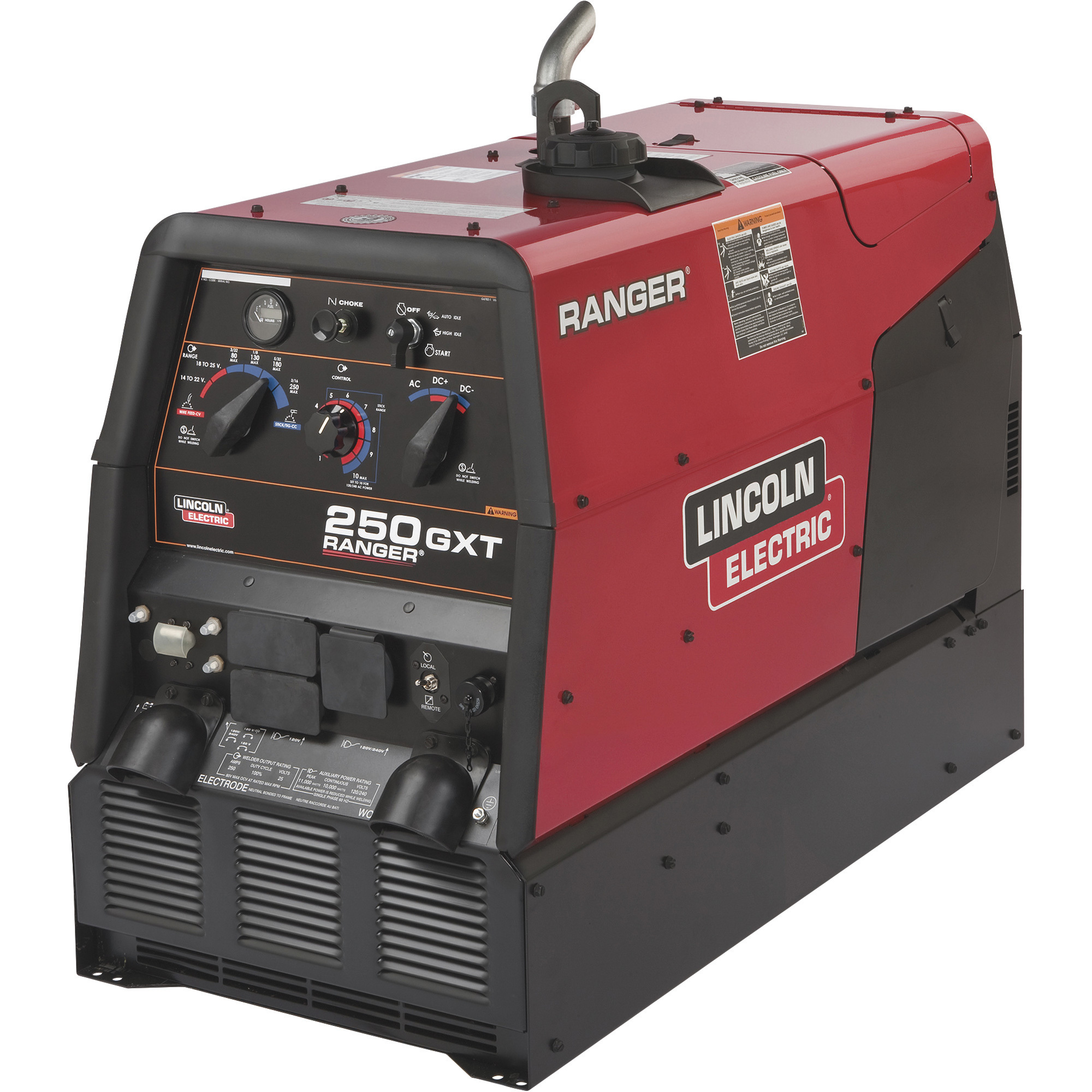

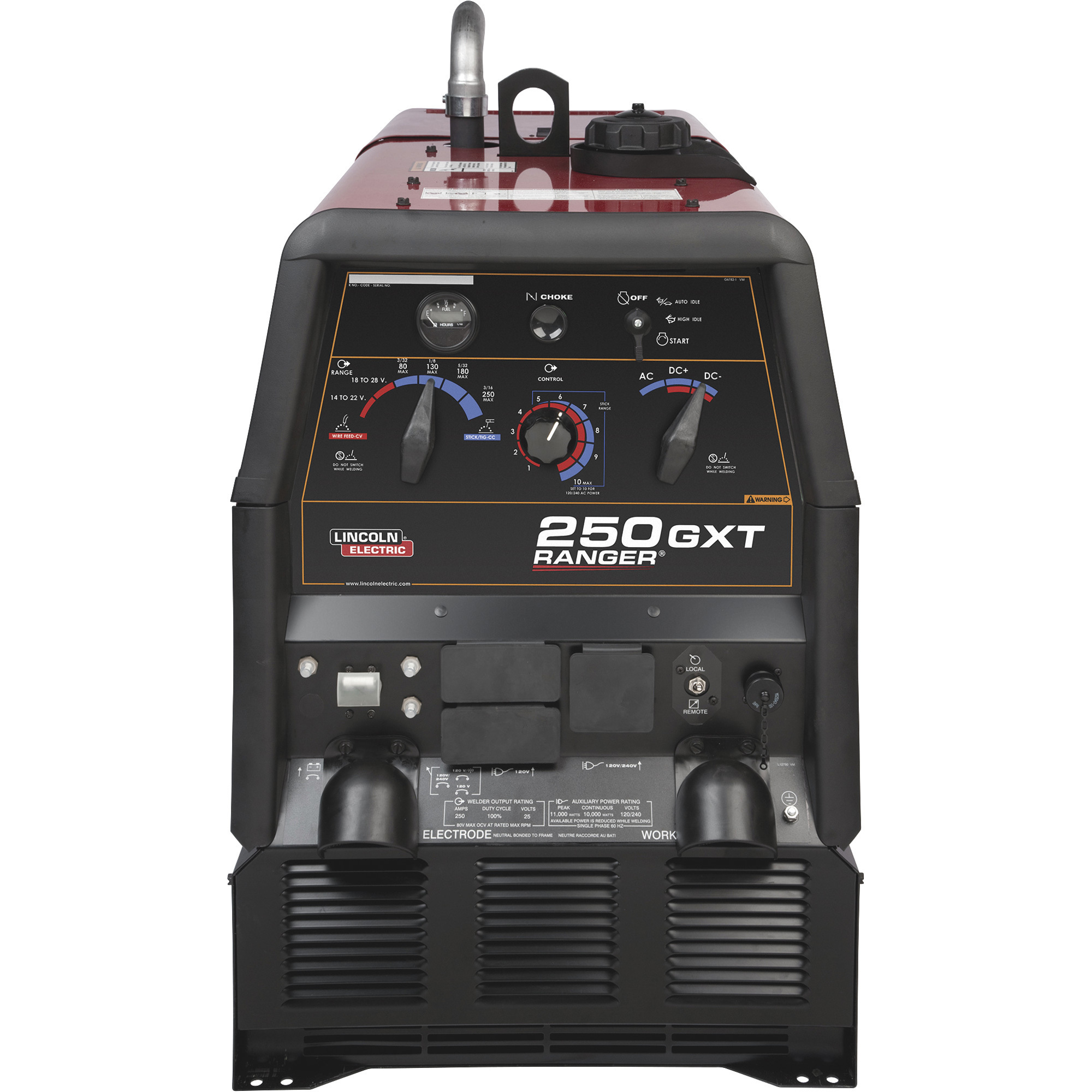

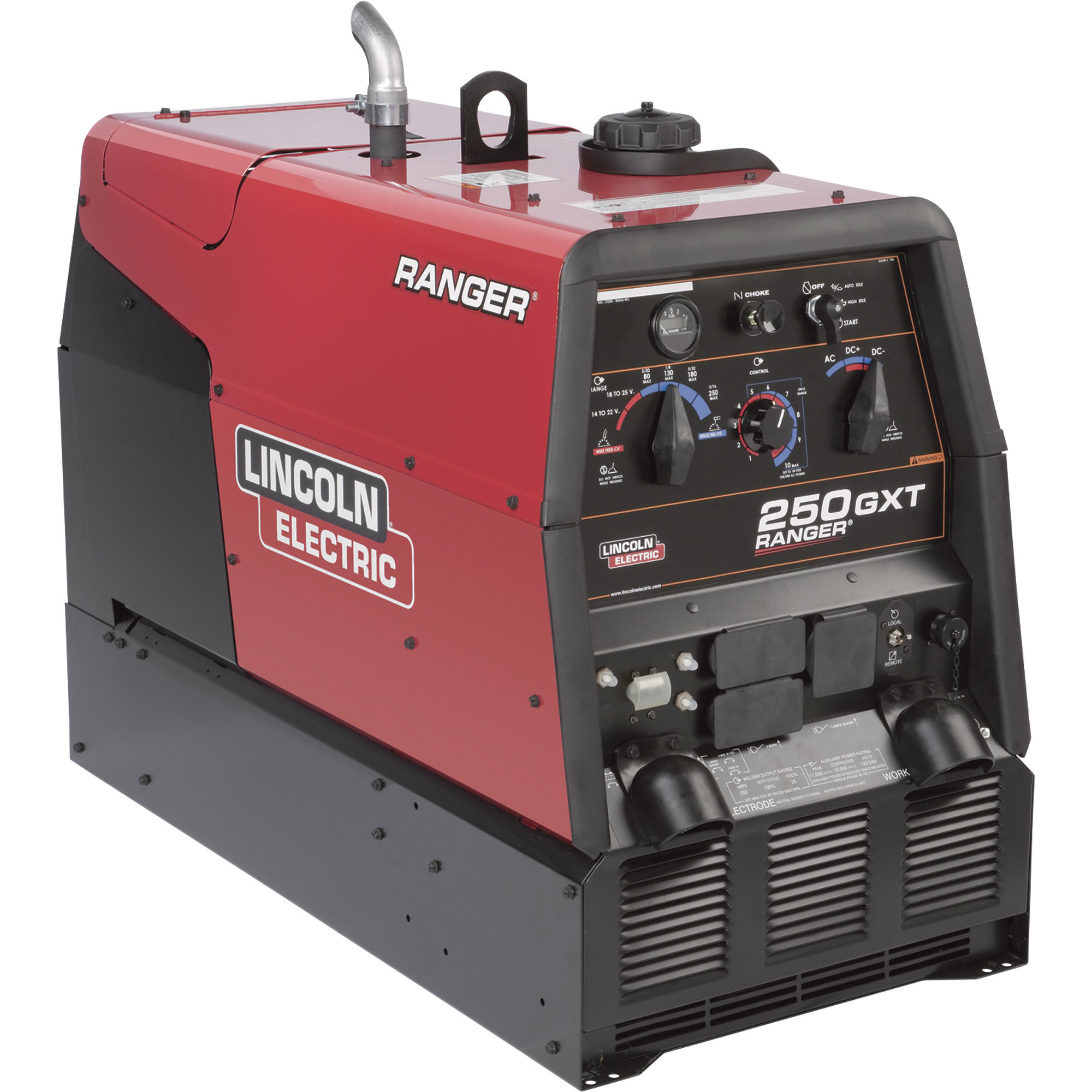

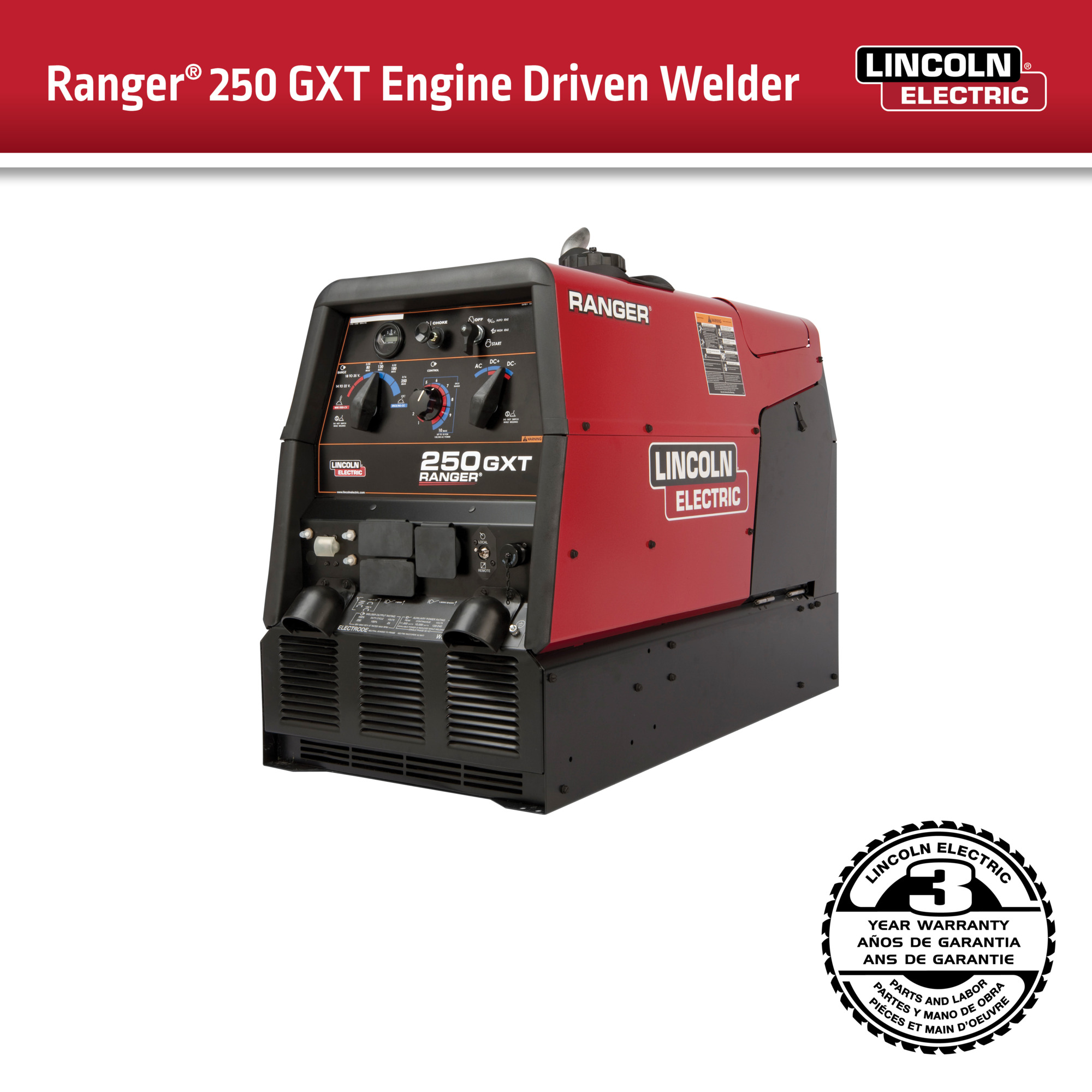

Lincoln Electric Ranger 250 GXT Welder/Generator with 624CC Kohler Gas Engine and Electric Start, 50-250 Amp DC/AC Output, 10,000 Watt AC Power, Model# K2382-4

Item# 1647200
Lincoln Electric Ranger 250 GXT Multi-Process Welder/Generator with 624CC Kohler Gas Engine and Electric Start — 50–250 Amp DC/AC Output, 10,000 Watt AC Power, Model# K2382-4
Lincoln Electric Ranger 250 GXT Welder/Generator with 624CC Kohler Gas Engine and Electric Start, 50-250 Amp DC/AC Output, 10,000 Watt AC Power, Model# K2382-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Ranger 250 GXT Welder/Generator with 624CC Kohler Gas Engine and Electric Start, 50-250 Amp DC/AC Output, 10,000 Watt AC Power, Model# K2382-4

Click or Tap image to Zoom

  • Kohler OHV Command engine with electric start
  • 10,000 watts continuous power for generator, plasma cutter or inverter welder, 11,000 surge watts
  • AC/DC welding output for a broad range of stick electrode types
  • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding
  • MIG and flux-cored capable (with optional equipment)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Lincoln Electric Ranger 250 GXT Welder/Generator with 624CC Kohler Gas Engine and Electric Start is loaded with features. The Ranger GXT has all of the Xtras you need for construction and maintenance work. This Ranger delivers XTra welding performance with 250 amps for AC or DC stick and wire welding. And, it is remote-ready for extended amperage control or AC TIG welding on aluminum with Lincoln's optional TIG module. The GXT generates XTra power, up to 11,000 watts peak, for lights, grinders and high amperage equipment such as Lincolns Pro-Cut 55 plasma cutter.

What's Included

    (1) Lincoln Electric Ranger 250 GXT Welder, Model# K2382-4

Downloads

Product Manual

Features + Benefits

  • Kohler OHV Command engine with electric start
  • 10,000 watts continuous power for generator, plasma cutter or inverter welder, 11,000 surge watts
  • AC/DC welding output for a broad range of stick electrode types
  • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding
  • MIG and flux-cored capable (with optional equipment)
  • Rated 125 Volt/250 Amp for AC, DC and CV
  • 50-250 Amp output
  • Duty Cycle: rated at 100% @ 250A, 25V
  • 6-pin connector and local/remote switch for remote control, so unit is remote ready
  • Peak for motor starting
  • Includes electric fuel pump, which helps prevent vapor lock
  • Includes oil drain extension for easy oil changes
  • Includes 12 gallon fuel tank for extended run times
  • Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling
  • Totally enclosed case, which ensures engine is fully protected
  • Use as an AC generator for high-capacity needs such as backup generator, powering welders as well as lights and other power tools
  • Low noise unit: 76.4 dBA sound level at 23ft. (7 m), 100.7 dB sound power (Lwa) at rated output
  • Painted roof, case sides and engine doors

Key Specs

AttributeSpecification

item#

1647200

Brand

Lincoln Electric

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

615.0 LB

Volts

Multi
AttributeSpecification

Power Type

AC

Max. Weld Thickness

1 in

Duty Cycle

100% At 250a

Min. Amps

50

Reviews

Questions & Answers

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

36 months parts/36months labor
