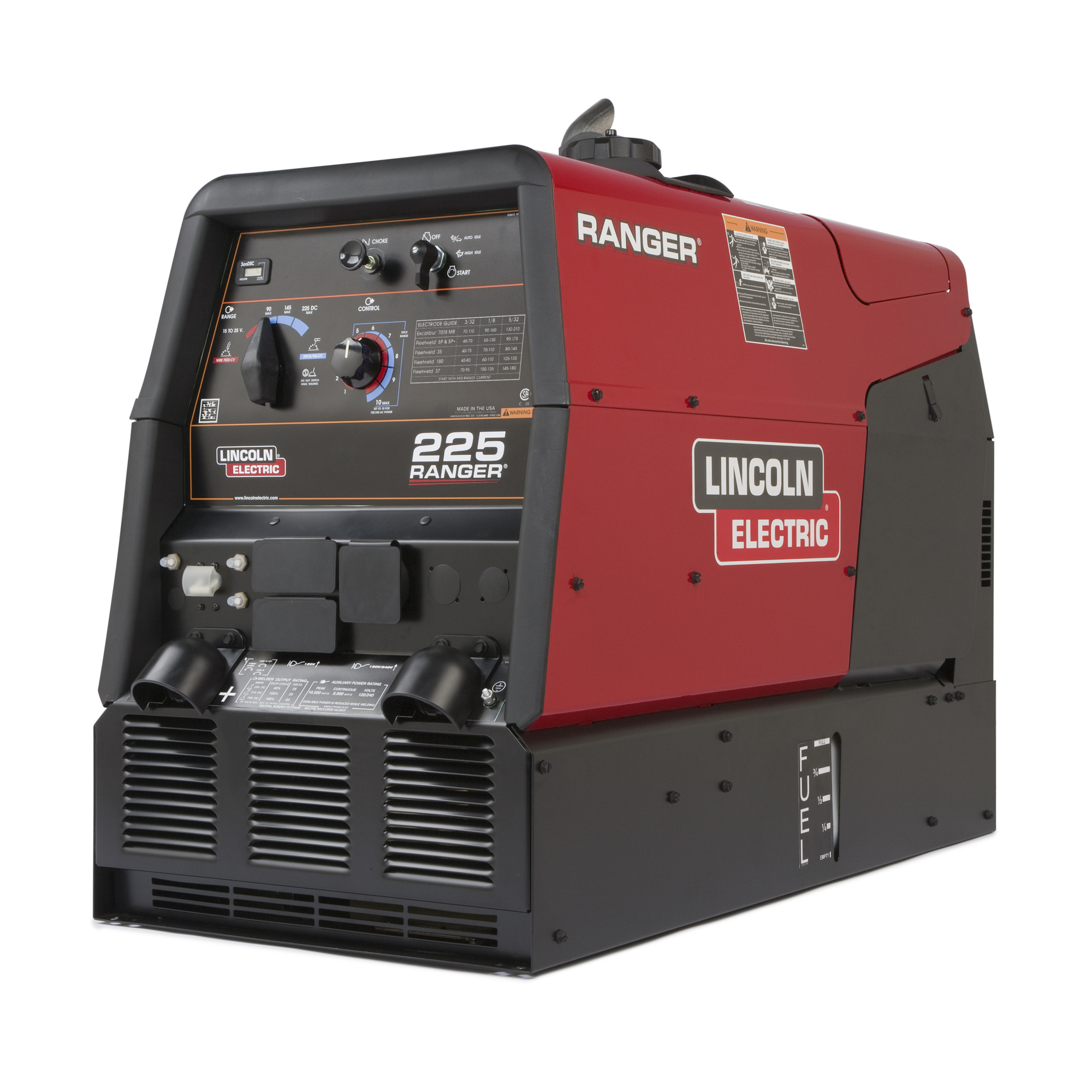

Lincoln Electric Ranger® 225 Engine Driven Welder (Kohler® Engine), K2857-1

Item# 7304701
New
Lincoln Electric Ranger® 225 Engine Driven Welder (Kohler® Engine), K2857-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Ranger® 225 Engine Driven Welder (Kohler® Engine), K2857-1

Click or Tap image to Zoom

$6929.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Totally Enclosed Case · Engine is fully protected. · 3 service access doors. · Low noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • Versatile DC Welding · Smooth DC welding output for a broad range of stick electrode types. · MIG, flux-cored and TIG capable (with optional equipment).
  • 10,500 Watts Peak Single-Phase AC Generator Power · 9,000 watts continuous power for generator output, plasma cutter or inverter welder. · Power-up lights, grinder, and power tools.
  • 23 HP Kohler® Gasoline Engine · 2 cylinder, 4 cycle overhead valve air-cooled design. · Oil drain extension for easy oil changes. · 12 gallon tank for extended run times. · Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
  • Rugged Reliability · Welding and AC generator outputs rated at 104ºF (40ºC).

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ranger 225 is a multi-process, engine-driven welder designed for a variety of processes - stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time. · Totally enclosed case protects the engine and limits noise · Smooth DC welding output · 10,500 Watts AC generator power

What's Included

    (1) Ranger 225 Engine Driven Welder

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally Enclosed Case · Engine is fully protected. · 3 service access doors. · Low noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • Versatile DC Welding · Smooth DC welding output for a broad range of stick electrode types. · MIG, flux-cored and TIG capable (with optional equipment).
  • 10,500 Watts Peak Single-Phase AC Generator Power · 9,000 watts continuous power for generator output, plasma cutter or inverter welder. · Power-up lights, grinder, and power tools.
  • 23 HP Kohler® Gasoline Engine · 2 cylinder, 4 cycle overhead valve air-cooled design. · Oil drain extension for easy oil changes. · 12 gallon tank for extended run times. · Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
  • Rugged Reliability · Welding and AC generator outputs rated at 104ºF (40ºC).

Key Specs

AttributeSpecification

item#

7304701

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

571.5 LB

Welding Processes

Stick Only

Duty Cycle

100%

Fuel Type

Gasoline

Fuel Capacity

12 Gal

Engine Type

4 Cycle

Engine Brand

Kohler

Engine Displacement

725 cc

Electric Start

Yes
AttributeSpecification

Generator Power Output Type

DC

Welding Power Output Type

DC

Hour Meter Included

Yes

Receptacles Included

Yes

120V Receptacles Included

5

240V Receptacles Included

1

GFCI Protection

No

Welding Cables Included

No

Generator Output (Continuous Watts)

9,000

Generator Output (Surge Watts)

10,500

Product Weight

571.5000 lb

Dimensions L x W x H (in.)

23.0 x 46.0 x 39.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
