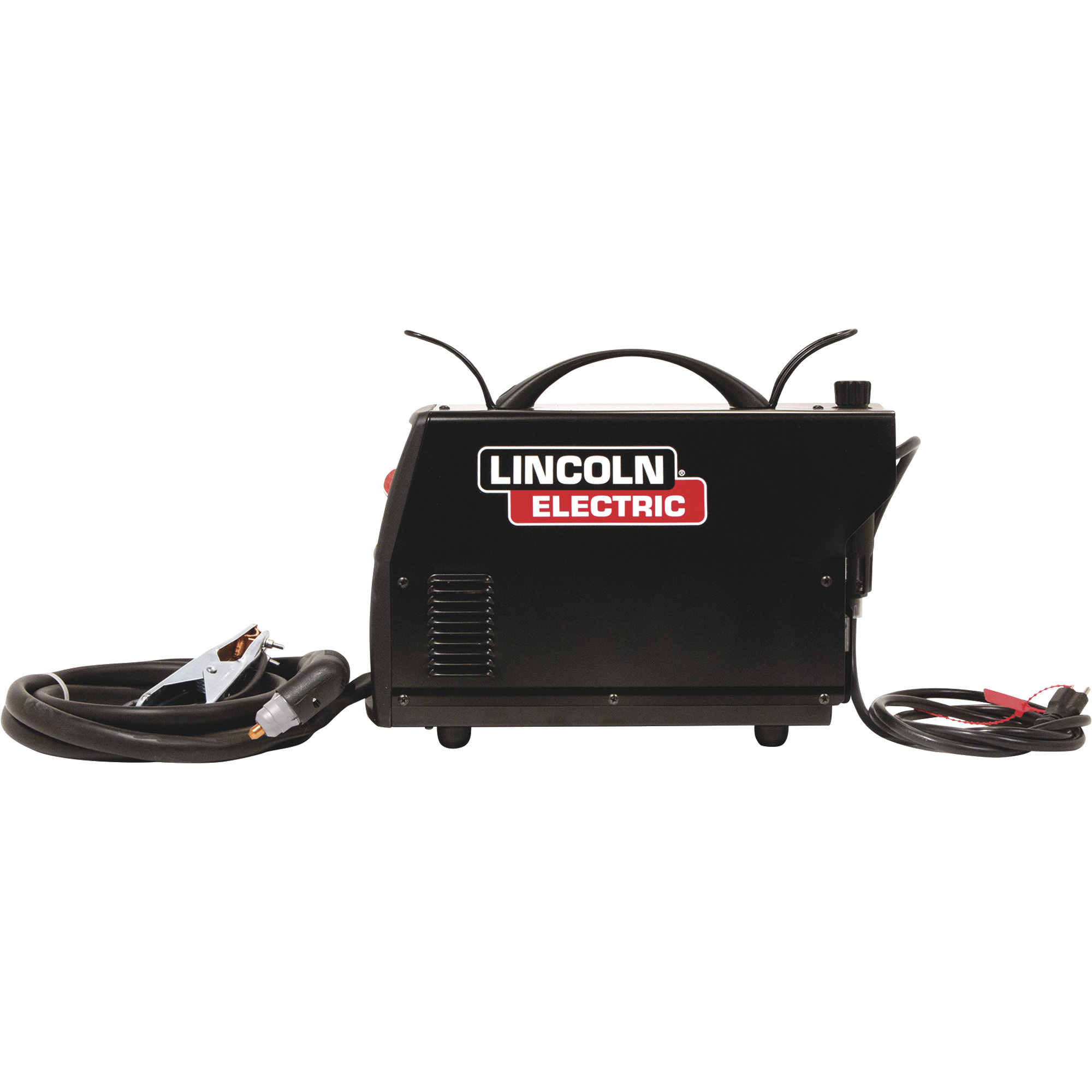

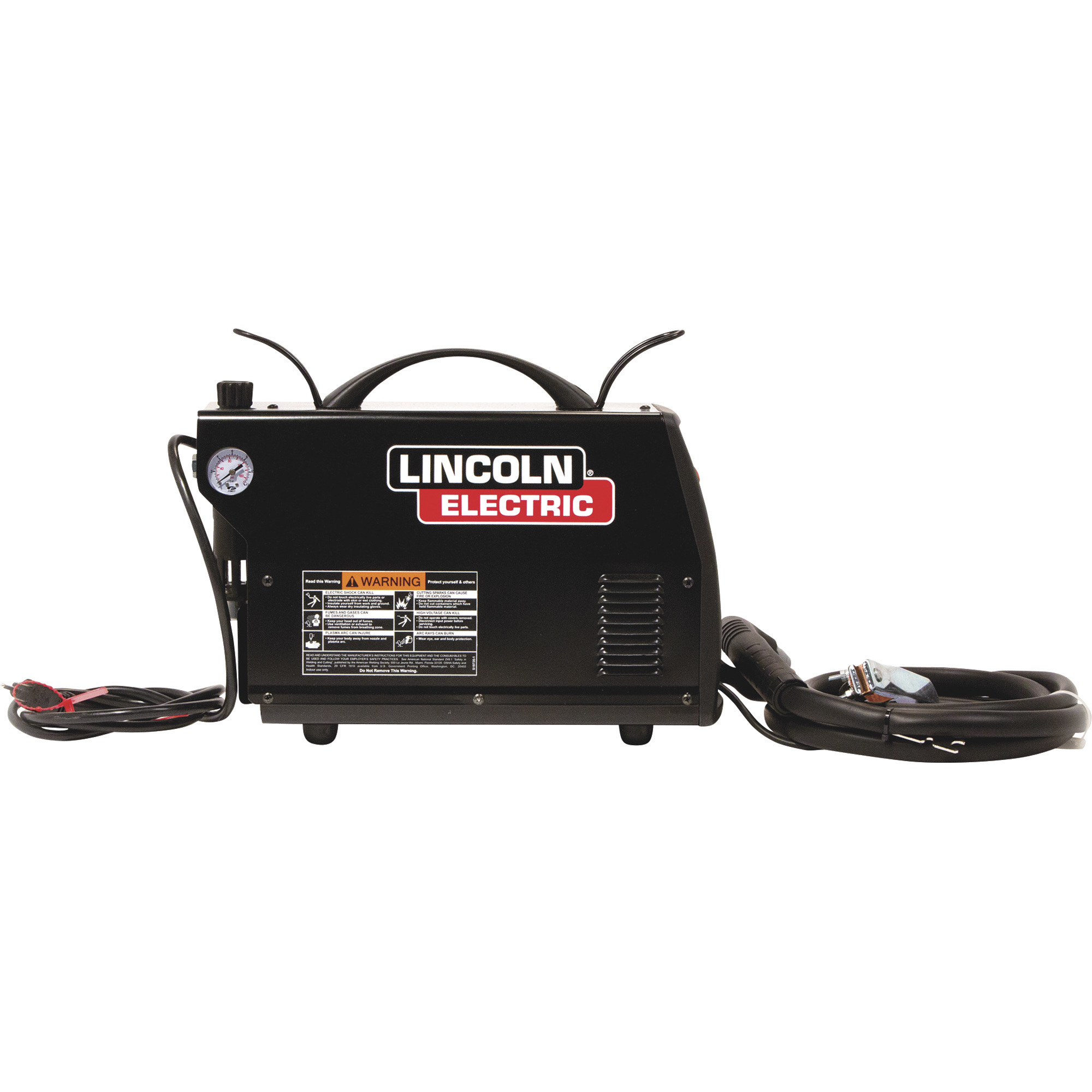

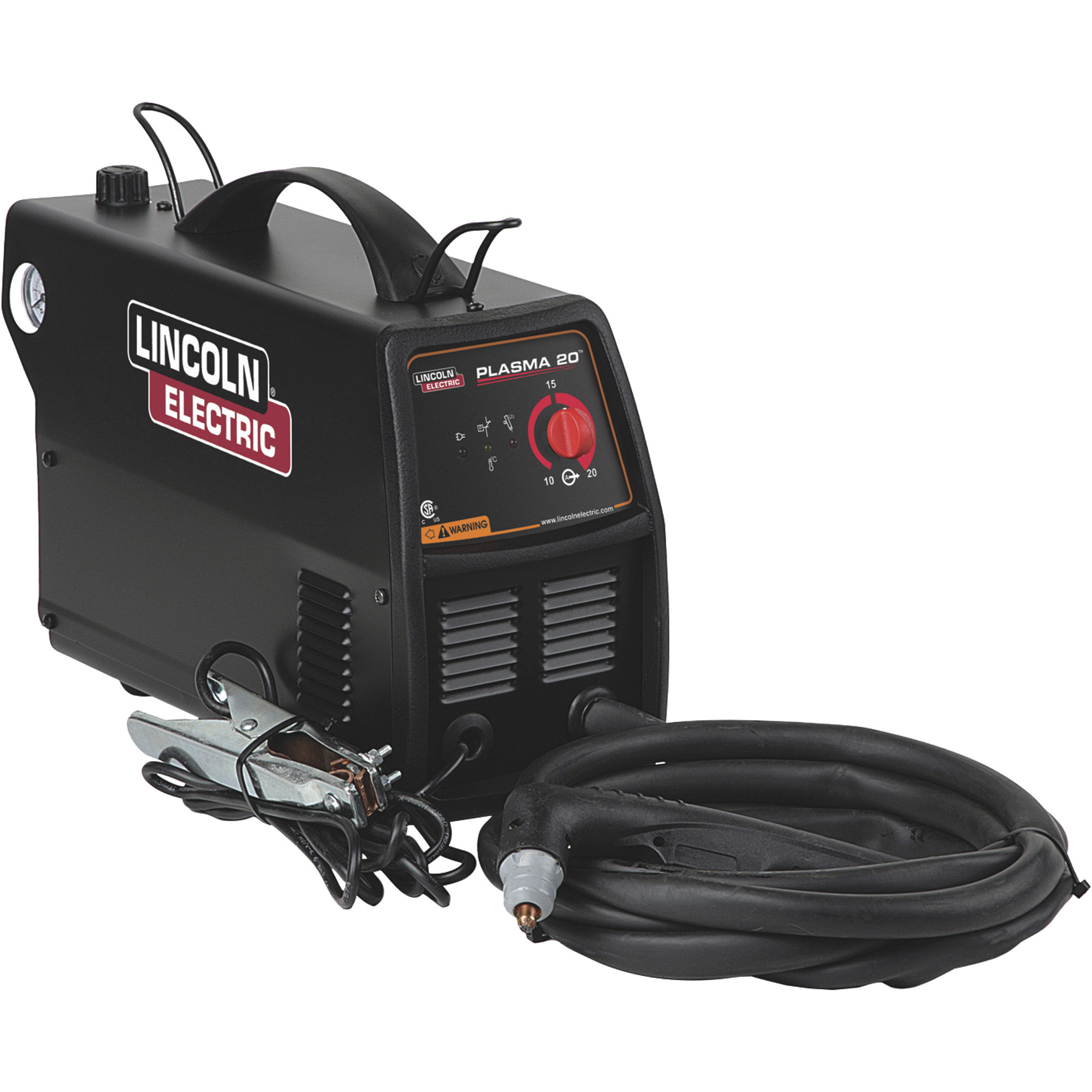

Lincoln Electric Plasma 20 Plasma Cutter, Inverter, 115V, 10-20 Amp Output, Model# K2820-1

Item# 167789
Lincoln Electric Plasma 20 Plasma Cutter, Inverter, 115V, 10-20 Amp Output, Model# K2820-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Plasma 20 Plasma Cutter, Inverter, 115V, 10-20 Amp Output, Model# K2820-1

Click or Tap image to Zoom

  • 115 Volt inverter plasma cutter
  • Recommended for cutting sheet metal to 1/8in. material with a maximum capacity of 1/4in.
  • Includes cutting torch assembly with 9 1/2-ft. reach
  • Duty Cycle: 40% @ 20 Amps
  • Uses standard compressed air, requiring 3.5 CFM @ 65 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Lincoln Electric Plasma 20 Plasma Cutter provides professional-grade results in a lightweight, portable plasma cutting system that can be carried anywhere with little effort. It can cut materials up to 1/4in. and operates on standard 115V household power. It is an ideal choice for the farm, HVAC, auto body shop, contractor, sheet metal fabricator or homeowner -- anyone who needs to cut metal.

What's Included

    (1) Lincoln Electric Plasma 20 Plasma Cutter, Model# K2820-1

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 115 Volt inverter plasma cutter
  • Recommended for cutting sheet metal to 1/8in. material with a maximum capacity of 1/4in.
  • Includes cutting torch assembly with 9 1/2-ft. reach
  • Duty Cycle: 40% @ 20 Amps
  • Uses standard compressed air, requiring 3.5 CFM @ 65 PSI
  • Built-in air pressure regulator
  • Saddle hooks for convenient storage

Key Specs

AttributeSpecification

item#

167789

Brand

Lincoln Electric

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

20.0 LB

Volts

115

Amps

20

Cutting Thickness

0 in

Sever Thickness

0 in

Clamp Cable Length

0.79 in
AttributeSpecification

Plasma Gas Flow

3.5 cfm

Max. PSI

65

Duty Cycle

40% At 20a

Power Cord Length

8 ft

Pilot Arc

Yes

Compressor Included

No

Cart Included

No

Product Weight

lb

Dimensions L x W x H (in.)

16.0 x 6.5 x 12.5 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. can I run this off of an engine driven welder ex. lincoln outback 5200K?

    1 answer

    1. This will work with a generator/welder such as the Lincoln 5200 watt unit.

      Helpful?

  2. Where is this Plasma Cutter MADE??

    1 answer

    1. This Lincoln Electric Plasma Cutter is manufactured in Italy.

      Helpful?

  3. What is the minimum size (in gallons) needed to work with this cutter?Thank you

    1 answer

    1. The gallon size of the compressor is not of importance as long as the compressor can put out 3.5 CFM at 65 PSI. Our 8 gallon compressor #305170 would be able to give you the CFM requirement to operate the plasma cutter.

      Helpful?

  4. Is an air dryer needed?

    I've heard that an air dryer is needed for any plasma cutter, is that true? We have one at work without an air dryer and its used a lot over the last year and seems to be fine.

    1 answer

    1. An air dyer is not required. This unit has a built in water trap to help keep out moisture. If you are in a location where high moisture would be a problem then an air dryer would be an asset.

      Helpful?
