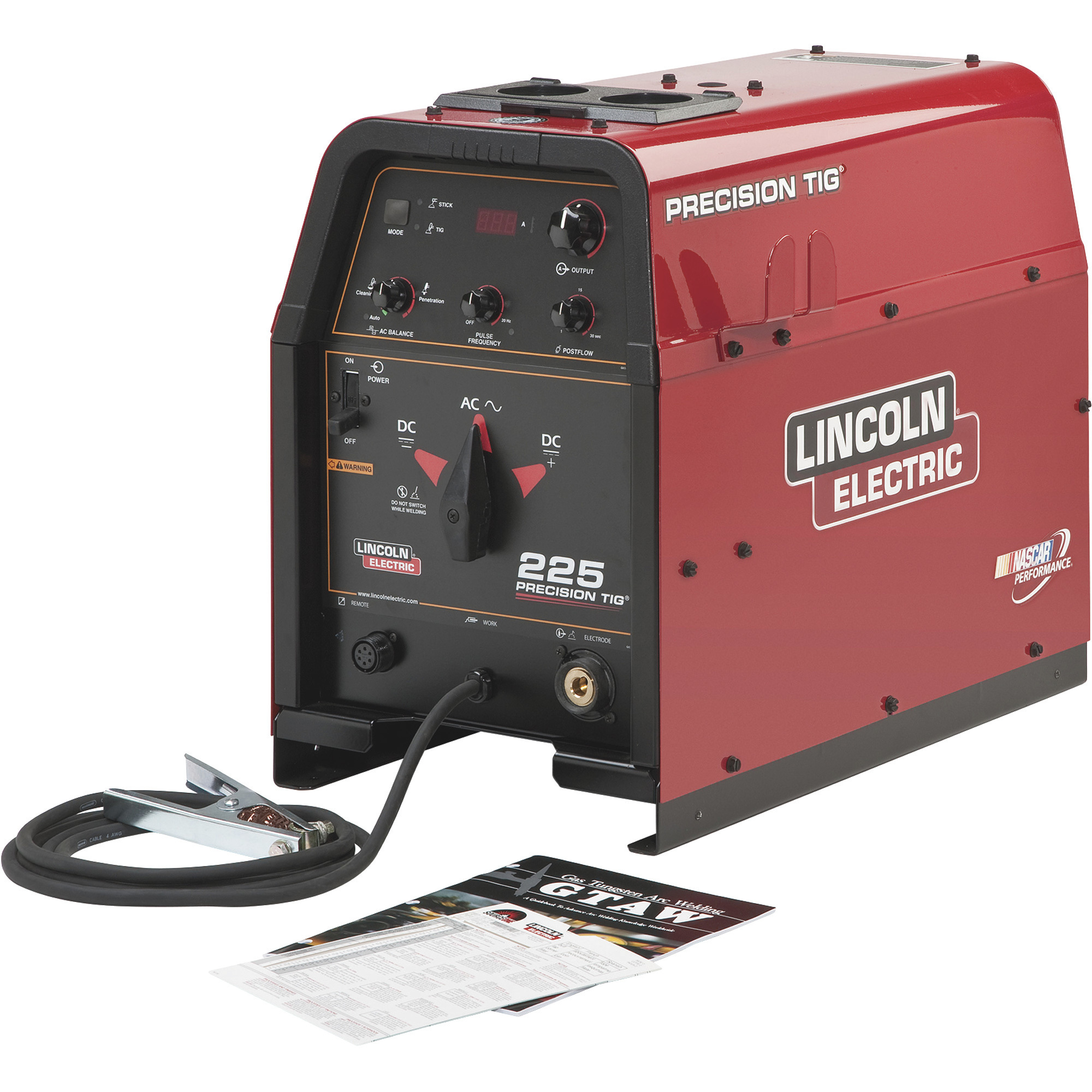

Lincoln Electric, LN PT 225 460/575/1/60 Volts Multi, Max. Amps 230 Model# K2533-2

Item# 99363
Lincoln Electric, LN PT 225 460/575/1/60 Volts Multi, Max. Amps 230 Model# K2533-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric, LN PT 225 460/575/1/60 Volts Multi, Max. Amps 230 Model# K2533-2

Click or Tap image to Zoom

  • This superior TIG welder also offers outstanding stick welding capabilities, including the use of up to 5/32in. (4.0 mm) electrodes
  • Simple-to-use, easy to customize design features an intuitive operator interface with select mode, polarity and begin welding settings
  • Patented Micro-Start™ II technology offers enhanced starting, optimal arc stability, and precise welds and crater fills
  • AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration when welding aluminum
  • Adjust for any situation: cleaning, penetration and pulse

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Lincoln Electric® Precision TIG® 225 Welder offers the widest operating range in its class -- 5 to 230 amps. The welder features patented Micro-Start II technology that lets you experience enhanced starting and optimal arc stability, while accomplishing more precise welds and crater fills. 115V receptacles enable you to power a water cooler or other power tools. An ideal choice for small auto and fabrication shops and vocational training schools.

What's Included

    (1) PRECISION TIG(r) 225 TIG WELDER (1) Torch parts storage compartment (1) Torch Hanger (1) 10ft. (3.0 m) work cable and clamp (1) Removable lift eye (1) 9ft. (2.7 m) input power cord (1) NEMA 6-50R receptacle (1) TIG procedure guide GTAW (TIG) handbook

Downloads

Product Manual

Features + Benefits

  • This superior TIG welder also offers outstanding stick welding capabilities, including the use of up to 5/32in. (4.0 mm) electrodes
  • Simple-to-use, easy to customize design features an intuitive operator interface with select mode, polarity and begin welding settings
  • Patented Micro-Start™ II technology offers enhanced starting, optimal arc stability, and precise welds and crater fills
  • AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration when welding aluminum
  • Adjust for any situation: cleaning, penetration and pulse
  • Bypass AC Auto Balance and adjust manually for full control when welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers
  • Enable the TIG pulser feature to minimize material distortion from excessive heat input
  • TIG pulser can also help moderate filler metal deposition for consistent bead appearance.

Key Specs

AttributeSpecification

item#

99363

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

202.0 LB

Volts

Multi

Max. Amps

230

Duty Cycle

60% At 110a; 40% At 130a

Weldable Materials

Stainless Steel
AttributeSpecification

Min. Amps

5

Power Cord Length

9 ft

Clamp Cable Length

10 ft

Electrode Cable Length

8.5 ft

Regulator and Gas Hose Included

No

Shielding Gas Required

No

Product Weight

202.0000 lb

Dimensions L x W x H (in.)

32.88 x 16.25 x 25.81 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
