Lincoln Electric Easy Core 125 Flux-Cored/MIG Welder with Spool Gun — 120V, 30–125 Amp Output, Model# K2696-1

Name: Lincoln Electric Easy Core 125 Flux-Cored/MIG Welder with Spool Gun — 120V, 30–125 Amp Output, Model# K2696-1
Brand: Lincoln Electric
SKU: 99347

Item# 99347

Click or Tap image to Zoom

This item is no longer available.

Capable performance with a forgiving arc makes dialing in your application easy
Smooth arc starts with minimal spatter
30-125 Amp welding output range is ideal for performing many tasks
Weld up to 5/16in. thick (7.9 mm) steel using self-shielded Lincoln Electric® Innershield® (FCAW-S) wires (sold separately)
Heavy-duty wire drive fully adjustable drive system reduces the chance of wire tangling and crushing

See full description

Product Summary

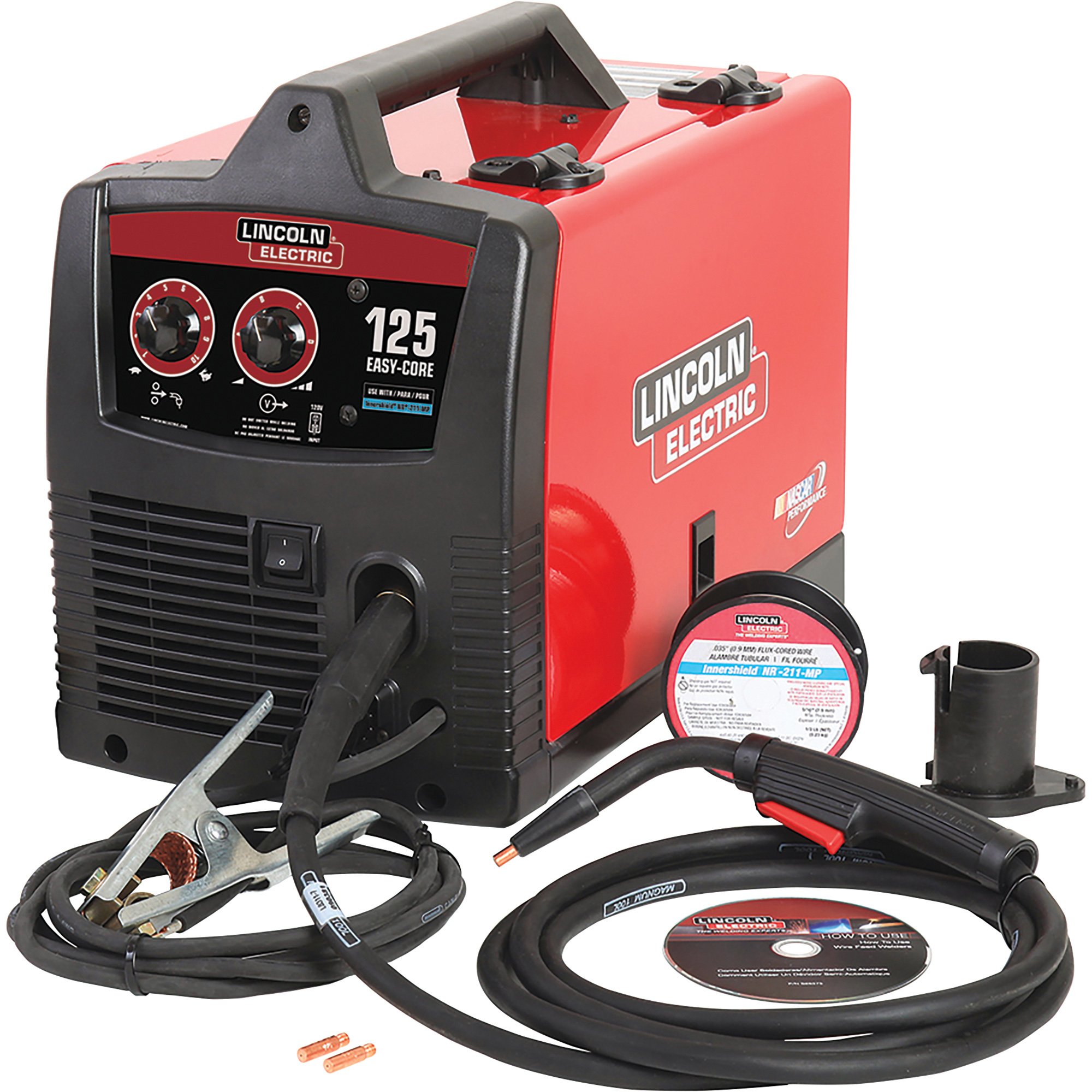

The Lincoln Electric® Easy Core™ 125 Flux-Cored/MIG Welder with Spool Gun is set up for self-shielded flux-cored wire welding right out of the box. It's the perfect choice for common steel welding, indoors or out. Plug the welder in anywhere common 120 volt input power is available.

What's Included

(1) Lincoln Electric Easy Core 125 Flux-Cored/MIG Welder, Model# K2696-1, (1) 10ft. Magnum® 100L spool gun, (1) 15ft. clamp cable assembly with brass gun connection and 4-pin MS-type connection for trigger control, (3) 0.035in. (0.9mm) contact tips, (1) Gasless nozzle for Innershield® welding, (1) Wire spindle adapter for 8in. (203 mm) diameter spools, (1) 0.025 -0.035 in. (0.6-0.9mm) wire diameter dual track drive roll for flux-cored welding, (1) Welding wire sample spool of 0.035in. (0.9 mm) dia. Innershield® flux-cored wire, (1) Work clamp, (1) 10 ft. (3.0 m) cable

Downloads

Product Manual

Features + Benefits

Capable performance with a forgiving arc makes dialing in your application easy
Smooth arc starts with minimal spatter
30-125 Amp welding output range is ideal for performing many tasks
Weld up to 5/16in. thick (7.9 mm) steel using self-shielded Lincoln Electric® Innershield® (FCAW-S) wires (sold separately)
Heavy-duty wire drive fully adjustable drive system reduces the chance of wire tangling and crushing
Brass-to-brass gun connection enhances conductivity
Durable cast aluminum gear box delivers added drive torque and quiet operation
Easy-turn numeric drive tension indicator identifies optimized ranges for different wire diameters
120 Volt operation

Key Specs

Attribute	Specification
item#	99347
Brand	Lincoln Electric
Manufacturer's Warranty	3 year limited warranty
Ship Weight	70.0 LB
Volts	120
Max. Amps	125
Multi-process	Yes
Welding Processes	Flux-Core, MIG
Max. Welding Wire Diameter	0.035 in
Duty Cycle	20% at 90A
Weldable Materials	Most metals

Attribute	Specification
Min. Amps	30
Wire Feed Speed Control	Yes
Cart Included	No
Mig Ready	Yes
Power Cord Length	8.5 ft
Clamp Cable Length	15 ft
Regulator and Gas Hose Included	No
Shielding Gas Required	No
Product Weight	70 lb
Dimensions L x W x H (in.)	20 x 15 x 16 in
