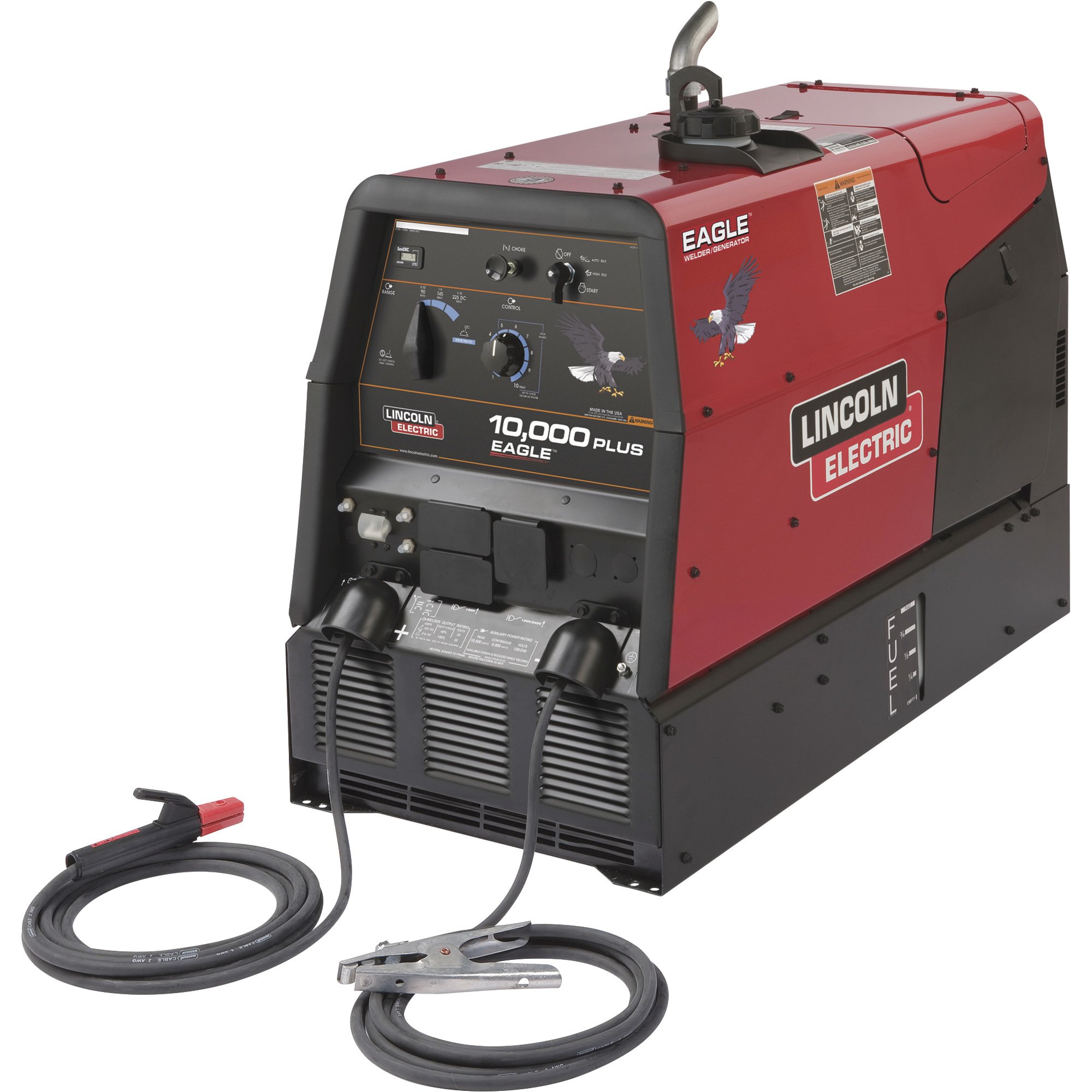

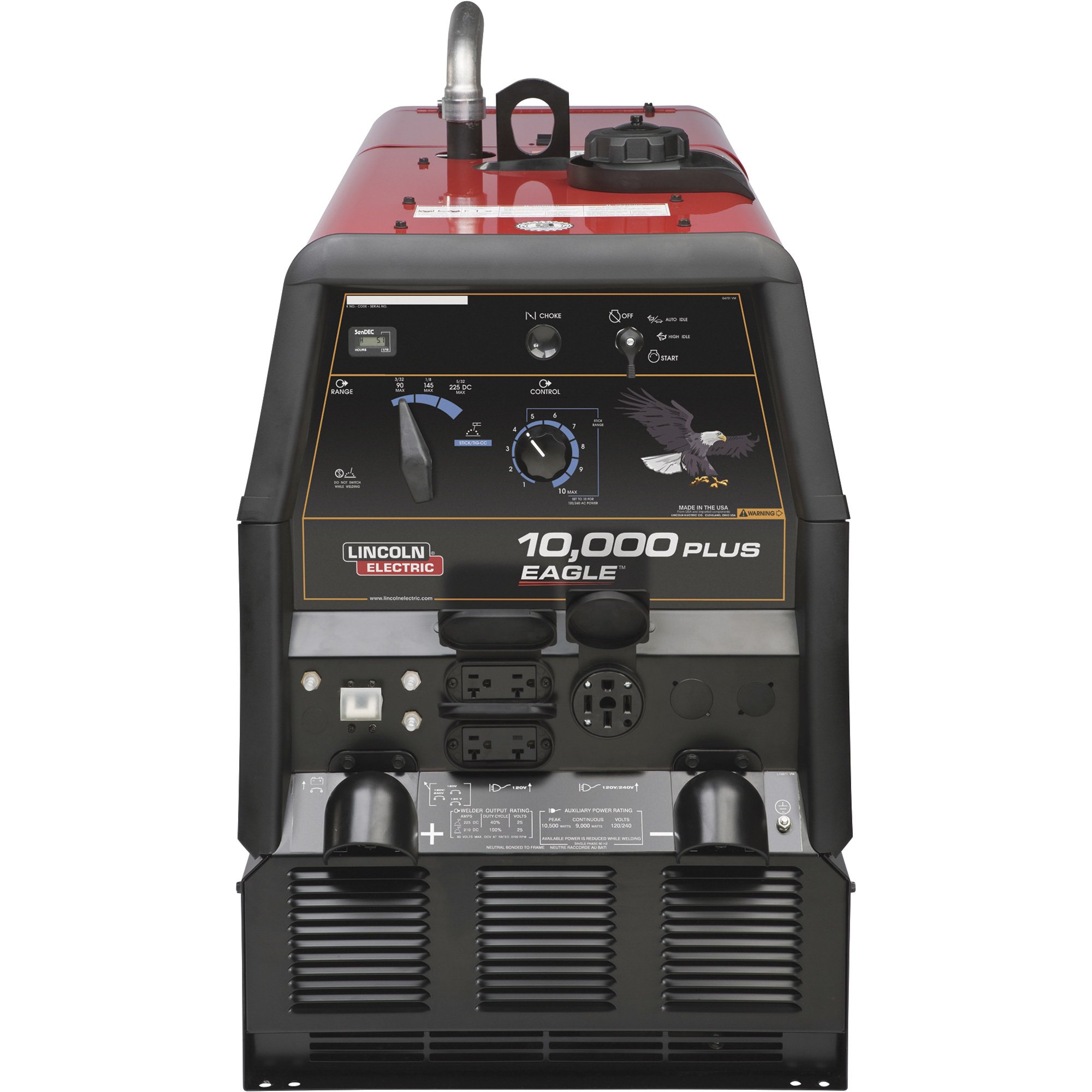

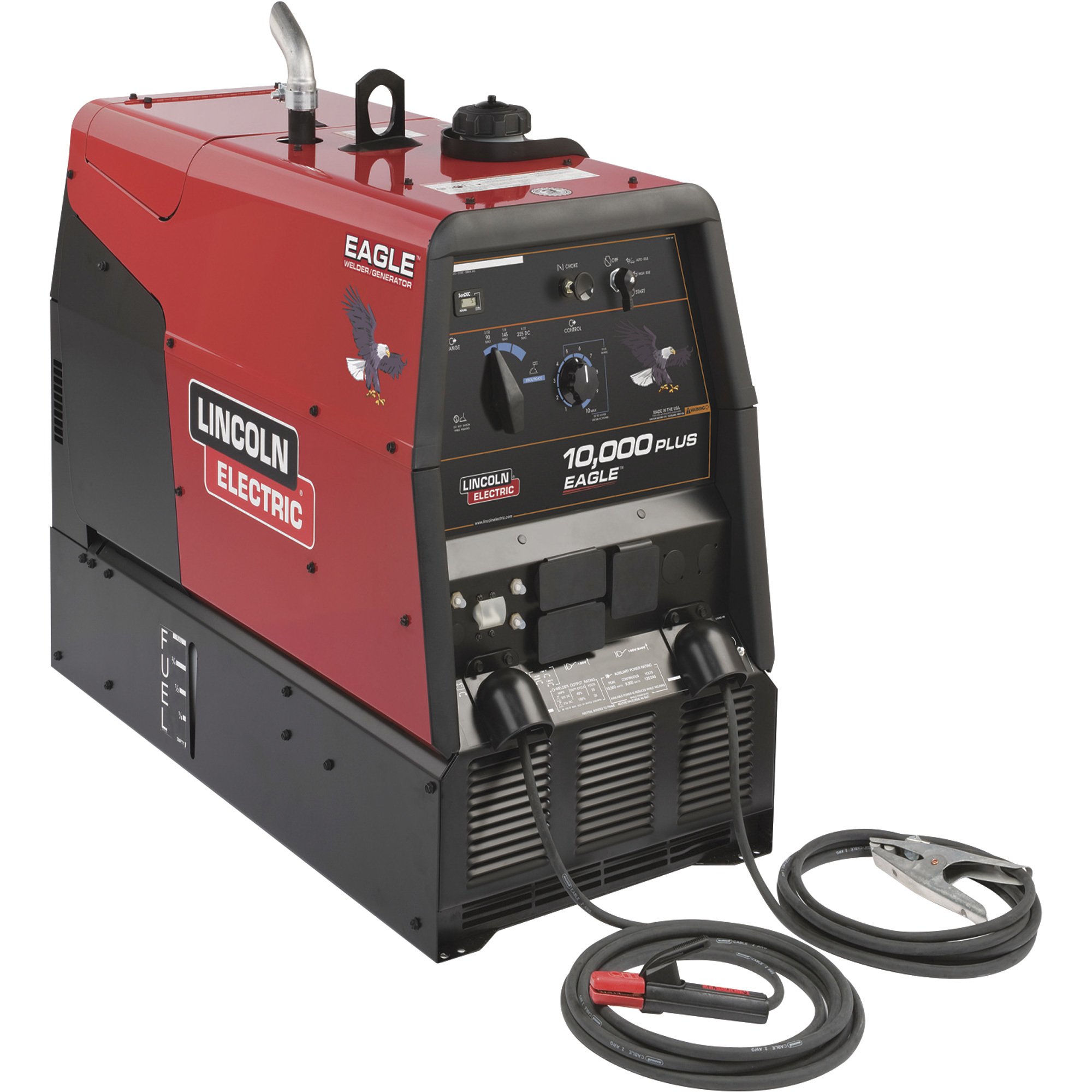

Lincoln Electric Eagle 10,000 Plus Multi-Process Welder/Generator with 674CC Kohler Gas Engine and Electric Start — 50–225 Amp DC Output, 9,000 Watt AC Power, Model# K2343-3

Item# 164593
Lincoln Electric Eagle 10,000 Plus Multi-Process Welder/Generator with 674CC Kohler Gas Engine and Electric Start — 50–225 Amp DC Output, 9,000 Watt AC Power, Model# K2343-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Eagle 10,000 Plus Multi-Process Welder/Generator with 674CC Kohler Gas Engine and Electric Start — 50–225 Amp DC Output, 9,000 Watt AC Power, Model# K2343-3

Click or Tap image to Zoom

  • 674cc, 23 HP CH23S Kohler® Command® Gasoline Engine with 2 cylinder, 4 cycle overhead valve air-cooled design
  • Electric Start Switch for easy starts - switch combines OFF, START, and IDLER functions into one simple, compact, easy-to-use switch
  • 10,500 Watts surge single-phase AC generator power is the most surge power in its class with 9,000 watts continuous power for generator, plasma cutter or inverter welder
  • MIG, flux-cored and basic TIG welding in constant current mode (with optional equipment)
  • DC Welding accessories included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

A Lincoln Electric Eagle™ 10,000 Plus Multi-Process Welder/Generator with Kohler Engine can help make work fly! It's a great choice for construction contractors, maintenance crews, farmers or ranchers, helping them get the job done. The Eagle 10,000 Plus does a variety of basic welding jobs and with 10,500 watts of surge AC generator power, it handles a variety of other jobs as well, including: lights, grinder, plasma cutter (separate air supply needed) or emergency power.

What's Included

    (1) Lincoln Electric Eagle 10,000 Plus Multi-Process Welder/Generator with 674CC Kohler Gas Engine and Electric Start, (1) 20 ft. (6.0 m) of #2 electrode cable, (1) electrode holder, (1) 15 ft. (4.5 m) of #2 work cable and work clamp

Downloads

Product Manual

Features + Benefits

  • 674cc, 23 HP CH23S Kohler® Command® Gasoline Engine with 2 cylinder, 4 cycle overhead valve air-cooled design
  • Electric Start Switch for easy starts - switch combines OFF, START, and IDLER functions into one simple, compact, easy-to-use switch
  • 10,500 Watts surge single-phase AC generator power is the most surge power in its class with 9,000 watts continuous power for generator, plasma cutter or inverter welder
  • MIG, flux-cored and basic TIG welding in constant current mode (with optional equipment)
  • DC Welding accessories included
  • Simple Output Range Selector can be used to select one of three amperage ranges with generous overlap for Stick/TIG welding
  • Smooth DC welding output for a broad range of stick electrode types
  • Fine adjustment control allows you to dial in just the right welding output for each application
  • Welds steel, stainless, aluminum (up to 5/32in.) in a single pass
  • 210 Amps/25 Volts @ 100% duty cycle for DC welding applications
  • Arc gouge with up to 5/32 in. (4.0 mm) carbon electrode
  • Delivers up to 38 Amps from the single 120V/240V full-KVA receptacle
  • Standard circuit breakers protect the machine as well as your power tools
  • Delivers up to 40 Amps from two 120V duplex receptacles
  • Simultaneous welding and AC generator power – power up to 3,950 watts while welding at 145 amps
  • Includes 12 gallon tank for extended run times – consumes only 1.3 gallons/hour at 210 amps
  • Fuel level slots in both sides of the base with a decal to easily read the fuel level in the tank - helps to prevent you from running out of fuel during critical jobs
  • Large top fuel filler neck is easily accessed for refueling
  • DC, 25V, 100% duty cycle
  • Easy to maintain - engine requires an oil change only every 100 hours and every 200 hours for the oil filter
  • Oil drain valve (no tools required) with removable extension tube for easy oil changes
  • Adjust exhaust direction with top-mounted 360° rotatable exhaust muffler muffler is made from aluminized steel for long life
  • Longer engine life, reduced noise emissions and greater fuel economy with automatic engine idler
  • Engine hour meter makes it easy to schedule regular maintenance
  • Automatic engine shutdown protection for low oil pressure
  • Reliable start-up with Group 58 battery with 550 cold cranking amps
  • Red and black powder-coat paint finish offers increased durability with added protection from rust and corrosion and is also ultraviolet-resistant to better retain color and gloss
  • Engine is fully protected and includes 3 service access doors – left and right doors are removable, if desired, for service
  • Low noise – 76.4 dBA sound level
  • Dependability and long life aided by all-copper windings in rotor and stator with high-quality insulation
  • Weighs 514 lbs.
  • 3-year Lincoln Electric warranty (parts and labor) on welder (engine is warranted separately by the manufacturer)

Key Specs

AttributeSpecification

item#

164593

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

137.0 LB

Multi-process

Yes

Max. Weld Thickness

0.15 in
AttributeSpecification

Max. Welding Wire Diameter

0.15 in

Duty Cycle

100% at 210A; 40% at 225A

Weldable Materials

Steel, stainless steel, aluminum

Min. Amps

50

Clamp Cable Length

15 ft

Reviews

Questions & Answers

Questions

1–10 of 16 Questions
Sort by:

  1. What is the generators total harmonic distortion (THD) and does it provide clean power suitable for sensitive electronics?

    1. Sensitive electronics need less than 5% THD, I would not recommend this generator for electronics. These are great for hand tools and welding, very dependable. I have one and it is a daily tool.

      Helpful?

    2. do not hook your electronics to this weler

      Helpful?

    3. The total harmonic distortion is less than 10%. This unit is not suitable to run sensitive electronics.

      Helpful?

  2. Available with a spoolgun!

    In the catalog we are looking at it says that item#164593-1554 is Available with a Spoolgun. I do not see it listed. Can you confirm what comes with this item.

    1. For this Lincoln Electric Eagle 10,000 Plus DC Arc Welder/AC Generator to be compatible with a spool gun you would first need to add a Lincoln MIG 140 or 180 welder. I have listed 2 welder options below that are compatible with this unit that would allow for the spool gun option.

      Helpful?

    2. In order to use a spoolgun on the Eagle 10,000, you would first have to add a 140 or 180 mig welder.

      Helpful?

  3. Can you weld aluminum tig with this machine? Is it ln25 compatible

    1 answer

    1. To TIG weld with this machine a TIG module, model K930-2 is required. TIG welding aluminum is best done with AC TIG. This unit is not capable of AC TIG welding. The LN-25 will not run off this unit.

      Helpful?

  4. Does it come with leads

    1 answer

    1. This welder/generator does come with leads. It includes (1) 20 ft. (6.0 m) of #2 electrode cable, (1) electrode holder, (1) 15 ft. (4.5 m) of #2 work cable and a work clamp.

      Helpful?

  5. can you get longer leads for this welder

    1 answer

    1. Longer leads are not available for this Lincoln welder.

      Helpful?

  6. Engine Oil included?

    1 answer

    1. The Eagle 10,000 Plus is shipped with the engine crankcase filled with SAE 10W-30 oil. Check the oil level before starting the engine. If it is not up to the full mark on the dip stick, add oil as required.

      Helpful?

  7. Can I get a remote control for this machine

    1 answer

    1. A remote control is not available for this welder/generator.

      Helpful?

  8. Can this product be used as a regular generator? Like to power a home or RV?

    1 answer

    1. This could be used as a regular generator to provide up to 9,000 Watts of AC power when needed.

      Helpful?

  9. Is there a cover I can purchase for this machine

    1 answer

    1. The recommended cover to use with this welder is item 2297461.

      Helpful?

  10. What optional equipment is needed for MIG and TIG

    1 answer

    1. To make this unit weld MIG and TIG you will need to purchase a wire feed welder, a TIG Torch and you will need shielding gas as well. At Northern we do sell a wire feed welder that is capable of both MIG and TIG functions that I will list below. With this welder you will also need to purchase a TIG torch for TIG applications from the manufacturer directly. I will also list a shielding gas tank below that is required for most TIG applications and some MIG applications. The gas itself would need to be purchased locally.

      Helpful?
