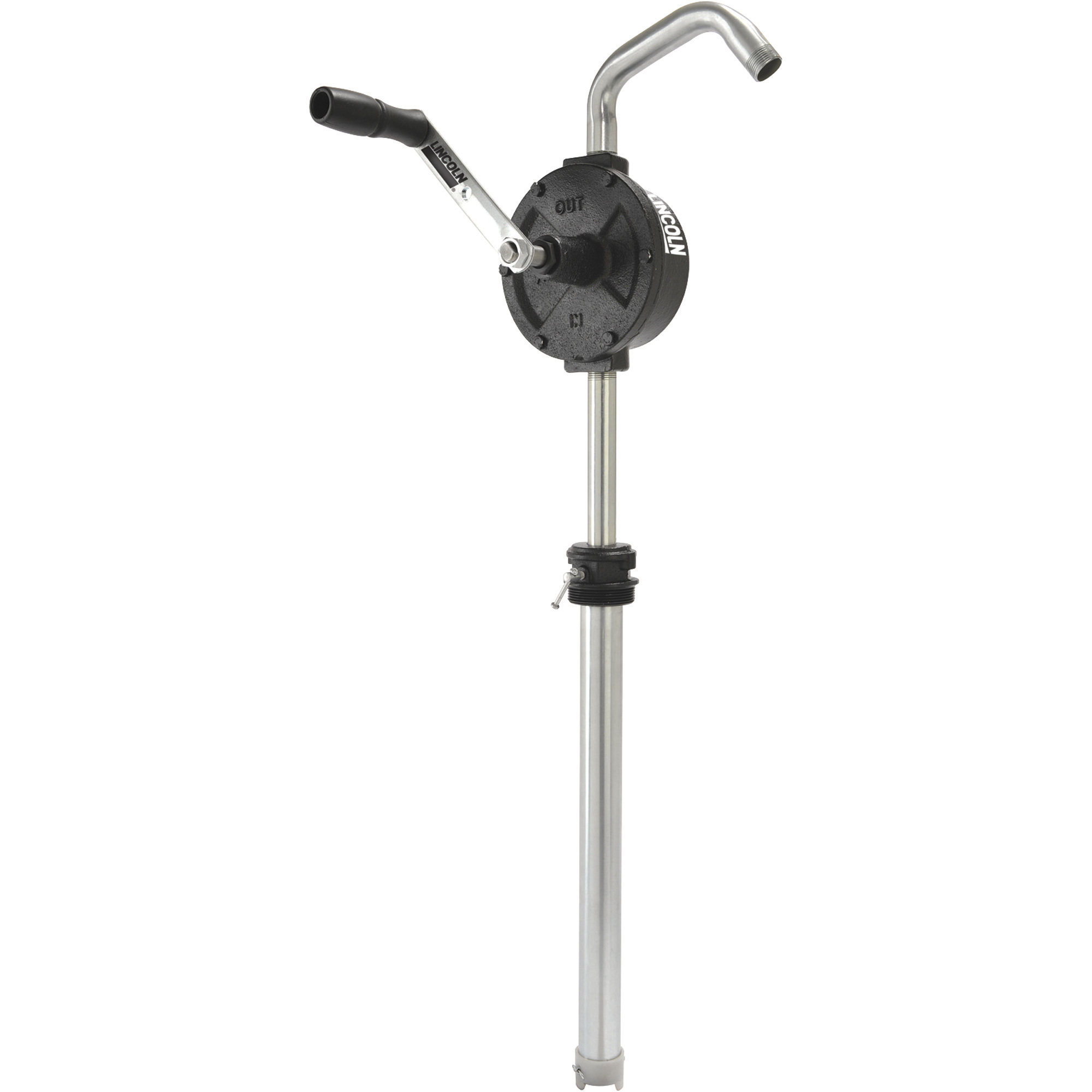

Lincoln 3-Vane Rotary Hand Pump, Model# 1385

Item# 21690
"Lincoln 3-Vane Rotary Hand Pump, Model# 1385"
Lincoln 3-Vane Rotary Hand Pump, Model# 1385

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln 3-Vane Rotary Hand Pump, Model# 1385

Click or Tap image to Zoom

$229.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • High-tolerance micro-finished bore and graphite vanes provide outstanding pump life
  • Includes 18in. to 34 1/2in.L adjustable suction tube

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Lincoln® 3-Vane self-priming pump is fast and easy to use, delivering exceptionally smooth fluid flow that eliminates splashing. Pumps up to 10 gallons per minute at 120 RPM (approx. 1 gallon per 12 revolutions) of oils, diesel, kerosene, coolant, non-corrosive materials, petroleum-based fluids, or hydraulic oils.

What's Included

    (1) Rotary pump (1) Telescoping pick-up tube

Downloads

Product Manual

Features + Benefits

  • High-tolerance micro-finished bore and graphite vanes provide outstanding pump life
  • Includes 18in. to 34 1/2in.L adjustable suction tube

Key Specs

AttributeSpecification

item#

21690

Brand

Lincoln

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Pump Style

Rotary

GPM

10
AttributeSpecification

Hose Length

8 ft

Tube Length

34.5 in

For Use With

Oils, Diesel, Kerosene, Coolant, Noncorrosive Materials, Petroleum-based Fluids

Inlet Port

1 in

Outlet Port

1 in

Material

Graphite

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is the thread size on the discharge end of the outlet tube?

    1 answer

    1. The outlet discharge spout thread size is 3/4"-11 1/2 AN.

      Helpful?

  2. Would this pump be good for pumping Drip Torch Mix? Drip Torch mix is 4 or 3 parts diesel to 1 part gas ratio. We will also will be trying to use ethanol free gas.

    1 answer

    1. The pump could not be used with Drip Torch Mix that is 40% gasoline and it could not be use with ethanol free gas.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
