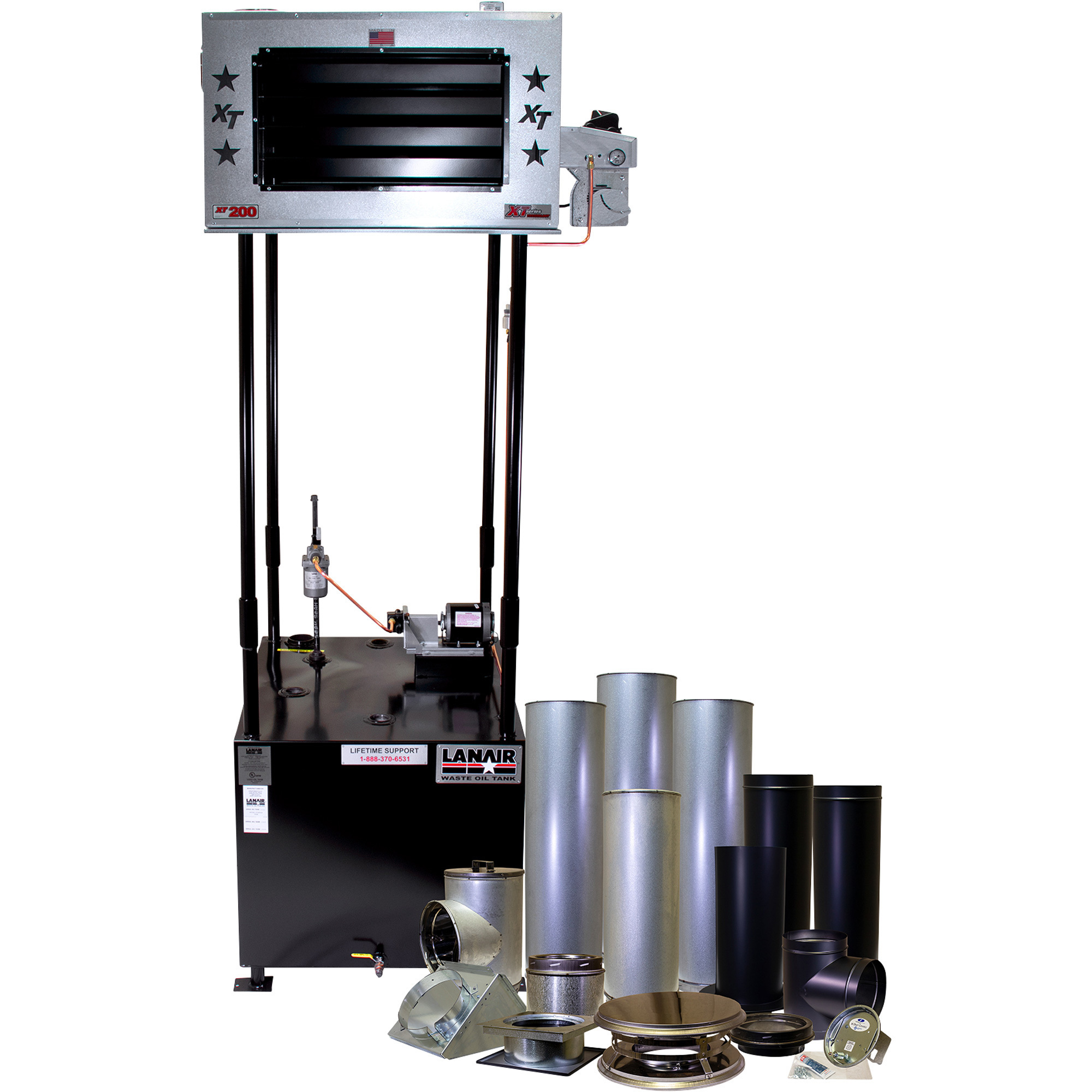

Lanair Waste Oil-Fired Thermostat-Controlled Heater Package 4, 200,000 BTU, 5000 Sq. Ft., Model# XT-200 HEATER

Item# 112905
Top Seller
Lanair Waste Oil-Fired Thermostat-Controlled Heater Package 4, 200,000 BTU, 5000 Sq. Ft., Model# XT-200 HEATER

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lanair Waste Oil-Fired Thermostat-Controlled Heater Package 4, 200,000 BTU, 5000 Sq. Ft., Model# XT-200 HEATER

Click or Tap image to Zoom

$10,352.10

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Burns 100% synthetic, conventional, transmission fluid #1 and #2 fuel oil (diesel)
  • Pump, filter, fuel piping kit, fuel lines, fittings and hour meter burner
  • Rust-resistant galvanized cabinet
  • Adjustable locking louvers
  • Axial fan

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Lanair Waste Oil-Fired Thermostat-Controlled Heater Package 4 allows you to take control of rising energy costs. Waste oil not only eliminates the cost to haul used oil off-site, but it can reduce your heating bills too. In addition, burning waste oil to get "free" heat deals with a major pollution problem in an environmentally friendly way. This complete package is designed for commercial use only. Advanced atomization technology with monthly maintenance complete package eliminates the tedious daily cleaning required by old vaporization technology. Heat output varies with fuel type, building design, placement and heat loss. Not for residential use. Note--Heater can mounted on 215-gal. tank OR mounted from ceiling. This item is not for sale in the state of California. Customers are responsible for checking local codes and regulations prior to purchase.

What's Included

    (1) Heater (1) 215-gal. oil tank (1) Chimney kit (1) 2600 BTU blower (CFM) (1) Thermostat (1) 6in.Chimney pipe

Downloads

Product Manual

Features + Benefits

  • Burns 100% synthetic, conventional, transmission fluid #1 and #2 fuel oil (diesel)
  • Pump, filter, fuel piping kit, fuel lines, fittings and hour meter burner
  • Rust-resistant galvanized cabinet
  • Adjustable locking louvers
  • Axial fan
  • Chimney pipe: Class A kit for 16ft. eave through-wall
  • Chimney location: top/left side
  • AC power: 120V; 60Hz
  • Compressed air (customer supplied): 2 CFM; 15 PSI
  • Combustion chamber: 12 GA CRS
  • Hanging weight (lbs.): 453
  • UL listed

Key Specs

AttributeSpecification

item#

112905

Brand

Lanair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

954.0 LB

Heat Output

200,000 Btu/hour

Heating Capability

5,000 ft²

Volts

120

Amps

20
AttributeSpecification

Fuel Capacity

215 Gal

Fuel Consumption

1.4 GPH

Blower Included

Yes

Thermostat Included

Yes

Blower CFM

2,600

Chimney Pipe Size

6 in

Product Weight

453.0000 lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 24.0 in

Reviews

Questions & Answers

Questions

  1. does it have auto ignition

    1 answer

    1. The heater would need to be set up with a wall thermostat. You would set the temperature to the setting you want it at.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
