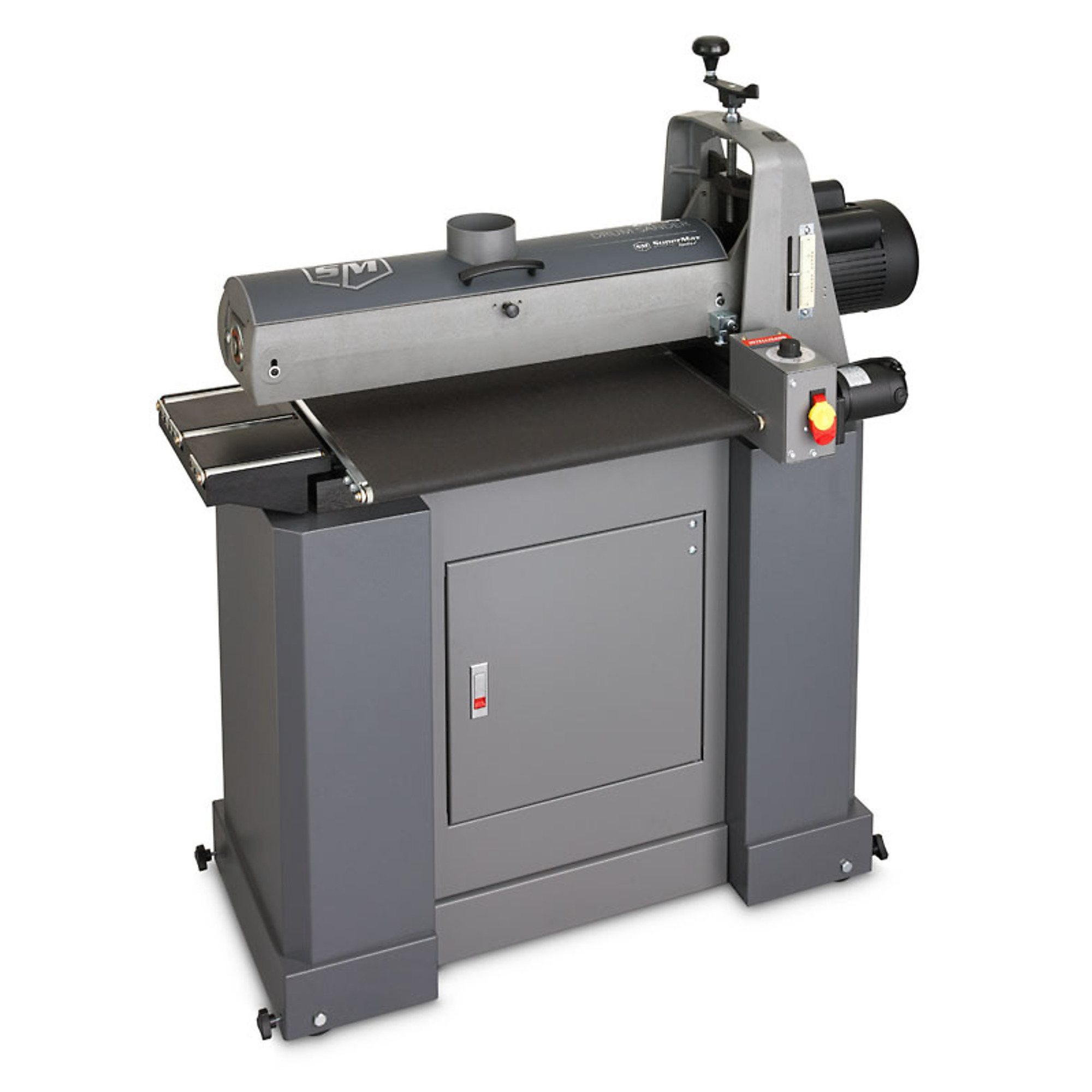

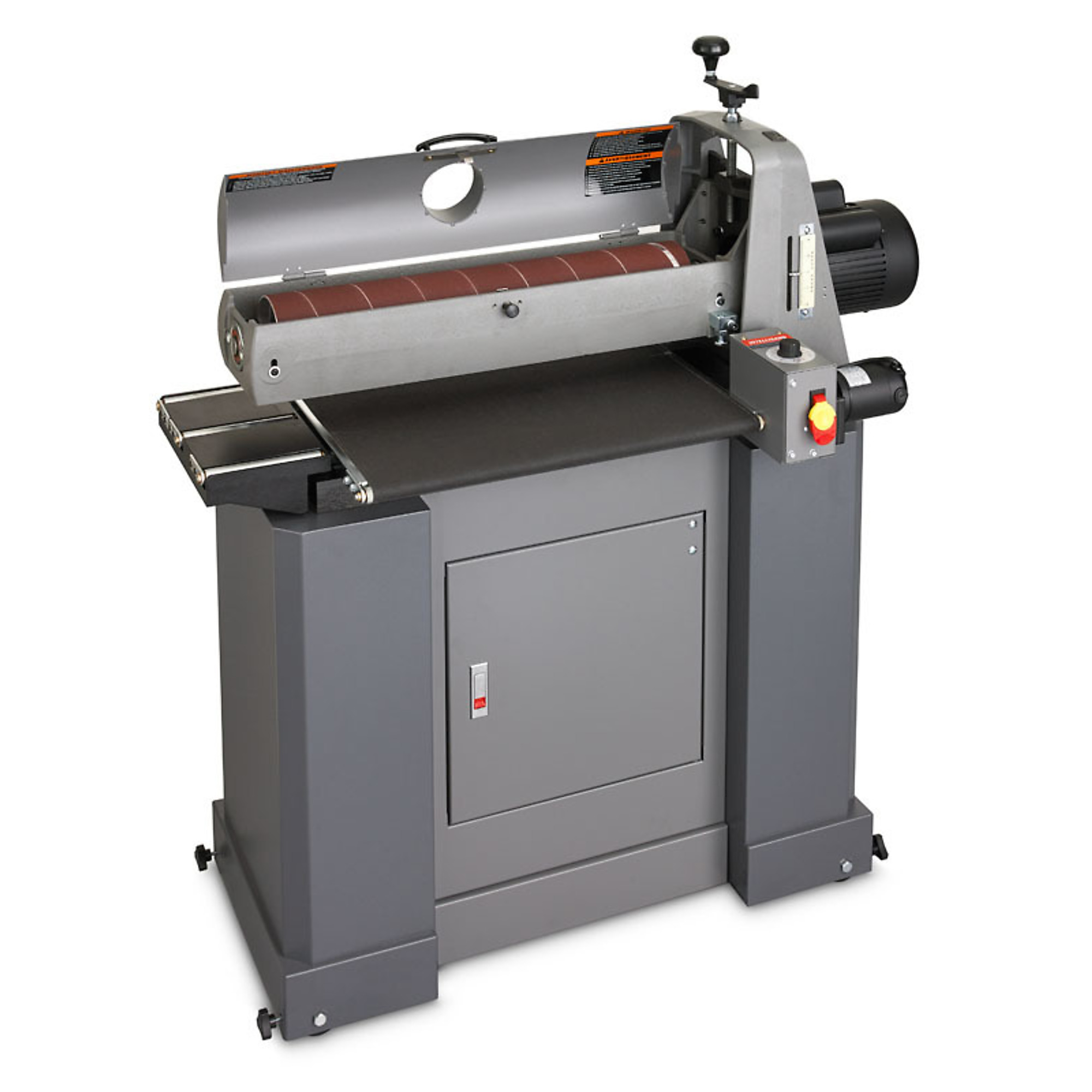

LAGUNA SuperMax, Drum Sander, Amps 20 Model# 25-50

Item# 6002293
LAGUNA SuperMax, Drum Sander, Amps 20 Model# 25-50

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

LAGUNA SuperMax, Drum Sander, Amps 20 Model# 25-50

Click or Tap image to Zoom

$3434.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • INTELLISAND® Technology: Automatically adjusts conveyor speed if required Prevents gouging or damaging stock Prevents damage to motors or machine Improves processing speed when abrasive planing and thicknessing

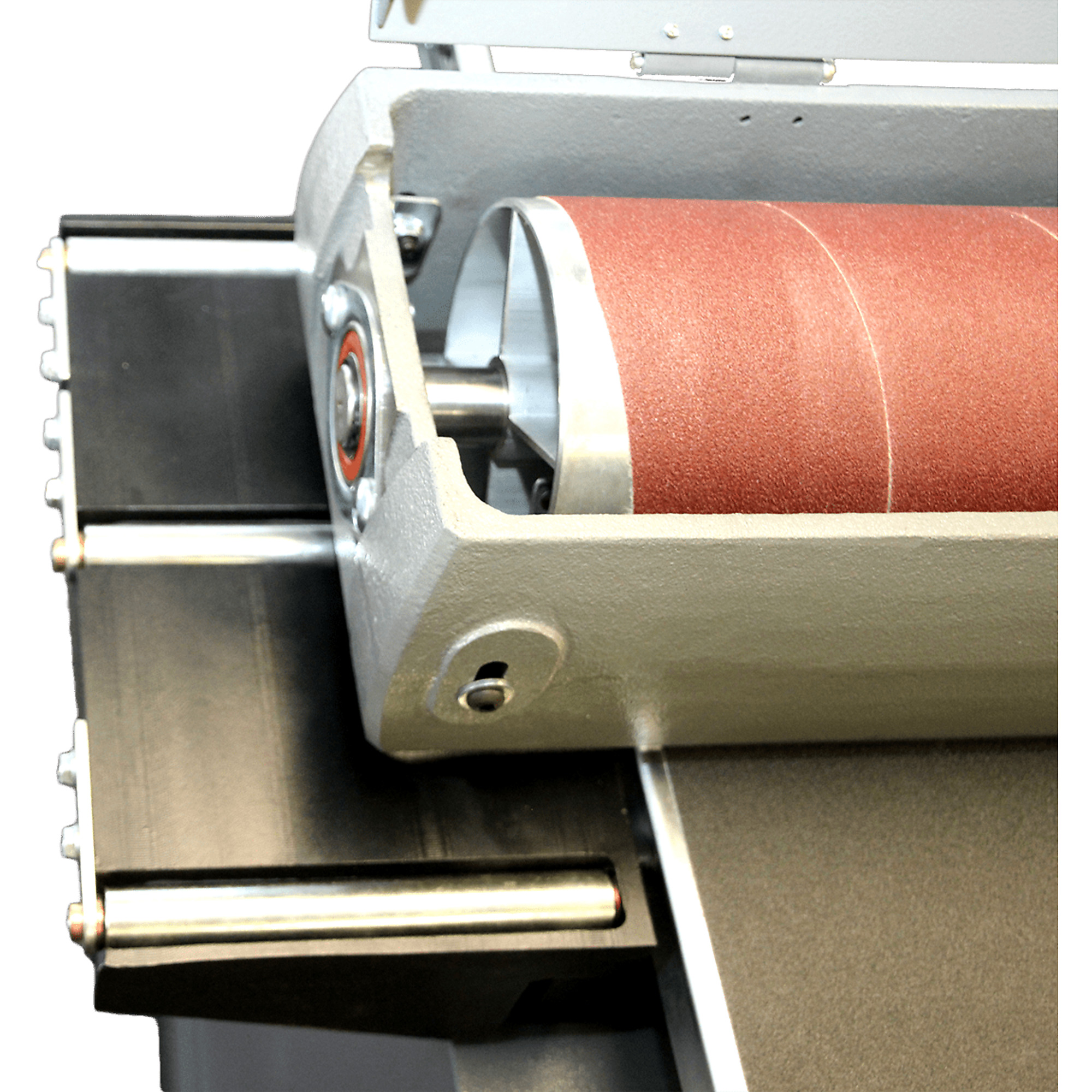

  • Patented Fast Adjust Lever offers an extremely quick and accurate adjustment for proper alignment when sanding material wider than the drum. Simply loosen two bolts and rotate lever, tighten two bolts. No time-consuming fine tuning required.
  • Abrasive conveyor belt offers the best grip on wood and similar materials. It also allows short and thin stock to be sanded and a higher level of precision as compared to rubber or soft conveyor belts.
  • Self-Cooling drum prevents overheating, drum distortion and extends abrasive life.

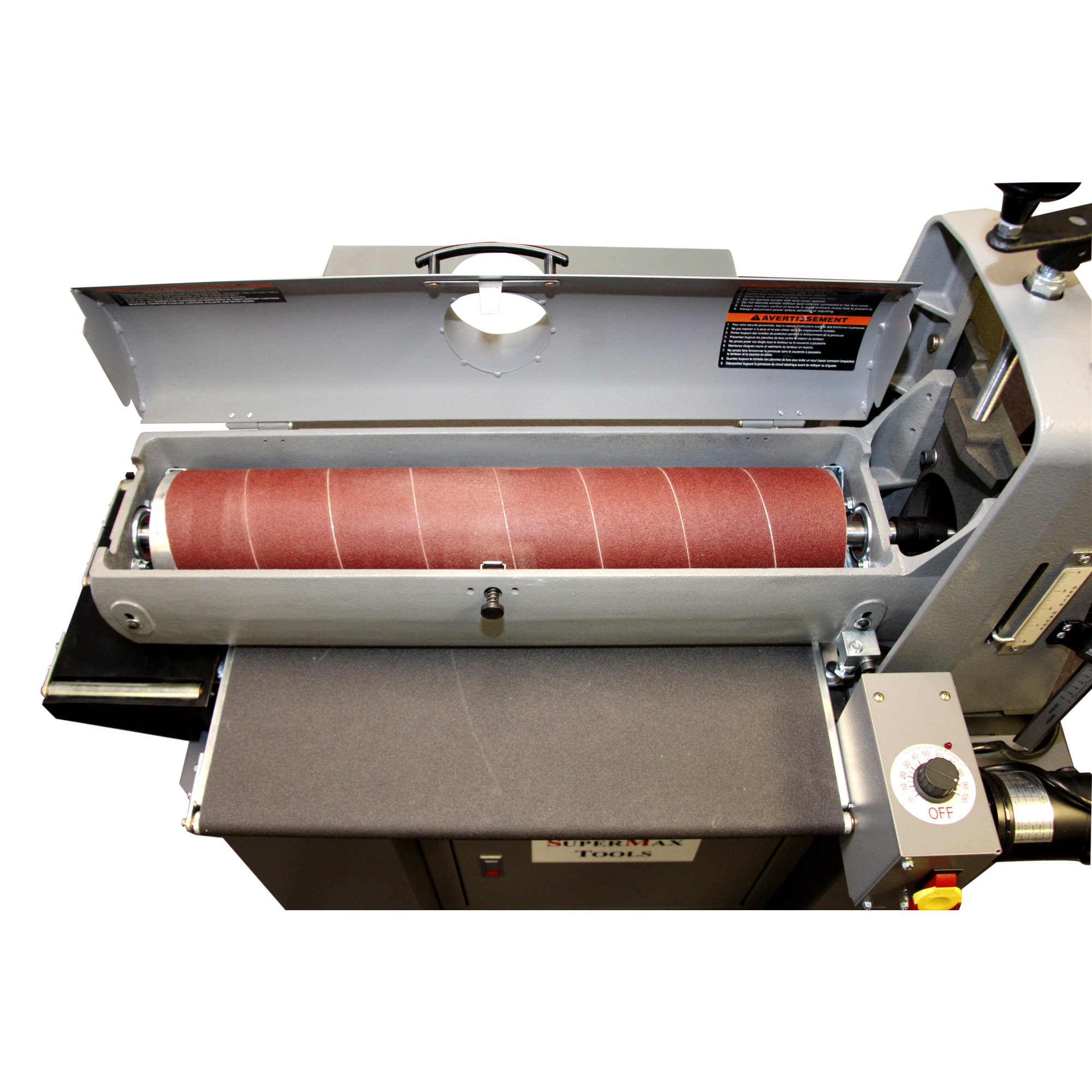

  • Abrasive attachment system maintains proper tension on abrasive to prevent overlap and loose abrasive.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

50” wide sanding capability in two passes, up to 25” wide in a single pass! The most affordable large capacity sander available. Imagine the range of projects you can precisely and consistently accomplish. Sand everything from stock as short as 2-1/4” or as thin as 1/32” and as wide as 50” (in two passes). The 25-50in.cludes a closed stand for storage with an incorporated mobile base for easy portability. The sanding drum is wrapped with 80 grit abrasive and the conveyor speed is infinitely adjustable from 0-10’ per minute. A full range of abrasives are available to accomplish everything from abrasive planing to finish sanding. Easy access abrasive attachment system, makes changing abrasives simple task with no tools required. The abrasive attachment system also maintains tension on the abrasive, keeping it snug on the drum and preventing overlap, not like other sanders. Closed Stand with incorporated mobile base offers convenient abrasive storage and built-in portability. Simple Alignment of sanding drum. A simple, single adjustment allows perfect alignment of the sanding drum. Positive Alignment, will never misalign without adjusting. Cast iron head assembly securely attached and bolted to cast iron frame and base. Absolutely cannot accidentally mis-align. Maximum Sanding Width: 50in. (Two Passes) Minimum Sanding Length: 2-1/4in. Maximum Sanding Thickness: 4in. Minimum Sanding Thickness: 1/32in. Dimensions (D x W x H): 27in. x 46in. x 53in. (On Stand) Drum: 5in. x 25in. Extruded Aluminum Drum Speed: 1740 RPM Drum Speed: 1740 RPM Dust Hood: 1 – 4in. Vacuum Port, Min. 600 CFM RecommendedConveyor Motor: 43in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM Drive Motor (TEFC): 1-3/4 HP Power Requirements: 110 V 20 amp Table Height (Floor To Top Of Table): 33in. Shipping Weight (lbs): 369 (3 boxes including stand) Shipping Dimensions (L x W x H): 45in. x 16in. x 24in.

What's Included

    (1) Machine (1) Stand

Features + Benefits

  • INTELLISAND® Technology: Automatically adjusts conveyor speed if required Prevents gouging or damaging stock Prevents damage to motors or machine Improves processing speed when abrasive planing and thicknessing
  • Patented Fast Adjust Lever offers an extremely quick and accurate adjustment for proper alignment when sanding material wider than the drum. Simply loosen two bolts and rotate lever, tighten two bolts. No time-consuming fine tuning required.
  • Abrasive conveyor belt offers the best grip on wood and similar materials. It also allows short and thin stock to be sanded and a higher level of precision as compared to rubber or soft conveyor belts.
  • Self-Cooling drum prevents overheating, drum distortion and extends abrasive life.
  • Abrasive attachment system maintains proper tension on abrasive to prevent overlap and loose abrasive.
  • Easiest access to the abrasive attachment system of any drum sander! No need for special tools to change abrasives.
  • Tension Rollers are adjustable for pressure and contact, preventing snipe and maintaining proper feeding of material.
  • Excellent Dust Extraction as the dust cover and drum carriage are designed for the most effective air/dust flow.
  • Cast Iron and Steel construction, designed for superior strength and vibration reduction.
  • Flatness Guarantee: Precision-flattened steel conveyor bed with four steel cross sections engineered not to flex. Guaranteeing flatness to less than .010” across the width of the sander.

Key Specs

AttributeSpecification

item#

6002293

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

277.0 LB

Amps

20

Variable Speed

Yes
AttributeSpecification

Volts

110

Horsepower

1.75 HP

Dust Collection Type

Port

Drum Length

25 in

Dimensions L x W x H (in.)

36.0 x 42.0 x 24.0 in

Product Weight

277.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
