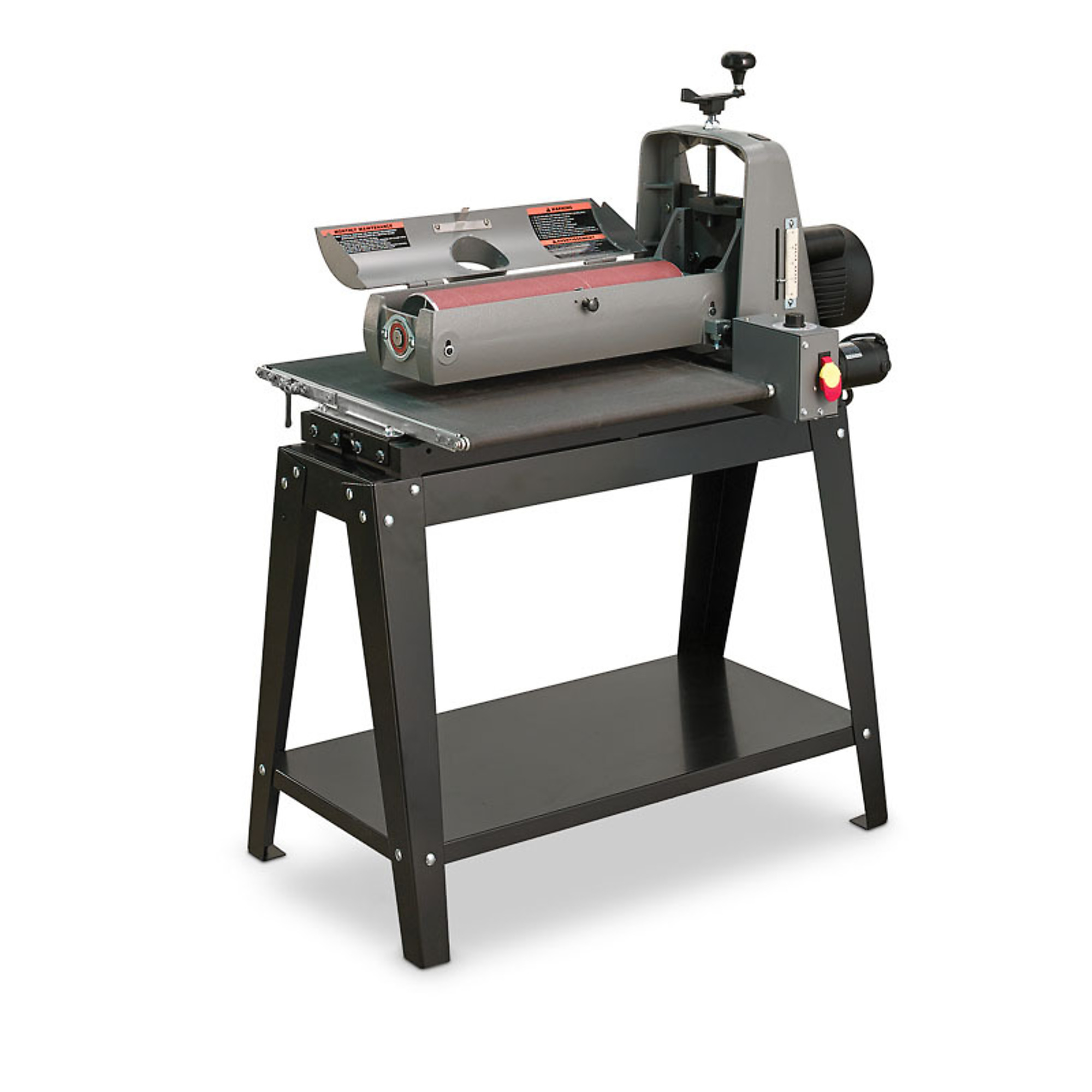

LAGUNA SuperMax Drum Sander - 15 Amps, 38in. Max Sanding Width, 110V, Model# 19-38

Item# 6002306
LAGUNA SuperMax Drum Sander - 15 Amps, 38in. Max Sanding Width, 110V, Model# 19-38

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

LAGUNA SuperMax Drum Sander - 15 Amps, 38in. Max Sanding Width, 110V, Model# 19-38

Click or Tap image to Zoom

$2522.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load Prevents gouging, damaging or burning stock Provides consistent finish even with varying grain pattern and density Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander.
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

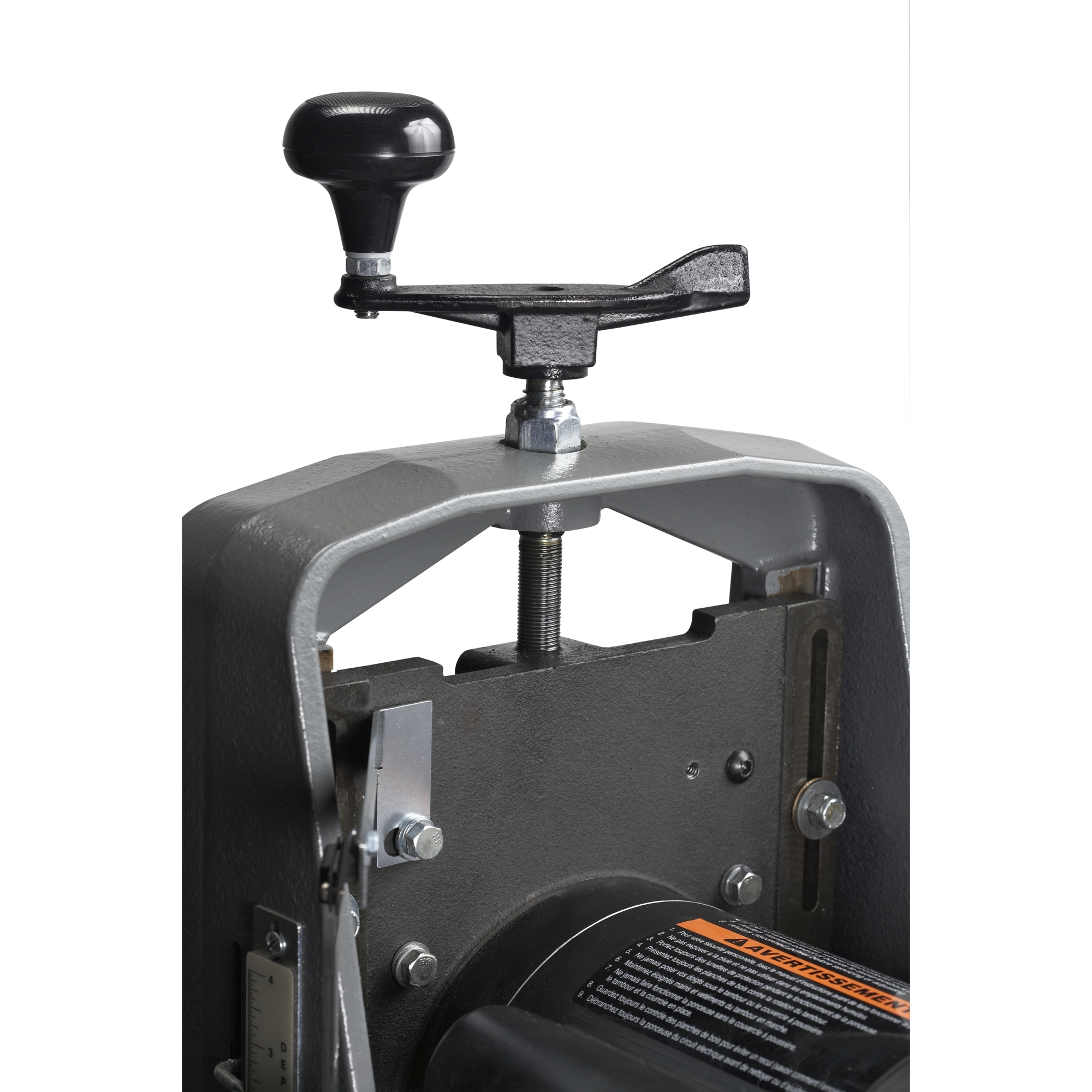

We’ve addressed issues common with other drum sanders by engineering five features that are exclusive to our 19-38 machines. No other drum sander on the market has these features! Features: Simple Alignment Feature Indexed Alignment Setting Easy Height Adjustments Extra-Wide Conveyor Drum Will Never Go “Out of Alignment” CSA Certified Specs: Drum Speed: 1740 RPM Max Sanding Width: 38in. (Two Passes) Min Sanding Length: 2-1/4in. Max Sanding Thickness: 4in. Min Sanding Thickness: 1/32in. Drum: 5in. x 19in. Extended Aluminum Dust Hood: 1 x 4in., Vacuum Port (Min 600 CFM Recommended) Conveyor Speed: 0 – 10 FPM (Variable) Drive Motor: 1-3/4in. Power Requirements: 110V. 15 Amp, 20 Amp Service Open Stand Footprint: 21in. x 36in. Shipping Weight: 286 lbs (3 boxes including stand) Shipping Dimensions (L x W x H): 43in. x 16in. x 24in.

What's Included

    (1) Machine (1) Stand

Features + Benefits

  • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load Prevents gouging, damaging or burning stock Provides consistent finish even with varying grain pattern and density Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander.
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap.
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
  • Self-cooling drum prevents overheating and extends abrasive life.
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe.
  • Excellent dust extraction as dust cover is formed to shape of drum Metal, not plastic, is formed to maximize air flow and dust extraction.
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration.
  • CSA Certified

Key Specs

AttributeSpecification

item#

6002306

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

239.0 LB

Amps

15

Cordless

No
AttributeSpecification

Variable Speed

Yes

Volts

110

Dust Collection Type

Port

Drum Length

19 in

Dimensions L x W x H (in.)

30.0 x 21.0 x 37.0 in

Product Weight

230.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
