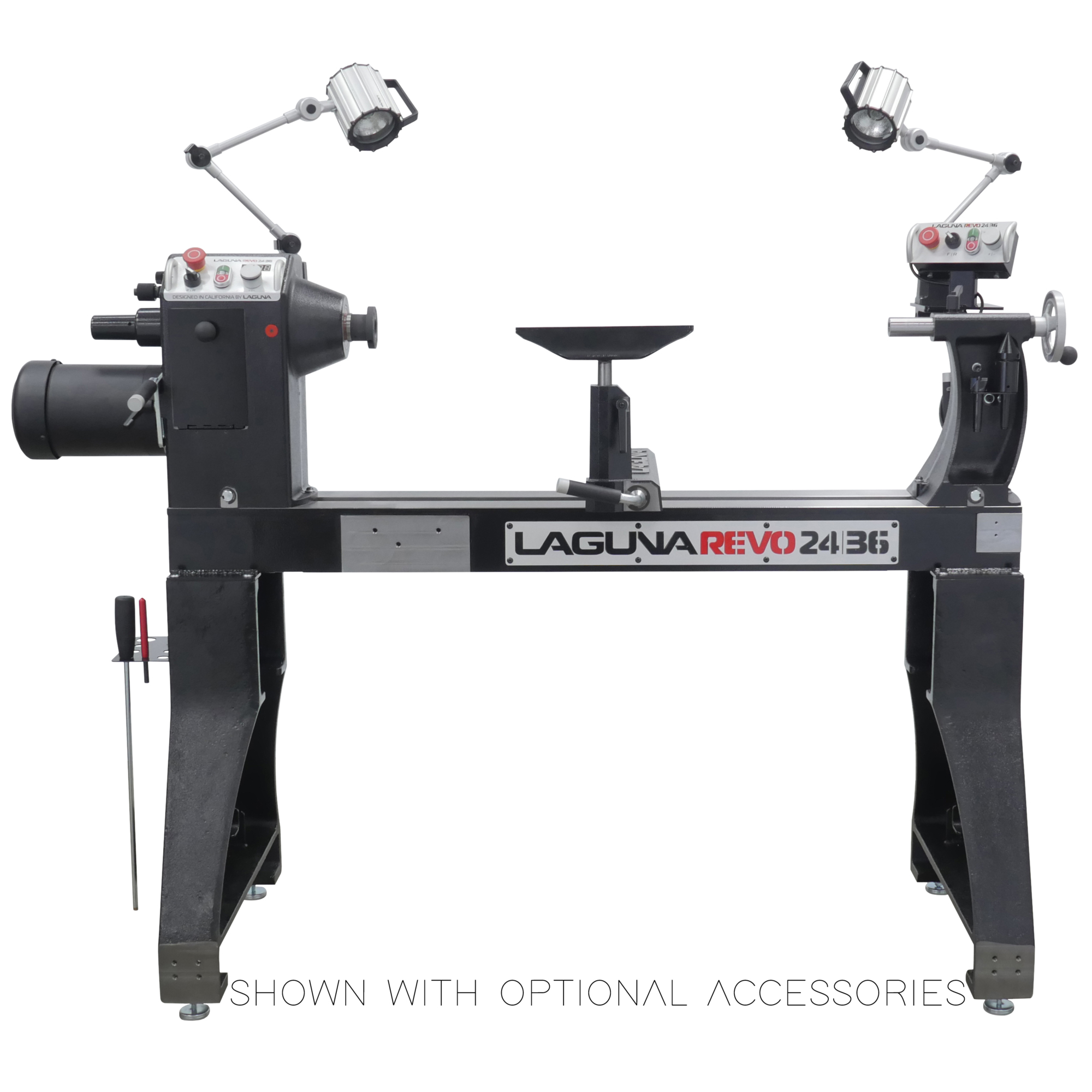

Laguna Revo 24|36 Lathe - 3 HP, 24in. Swing, 36in. Between Centers, Model# 24|36

Item# 6009532
"Laguna Revo 24|36 Lathe - 3 HP, 24in. Swing, 36in. Between Centers, Model# 24|36"
Laguna Revo 24|36 Lathe - 3 HP, 24in. Swing, 36in. Between Centers, Model# 24|36

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Revo 24|36 Lathe - 3 HP, 24in. Swing, 36in. Between Centers, Model# 24|36

Click or Tap image to Zoom

$5399.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
  • Phase: 1-Phase Input, 3-Phase Output
  • VFD: Delta S1 Variable Frequency Drive

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

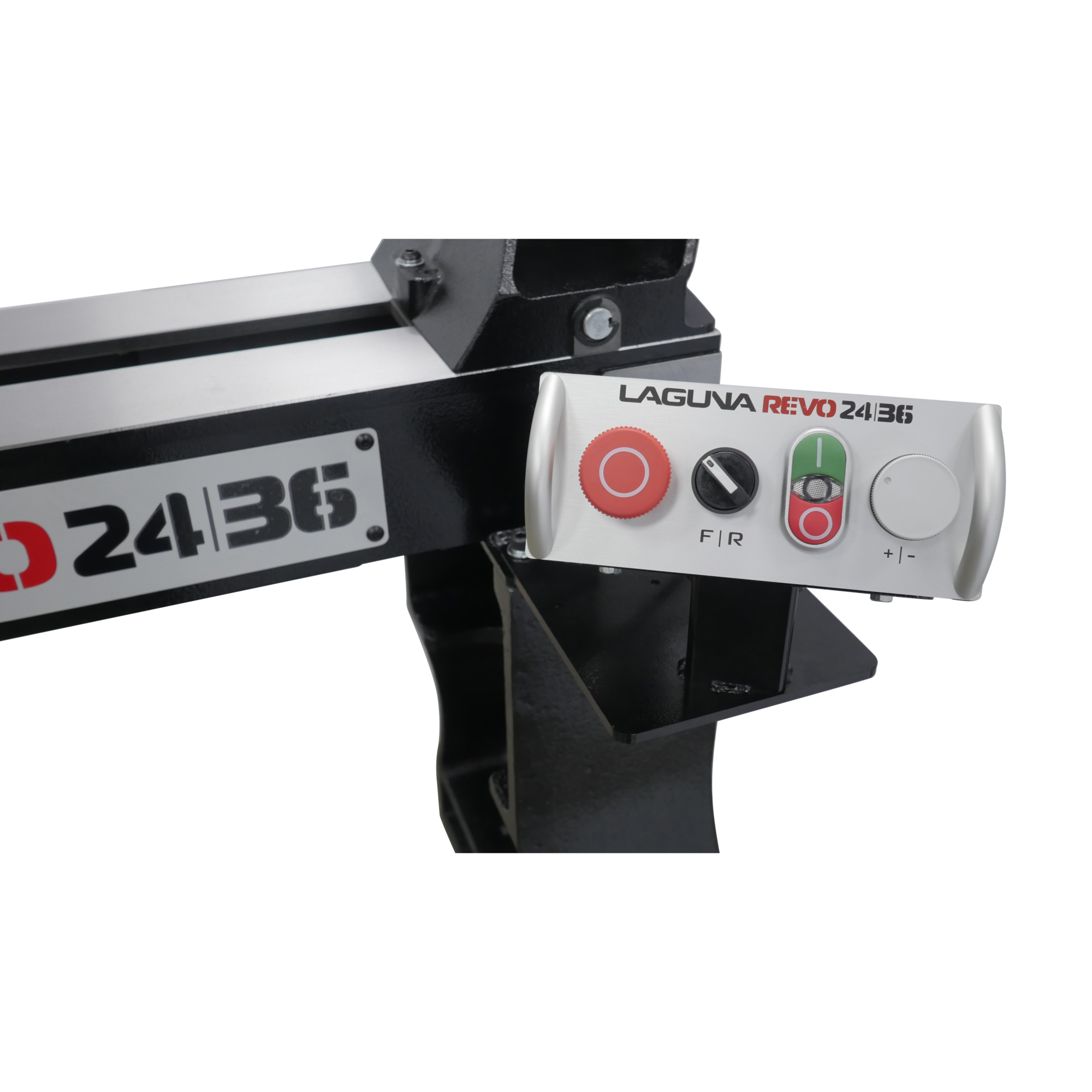

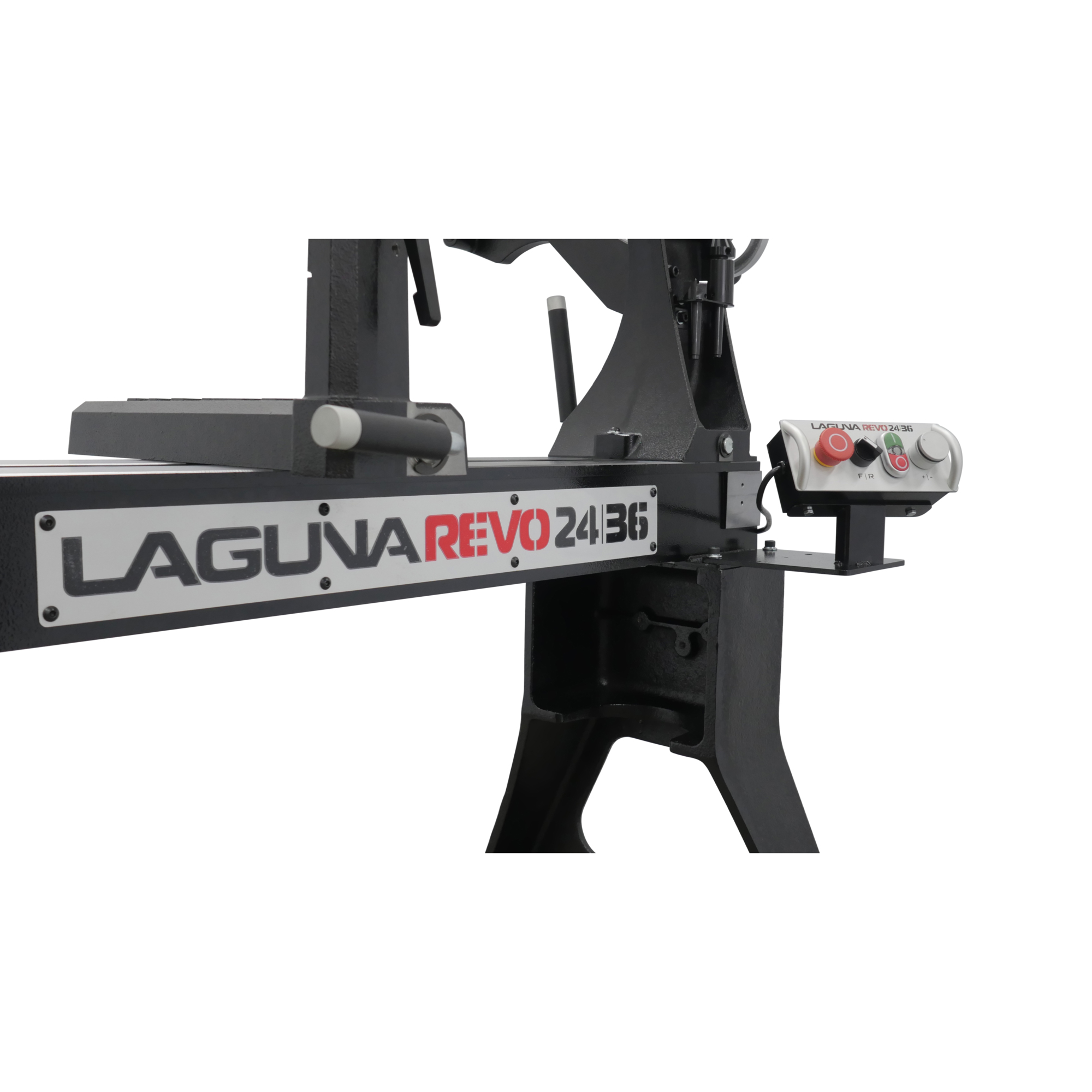

Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36. Redesigned banjo features a more compact design, 45° cutout wider base. Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time. And YES, this amazing control panel comes standard with the Revo 24|36 Recommended Breaker Size: 15 Amp Remote Control Box With Speed Settings Two Ergonomic Control Panel Positions: High/Low Drive Belt: Poly-Groove With EZ Access Tailstock Quill: 4-1/2in., Engraved, Self-Ejecting Floor Top Spindle Center: 44-1/2in. Front Bearing: TPI Taiwan 6307LLU Rear Bearing: TPI Taiwan 6205LLU Spindle Index #: 14/36/48 with Lock Distance Between Centers: 36in. Headstock Through-Bore: 3/8in. Tailstock Storage Of Centers Toolrest Post Size: 1in. Spindle Size: 1-1/4in. x 8 TPI RH Floor To Bed: 32-1/2in. with Pads Spring Loaded Spindle Lock Maximum Outboard Turning Diameter: 38in. (w/ Optional 20in. Extension Installed) Swing Over Banjo: 19-3/4in. Accepts Vacuum Chuck: Yes Face Plate: 3in. Diameter Tool Rest: 12in. Steel Bed: ASTM A36 Bed Gap: 50mm Headstock Spindle: MT2 Taper Hardened To 40° HRC Live Center Threads: 3/4in. – 10 UNC Tailstock Quill: #2 MT Swing Over Bed: 24in. RPM High: 135-3500 RPM Low: 50-1300 Plug: 6-15P Dimensions (W x D x H): 60in. x 26in. x 52-1/4in. Shipping Weight: 610 lbs Shipping Dimensions (L x W x H): 36in. x 40in. x 50in.

What's Included

    (1) Machine

Features + Benefits

  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
  • Phase: 1-Phase Input, 3-Phase Output
  • VFD: Delta S1 Variable Frequency Drive

Key Specs

AttributeSpecification

item#

6009532

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

560.0 LB

Distance Between Centers

0 in

Horsepower

0

Max. RPM

3,500
AttributeSpecification

Product Type

Lathe

Volts

220

Amps

8

Phase

Multi-phase

Product Weight

532.0000 lb

Dimensions L x W x H (in.)

60.0 x 26.0 x 52.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
