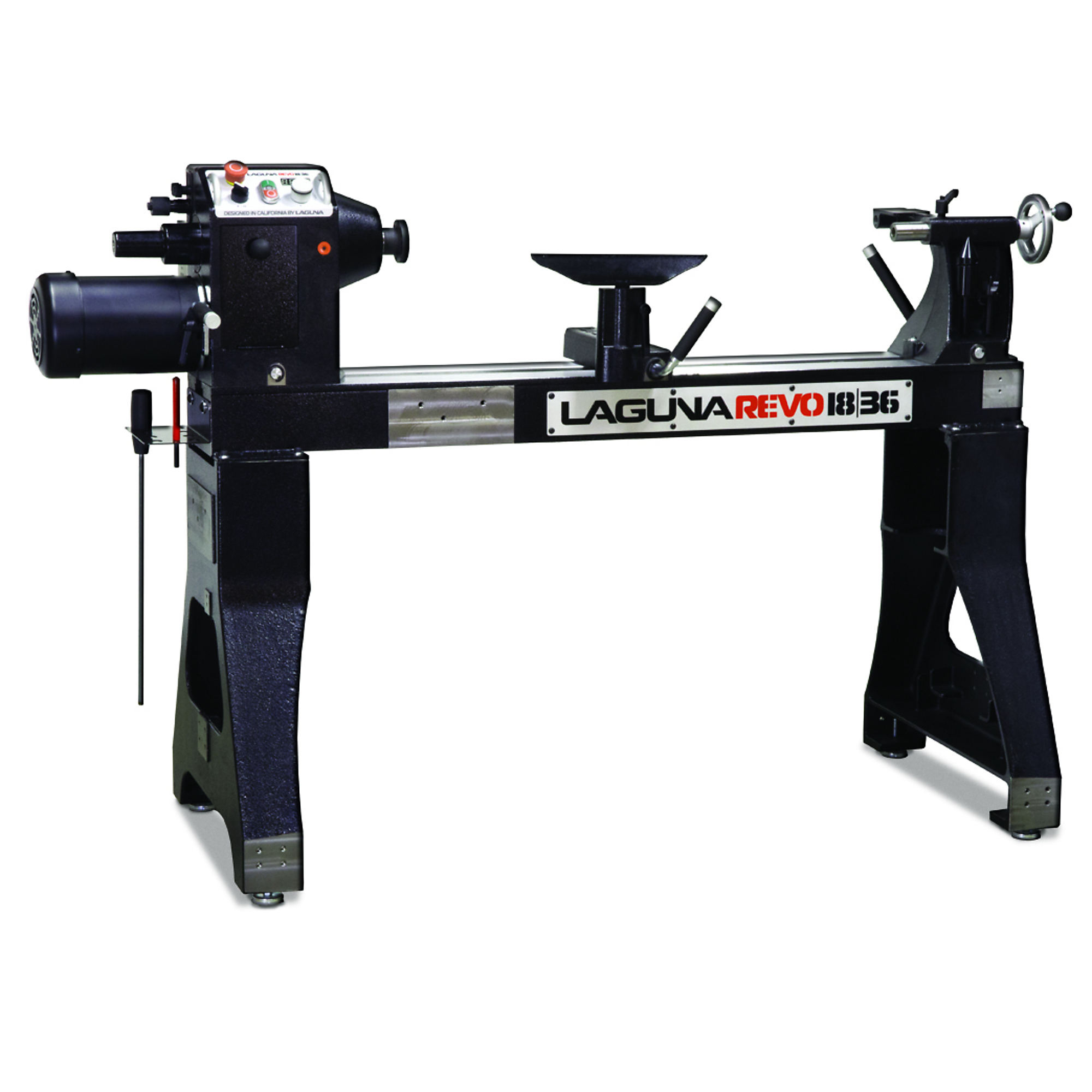

Laguna Revo 18|36 Lathe - 220V, 2 HP, Electronic Variable Speed, Steel Bed, Model# 18|36 220V

Item# 6009541
Laguna Revo 18|36 Lathe - 220V, 2 HP, Electronic Variable Speed, Steel Bed, Model# 18|36 220V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Revo 18|36 Lathe - 220V, 2 HP, Electronic Variable Speed, Steel Bed, Model# 18|36 220V

Click or Tap image to Zoom

$4124.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Electrical: 2HP, 220 Volt, 60 hz
  • Motor: Induction, 1725 RPM, TEFC
  • VFD: Delta S1 Variable Frequency Drive

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

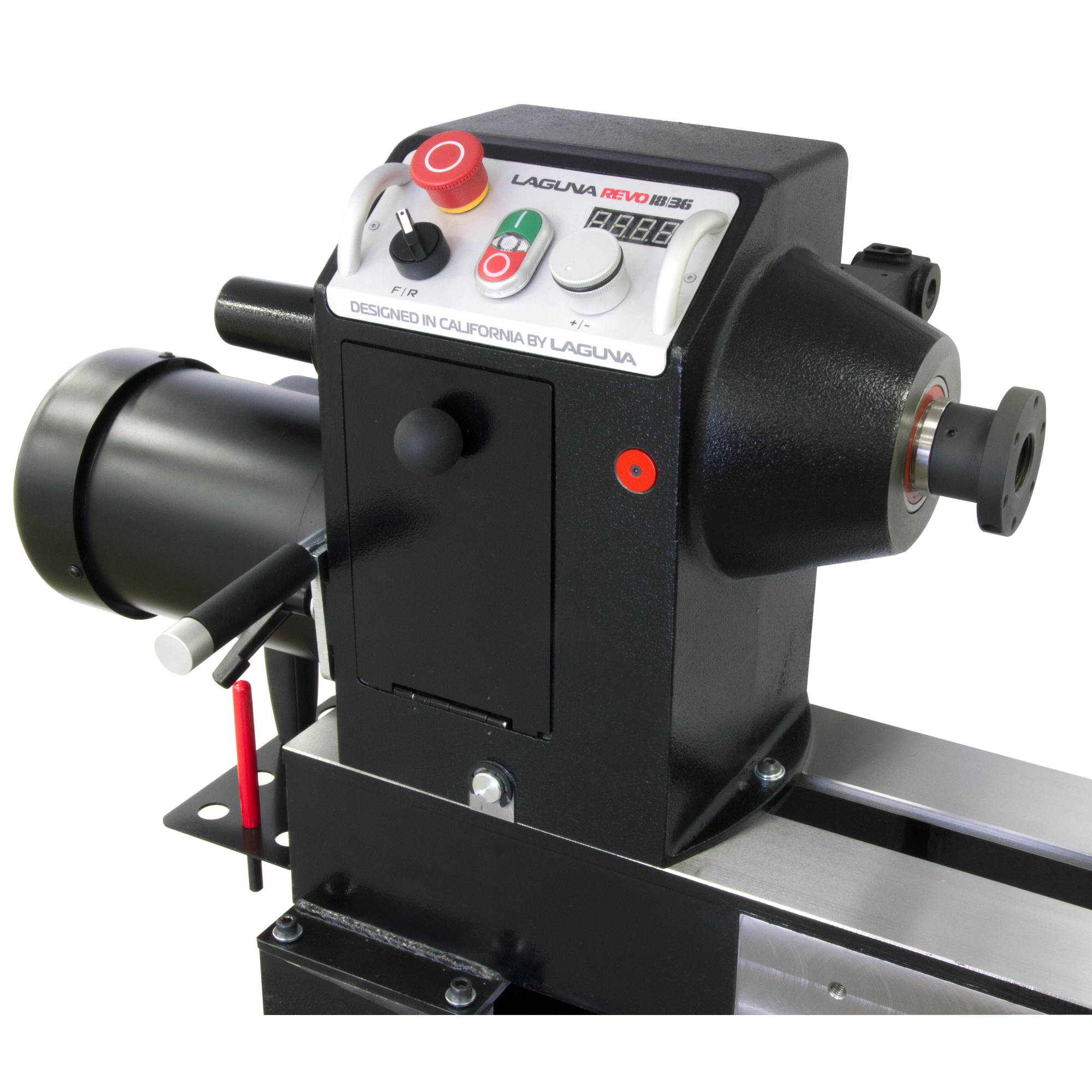

The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel, allowing the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque. The DRO gives you an accurate RPM readout whenever any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection. Phase: 1 Phase Input, 3 Phase Output Poly-Groove Drive Belt With EZ Access Recommended Breaker: 15 Amp Spring Loaded Spindle Lock Maximum Outboard Swing: 32in. (w/ Optional 20in. Extension Kit Installed) Swing Over Banjo: 13-1/2in. Bed Gap: 50mm Steel Bed: ASTM A36 Spindle Taper: MT#2 Toolrest Post Size: 1in. Swing Over Bed: 18in. RPM High: 135-3500 RPM Low: 50-1300 Tailstock Quill: #2 MT Floor To Spindle Center: 41-1/2in. Accepts Vacuum Chuck: Yes Front Bearing: TPI Taiwan 6207LLU Rear Bearing: TPI Taiwan 6205LLU Spindle Index #: 14/36/48 with Lock Distance Between Centers: 36in. Headstock Through-Bore: 3/8in. Headstock Travel: Full Length Tailstock Through-Bore: 3/8in. Tailstock Storage Of Centers Spindle Size: 1-1/4in. x 8 TPI Right Hand Thread Live Center Threads: 3/4in. – 10 UNC Floor To Bed: 32-1/2in. with Pads Floor Space (W x D x H): 60in. x 26in. x 47in. Plug: 6-15P Shipping Weight: 570 lbs Shipping Dimensions (L x W x H): 61in. x 27in. x 28in.

What's Included

    (1) Machine

Features + Benefits

  • Electrical: 2HP, 220 Volt, 60 hz
  • Motor: Induction, 1725 RPM, TEFC
  • VFD: Delta S1 Variable Frequency Drive

Key Specs

AttributeSpecification

item#

6009541

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

500.0 LB

Distance Between Centers

0 in

Horsepower

0

Max. RPM

3,500
AttributeSpecification

Product Type

Lathe

Volts

220

Amps

8

Phase

Multi-phase

Product Weight

427.0000 lb

Dimensions L x W x H (in.)

26.0 x 60.0 x 47.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
