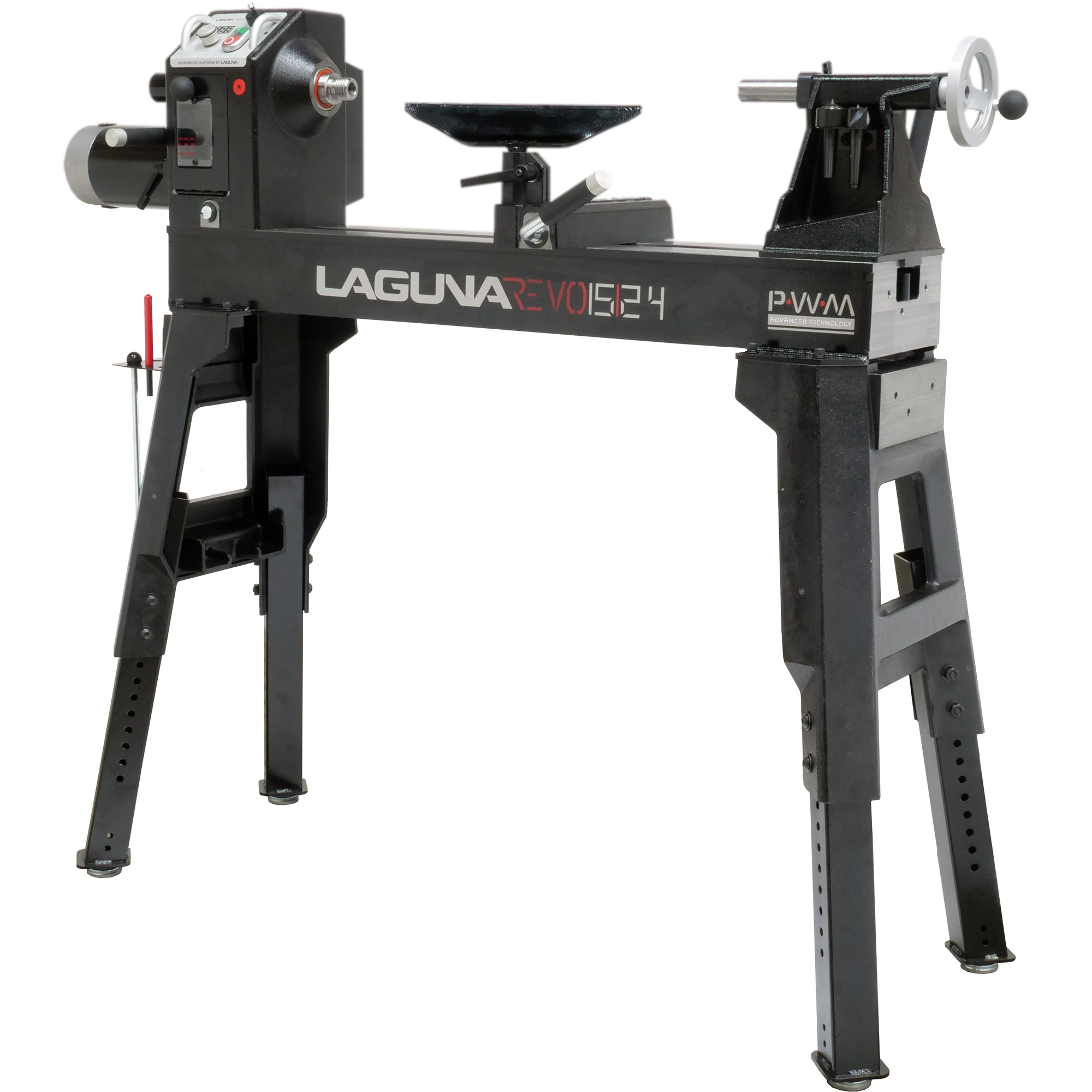

Laguna, Revo 15|24 Lathe, Horsepower 1.5 Model# 15|24

Item# 6009559
Laguna, Revo 15|24 Lathe, Horsepower 1.5 Model# 15|24

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna, Revo 15|24 Lathe, Horsepower 1.5 Model# 15|24

Click or Tap image to Zoom

$3285.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • World-class fit and finish Laguna is known for
  • Sliding headstock for ergonomic outboard bowl turning
  • Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
  • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 the legendary Revo 18|36, providing space constrained users with more power and capacity. Electrical: 1.5HP, 110 Volt, 8 Amp, 60Hz. Motor: Permanent Magnet DC, 2150 RPM PWM: Pulse Width Module Speed Control Recommended Breaker: 15 Amp Spring Loaded Spindle Lock Swing Over Bed: 15-1/2in. Swing Over Banjo: 11-3/32in. Max. Outboard Swing with optional accessory: 25in. Tool-Rest Post Size: 1in. Tool-Rest Length: 12in. Bed Gap: 50mm Spindle Taper: MT#2 RPM High: 650-4200 RPM Mid: 325-2100 RPM Low: 50-650 Accepts Vacuum Chuck: No Tailstock Quill: #2 MT Floor To Spindle Center Low: 36-13/32in. Floor To Spindle Center High: 51-13/32in. Floor To Bed Min.: 25-19/32in. Floor To Bed Max.: 43-19/32in. Front Bearing: TPI Taiwan 6206LLU Rear Bearing: TPI Taiwan 6205LLU Spindle Index #: 24 w/ Lock Distance Between Centers: 24in. Headstock/Tailstock Through-Bore: 3/8in. Headstock Travel: Full Length Tailstock Storage Of Centers Spindle Size: 1-1/4in. x 8TPI RH Floor Space (W x D x H): 60in. x 22in. x 22in. CSA C/US: 256540 Box Dimensions (L x W x H): 52in. x 22in. x 22in. Weight (Net/Ship): 288/302 lbs

What's Included

    (1) Machine

Features + Benefits

  • World-class fit and finish Laguna is known for
  • Sliding headstock for ergonomic outboard bowl turning
  • Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
  • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
  • Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
  • A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center

Key Specs

AttributeSpecification

item#

6009559

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

302.0 LB

Distance Between Centers

0 in

Horsepower

0

Max. RPM

4,200
AttributeSpecification

Product Type

Lathe

Volts

110

Amps

8

Phase

Multi-phase

Product Weight

288.0000 lb

Dimensions L x W x H (in.)

60.0 x 22.0 x 22.0 in

Reviews

Questions & Answers

Questions

  1. Does this have reverse

    1 answer

    1. Model #15|24 is equipped with a spindle reverse function.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
