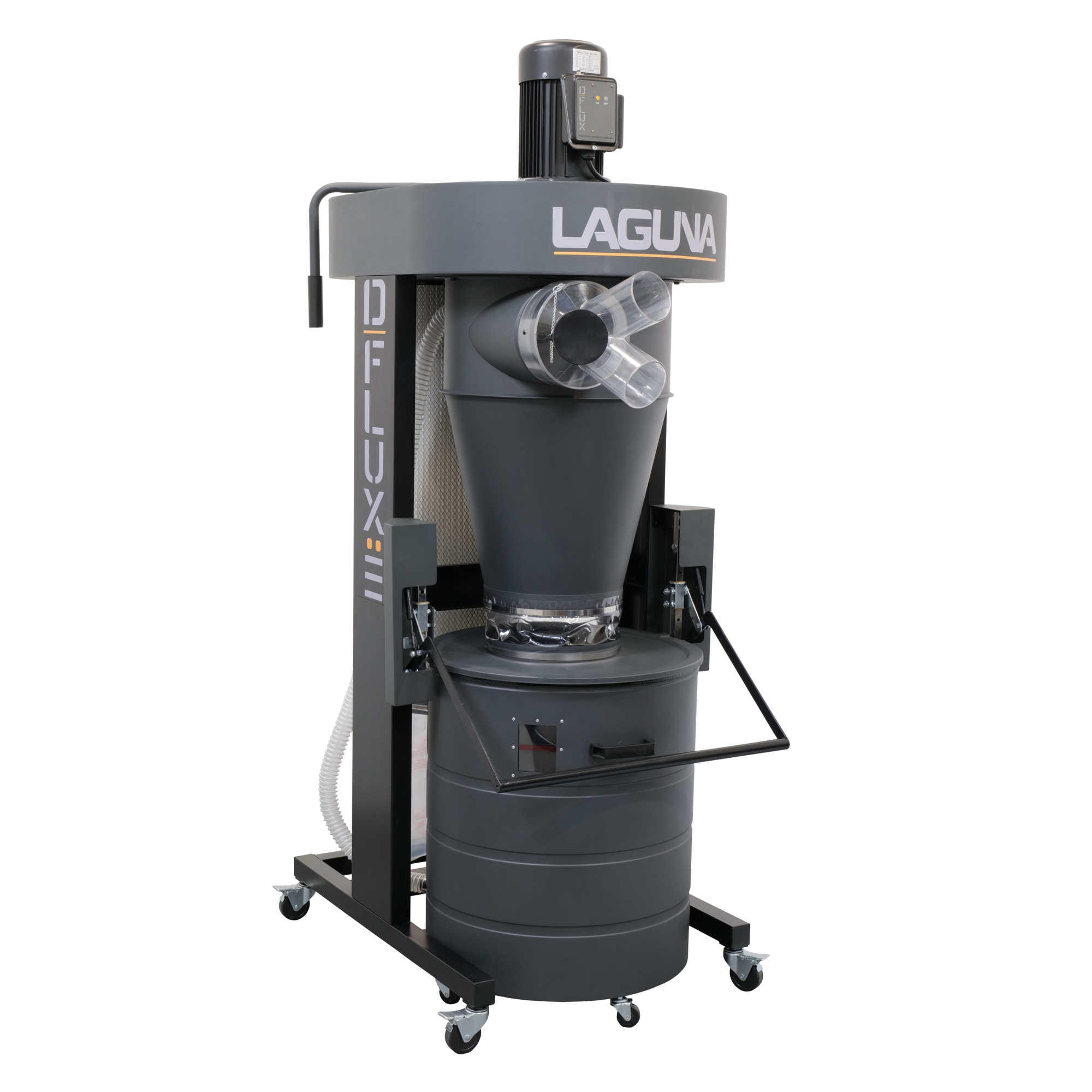

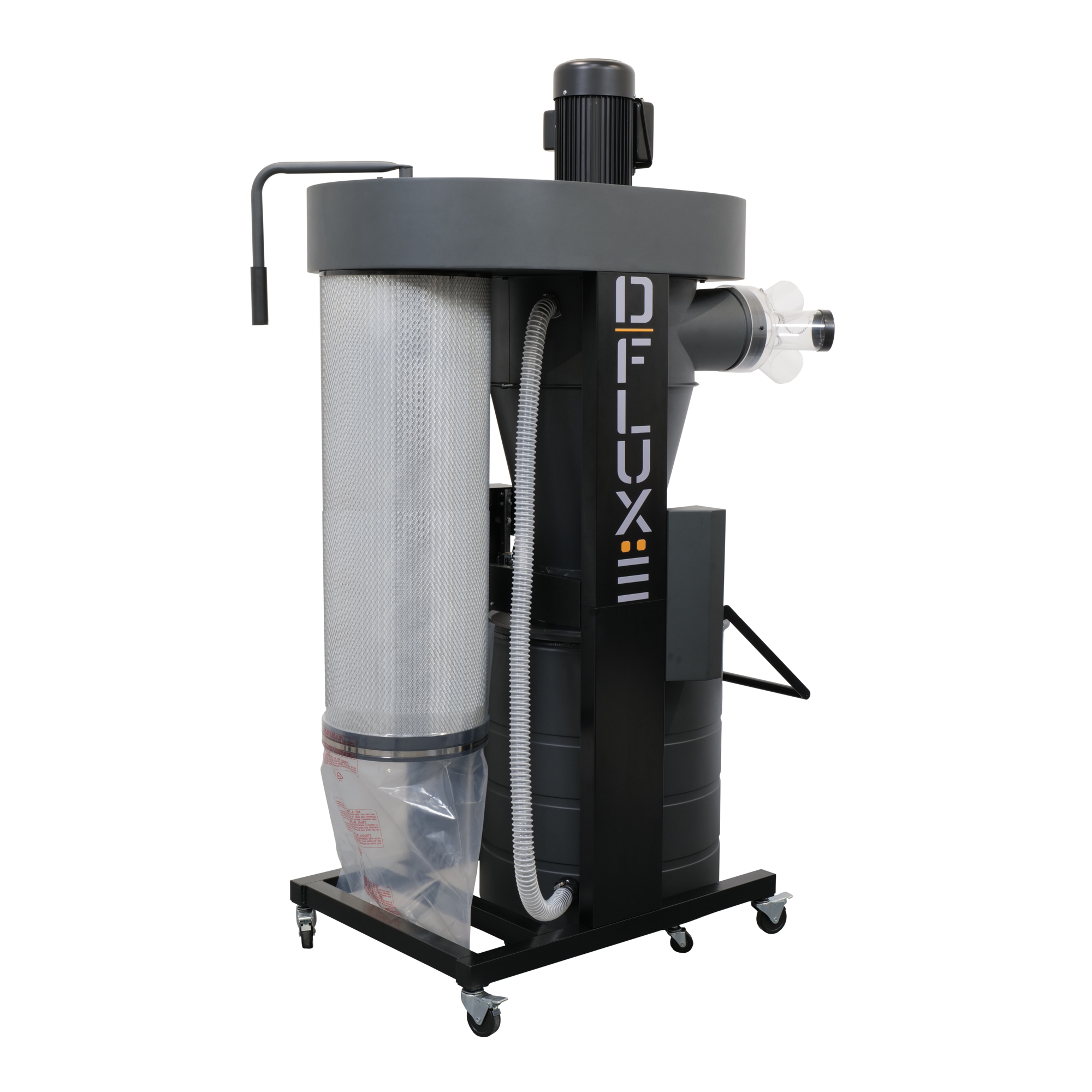

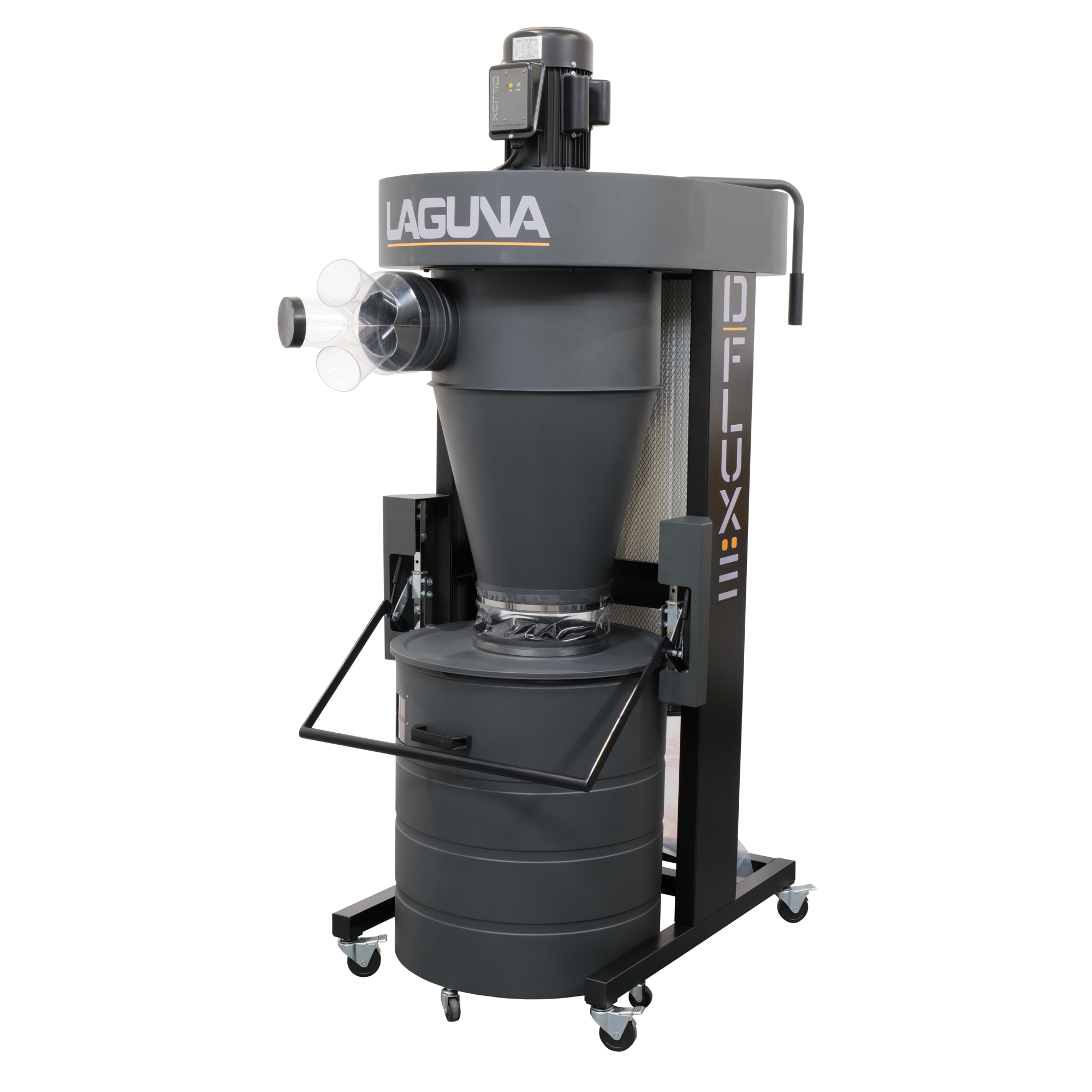

Laguna Cyclone Dust Collector - 3HP, 220V, 45-Gallon Capacity, 1 Micron Filter, Model# D|Flux:3

Item# 6490274
Laguna Cyclone Dust Collector - 3HP, 220V, 45-Gallon Capacity, 1 Micron Filter, Model# D|Flux:3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Cyclone Dust Collector - 3HP, 220V, 45-Gallon Capacity, 1 Micron Filter, Model# D|Flux:3

Click or Tap image to Zoom

$2532.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: 3 HP Voltage: 220 volt Inlet: 8” Splitter: 3 x 4? Collection Volume: 45 Gallon Drum Filter: 1 Micron Filter Size: 14.5? x 39.38? Max Air Flow: 1941 CFM

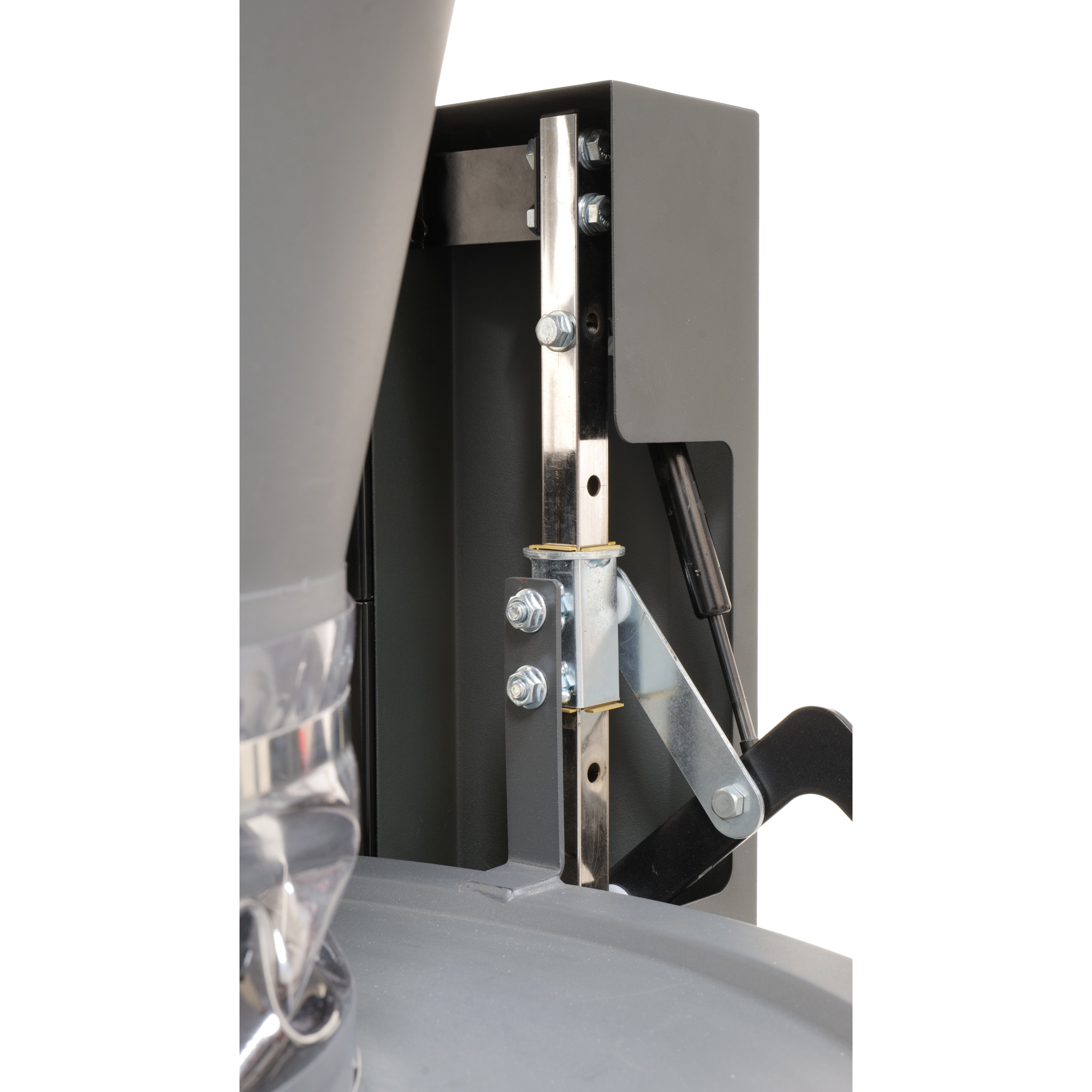

  • Max Static Pressure: 11? Collection Type: 2 Stage Cyclone Impeller: Cast Aluminum 16? Drum Bag Retention: Negative Pressure Drum Bag Hose: Magnetic Connector Drum Lid Hose: Clear Hose Drum Handle Lift: Air Strut Assistance
  • Mobility: Machine and Drum Wheels Certification: ETL Remote Control: RF Remote Sound Rating: 79 dB Dimensions: 31? x 54? x 82? Weight (shipping) 346 Lbs. Filter Cleaning: Manual Filter Cleaning Packaging: 1 Box

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Introducing the D|Flux Dust Collectors, the latest addition to the Laguna Dust Collection line-up, designed to meet and exceed essential dust collection performance, all while keeping your workspace clean. The D|Flux series offers powerful TEFC motors tailored to your power needs, a highly efficient cyclone separator that captures heavy particles, and fine dust collection in a clear plastic bag. The innovative 1 Micron canister filter ensures superior air filtration and easy maintenance. The user-friendly design includes a wireless remote for convenient operation, magnetic hose connections, and air-strut-assisted drum lids for effortless handling. 3HP, 220V Motor High-Efficiency 2-Stage Cyclone Separator 45-Gallon Steel Drum Capacity 1 Micron Filter Canister With Paddle Cleaning System

What's Included

    (1) dust collector
Play Item Video

Features + Benefits

  • Motor: 3 HP Voltage: 220 volt Inlet: 8” Splitter: 3 x 4? Collection Volume: 45 Gallon Drum Filter: 1 Micron Filter Size: 14.5? x 39.38? Max Air Flow: 1941 CFM
  • Max Static Pressure: 11? Collection Type: 2 Stage Cyclone Impeller: Cast Aluminum 16? Drum Bag Retention: Negative Pressure Drum Bag Hose: Magnetic Connector Drum Lid Hose: Clear Hose Drum Handle Lift: Air Strut Assistance
  • Mobility: Machine and Drum Wheels Certification: ETL Remote Control: RF Remote Sound Rating: 79 dB Dimensions: 31? x 54? x 82? Weight (shipping) 346 Lbs. Filter Cleaning: Manual Filter Cleaning Packaging: 1 Box

Key Specs

AttributeSpecification

item#

6490274

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

346.0 LB
AttributeSpecification

Product Type

Dust Collector

Product Weight

320.0000 lb

Dimensions L x W x H (in.)

28.0 x 53.0 x 79.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
