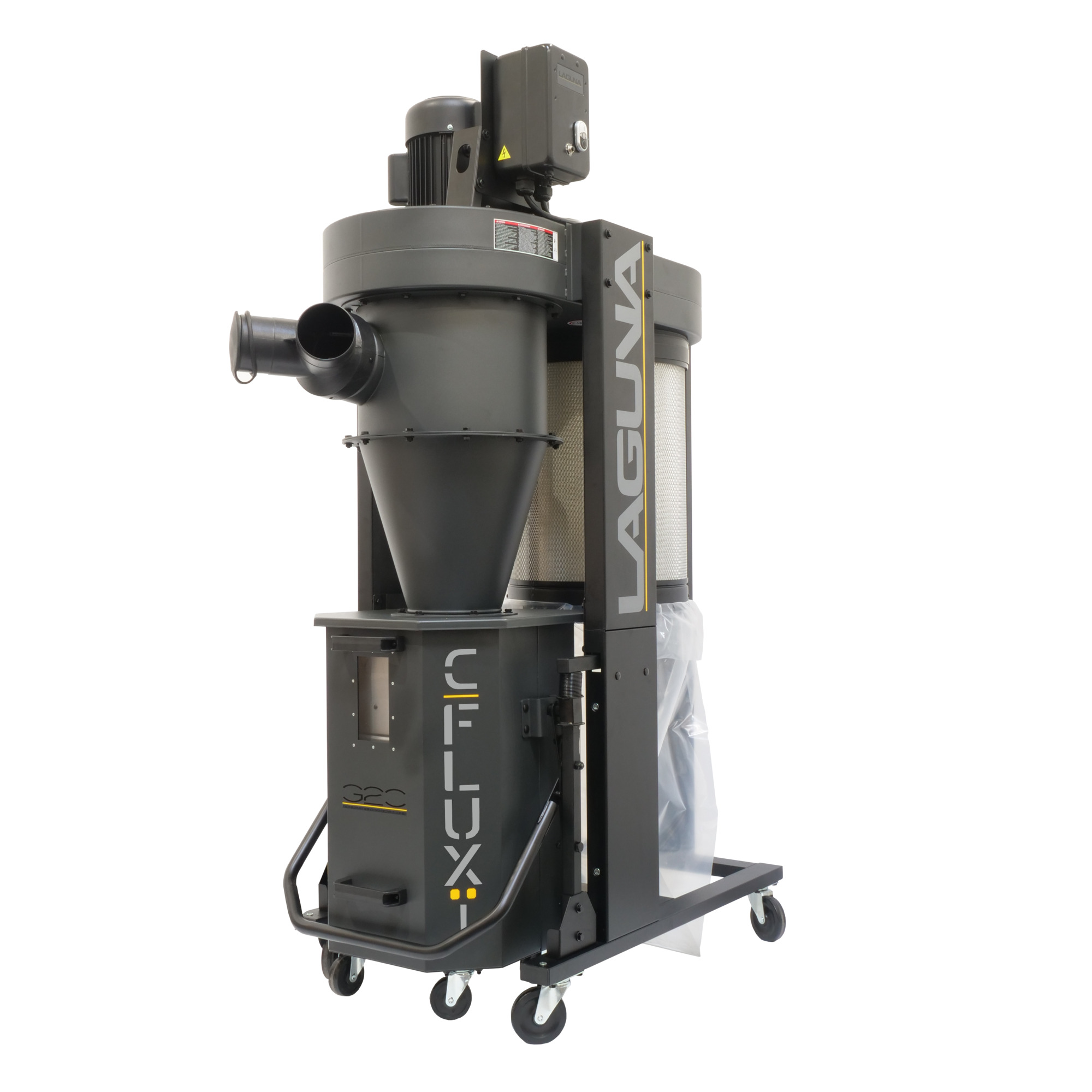

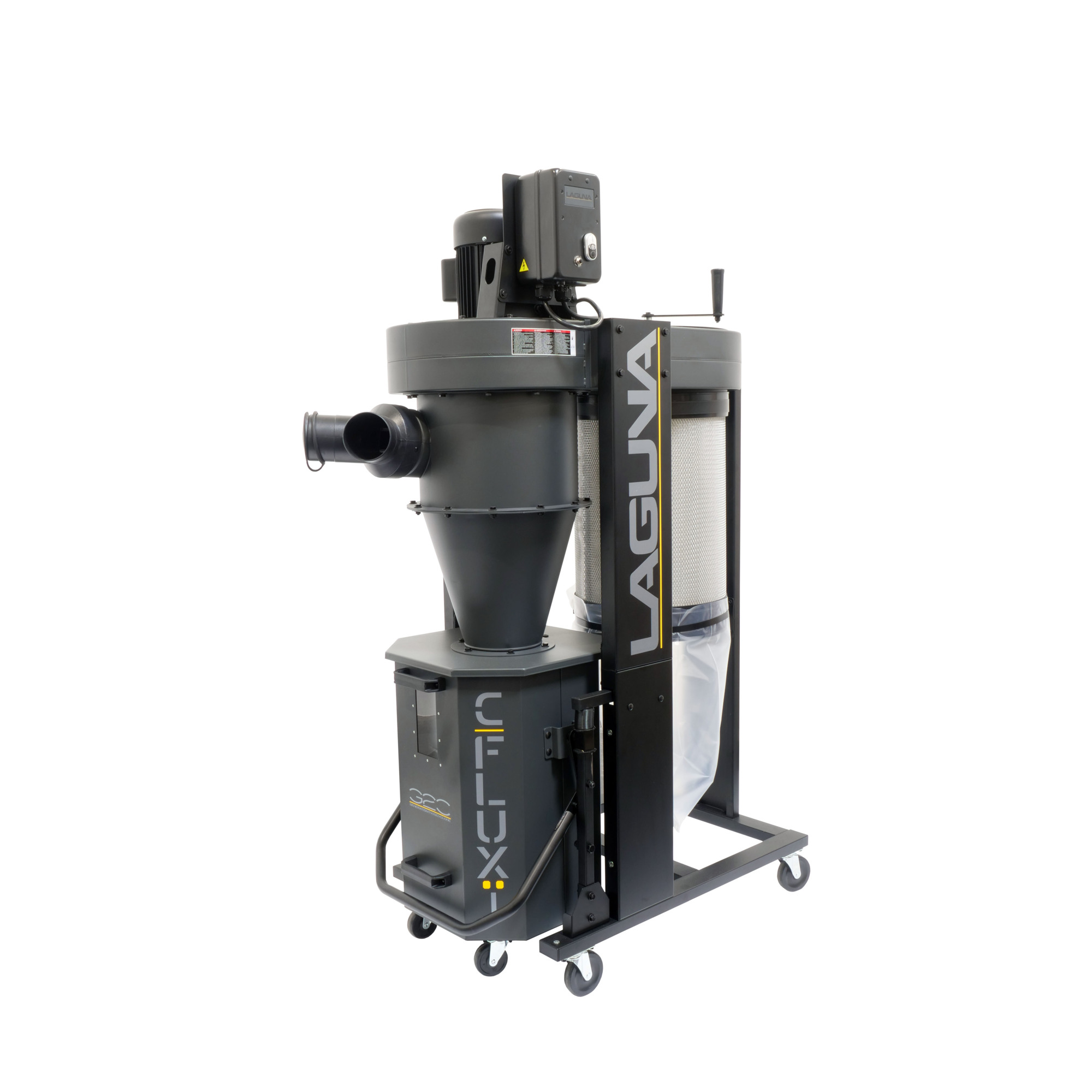

Laguna Cyclone Dust Collector - 1.5 HP, 110V, 1314 CFM, 25-Gallon Capacity, Model# C|FLUX: 1

Item# 6490389
Laguna Cyclone Dust Collector - 1.5 HP, 110V, 1314 CFM, 25-Gallon Capacity, Model# C|FLUX: 1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Cyclone Dust Collector - 1.5 HP, 110V, 1314 CFM, 25-Gallon Capacity, Model# C|FLUX: 1

Click or Tap image to Zoom

$2565.78

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor Specs: 1.5HP Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM Running AMP: (with 6? inlet) 18.8A at 110V; 9.4A at 220V Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute) Shop Setting Air Flow: 900CFM Max Static Pressure: 10.1? Fan Size: 13.5?
  • Inlet: One 6? or Two 4? Ports Remote Control: High Frequency Collection Capacity: 25 Gallon Octagon Drum Decibel Reading: 82 dB (@9.8ft) Assembled Dimensions (L x W x H): 42? x 25? x 68? Packing Size (L x W x H): 45? x 28.3? x 47? (114.5 x 72 x 119.5 cm) Machine Weight: 232 lbs. (105 kg)
  • Shipping Weight: 287 lbs. (130 kg) Filter Specs Filtering Area: 48.4 sq/ft (4.5 sq/m) Cartridge Filter: 1 Micron, 15.74? x 19.68? (40 x 50 cm) x 1pc

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability. 1.5 HP Motor 1314 CFM Maximum Air Flow 25 Gallon Octagon Drum

What's Included

    (1) dust collector

Features + Benefits

  • Motor Specs: 1.5HP Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM Running AMP: (with 6? inlet) 18.8A at 110V; 9.4A at 220V Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute) Shop Setting Air Flow: 900CFM Max Static Pressure: 10.1? Fan Size: 13.5?
  • Inlet: One 6? or Two 4? Ports Remote Control: High Frequency Collection Capacity: 25 Gallon Octagon Drum Decibel Reading: 82 dB (@9.8ft) Assembled Dimensions (L x W x H): 42? x 25? x 68? Packing Size (L x W x H): 45? x 28.3? x 47? (114.5 x 72 x 119.5 cm) Machine Weight: 232 lbs. (105 kg)
  • Shipping Weight: 287 lbs. (130 kg) Filter Specs Filtering Area: 48.4 sq/ft (4.5 sq/m) Cartridge Filter: 1 Micron, 15.74? x 19.68? (40 x 50 cm) x 1pc

Key Specs

AttributeSpecification

item#

6490389

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

185.0 LB
AttributeSpecification

Product Type

Dust Collector

Product Weight

150.0000 lb

Dimensions L x W x H (in.)

30.0 x 24.0 x 28.0 in
