Laguna Dust Collector - 220V, 5HP, 3093 CFM, Auto-Cleaning HEPA Filter, 39-Gallon Capacity, Model# X|FLUX: 5

Item# 6490215
Top Seller

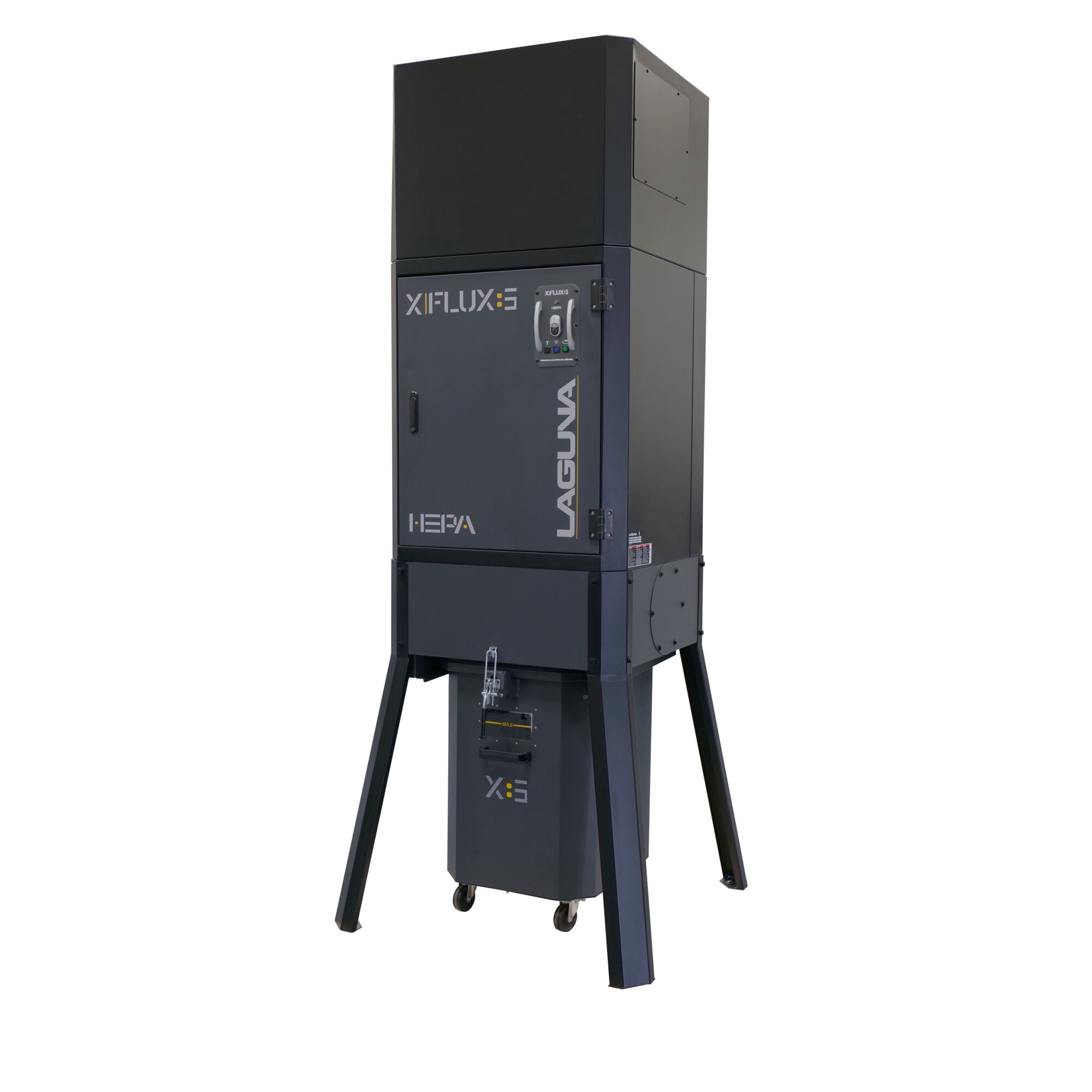

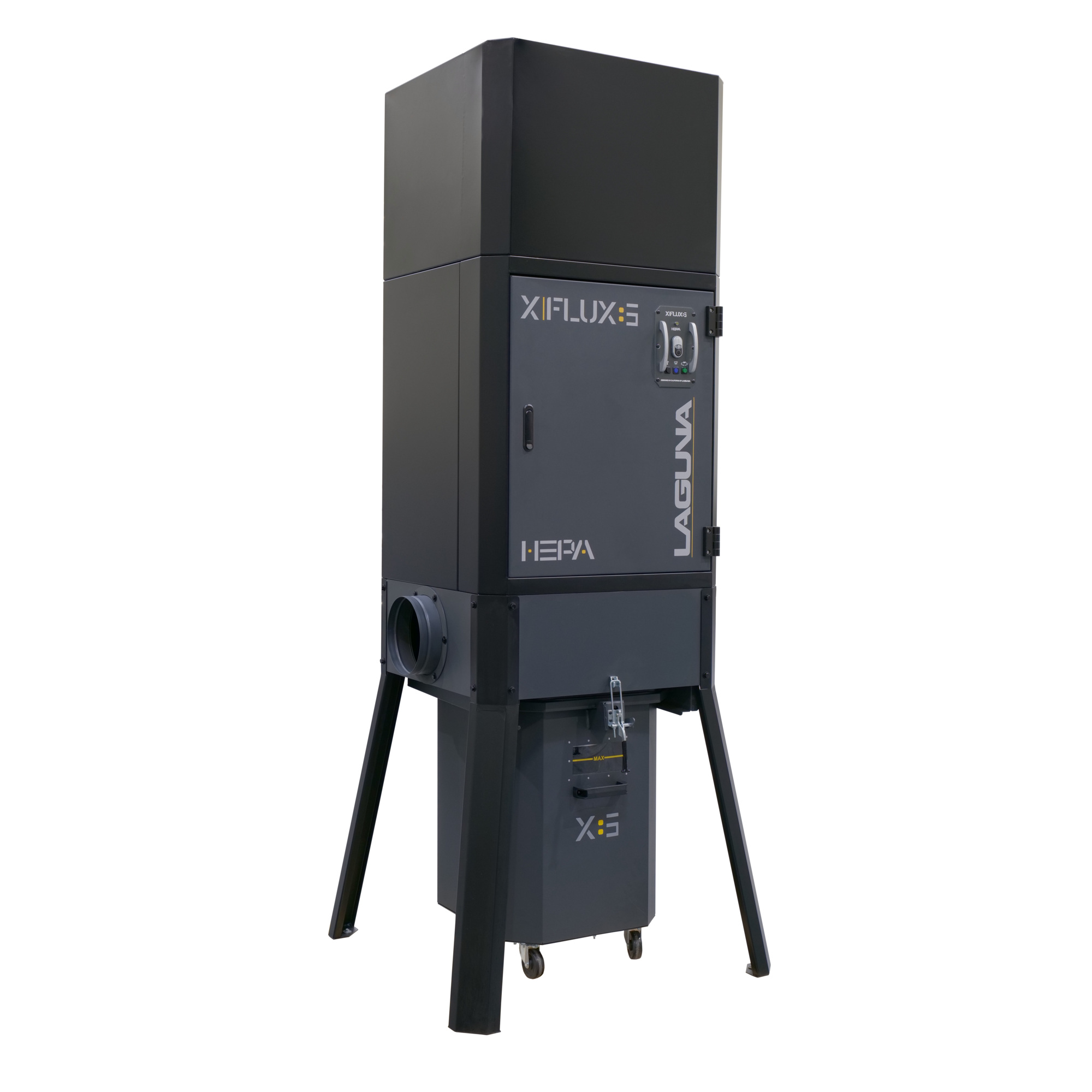

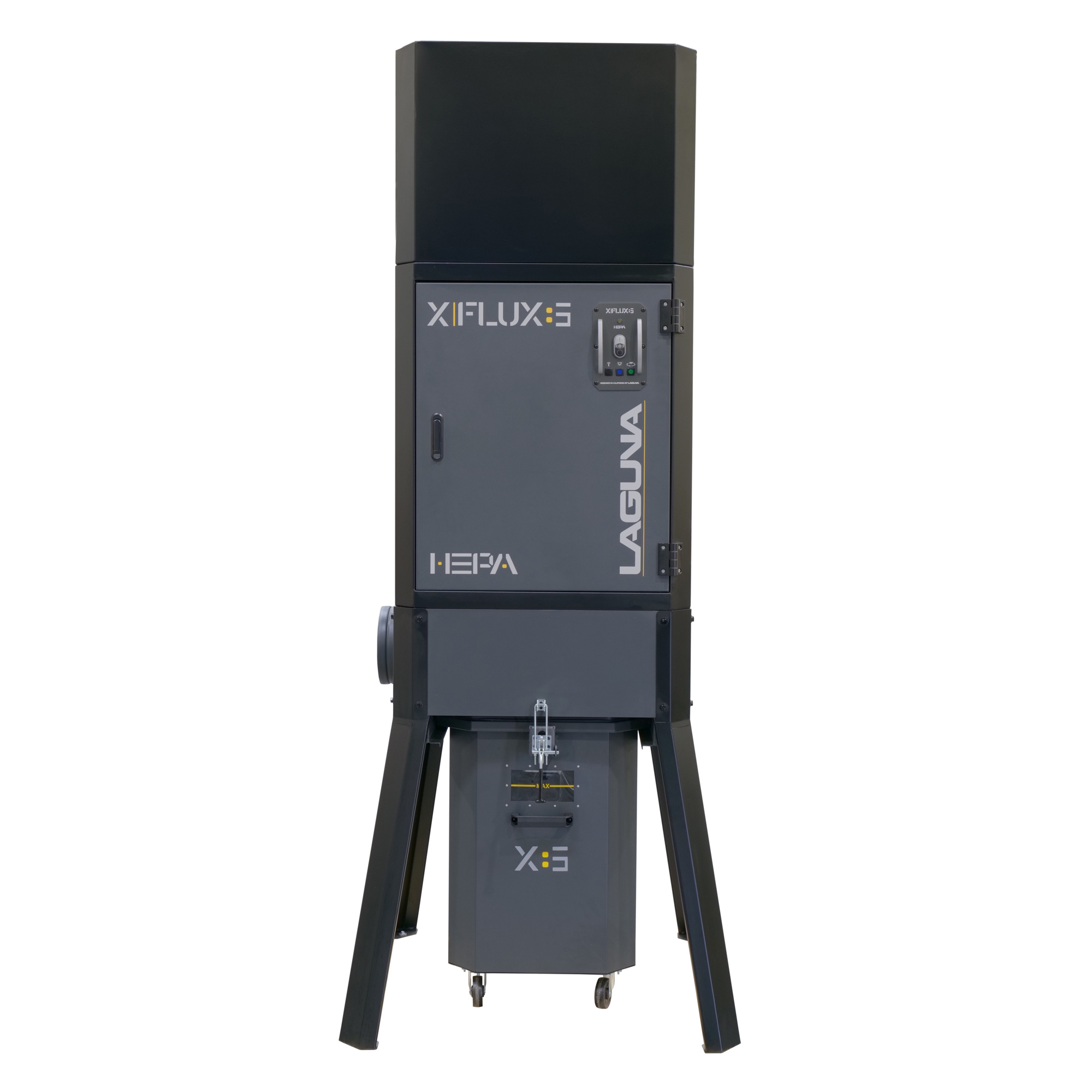

Laguna Dust Collector - 220V, 5HP, 3093 CFM, Auto-Cleaning HEPA Filter, 39-Gallon Capacity, Model# X|FLUX: 5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Dust Collector - 220V, 5HP, 3093 CFM, Auto-Cleaning HEPA Filter, 39-Gallon Capacity, Model# X|FLUX: 5

Click or Tap image to Zoom

$5847.78

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor Specs: 5HP Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM Running AMP: (8? inlet) 18.5A at 220V Maximum Air Flow: 3093 CFM (Cubic Feet Per Minute) Shop Setting Air Flow*: 1823 CFM Max Static Pressure: 12? Fan Size: 14.5? Inlet: 8?
  • Auto Clean: 3 min. Interval 10 Seconds F+R Decibel Reading: 69 dBA (@9.8ft) Remote Control: High Frequency Collection Capacity: 39 Gallon Octagon Drum Assembled Dimensions (L x W x H): 36? x 38? x 91? Packing Size (L x W x H): 35.4? x 28.3? x 81.5? (90 x 72 x 207 cm) Machine Weight: 456 lbs. (207 kg) Shipping Weight: 544 lbs. (247 kg)
  • Filter Specs Filtering Area: 32.3 sq/ft (3 sq/m) Cartridge Filter**: HEPA 19.7? x 19.7? (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

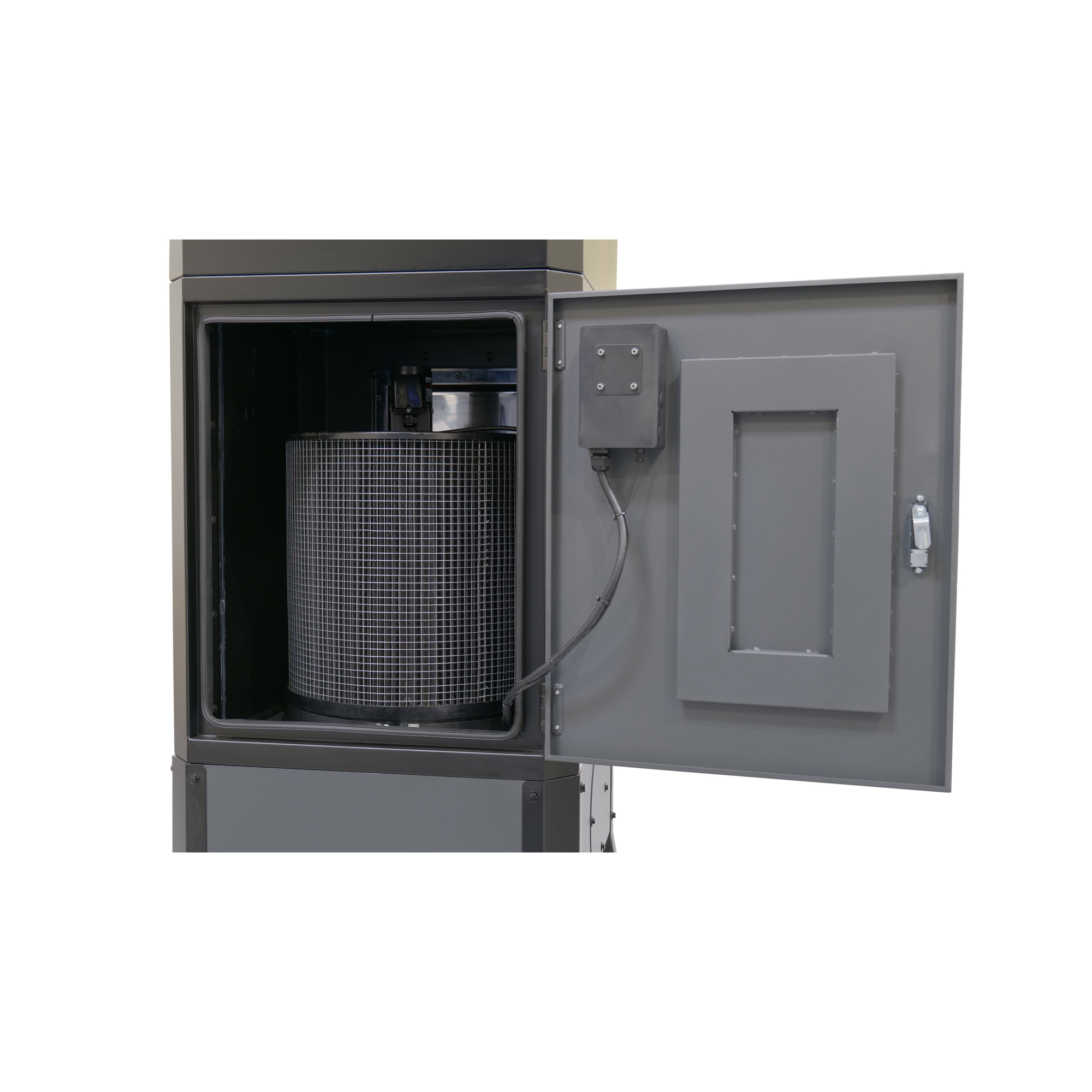

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 3093 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with a convenient 39-gallon drum on locking casters. Motor HP: 5 HP 3093 CFM Maximum Air Flow 39 Gallon Octagon Drum

What's Included

    (1) dust collector

Features + Benefits

  • Motor Specs: 5HP Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM Running AMP: (8? inlet) 18.5A at 220V Maximum Air Flow: 3093 CFM (Cubic Feet Per Minute) Shop Setting Air Flow*: 1823 CFM Max Static Pressure: 12? Fan Size: 14.5? Inlet: 8?
  • Auto Clean: 3 min. Interval 10 Seconds F+R Decibel Reading: 69 dBA (@9.8ft) Remote Control: High Frequency Collection Capacity: 39 Gallon Octagon Drum Assembled Dimensions (L x W x H): 36? x 38? x 91? Packing Size (L x W x H): 35.4? x 28.3? x 81.5? (90 x 72 x 207 cm) Machine Weight: 456 lbs. (207 kg) Shipping Weight: 544 lbs. (247 kg)
  • Filter Specs Filtering Area: 32.3 sq/ft (3 sq/m) Cartridge Filter**: HEPA 19.7? x 19.7? (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)

Key Specs

AttributeSpecification

item#

6490215

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

409.0 LB
AttributeSpecification

Product Type

Dust Collector

Product Weight

380.0000 lb

Dimensions L x W x H (in.)

45.0 x 28.0 x 45.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
