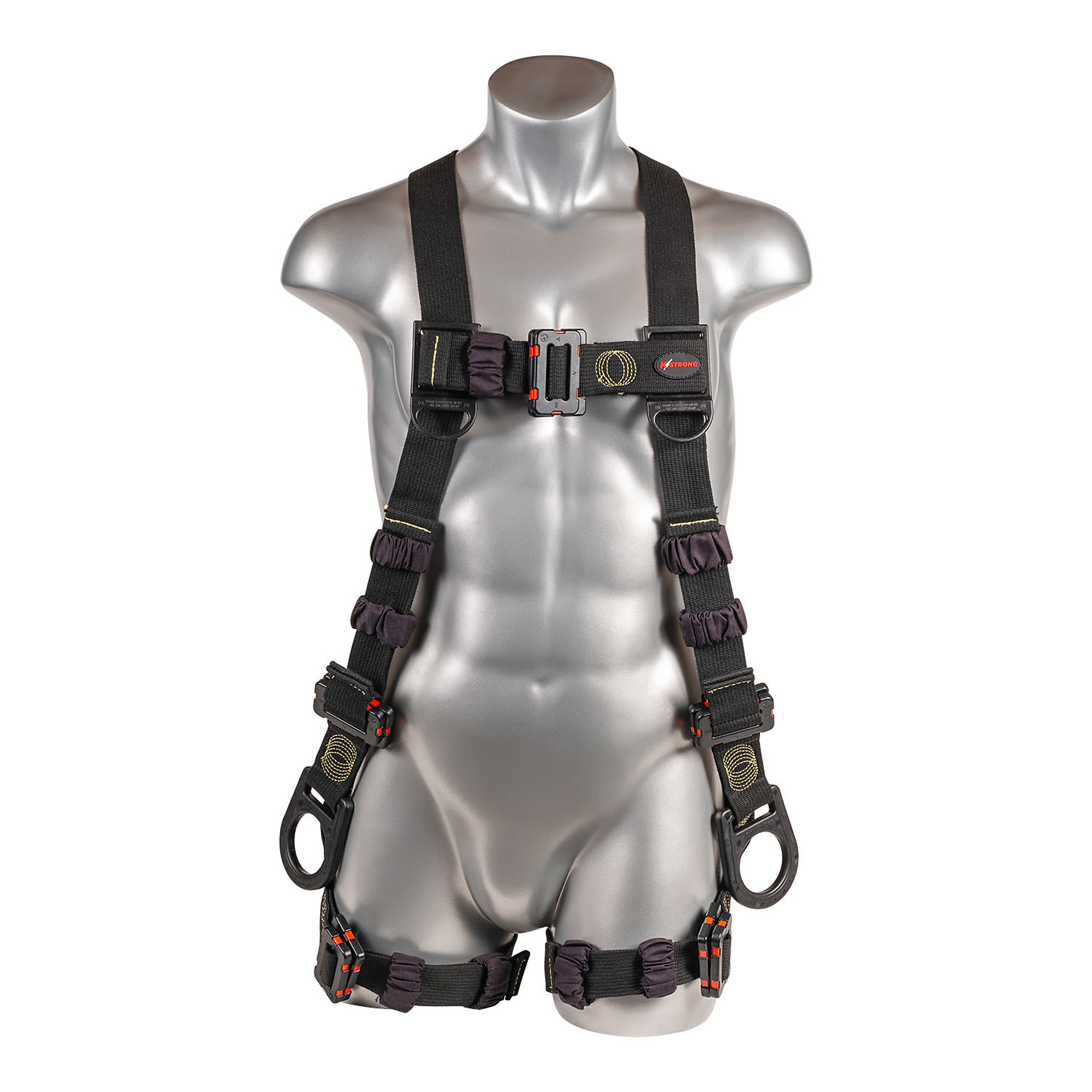

KStrong Kapture Element Arc Flash Rated 5-Point Full Body Harness — Dielectric Dorsal and Side D-Rings, Mating Buckle Legs and Chest, L-XL, Model# UFH10701P-L-XL

Item# 6689021
KStrong Kapture Element Arc Flash Rated 5-Point Full Body Harness — Dielectric Dorsal and Side D-Rings, Mating Buckle Legs and Chest, L-XL, Model# UFH10701P-L-XL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

KStrong Kapture Element Arc Flash Rated 5-Point Full Body Harness — Dielectric Dorsal and Side D-Rings, Mating Buckle Legs and Chest, L-XL, Model# UFH10701P-L-XL

Click or Tap image to Zoom

$296.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 5-Point adjustable full body harness made with FR webbing. Shoulder straps with Dielectric friction buckles for easy adjustment Chest straps & leg straps with Dielectric pass thru buckles for easy adjustment One back Dielectric D-Rings for fall arrest Two Dielectric D-Rings at the waist level for work positioning
  • Webbing Material: Polyester Width: 1.73 in. ± 0.04 in. (44mm ± 1mm) Breaking Strength: 5000 lbs. Stitching Thread Material: Material: Kevlar
  • Material: Alloy Steel core with reinforced Polymer Finish: Black Moulded
  • Capacity Range: ANSI – 130 – 310 lbs.; OSHA – 420 lbs.
  • Meets or Exceeds ANSI Z359.11-2021, ASTM F887-20

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The KStrong® Kapture™ Element Arc Flash Rated Harness offers premium 5-point fall protection and arc flash resistance. Built with durable Aramid webbing, Kevlar stitching, and alloy steel components featuring reinforced polymer, this harness is designed for safety in arc flash environments. Key features include Dielectric dorsal and side D-rings as well as Dielectric leg and chest mating buckles. Compliant with ANSI Z359.11-2021 and ASTM F887-20, it delivers maximum durability and comfort for demanding work.

What's Included

    (1) Harness

Features + Benefits

  • 5-Point adjustable full body harness made with FR webbing. Shoulder straps with Dielectric friction buckles for easy adjustment Chest straps & leg straps with Dielectric pass thru buckles for easy adjustment One back Dielectric D-Rings for fall arrest Two Dielectric D-Rings at the waist level for work positioning
  • Webbing Material: Polyester Width: 1.73 in. ± 0.04 in. (44mm ± 1mm) Breaking Strength: 5000 lbs. Stitching Thread Material: Material: Kevlar
  • Material: Alloy Steel core with reinforced Polymer Finish: Black Moulded
  • Capacity Range: ANSI – 130 – 310 lbs.; OSHA – 420 lbs.
  • Meets or Exceeds ANSI Z359.11-2021, ASTM F887-20

Key Specs

AttributeSpecification

item#

6689021

Brand

KStrong

Manufacturer's Warranty

2 year limited warranty

Ship Weight

4.63 LB

Weight Capacity

310 lb

Harness Size

L-XL

Harness Material

Aramid and Alloy Steel Core with Reinforced Polymer

Product Type

Safety Harness
AttributeSpecification

Harness Only

Yes

Application

General Use

Front D-Rings

No

Side D-Rings

No

Back D-Rings

Yes

Certifications

ANSI Z359.11-2021

Product Weight

4.6300 lb

Dimensions L x W x H (in.)

20.0 x 14.5 x 5.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
