Klutch Torque Multiplier, 1in. Drive, 3540 ft./lbs. Max.

Item# 57483
"Klutch Torque Multiplier, 1in. Drive, 3540 ft./lbs. Max."
Top Seller7 Pieces
Klutch Torque Multiplier, 1in. Drive, 3540 ft./lbs. Max.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Torque Multiplier, 1in. Drive, 3540 ft./lbs. Max.

Click or Tap image to Zoom

$92.99

Buy 6 or more at $83.69 ea.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    4 in stock at Fredericksburg VA - Pickup in under 1 hr

  • High-Output Torque: Delivers up to 3,540 ft./lbs. max. for large lug nuts and heavy fasteners
  • Extreme Gear Reduction: 1:64 gear ratio multiplies applied input torque with minimal effort
  • Heavy-Duty Drive Size: 1in. square drive output compatible with high-capacity sockets
  • Socket Set Included: Includes 4 metric sockets—21mm, 33mm, 38mm and 41mm with 78mm socket length
  • Added Compatibility: Includes 21mm drive adapter and works with other 1in. drive sockets

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch Torque Multiplier, 1in. Drive, 3540 ft./lbs. Max.
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$94.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch Torque Multiplier delivers extreme torque output for loosening and tightening large fasteners on trucks, trailers and heavy equipment. Using a high-ratio gear system, it multiplies applied input torque to reach up to 3,540 ft./lbs. max. without the need for an impact wrench. Designed for wheel service and heavy-duty maintenance, the Klutch Torque Multiplier provides controlled torque multiplication in a durable, shop-ready tool.

What's Included

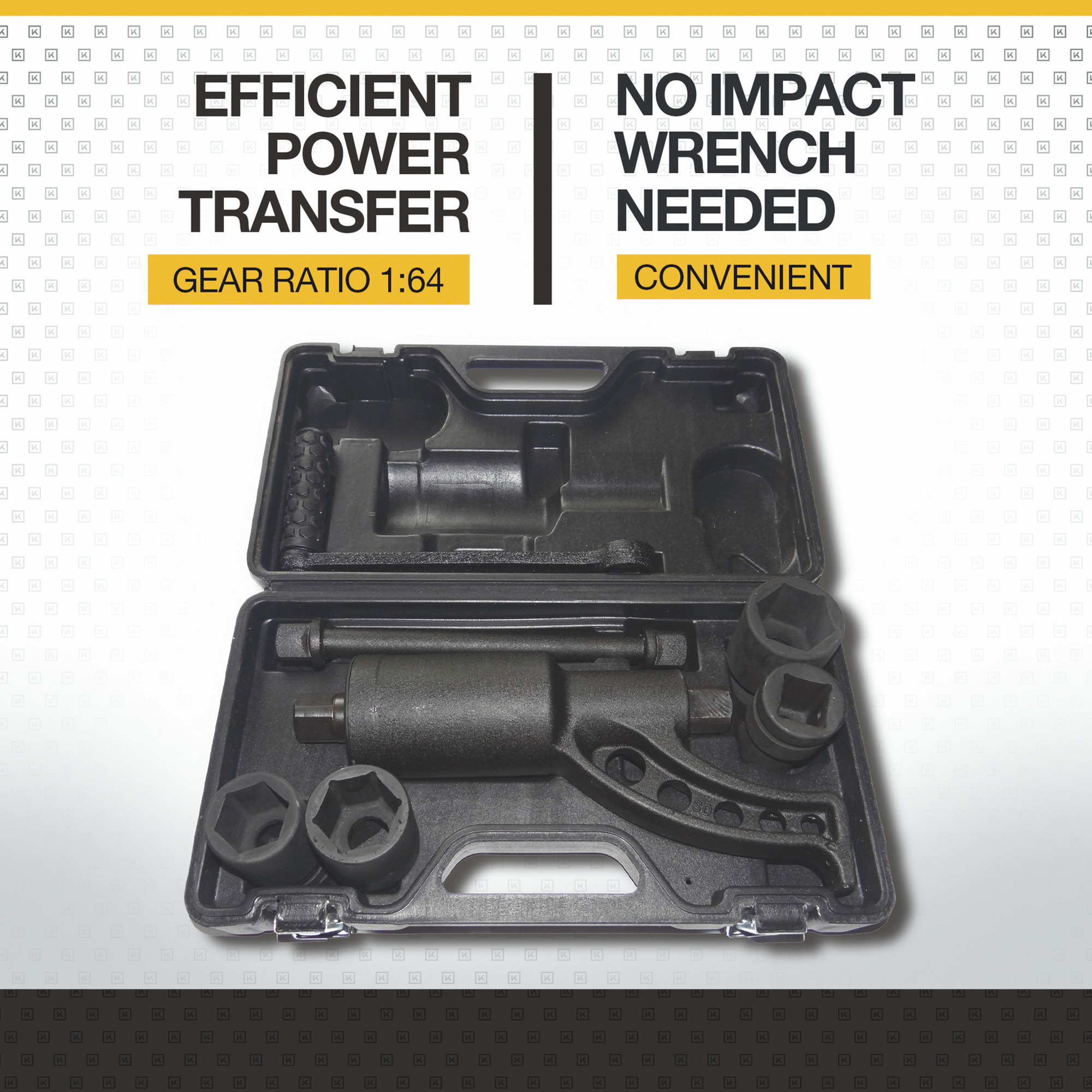

    (1) Klutch Torque Multiplier (1) Handle (1) Extension bar (3) 1in.-drive metric sockets: 33mm, 38mm, 41mm (1) 21mm drive adapter (1) Blow-molded plastic case

Downloads

Product Manual

Features + Benefits

  • High-Output Torque: Delivers up to 3,540 ft./lbs. max. for large lug nuts and heavy fasteners
  • Extreme Gear Reduction: 1:64 gear ratio multiplies applied input torque with minimal effort
  • Heavy-Duty Drive Size: 1in. square drive output compatible with high-capacity sockets
  • Socket Set Included: Includes 4 metric sockets—21mm, 33mm, 38mm and 41mm with 78mm socket length
  • Added Compatibility: Includes 21mm drive adapter and works with other 1in. drive sockets
  • Manual Torque Solution: Provides high-torque output without relying on air or electric impact tools
  • Included Storage: Includes blow-molded plastic storage case for protection and organization

Key Specs

AttributeSpecification

item#

57483

Brand

Klutch

Manufacturer's Warranty

wear item, no warranty

Ship Weight

20.0 LB

Pieces (qty.)

7
AttributeSpecification

Tool Length

12.5 in

Measurement Standard

Standard (SAE)/Metric

Material

Cast Iron

Torque Range

3,540 ft-lbs.

Storage Type

Plastic Case

Reviews

Questions & Answers

46 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. How does it work? Vidios?

    1 answer

    1. Operating instructions can be found beginning on page 6 of the Product Manual which is located on the product web page below the Product Summary. At this time, we do not have a video of this tool in use.

      Helpful?

  2. What does the gear ratio on the torque multiplier of 1:64 actually mean

    1 answer

    1. A 1:64 gear ration means that the handle (input) spins 64 rounds and the socket (output) will spin 1 round. It is easy to spin the handle to loosen the socket. This wrench requires little effort to reach a sufficient output torque and does not require the use of an impact wrench.

      Helpful?

  3. can you use to tighten nuts to 1600ftlbs ?

    1 answer

    1. This torque multiplier does not torque to a specific ft.-lb. rating; however, it has the capability to deliver up to 3,540 ft.-lbs. of torque.

      Helpful?

  4. Can any one inch drive socket work with this tool

    1 answer

    1. This torque multiplier can be used with other 1" drive sockets.

      Helpful?

  5. Is the 21mm a 4 point or 6 point

    1 answer

    1. The 21mm socket has 4 points.

      Helpful?

  6. how is the extension used? Between the tool and socket, or tool and handle?

    1 answer

    1. The extension bar is used between the crank handle and socket when the torque multiplier is not being used to loosen or tighten a nut. More about this can be found in the product manual, located on the product web page, on pages 6-7.

      Helpful?

  7. What is the ratio on this?

    1 answer

    1. The gear ratio on the torque multiplier is 1:64.

      Helpful?

  8. where is this made?

    1 answer

    1. This torque multiplier is manufactured in China.

      Helpful?

  9. Can it also tighten to a desired poundage

    1 answer

    1. It does not accurately torque to a specific ft-lbs rating.

      Helpful?

  10. Will it work on left hand threads

    1 answer

    1. This will work with left-handed threads.

      Helpful?
