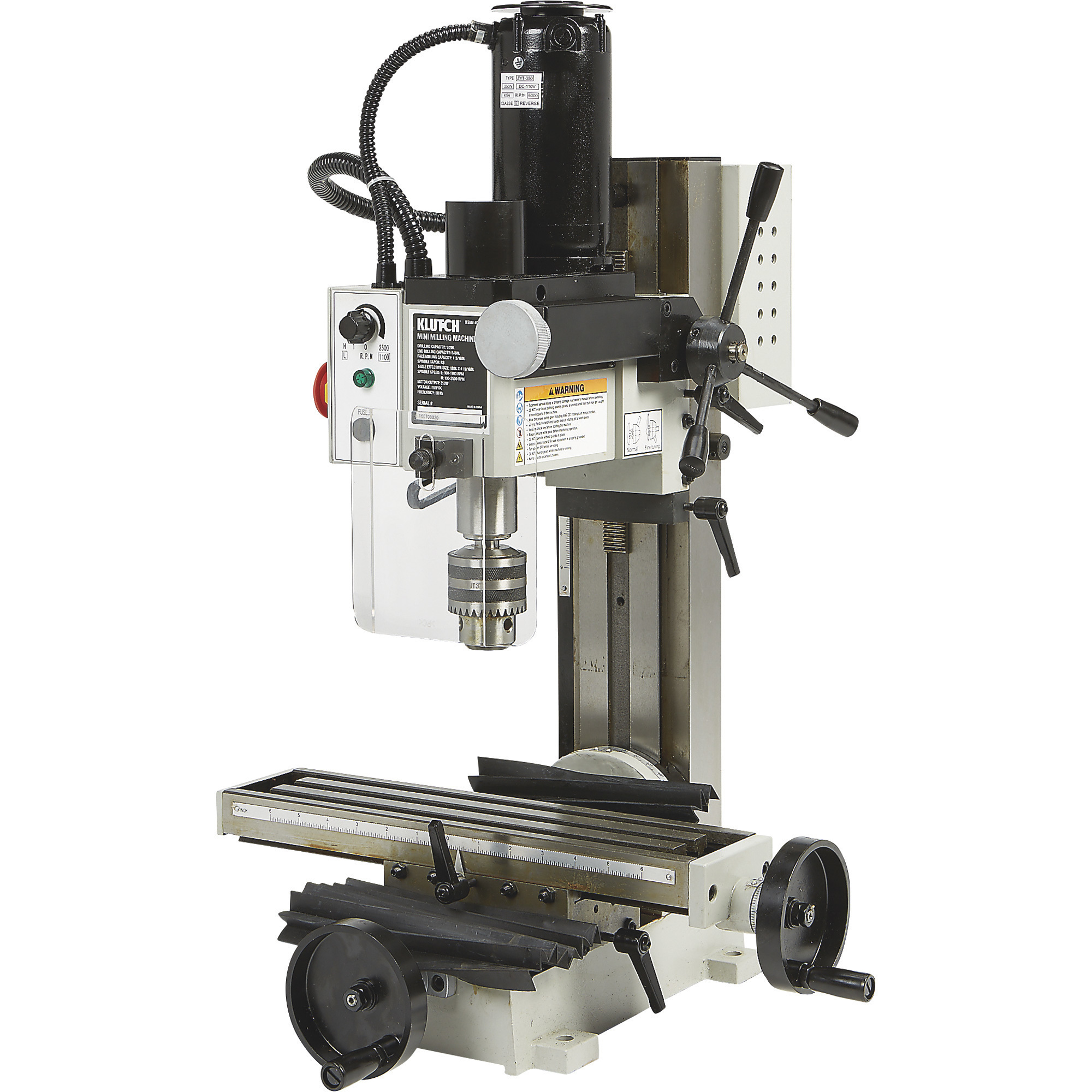

Klutch 1/2 HP Mini Milling Machine, 350 Watts, 110V

Item# 49657
"Klutch 1/2 HP Mini Milling Machine, 350 Watts, 110V"
Klutch 1/2 HP Mini Milling Machine, 350 Watts, 110V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 1/2 HP Mini Milling Machine, 350 Watts, 110V

Click or Tap image to Zoom

  • 3-5/8in. x 15-3/8in. work table with 8-5/8in. longitudinal travel and 4in. cross travel
  • 7in. headstock travel
  • Coarse down feed control for drilling
  • Fine down feed control for accurate tool height setting
  • 1/2in. drilling capacity, 5/8in. end mill capacity and 1-3/16in. face mill capacity

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch Mini Milling Machine is a cast iron milling machine that runs vibration free for smooth operation. The 1/2 HP, 110V variable-speed motor with a 2-speed gearbox delivers 350 Watt power. Milling head and column tilts to 45° left or right for added versatility. ETL listed.

What's Included

    (1) Mini milling machine

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 3-5/8in. x 15-3/8in. work table with 8-5/8in. longitudinal travel and 4in. cross travel
  • 7in. headstock travel
  • Coarse down feed control for drilling
  • Fine down feed control for accurate tool height setting
  • 1/2in. drilling capacity, 5/8in. end mill capacity and 1-3/16in. face mill capacity
  • Has R8 spindle, collet and drawbar
  • Suitable for different sizes of R8 collets (not included): 1/8in., 3/16in., 1/4in., 3/8in., 5/16in., 9/16in., 1/2in. and 5/8in.
  • Delivers 100–2,500 RPM
  • Requires 5 Amps
  • Longitudinal axis (X): 220mm; cross axis (Y): 100mm; headstock travel (Z): 180mm; throat: 167mm; table effective size: 390x92mm; T-slot size: 12mm

Key Specs

AttributeSpecification

item#

49657

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

133.0 LB

Horsepower

0.5 HP

Volts

110

360 Degree Head Swivel

No
AttributeSpecification

Product Type

Milling Machine

Drilling Capacity

1/2 in

Chuck Size

1/2 in

Light Included

No

Stand Included

No

Product Weight

lb

Dimensions L x W x H (in.)

20.5 x 20.06 x 29.93 in

Reviews

Questions & Answers

48 Reviews This action will navigate to reviews.

Questions

1–10 of 32 Questions
Sort by:

  1. Is z-height controlled by air or torsion spring?

    1. It's a spring and I have had no problems with balance at the extreme ends of travel as others have mentioned.

      Helpful?

    2. Spring

      Helpful?

    3. The headstock travel for this unit is controlled by a torsion spring.

      Helpful?

  2. Drill through 2" steel?

    I need something that will accurately drill a 3/4" hole through a 2" piece of metal. Can this do it?

    1. No

      Helpful?

    2. This mini milling machine can drill through metal up to 1/2" thick. It cannot drill through a 2" thick piece of metal.

      Helpful?

  3. Where do you get the cutters

    1. Any cutting tool supply house. You will also need an R8 collet for each size end mill you use.

      Helpful?

    2. Currently, Northern tool does not carry any cutters for this machine. You would need to find them locally.

      Helpful?

  4. is this a belt drive motor

    1. No. It is a direct drive variable speed DC motor.

      Helpful?

    2. The Klutch Mini Milling Machine has a direct drive motor.

      Helpful?

  5. The manual states it is MT3 or R8 and has a asterisk next to it how do I tell which I have? Or does it except both?

    1. Mine states R8 on the label on the head unit

      Helpful?

    2. This unit has an R8 spindle.

      Helpful?

  6. Does this machine accept a drawbar for collets?

    Also does the manufacture sell the proper drawbar for MT#3 collets? If not which one should I order?

    1. R8 Collets

      Helpful?

    2. This unit comes with an R8 spindle and uses a 7/16 inch draw bar. MT#3 collets are not to be used with this machine.

      Helpful?

  7. What material are the drive gears (from the motor to the spindle) made of?

    1 answer

    1. Most of the gears are manufactured from metal; however, the gears located in the headstock are plastic to reduce noise.

      Helpful?

  8. Can an endmill safely be used in the chuck?

    1 answer

    1. This milling machine has a 5/8" end mill capacity.

      Helpful?

  9. What is the metal wheel on the right side of the readout for?

    1 answer

    1. The metal wheel on the right side of this mini milling machine is the fine feeding wheel. It is designed to control the vertical movement of the spindle, which allows for fine adjustments to the cutting depth.

      Helpful?

  10. What's an acceptable amount of spindle runnout? I measure .00125" on the lowest part of the spindle and a bit less higher up. Is this normal?

    1 answer

    1. The radial runout of the spindle taper hole near the spindle end will be 0.0007874 inches (0.02MM). The radial runout of the spindle taper hole 50 MM from the spindle end will be 0.0015748 inches (0.04MM).

      Helpful?
