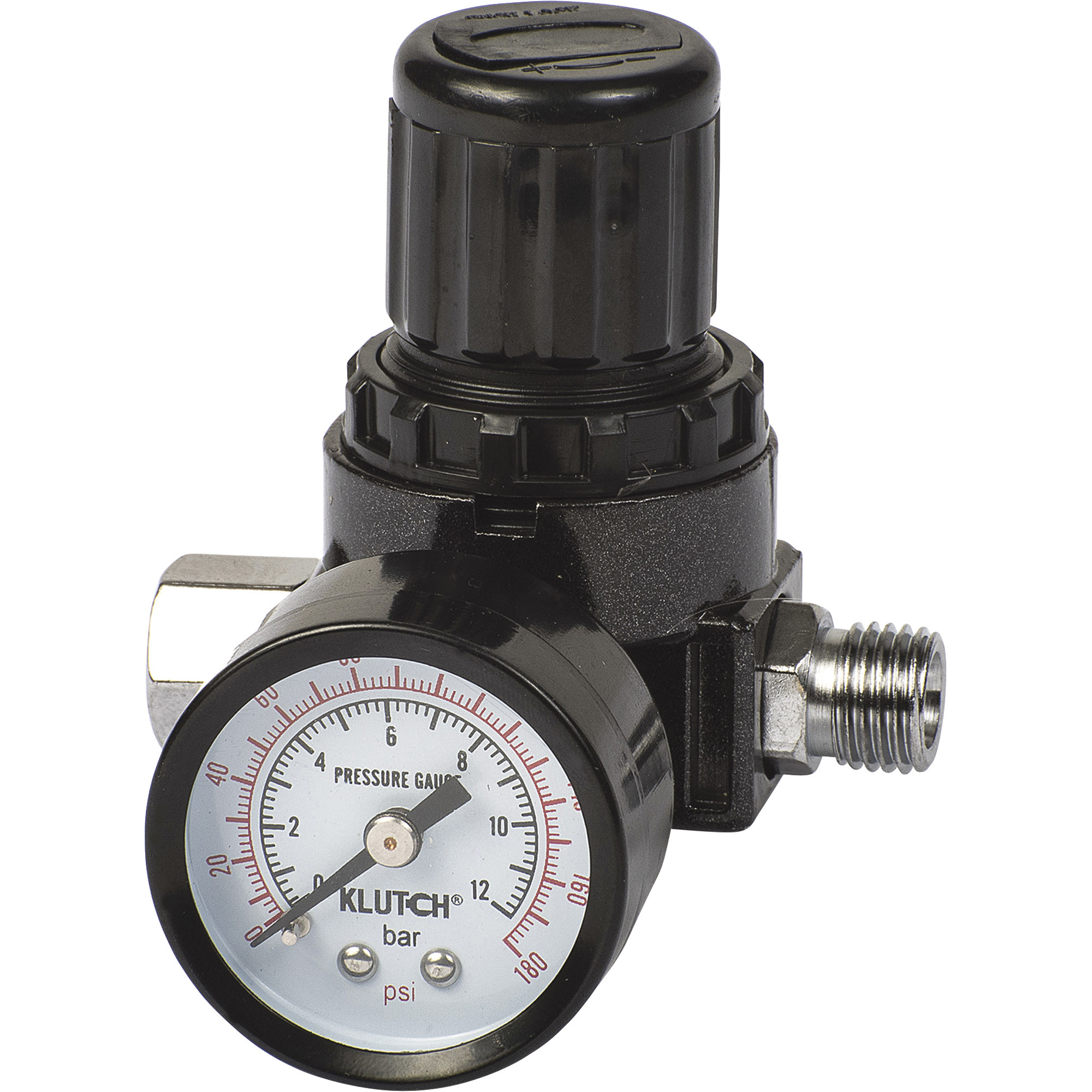

Klutch 1/4in. Locking Air Pressure Gauge with Regulator, 0–180 PSI

Item# 48690
Klutch 1/4in. Locking Air Pressure Gauge with Regulator, 0–180 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 1/4in. Locking Air Pressure Gauge with Regulator, 0–180 PSI

Click or Tap image to Zoom

$14.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 09/28/26

  • Store Pickup:

    Not Available
  • Small and lightweight
  • Easy-to-read 1-1/2in. dia. gauge
  • Built-in diaphragm regulator
  • 0–180 PSI range
  • 158°F max. operating temperature

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch 1/4in. Locking Air Pressure Gauge with Regulator, 0–180 PSI
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$16.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 1/4in. Locking Air Pressure Gauge with Regulator is small and lightweight and can be attached to all conventional and HVLP spray guns. It is a true diaphragm regulator for accurate air pressure regulation. Features an easy-to-read 1-1/2in. diameter gauge, built-in regulator and 1/4in. fittings.

What's Included

    (1) Klutch 1/4in. Locking Air Pressure Gauge with Regulator

Features + Benefits

  • Small and lightweight
  • Easy-to-read 1-1/2in. dia. gauge
  • Built-in diaphragm regulator
  • 0–180 PSI range
  • 158°F max. operating temperature
  • 16 CFM
  • Push/pull lock pressure setting
  • 1/4in. NPT air inlet
  • 1/4in. NPS (female) air outlet
  • Attaches to all conventional and HVLP spray guns

Key Specs

AttributeSpecification

item#

48690

Brand

Klutch

Manufacturer's Warranty

wear item, no warranty

Ship Weight

0.45 LB

Diameter

1.5 in
AttributeSpecification

Accuracy

±2%

Inlet Diameter

0.25 in

Material

Plastic

Recommended Use

Air Tool, Spray Gun, Compressor

Max. PSI

250

Reviews

Questions & Answers

19 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. how do you set the pressure

    1 answer

    1. The knob on top can be twisted in either direction to adjust the pressure.

      Helpful?

  2. How much pressure does this lose before cycling compressor on?

    1 answer

    1. That would be dependant on what the pressure regulator on the compressor is set at. If the compressor regulator is set at 100 PSI and the regulator on the air tool is set at 120 PSI, the compressor will start at 100 PSI.

      Helpful?

  3. What is the flow rate through this regulator?

    1 answer

    1. The flow rate for this pressure regulator is 16 CFM.

      Helpful?

  4. Is the gauge included with this product?

    1 answer

    1. The pressure gauge shown in the picture will be included.

      Helpful?

  5. What size port is used for gauge?

    I see the inlet and outlet are 1/4" NPT, but are the gauge ports 1/4" or 1/8" NPT?

    1 answer

    1. The gauge port on this unit is 1/4" NPT.

      Helpful?

  6. Is this rated for use with LP Gas instead of air?

    And can it reduce 60psi to 1/2psi?

    1 answer

    1. This Klutch Gauge with Regulator is not recommended to be used with LP, it is designed for air pressure regulation. We offer an LP gauge that fits tanks from 5 lbs. up to 40 lbs. That is item 44870. Please view my recommendation below.

      Helpful?
