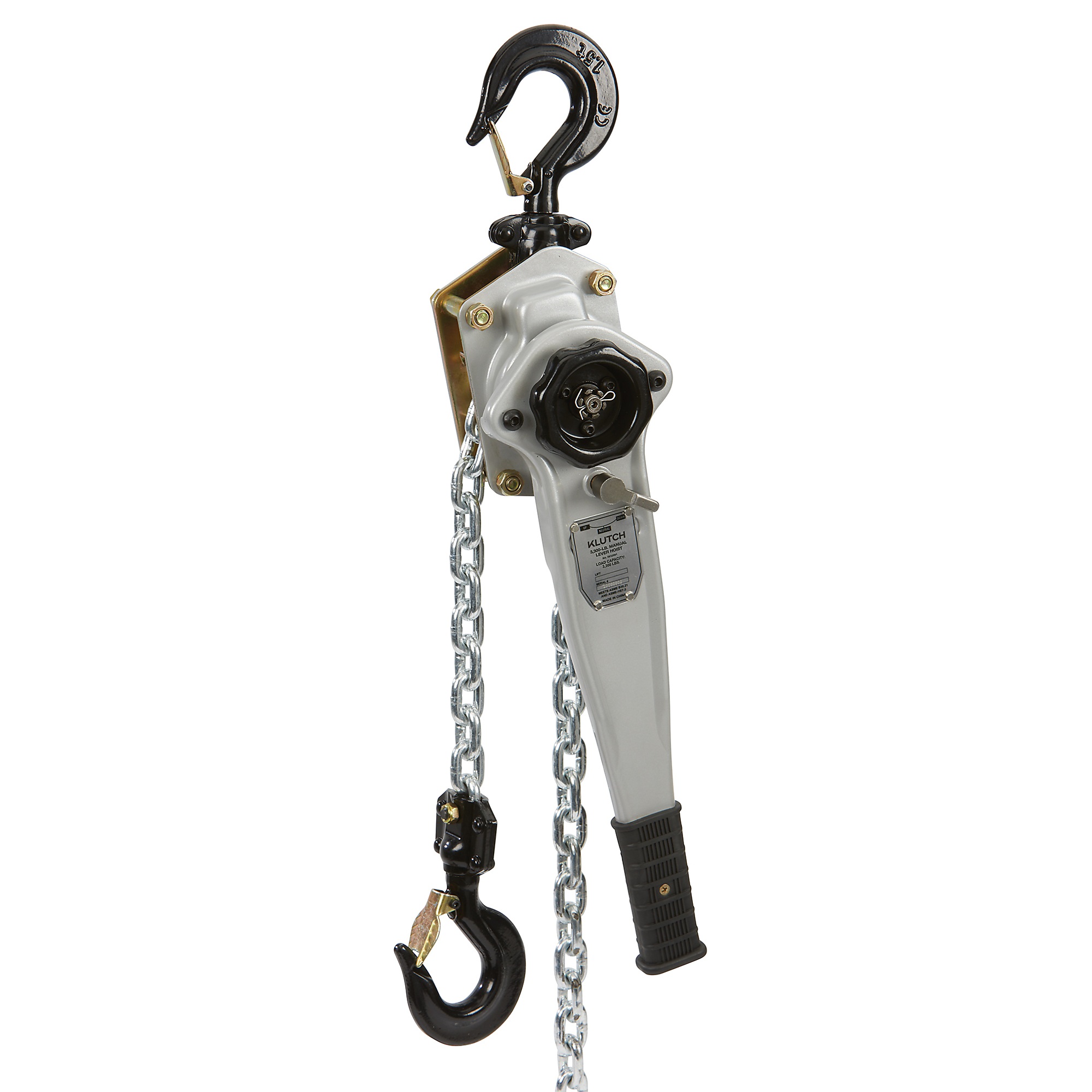

Klutch Lever Chain Hoist, 3300-Lb. Capacity, 5ft. Lift

Item# 5832691
Klutch Lever Chain Hoist, 3300-Lb. Capacity, 5ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Lever Chain Hoist, 3300-Lb. Capacity, 5ft. Lift

Click or Tap image to Zoom

$229.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Double-pawl brake system; upper, lower hooks with forged steel safety latches; high-tensile alloy steel chain
  • Tight, graceful and lightweight design can be operated even in a narrow place
  • Sealed guide chain construction to ensure the load chain running safely
  • Needle bearing for supporting driving shaft for mechanical advantage
  • Free-wheeling mechanism for quick chain adjustments

See full description

Complete Your Solution

  • Klutch Lever Chain Hoist, 3300-Lb. Capacity, 5ft. Lift
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all three:

$244.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch Lever Chain Hoist meets ASME B30.21/HST-3 safety standards and features a Grade 80 load chain for high-level strength. The safety coefficient of this unit is at least 4:1. The double-pawl brake system and double-chain guide roller system ensure safe, stable operation. This unit withstands 1,500 cycles with 110% of rated capacity, at least 300mm per cycle. This hoist has been tested to 150% of rated capacity. 2-tone chains are easy to identify. Tough, ductile drop-forged hooks ensure noticeable opening when subject to excessive overload. Roller bearing design, zinc-plated side plate and asbestos-free friction disc ensure smooth operation. Compact design allows low headroom. 360° swivel hook includes a stamping safety latch.

What's Included

    (1) Heavy-duty lever chain hoist

Features + Benefits

  • Double-pawl brake system; upper, lower hooks with forged steel safety latches; high-tensile alloy steel chain
  • Tight, graceful and lightweight design can be operated even in a narrow place
  • Sealed guide chain construction to ensure the load chain running safely
  • Needle bearing for supporting driving shaft for mechanical advantage
  • Free-wheeling mechanism for quick chain adjustments
  • Meets ASME B30.21/HST-3 safety standards
  • Safety factor rating of at least 4:1
  • Tested to 150% rated capacity

Key Specs

AttributeSpecification

item#

5832691

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.2 LB

Capacity

3,300 lb

Lift Height

5 ft

Brake Type

Self-Locking
AttributeSpecification

Control Type

Lever

Lift Chain Diameter (SAE)

5/16 in

Lift Chain Diameter

8 mm

Total Chain Length

5 ft

Product Weight

23.3200 lb

Dimensions L x W x H (in.)

6.98 x 14.82 x 4.29 in
