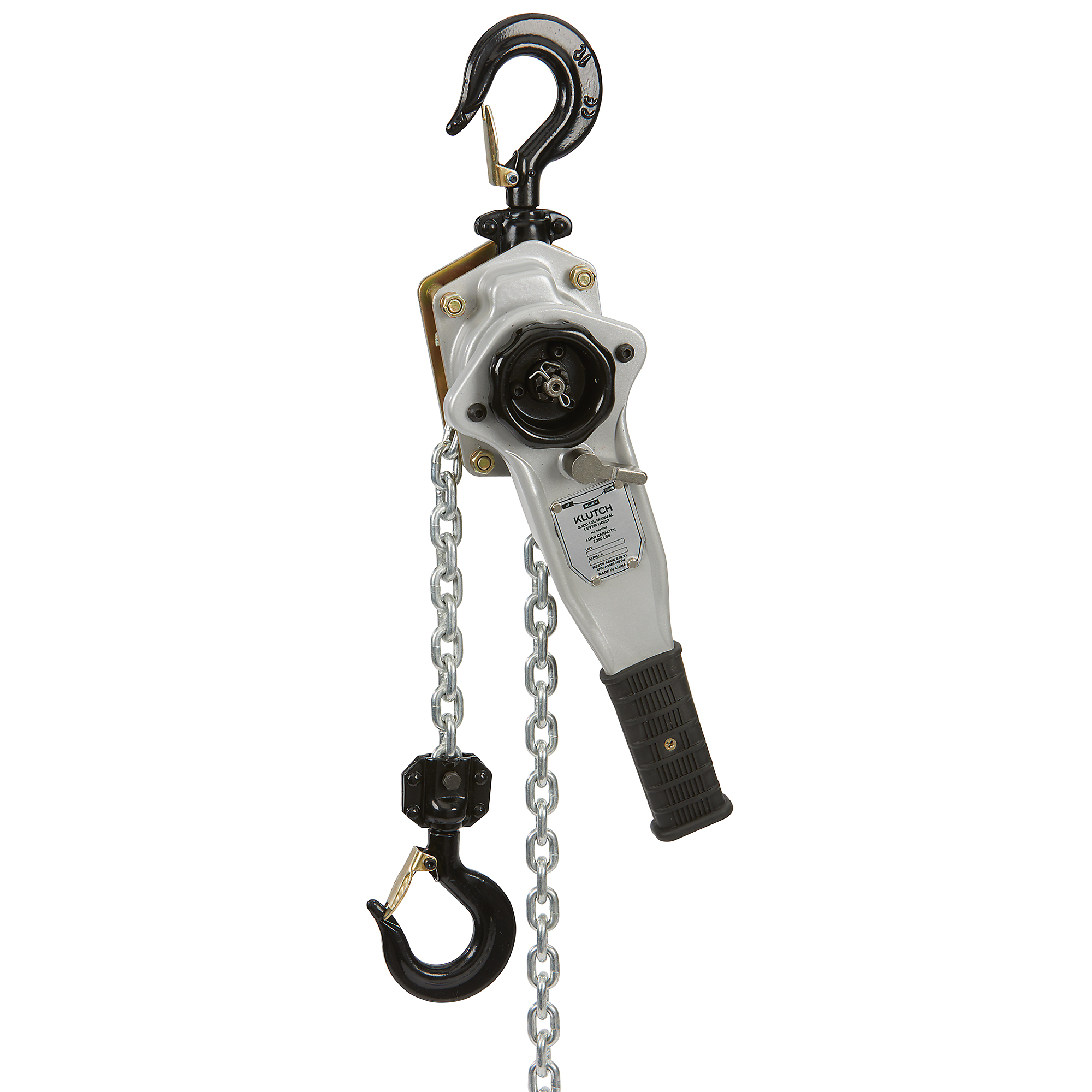

Klutch Lever Chain Hoist, 2200-Lb. Capacity, 5ft. Lift

Item# 5832703
Klutch Lever Chain Hoist, 2200-Lb. Capacity, 5ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Lever Chain Hoist, 2200-Lb. Capacity, 5ft. Lift

Click or Tap image to Zoom

$199.99

  • Shipping:

    Available now

  • Sealed guide chain construction to ensure the load chain running safely
  • Double-pawl brake system; upper, lower hooks with forged steel safety latches; high-tensile alloy steel chain
  • With auto-clutch, the load chain can be handled with one hand wheel
  • With deep groove ball bearing of load chain sprocket, pulling is light
  • Lever hoist is made of high strength low carbon alloy steel

See full description

Complete Your Solution

  • Klutch Lever Chain Hoist, 2200-Lb. Capacity, 5ft. Lift
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all three:

$214.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch Lever Chain Hoist is small, lightweight and easy to carry. This unit is also convenient to operate even in narrow working space. This unit is equipped with anti-detaching latches, a light weight hook, safe and reliable brake and a cap nut for better maintenance. The high-safety lower hook includes a protection device. This unit meets ASME B30.21/HST-3 safety standards and features a Grade 80 load chain for high-level strength. The safety coefficient of this unit is at least 4:1. Unit withstands 1,500 cycles with 110% of rated capacity, at least 300mm per cycle. This hoist has been tested to 150% of rated capacity. 2-tone chains are easy to identify. Tough, ductile drop-forged hooks ensure noticeable opening when subject to excessive overload. Roller bearing design, zinc-plated side plate and asbestos-free friction disc ensure smooth operation. Compact design allows low headroom. 360° swivel hook includes a stamping safety latch.

What's Included

    (1) Heavy-duty lever chain hoist

Features + Benefits

  • Sealed guide chain construction to ensure the load chain running safely
  • Double-pawl brake system; upper, lower hooks with forged steel safety latches; high-tensile alloy steel chain
  • With auto-clutch, the load chain can be handled with one hand wheel
  • With deep groove ball bearing of load chain sprocket, pulling is light
  • Lever hoist is made of high strength low carbon alloy steel
  • Meets ASME B30.21/HST-3 safety standards
  • Safety factor rating of at least 4:1
  • Tested to 150% rated capacity

Key Specs

AttributeSpecification

item#

5832703

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

15.6 LB

Capacity

2,200 lb

Lift Height

5 ft

Brake Type

Self-Locking
AttributeSpecification

Control Type

Lever

Lift Chain Diameter (SAE)

1/4 in

Lift Chain Diameter

6 mm

Total Chain Length

5 ft

Product Weight

14.3000 lb

Dimensions L x W x H (in.)

5.93 x 12.68 x 3.74 in
