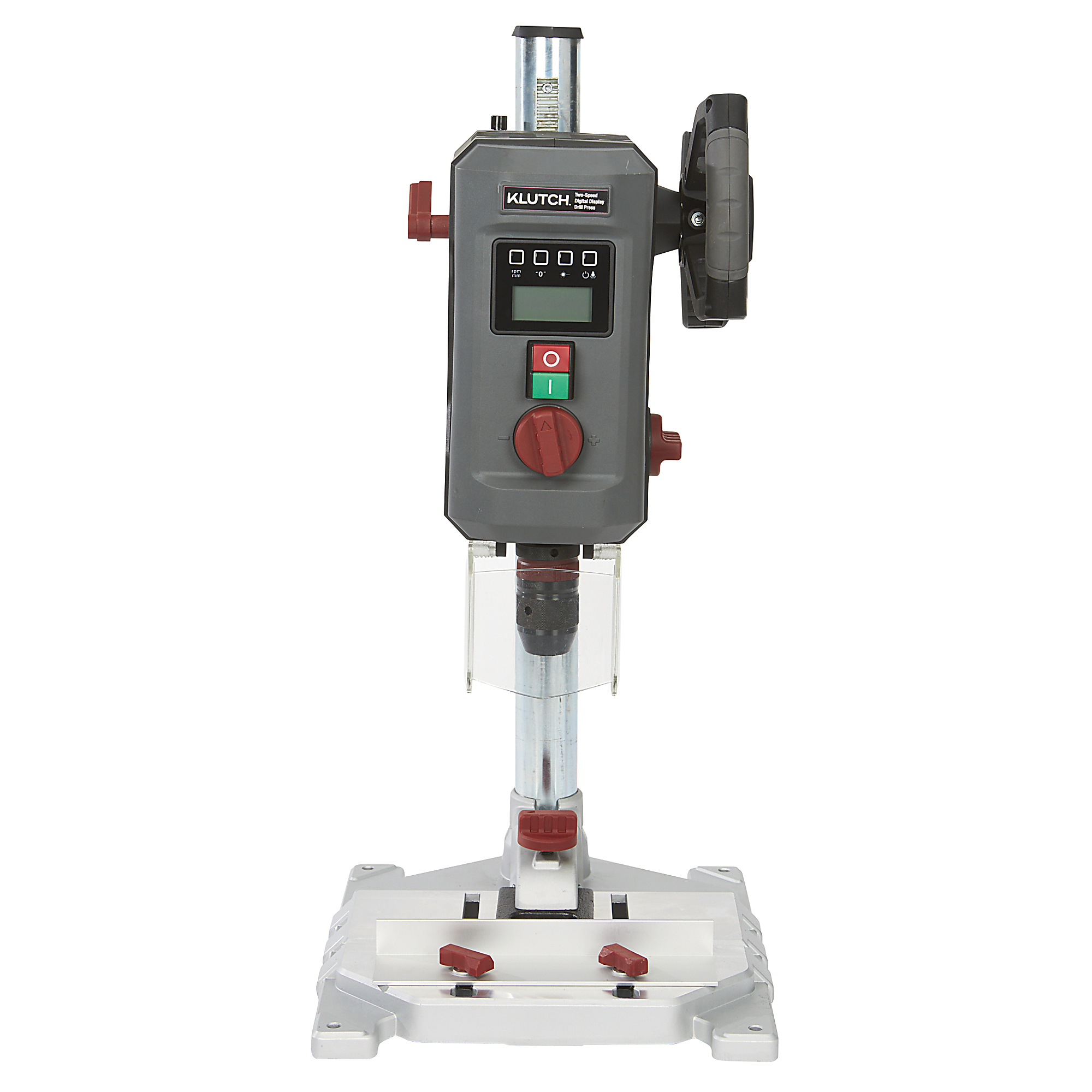

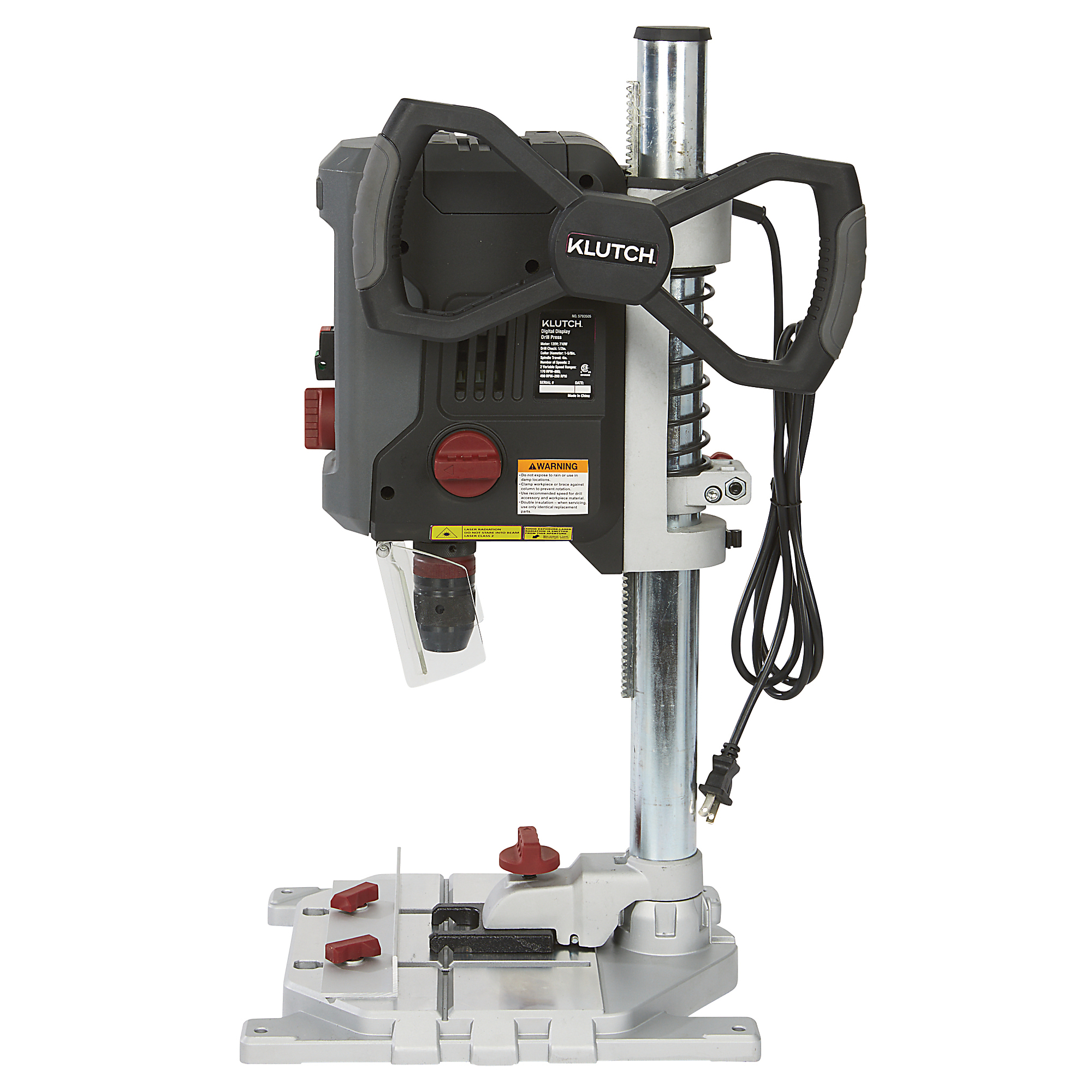

Klutch Electric Drill Press with Digital Display + Laser Guide, Variable Speed, 1 HP, 120 Volts

Item# 5793505
"Klutch Electric Drill Press with Digital Display + Laser Guide, Variable Speed, 1 HP, 120 Volts"
Klutch Electric Drill Press with Digital Display + Laser Guide, Variable Speed, 1 HP, 120 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Electric Drill Press with Digital Display + Laser Guide, Variable Speed, 1 HP, 120 Volts

Click or Tap image to Zoom

$199.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    7 in stock at Fredericksburg VA

  • Switch between 2 gears with variable-speed adjustment from 170–880 RPM and 490–2,600 RPM
  • Easy-to-read LCD display with pushbutton design for accurate drilling of a variety of materials
  • LCD display shows RPM as well as spindle travel for exact drilling depth
  • Integrated LED light and laser provides illumination and greater accuracy
  • Quick-release chuck with chuck guard for easily changing bits

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Klutch Electric Drill Press combines power, precision and ease of use with a digital LCD display and integrated laser guide. A 1 HP, 120V motor delivers consistent, smooth performance, while the 2-speed gearbox and variable-speed adjustment provide flexibility for drilling a wide range of materials. The durable aluminum base, parallel workpiece guide and quick-release chuck with guard ensure accurate, repeatable results, making this drill press a versatile addition to any shop.

What's Included

    (1) Drill press

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Switch between 2 gears with variable-speed adjustment from 170–880 RPM and 490–2,600 RPM
  • Easy-to-read LCD display with pushbutton design for accurate drilling of a variety of materials
  • LCD display shows RPM as well as spindle travel for exact drilling depth
  • Integrated LED light and laser provides illumination and greater accuracy
  • Quick-release chuck with chuck guard for easily changing bits
  • Rubberized grip on handle for great control during repeated use
  • Easily adjustable 13in. x 11-3/16in. aluminum base for corrosion resistance
  • Parallel workpiece guide for more precise repeated drilling of large surfaces along edges
  • 1 HP, 120V motor for consistent, smooth power
  • MT2 spindle taper; 3-1/8in. spindle travel; 17-3/4in. spindle to table

Key Specs

AttributeSpecification

item#

5793505

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Horsepower

1 HP

Volts

120

Max. Speed

2,600 rpm

360 Degree Head Swivel

No

Speeds (qty.)

2

Product Type

Drill Press
AttributeSpecification

Drilling Capacity

5/8 in

Chuck Size

1/2 in

Light Included

Yes

Stand Included

Yes

Min. Speed

170 rpm

Variable Speed

Yes

Max. Spindle Distance

3.125 in

Swing

5 in

Product Weight

22.0000 lb

Dimensions L x W x H (in.)

12.14 x 11.8 x 29.33 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Does the spindle travel display read in mm or inches or a choice of either one? The photos only show mm.

    1. The display reads in mm only. It does not have an option to display in inches.

      Helpful?

    2. MM only

      Helpful?

    3. Mine arrived yesterday. The spindle readout is in mm only, so you'll have to convert your inch dimensions to metric. It does read from 0 to 100 mm, which is just short of 4".

      Helpful?

  2. Does it have reverse?

    1. The Klutch electric drill press you're looking at does not have a reverse function. It's designed primarily for forward drilling with variable speed control, digital display, and laser guidance to help you get precise results.

      Helpful?

    2. It does not have reverse.

      Helpful?

  3. How much current does it draw

    1 answer

    1. This drill press has a 13 amp draw.

      Helpful?

  4. I NEED SLOW SPEED BUT GOOD TORQUE. GIVE ME THE FIGURES

    1 answer

    1. The drill press delivers 0.95 N·m of torque at high speed and up to 3.6 N·m at low speed. Speed ranges are 170–880 RPM (first) and 490–2600 RPM (second).

      Helpful?

  5. How do you change the speeds!

    1 answer

    1. The user can choose between two speed ranges using the gear selector switch on the front of the press. Low speed (1st gear: 170–880 rpm) is ideal for larger tool diameters. High speed (2nd gear: 490–2600 rpm) is best for smaller tool diameters.

      Helpful?

  6. Can I drill metal?

    1 answer

    1. This press can drill wood and steel. The drilling capacity is 1.5mm to 13mm.

      Helpful?

  7. can a hole saw be used on this drill press?

    1 answer

    1. This drill press is not designed to be used with hole saw bits.

      Helpful?

  8. Does this support core annular bit drilling

    1 answer

    1. This drill press is not designed for core annular bit drilling.

      Helpful?

  9. Can I use spindle sanding drums in this drill?

    1 answer

    1. This drill press could double as a makeshift spindle sander with a drum attachment for light to moderate sanding jobs, but be aware of its limitations and take proper safety measures. For regular or heavy use, a dedicated oscillating spindle sander is much more efficient and safer.

      Helpful?

  10. Can you or how can you use a vice on this??

    1 answer

    1. This drill press does have an installation slot for a vise; however, there is no specific vise designed for this press.

      Helpful?
