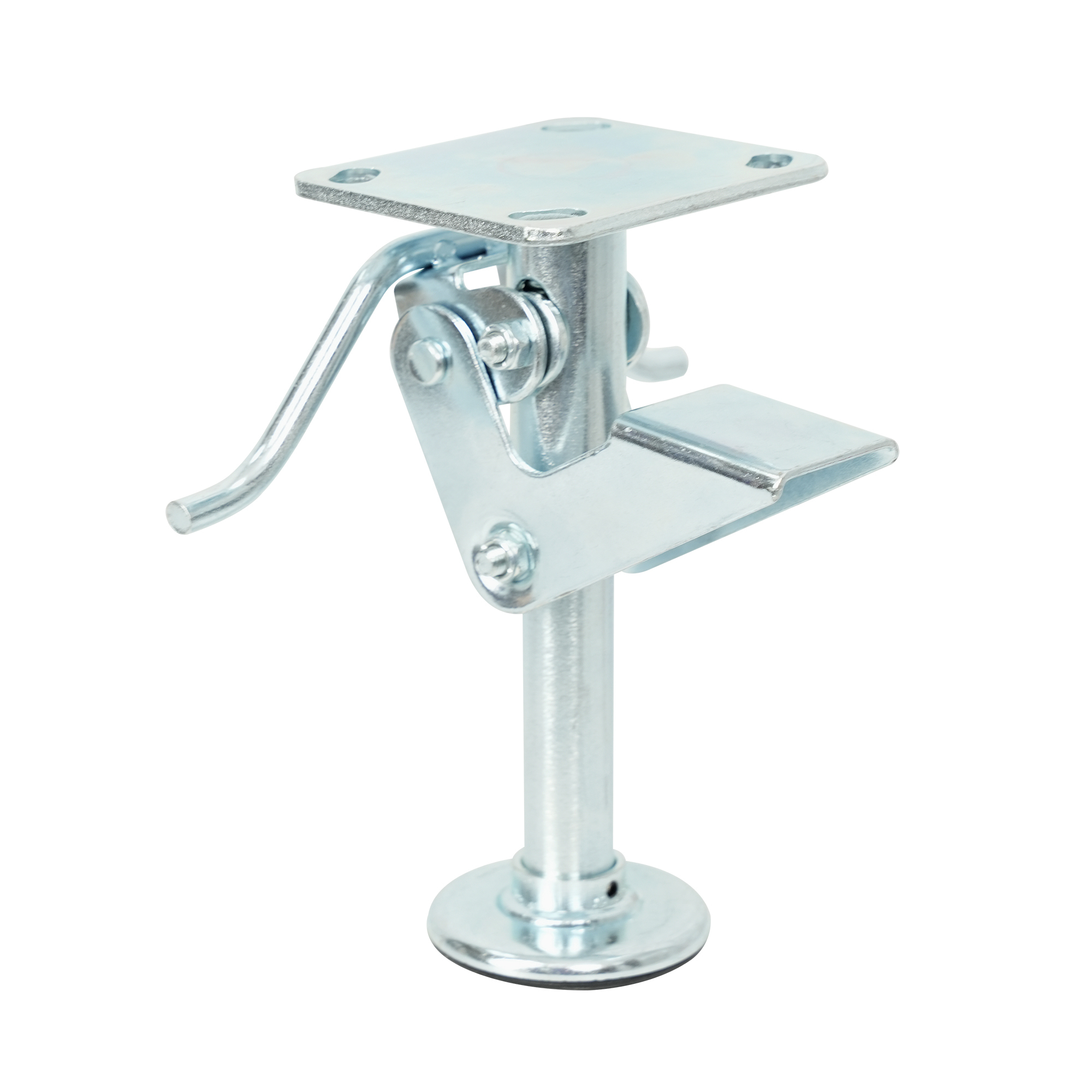

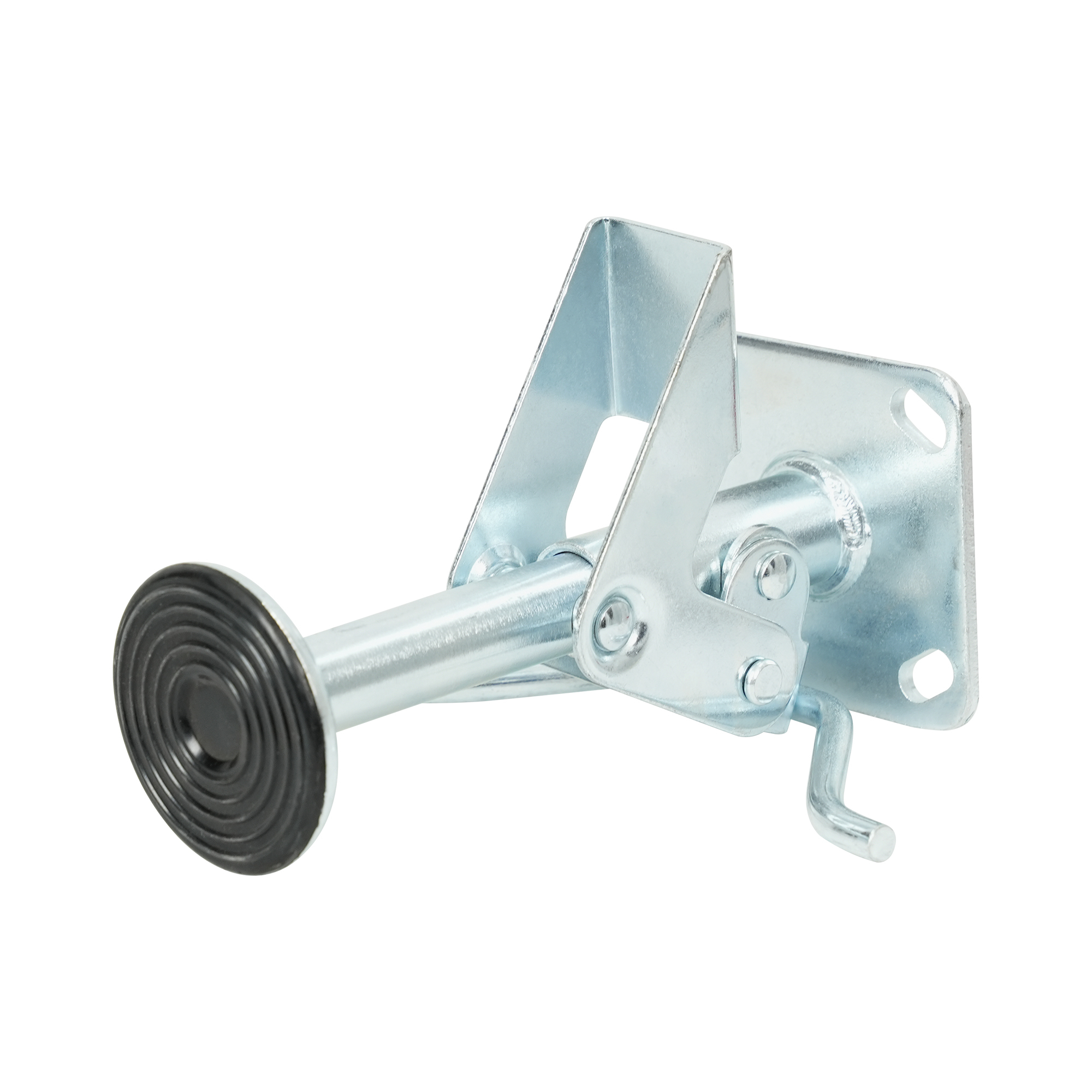

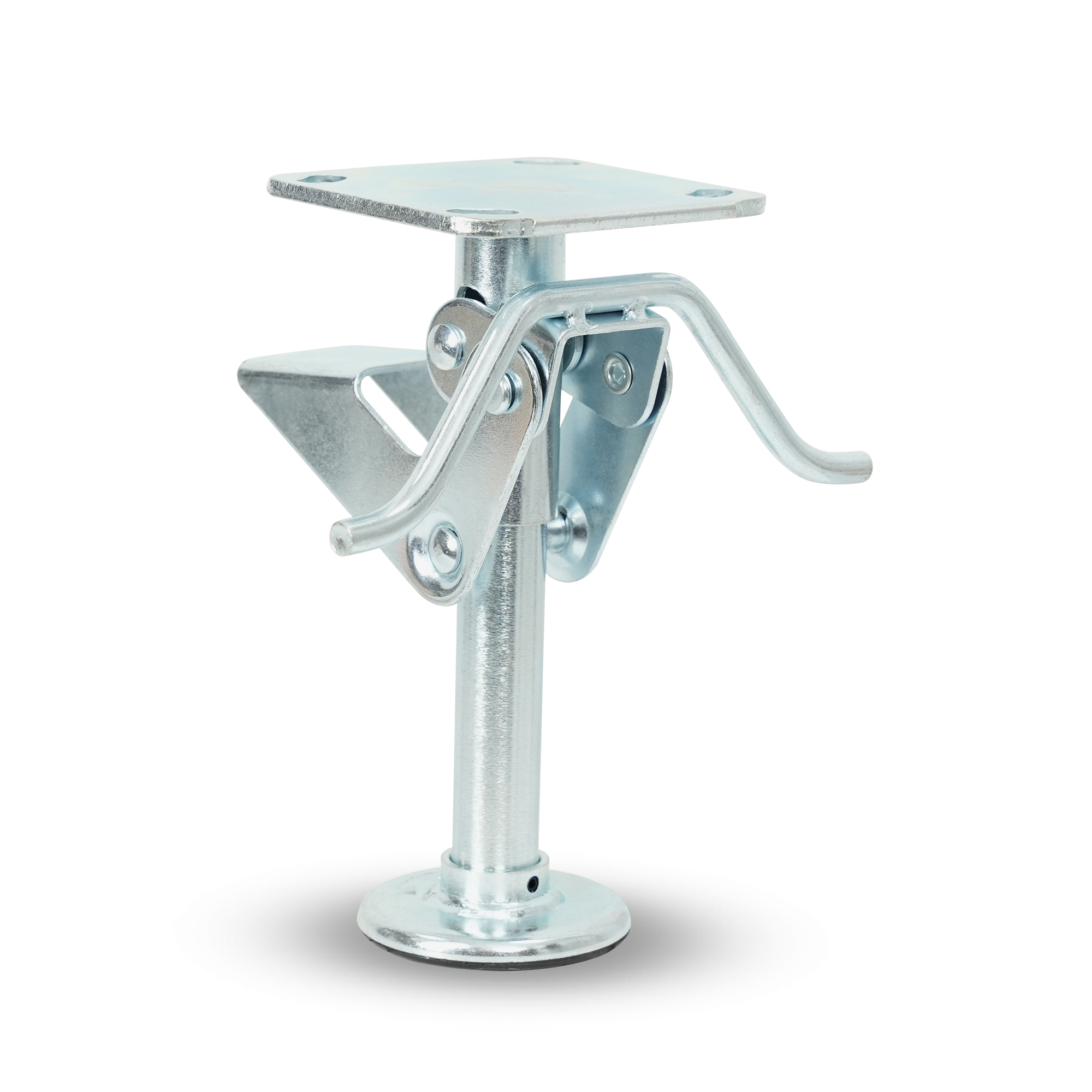

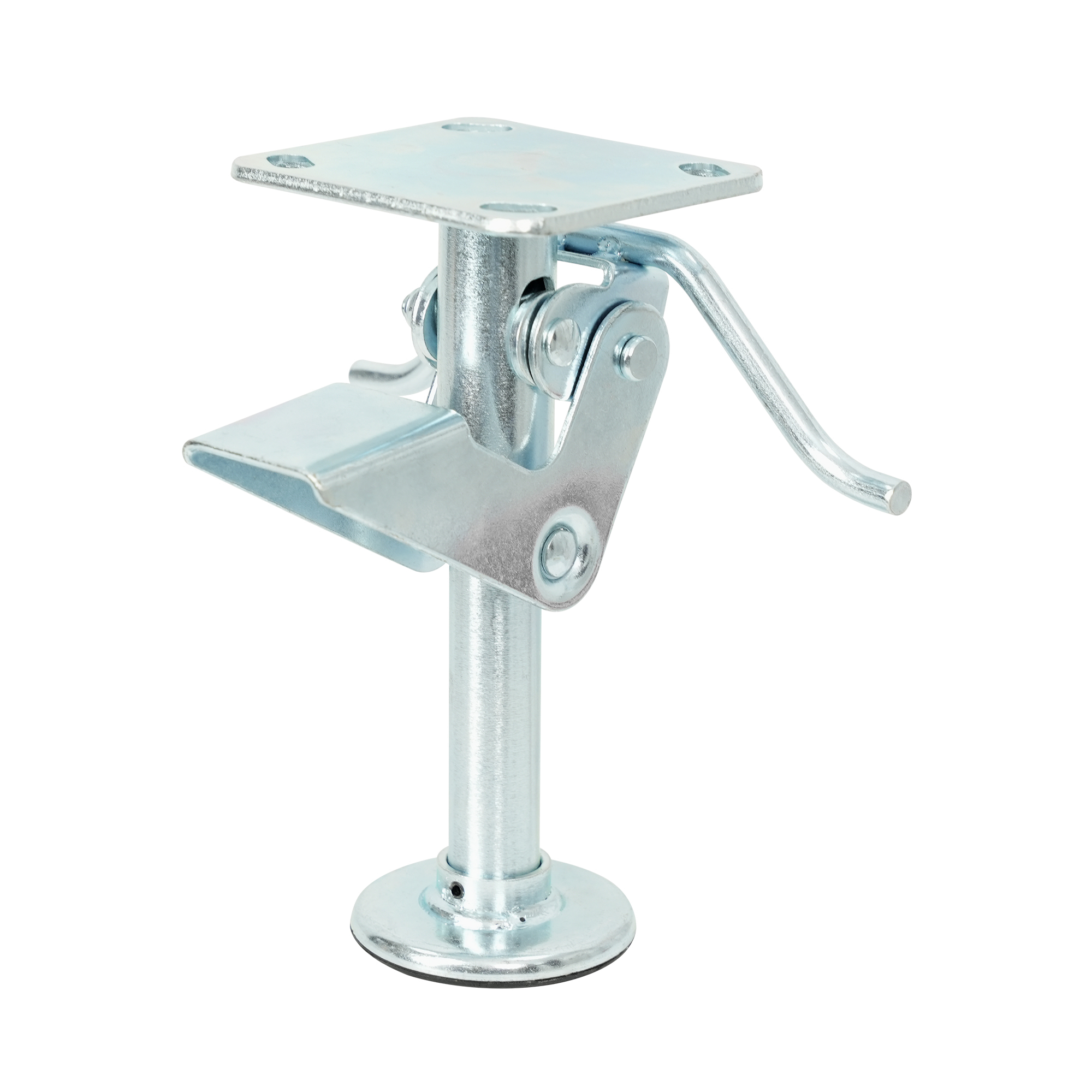

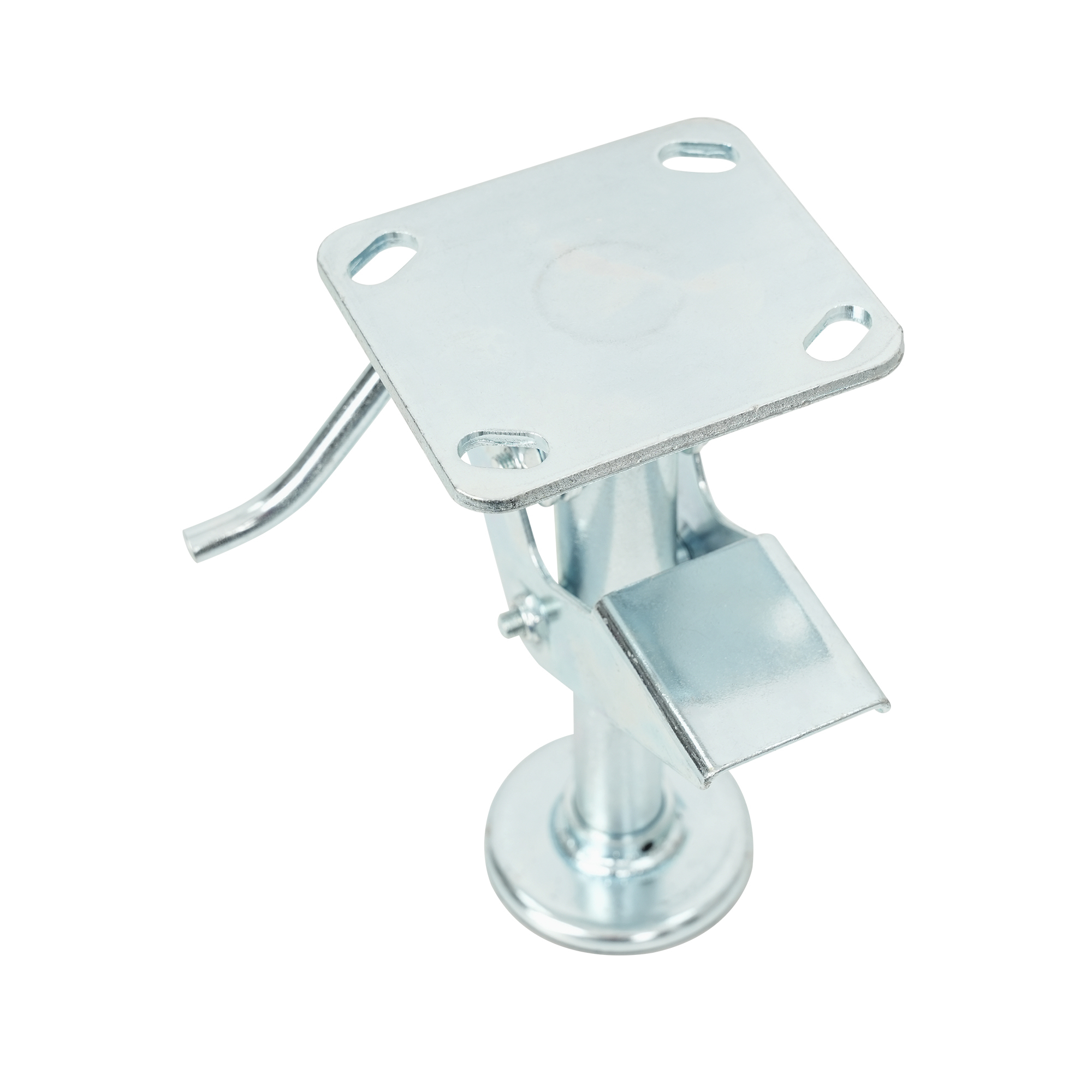

Klutch 8in. Floor Lock, 900-Lb. Capacity, For Use with 8in. Diameter Wheels

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Available nowStore Pickup:
Not Available
- 900-lb. capacity
- For use with 8in. dia. casters
- Foot pedal control
- Extended height: 9-3/4in.; retracted height: 8-3/4in.
- Top plate: 4in. x 4-1/2in.
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Klutch 8in. Floor Lock
Features + Benefits
- 900-lb. capacity
- For use with 8in. dia. casters
- Foot pedal control
- Extended height: 9-3/4in.; retracted height: 8-3/4in.
- Top plate: 4in. x 4-1/2in.
- Bolt hole spacing: 2-5/8in. x 3in.; 3in. x 3in.
- Bolt hole dia.: 7/16in.
- Sold individually
Key Specs
| Attribute | Specification |
|---|---|
item# | 6009129 |
Brand | Klutch |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 3.4 LB |
Wheel Diameter | 8 in |
Caster Type | Rigid |
Capacity Class | 500-999 Pounds |
Load Capacity per Caster | 900 lb |
Wheel Material | Steel |
Package (qty.) | 1 |
Wheel Width | 0 in |
Mount Type | Plate-Mount |
| Attribute | Specification |
|---|---|
Finish Type | Zinc-Plated |
Foot Brake | Yes |
Non-Marking | No |
Overall Height | 8.75 in |
Plate Dimensions | 4 x 4 1/2 |
Bolt Hole Spacing | 2 5/8 x 3/3 x 3 |
Stem Length | 0 in |
Stem Diameter | 0 in |
Includes Thread Guards | Yes |
Product Weight | 3.5400 lb |
Dimensions L x W x H (in.) | 4.0 x 4.5 x 8.75 in |
