The load capacity per caster is 2,200 lbs.

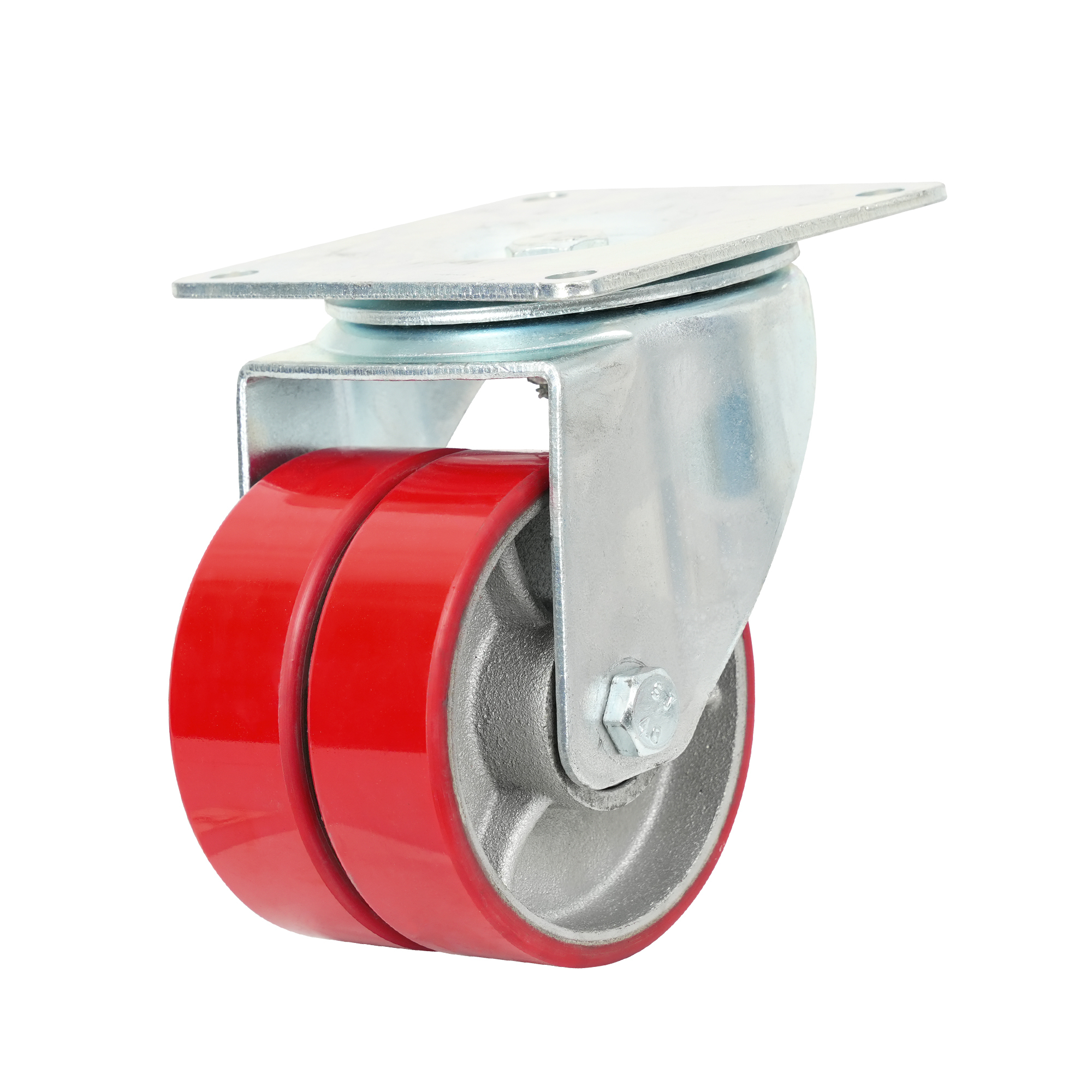

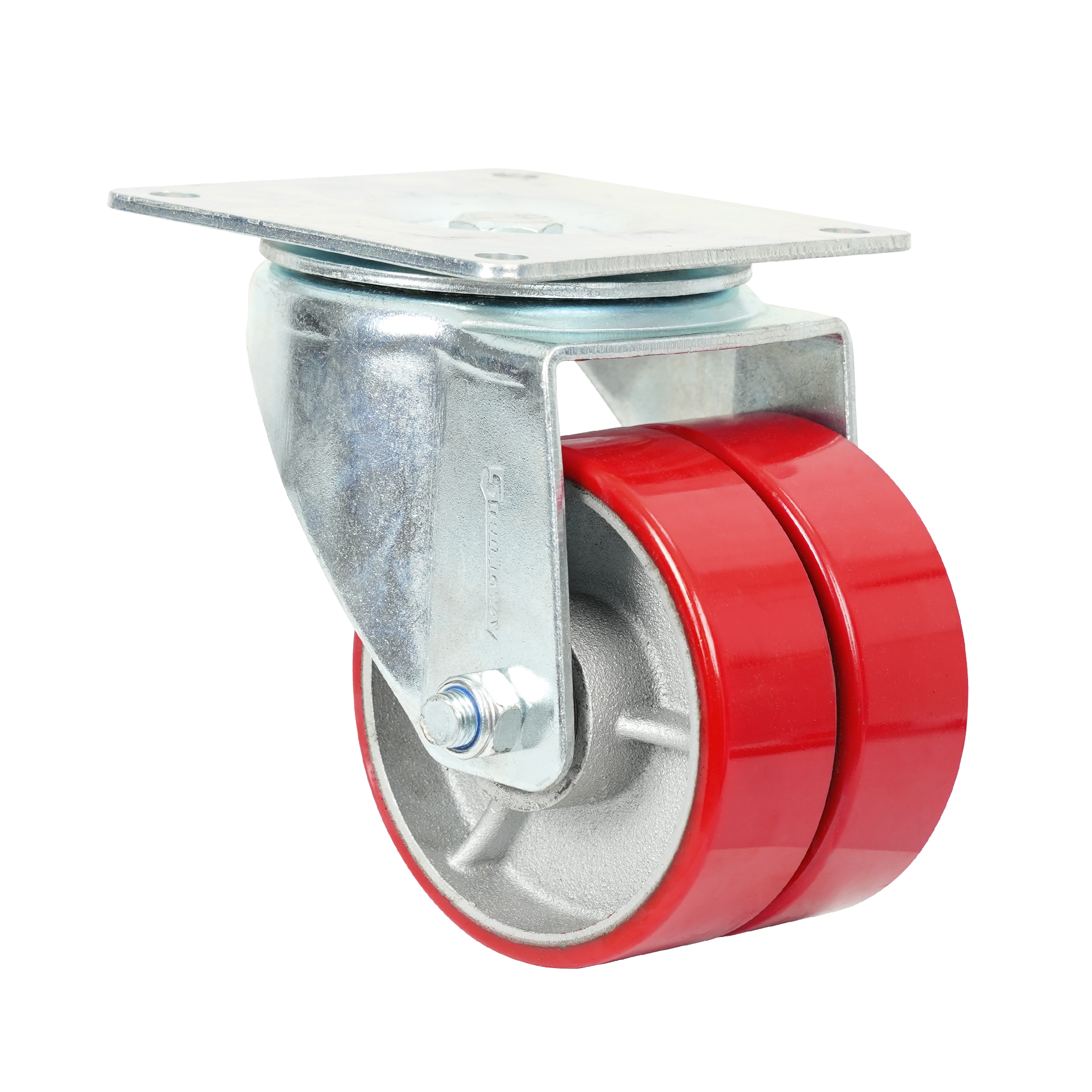

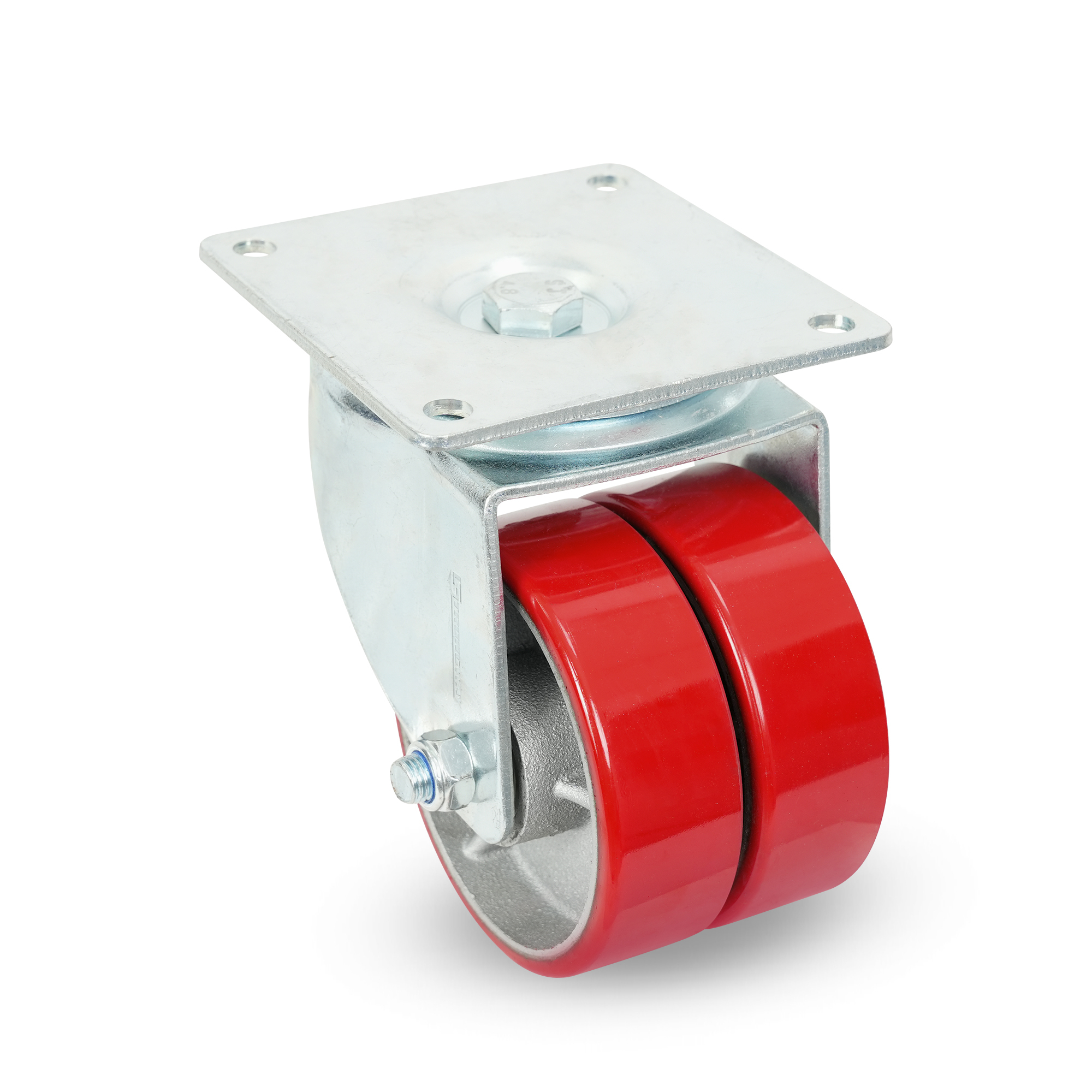

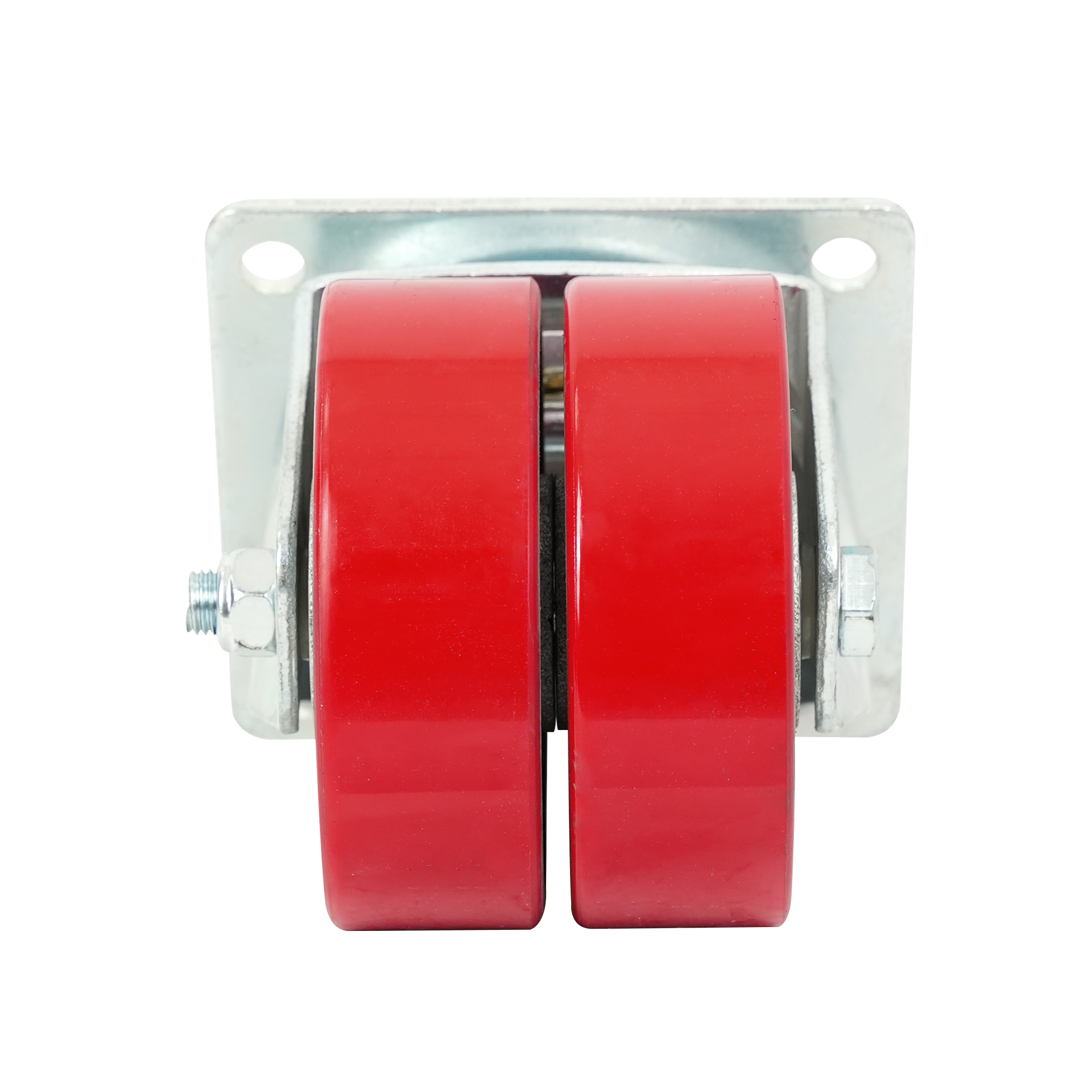

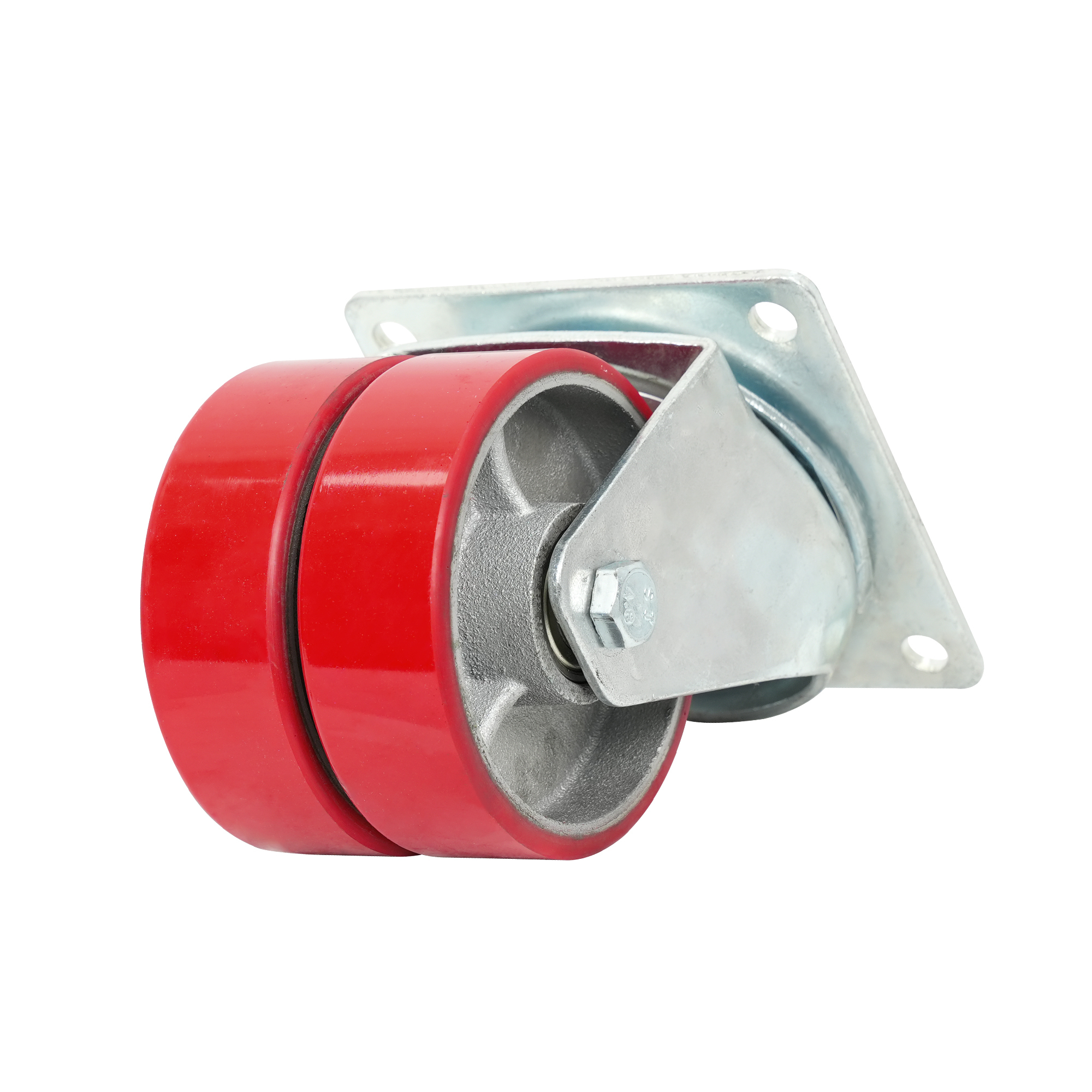

Klutch 6in. Heavy-Duty Dual-Wheel Swivel Caster, 2200-Lb. Capacity
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$84.99
- 2,200-lb. weight capacity for heavy-duty jobs
- Dual polyurethane wheels with steel core improve stability and reduce scrubbing
- Differential action swivels easier than a single wheel of same footprint
- Double-ball raceway enhances swivel strength and efficiency
- Heavy-duty steel fork with ball bearings for smooth performance
Prop 65 Warning: See Details
See full description
What's Included
- (1) Klutch 6in. Heavy-Duty Dual-Wheel Swivel Caster
Features + Benefits
- 2,200-lb. weight capacity for heavy-duty jobs
- Dual polyurethane wheels with steel core improve stability and reduce scrubbing
- Differential action swivels easier than a single wheel of same footprint
- Double-ball raceway enhances swivel strength and efficiency
- Heavy-duty steel fork with ball bearings for smooth performance
- Strong kingpin construction adds long-term durability
- Bright zinc electrogalvanized finish resists rust and corrosion
- 6in. dia. wheels x 2in. width for solid floor contact
- 6-55/64in. x 6-55/64in. top plate for easy installation
- 5-1/2in. x 5-1/2in. bolt hole spacing fits standard mounts
- Fork thickness: 13/64in.; plate thickness: 15/64in.; bolt hole dia.: 19/32in.
- Sold individually
See All Plate-Mount Casters
See All Plate-Mount Casters
Currently Viewing This Product
Specifications
Specifications
Klutch 6in. Heavy-Duty Dual-Wheel Swivel Caster, 2200-Lb. Capacity
330-Lb. Capacity Steel Caster — 2in. x 1in.
Shepherd Hardware Casters, 2.5in. Rigid, 6pk, Model# 9397
Shepherd Hardware, Casters, Wheel Diameter 3 in, Caster Type Rigid, Package (qty.) 20, Model# 9278
Wheel Diameter
Same
6 in
2 in
2.5 in
3 in
Caster Type
Same
Swivel
Rigid
Rigid
Rigid
Capacity Class
Same
1,500+ Pounds
-
0-299 Pounds
0-299 Pounds
Load Capacity per Caster
Same
2,200 lb
330 lb
175 lb
210 lb
Wheel Material
Same
Poly-on-Steel
Steel
Polypropylene
Rubber
Package (qty.)
Same
1
-
6
20
Wheel Width
Same
2 in
1 in
1.13 in
1.25 in
Mount Type
Same
Plate-Mount
-
Plate-Mount
Plate-Mount
Finish Type
Same
Zinc-Plated
-
-
-
Foot Brake
Same
No
No
No
No
Non-Marking
Same
No
-
Yes
Yes
Overall Height
Same
8.11 in
-
3.25 in
3.75 in
Plate Dimensions
Same
6 7/8 x 6 7/8
-
2-1/8 x 4-3/8
2-1/2 x 4-7/8
Bolt Hole Spacing
Same
5 1/2 x 5 1/2
-
-
-
Stem Length
Same
0 in
-
-
-
Stem Diameter
Same
0 in
-
-
-
Includes Thread Guards
Same
Yes
-
No
No
Bearing Type
Same
Ball
-
Ball
Ball
Product Weight
Same
18.6000 lb
-
0.7121 lb
1.1442 lb
Dimensions L x W x H (in.)
Same
10.29 x 6.86 x 8.11 in
-
4.0158 x 2.7756 x 3.248 in
4.8819 x 2.4409 x 3.7795 in
