Product Summary

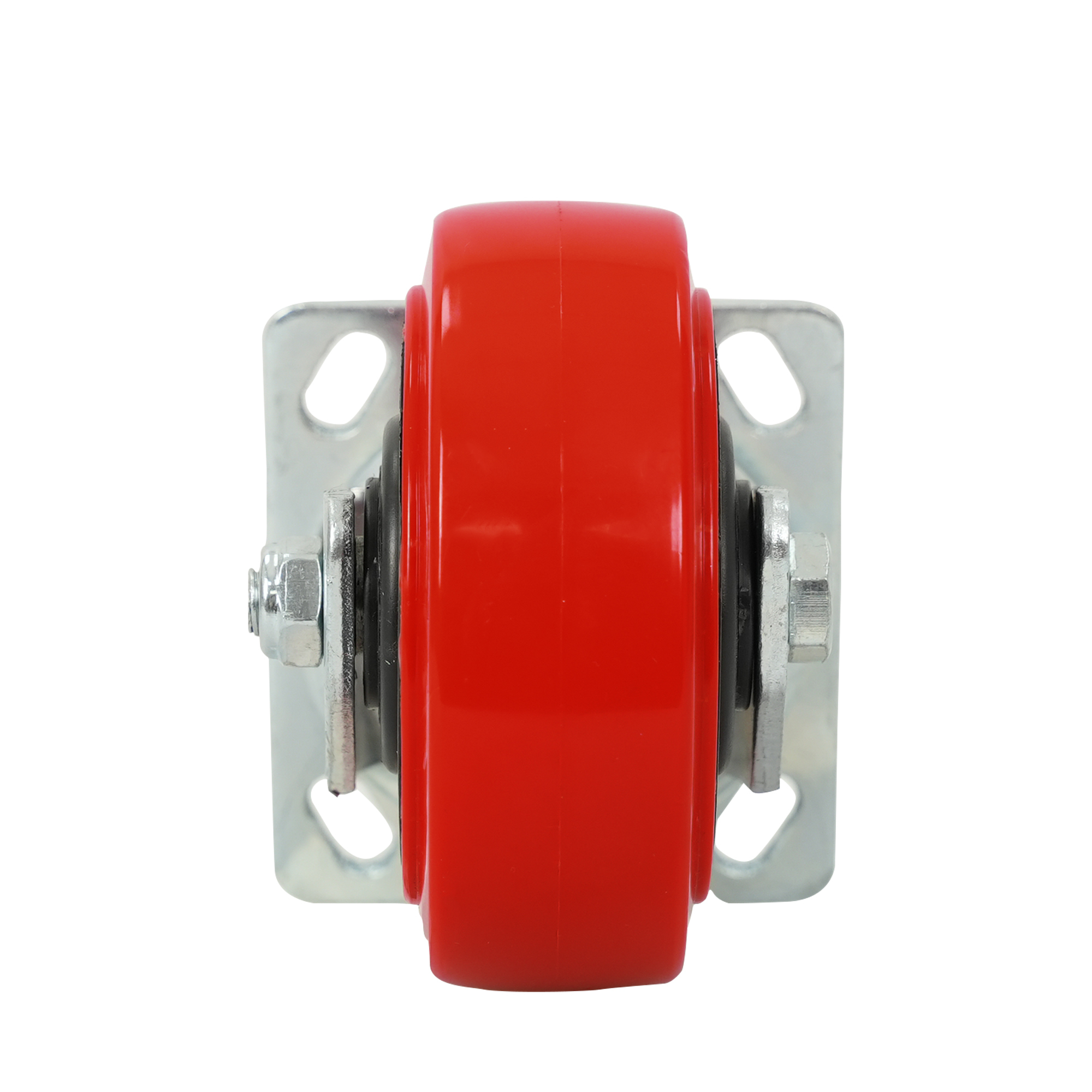

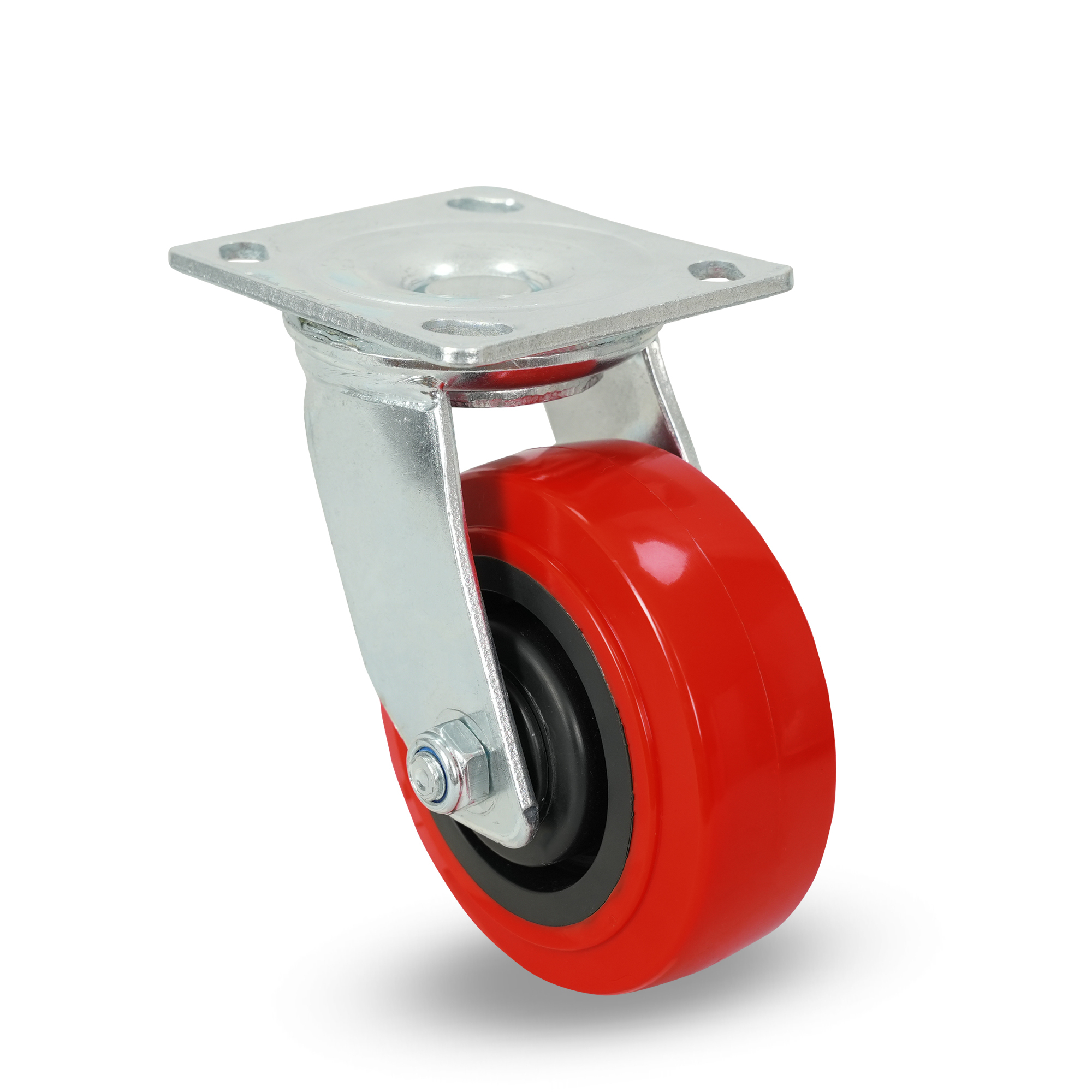

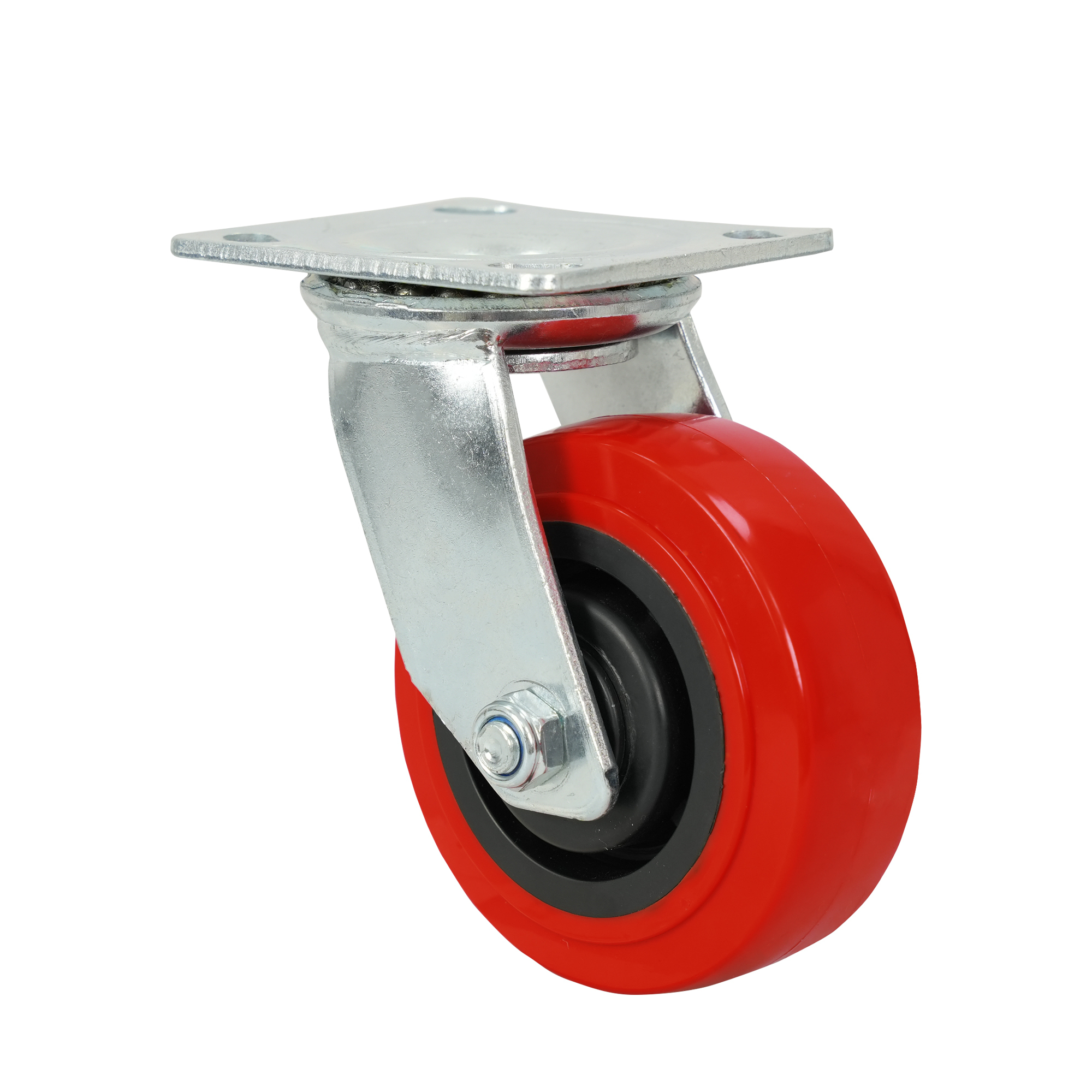

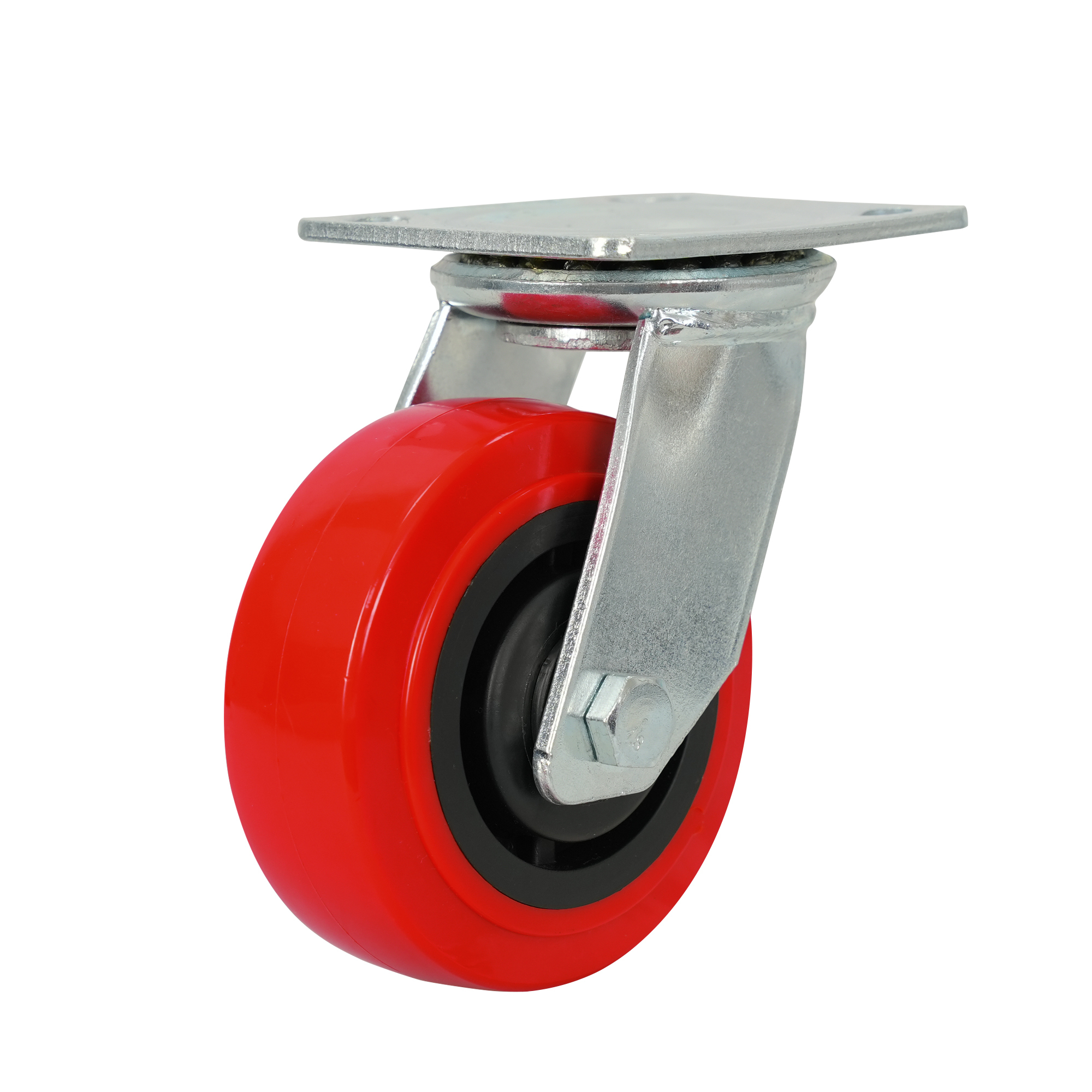

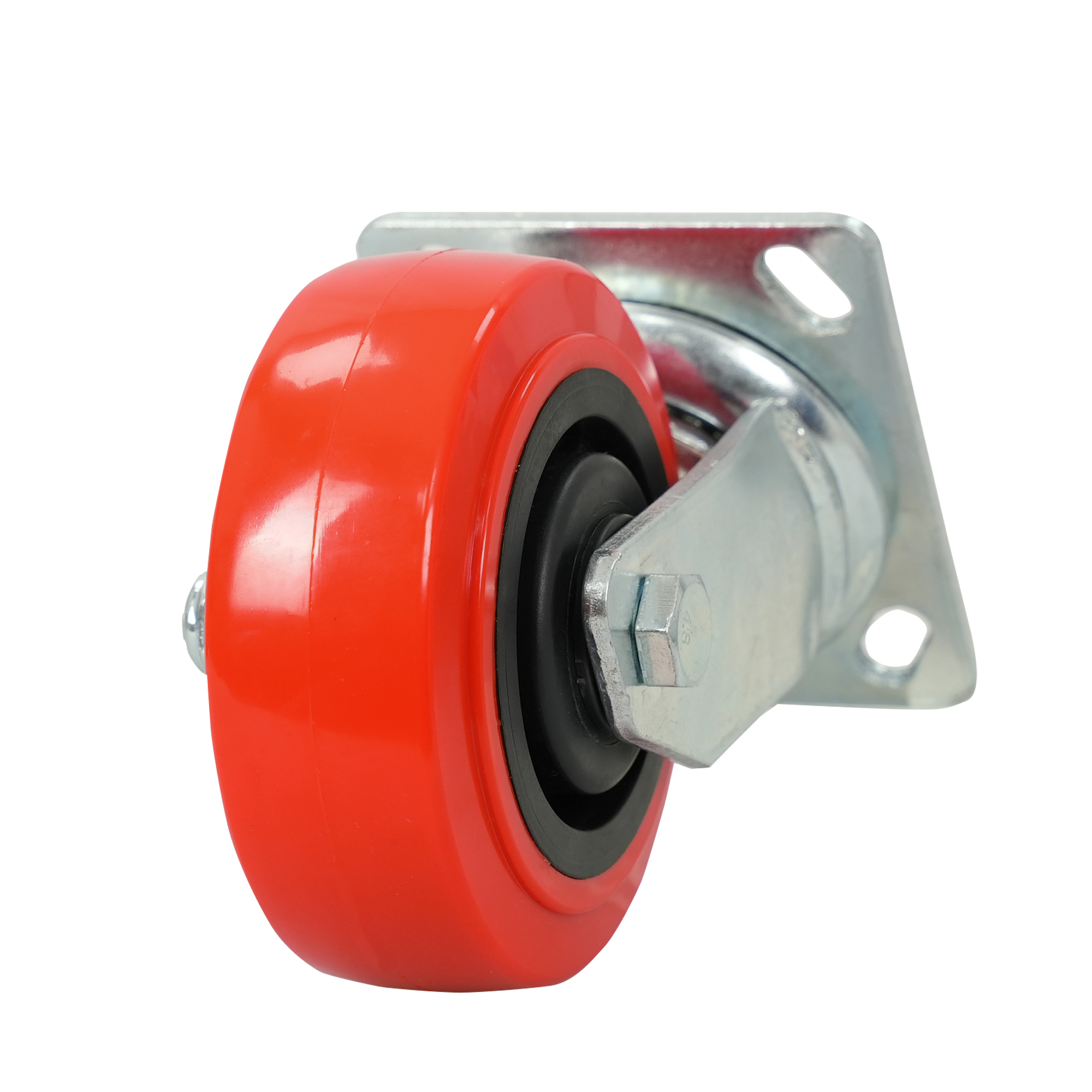

The Klutch 5in. Polyurethane Swivel Caster is designed for heavy-duty use on carts, bins or containers, with a 660-lb. weight capacity. Made from premium red polyurethane with a black polypropylene inner hub, this caster ensures a smooth, cushioned ride while protecting floors with its nonmarking design. It is resistant to water, oil and chemicals, making it highly durable for demanding environments. The swivel caster includes a double-ball raceway for enhanced strength and swivel ability and features rugged steel construction with a zinc-plated finish for long-lasting performance.

What's Included

    (1) Klutch 5in. Polyurethane Swivel Caster

Features + Benefits

  • 660-lb. weight capacity
  • Premium red polyurethane wheel with black polypropylene inner hub
  • Smooth, cushioned ride that protects floors from damage
  • Nonmarking polyurethane resists water, oil and chemicals
  • Double-ball raceway for extra strength and swivel ability
  • Rugged steel construction with zinc-plated finish for durability
  • Ideal for use on carts, bins or containers
  • 5in. diameter wheel; 2in. wheel width
  • 4-1/2in. x 3-15/16in. top plate for easy installation
  • Fork thickness: 13/64in.; plate thickness: 13/64in.; bolt hole diameter: 7/16in.

Key Specs

AttributeSpecification

item#

6008783

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.6 LB

Wheel Diameter

5 in

Caster Type

Swivel

Capacity Class

500-999 Pounds

Load Capacity per Caster

660 lb

Wheel Material

Polyurethane

Package (qty.)

1

Wheel Width

2 in

Mount Type

Plate-Mount
AttributeSpecification

Finish Type

Zinc-Plated

Foot Brake

No

Non-Marking

Yes

Overall Height

6.25 in

Plate Dimensions

4 1/2 x 4

Bolt Hole Spacing

3 3/8 x 2 7/8

Stem Length

0 in

Stem Diameter

0 in

Includes Thread Guards

No

Bearing Type

Roller

Product Weight

4.6900 lb

Dimensions L x W x H (in.)

5.8 x 6.25 x 4.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
