Klutch 3-In-1 Combination Sheet Metal Machine, 12in.

Item# 49678
"Klutch 3-In-1 Combination Sheet Metal Machine, 12in."
Top Seller
Klutch 3-In-1 Combination Sheet Metal Machine, 12in.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 3-In-1 Combination Sheet Metal Machine, 12in.

Click or Tap image to Zoom

$349.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

  • Sectional fingers provide incremental adjustments for box and pan work

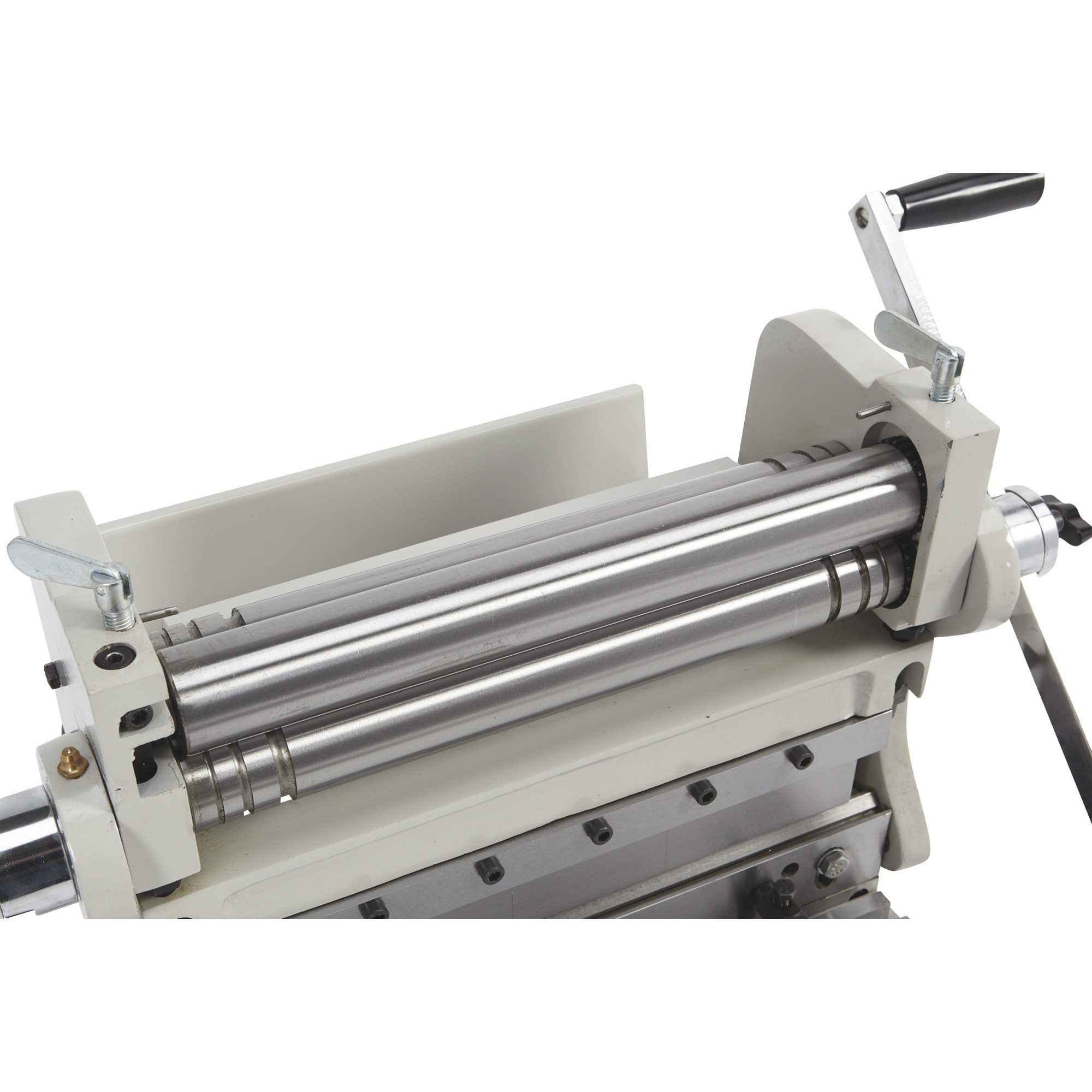

  • Slip roller for smooth operation and versatility
  • 90 degree maximum bending radius
  • 23in.L x 13in.W x 20in.H overall size

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Klutch 3-In-1 Combination Sheet Metal Machine is a versatile combo unit that allows you to cut, bend and shape metal just the way you need it. The machine can shear mild steel in widths up to 12in. (305mm) with a thickness of up to 1mm. Use it to help you make boxes, channels, angles and more. It can also roll cylinders, cones and even make wire loops.

What's Included

    (1) 3-in-1 combination sheet metal machine (7) Dies (1 female, 6 male)

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Sectional fingers provide incremental adjustments for box and pan work
  • Slip roller for smooth operation and versatility
  • 90 degree maximum bending radius
  • 23in.L x 13in.W x 20in.H overall size

Key Specs

AttributeSpecification

item#

49678

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

92.0 LB

Dies Included

Yes
AttributeSpecification

Max. Lift Height

0.039 in

Max. Bending Radius

90 °

Product Weight

lb

Dimensions L x W x H (in.)

23.0 x 13.0 x 20.0 in

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. how can you get parts for the 3 in -1 combo machine part # 49678?

    1. Parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. Replacement parts for this sheet metal machine would be available by contacting our parts department at 1.800.657.0516.

      Helpful?

  2. What is the biggest diameter wire that can go in the slip roller?

    1 answer

    1. The maximum thickness that can be used with the sheet metal machine is 1 mm.

      Helpful?

  3. what is the minimum rolling radius. i.e., can i form 22 gage sheet into 1 inch radius curve?

    1 answer

    1. The minimum rolling radius is 39 MM (1.53543"). The maximum thickness is 1 MM (0.03937").

      Helpful?

  4. Does it come assembled?

    1 answer

    1. The Klutch 3-In-1 Combination Sheet Metal Machine ships assembled.

      Helpful?

  5. Will this machine cut .025 stainless steel?

    1 answer

    1. Yes, this will cut .025 stainless steel.

      Helpful?

  6. Does this have adjustable stops?

    1 answer

    1. This does not have adjustable stops for height. The blades are adjustable to change the height. The length of material cut can be adjusted with the back stop.

      Helpful?

  7. Can it shear / bend 22ga stainless?

    1 answer

    1. This machine is capable of bending and shearing 22 gauge stainless steel.

      Helpful?

  8. how thick of copper can this bend and shear

    Looks like a stock answer: 1 mm thick which equates to approximately 20 gauge

    1mm =0.0393701

    20 gauge mild steel = 0.0359 with a tensile of 30,000
    18 gauge mild steel 0.0478 with a tensile of 30,000
    20 gauge aluminum = 0.0396 with a tensile of 35,000
    18 gauge aluminum = 0.0403 with a tensile of 35,000
    20 gauge copper = .032" with a tensile of 15,000
    18 gauge copper = .040" with a tensile of 15,000
    20 gauge brass = .0320 with a tensile of 25,000
    18 gauge brass = 040" with a tensile of 25,000
    20 gauge stainless =.0359 with a tensile of 80,000
    18 gauge stainless = 0.048 with a tensile of 80,000

    1 answer

    1. This sheet metal machine can handle 20 gauge copper.

      Helpful?

  9. Will this machine cut 18 gauge copper or silver

    1 answer

    1. The Klutch 3-In-1 Combination Sheet Metal Machine can handle materials up to 1 mm thick which equates to approximately 20 gauge. It would not handle any 18 gauge materials.

      Helpful?

  10. Will this device handle 16 gauge metal?

    1 answer

    1. This Klutch 3-In-1 Combination Sheet Metal Machine handles metal up to 1 mm thick which would be approximately 20 gauge. This would not handle 16 gauge metal.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
