Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor, 212cc, 13.7 CFM @ 40 and 90 PSI, 175 Max. PSI, Wheel Kit

Item# 7016232
Top Seller
Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor, 212cc, 13.7 CFM @ 40 and 90 PSI, 175 Max. PSI, Wheel Kit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor, 212cc, 13.7 CFM @ 40 and 90 PSI, 175 Max. PSI, Wheel Kit

Click or Tap image to Zoom

$1299.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Gas-Powered 212cc OHV Engine: Delivers dependable starting and consistent output for jobsite use without reliance on electricity
  • 13.7 CFM @ 40/90 PSI; 175 max. PSI: Provides consistent airflow across operating pressures for fast recovery and reduced cycle time
  • 2-Stage Compression Design: Unique pressure-splitting design maintains relatively stable intermediate pressure whether final output pressure is set to 40 or 90 PSI
  • 20-Gallon Oil-Lubricated System: Cast iron cylinder and oil-lubricated pump support long service life and reliable performance
  • Truck-Mount to Portable Conversion: Wheel and handle kit transforms stationary setup into mobile jobsite equipment for added flexibility

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor delivers reliable air power for worksites where electricity is not available. Powered by a 212cc OHV gas engine, this unit provides dependable starting and consistent output for outdoor and remote applications. The 20-gal. tank supports longer run time between cycles, while the oil-lubricated pump with cast iron cylinder improves durability and extends service life. 2-stage compression maintains stable intermediate pressure for smooth operation across varying pressure demands. An included wheel and handle kit converts the unit from stationary truck mount to portable for flexible jobsite use. Rated up to 175 PSI with 13.7 CFM @ 40/90 PSI, the Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor delivers consistent airflow and dependable performance in demanding conditions.

What's Included

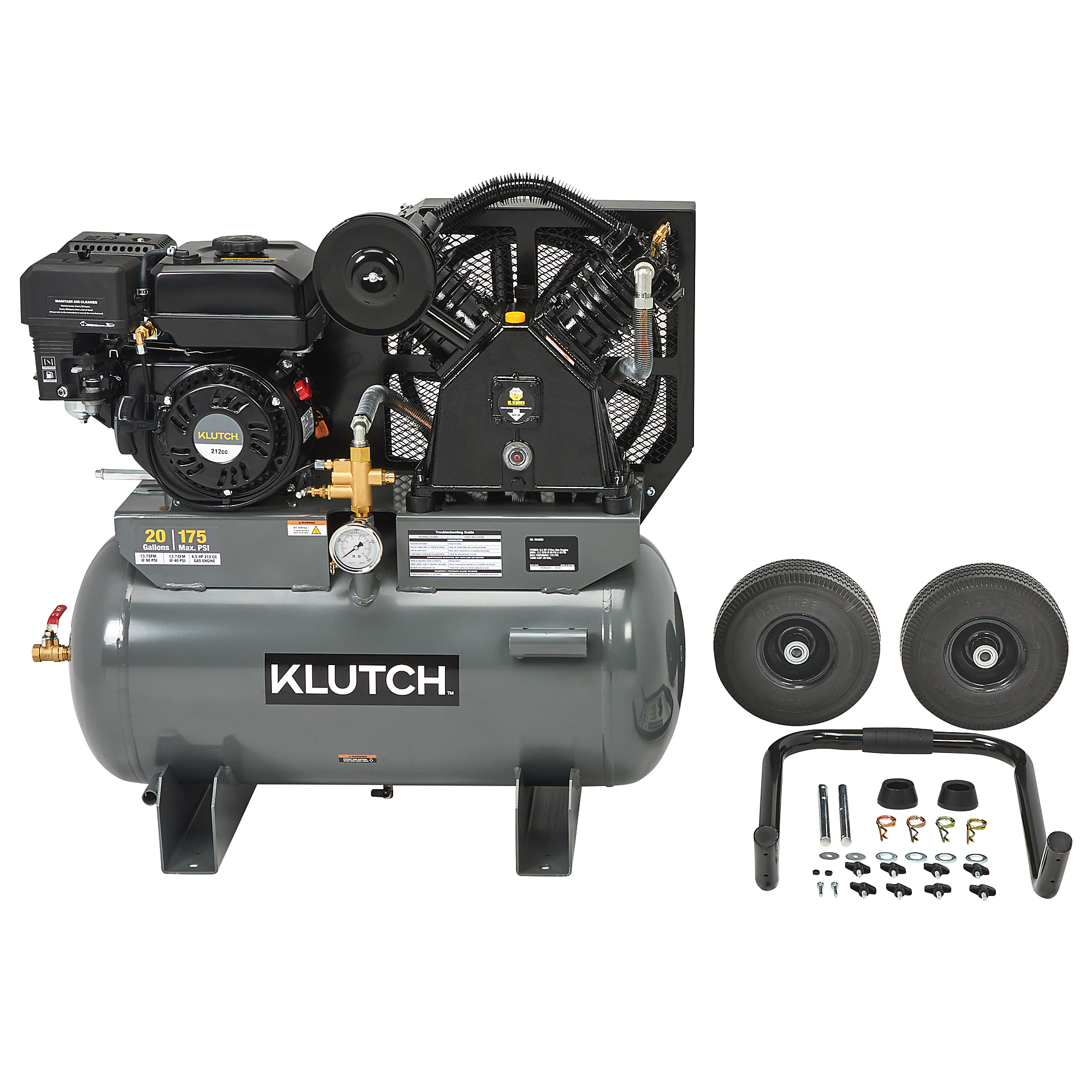

    (1) Klutch 20-Gal. Truck-Mount/Portable Gas Air Compressor
Play Item Video

Features + Benefits

  • Gas-Powered 212cc OHV Engine: Delivers dependable starting and consistent output for jobsite use without reliance on electricity
  • 13.7 CFM @ 40/90 PSI; 175 max. PSI: Provides consistent airflow across operating pressures for fast recovery and reduced cycle time
  • 2-Stage Compression Design: Unique pressure-splitting design maintains relatively stable intermediate pressure whether final output pressure is set to 40 or 90 PSI
  • 20-Gallon Oil-Lubricated System: Cast iron cylinder and oil-lubricated pump support long service life and reliable performance
  • Truck-Mount to Portable Conversion: Wheel and handle kit transforms stationary setup into mobile jobsite equipment for added flexibility
  • Jobsite-Ready Design: Rubber handle grips improve carrying comfort while rubber feet help reduce vibration and improve stability during operation
  • Remote Worksite Operation: Gas-powered design requires no electricity for outdoor, mobile and off-grid air compressor applications

Key Specs

AttributeSpecification

item#

7016232

Brand

Klutch

Manufacturer's Warranty

2 year limited warranty

Ship Weight

450.0 LB

Horsepower

6.5 HP

Air Tank Size

20 Gal

CFM at 90 PSI

13.7

Max. PSI

175

Air Outlets (qty.)

1

Duty Cycle

67 %

Fuel Capacity

0.95 Gal

Motor RPM

3,200

Working Pressure

175 PSI

Engine Displacement

212 cc

Engine Start Type

Manual

Pump Life

500 hr

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

13.7

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

2.08 min

Air Dryer

None

Drain Type

Ball Valve

Tank Orientation

Horizontal

Engine Model

R210-V

Product Weight

242.5000 lb

Dimensions L x W x H (in.)

46.3 x 26.4 x 34.1 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does this have an automatic unloader or automatic idle control?

    1 answer

    1. This unit is equipped with both an automatic unloader and automatic idle/throttle control.

      Automatic Unloader Valve: When the air tank reaches the maximum operating pressure of 175 PSI, the unloader valve automatically opens/blows off, venting air to the atmosphere to prevent over-pressurization. (It also features a manual unloader lever for easy engine starting/manual depressurization, plus two safety relief valves - one on the pump and one on the tank).

      Automatic Idle Control (Throttle Control): When maximum pressure (175 PSI) is reached and the unloader vents, it automatically activates the engine throttle control to hold the engine at a preset idling speed to save fuel. Once air pressure drops to 135 PSI, the control automatically accelerates the engine back to full throttle to resume pumping air.

      Helpful?

  2. what is the length of the tank,without the handle, and width of the mounting legs without the wheels? im limited on the space i can mount this on my truck

    1 answer

    1. The truck mounting dimensions (without the handle and wheel kit attached) are 35.4" long x 18.1" wide x 35" high.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
