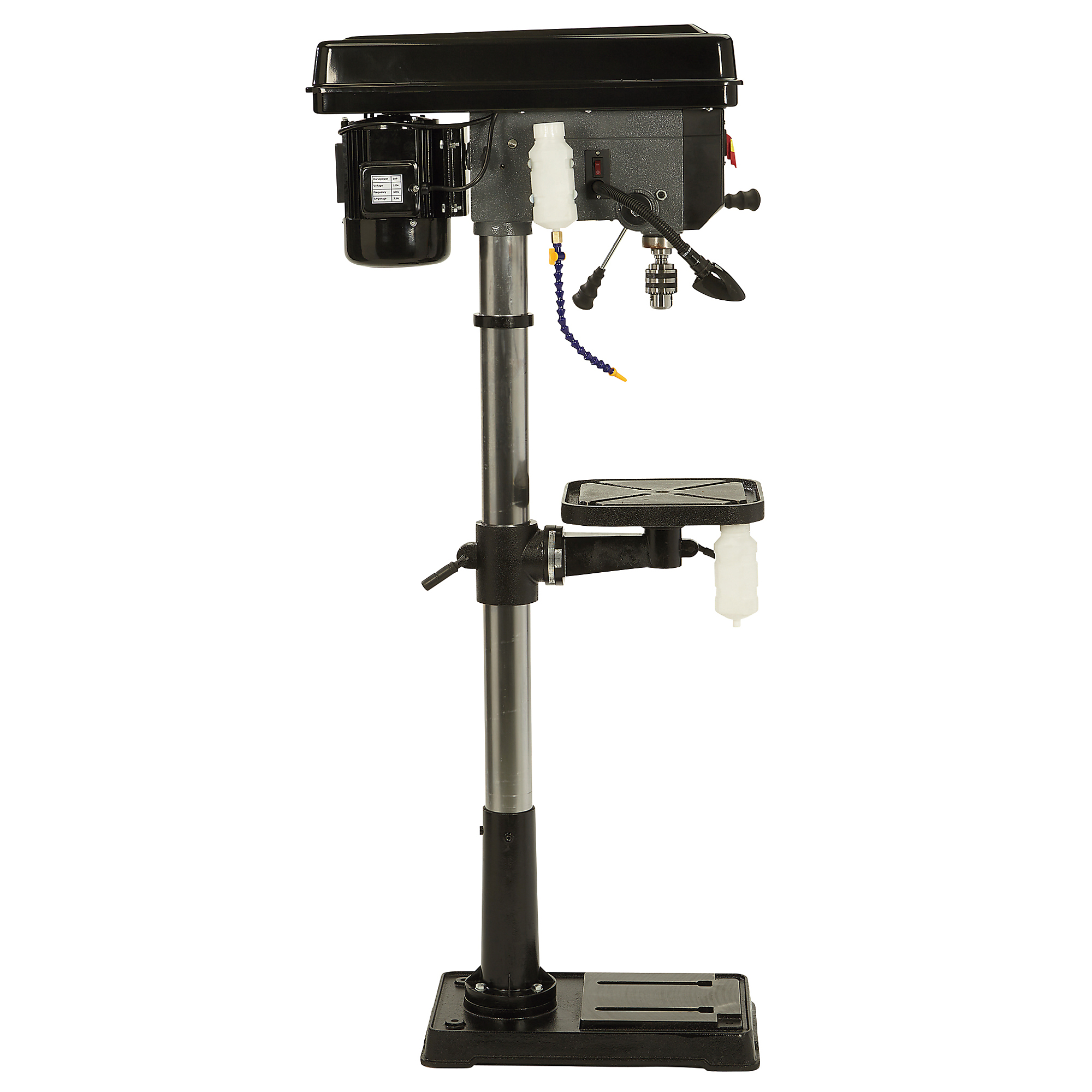

Klutch 17in. Floor Drill Press, 1 HP, 120 Volts, 5/8in. Chuck w/1in. Drilling Capacity, 45° Table Tilt

Item# 5793513
"Klutch 17in. Floor Drill Press, 1 HP, 120 Volts, 5/8in. Chuck w/1in. Drilling Capacity, 45° Table Tilt"
Top Seller
Klutch 17in. Floor Drill Press, 1 HP, 120 Volts, 5/8in. Chuck w/1in. Drilling Capacity, 45° Table Tilt

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 17in. Floor Drill Press, 1 HP, 120 Volts, 5/8in. Chuck w/1in. Drilling Capacity, 45° Table Tilt

Click or Tap image to Zoom

$499.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Powerful 1 HP, 120V, 7.5A motor with variable speeds from 220–3,600 RPM
  • 16 speeds for drilling a wide variety of materials, including wood, plastic and metal
  • Speeds as low as 220 RPM to help prevent damage to delicate materials
  • 4in. stroke length with depth lock and a comfortable handle for precise adjustments that stay true, hole after hole
  • Roomy 12-3/4in. x 12-3/4in. quick-release worktable with 360° rotatation and 45° tilting capabilities for drilling a wide variety of material shapes

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 17in. Floor Drill Press Drill features a heavy-duty ball bearing motor with 16 speeds for drilling a wide variety of materials, including wood, plastic and metal.

What's Included

    (1) 17in. floor drill press

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Powerful 1 HP, 120V, 7.5A motor with variable speeds from 220–3,600 RPM
  • 16 speeds for drilling a wide variety of materials, including wood, plastic and metal
  • Speeds as low as 220 RPM to help prevent damage to delicate materials
  • 4in. stroke length with depth lock and a comfortable handle for precise adjustments that stay true, hole after hole
  • Roomy 12-3/4in. x 12-3/4in. quick-release worktable with 360° rotatation and 45° tilting capabilities for drilling a wide variety of material shapes
  • Includes adjustable tension spindle return spring — ideal for repetitive drilling of the same depth
  • Integrated hand-pump style cutting oil system for cooling while drilling metal
  • Includes a gooseneck LED light to illuminate work surface
  • Power, accuracy and versatility packed into a sturdy floor mount base
  • Drill speed table is conveniently located inside belt pulley door
  • Versatile chuck accomodates bit shanks from 1/8in. x 5/8in.
  • MT3 spindle taper for accuracy

Key Specs

AttributeSpecification

item#

5793513

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

150.0 LB

Horsepower

1 HP

Volts

120

Max. Speed

3,600 rpm

360 Degree Head Swivel

No

Speeds (qty.)

16

Product Type

Drill Press
AttributeSpecification

Drilling Capacity

5/8 in

Chuck Size

5/8 in

Light Included

Yes

Stand Included

Yes

Min. Speed

200 rpm

Variable Speed

No

Max. Spindle Distance

4 in

Swing

13 in

Product Weight

148.0600 lb

Dimensions L x W x H (in.)

29.15 x 16.55 x 65.8 in

Reviews

Questions & Answers

Questions

1–8 of 8 Questions
Sort by:

  1. What is spindle travel, drilling depth?

    1 answer

    1. The spindle travel and the drilling depth is 4 inches.

      Helpful?

  2. Who is the manufacturer of the motor? What do we do for repair parts?

    1 answer

    1. This drill press and its components are manufactured to our specifications by Forcome Co Ltd. At this time, parts are not available for the drill press.

      Helpful?

  3. What is the max outside diameter (i.e., lower ring part closes to chuck below) of spindle sleeve (quill) where a mortiser attachment would clamp?

    1 answer

    1. The large end diameter is 23.825 mm. The small end diameter is 19.76 mm. The effective taper length is 81 mm. It has a standard MT3 taper.

      Helpful?

  4. What about dust management?

    1 answer

    1. This drill press does not have a built in dust collection system. Dust can be brushed off or blown off using compressed air. An external dust collection system could also be purchased.

      Helpful?

  5. What is the country of origin of this press?

    1 answer

    1. This drill press is manufactured to our specifications in China.

      Helpful?

  6. I need a chuck key for this drill press. Can I order one from you?

    1 answer

    1. Parts are currently not available for this drill press.

      Helpful?

  7. I damaged my belt enclosure (the top of the drill press) when I bumped and knocked the drill press over. I've since bolted it to the floor. Can I order a new replacement belt enclosure? I need both the top and bottom of the cover, hinged together.

    1 answer

    1. Parts are not currently available for this drill press.

      Helpful?

  8. What size T-slots are on the table?

    1 answer

    1. The T slot sizes are 193mm (L) x 16.6mm (W1) x 30.7mm (W2).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
