Klutch 150 Spool Gun Kit , Fits Klutch MP140Si, MP251SiLCD and MIG/Stick 220Si Welders

Item# 44453
"Klutch 150 Spool Gun Kit , Fits Klutch MP140Si, MP251SiLCD and MIG/Stick 220Si Welders"
Top Seller
Klutch 150 Spool Gun Kit , Fits Klutch MP140Si, MP251SiLCD and MIG/Stick 220Si Welders

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 150 Spool Gun Kit , Fits Klutch MP140Si, MP251SiLCD and MIG/Stick 220Si Welders

Click or Tap image to Zoom

$224.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Reduces bad welds and frustration caused by hard-to-feed welding wires
  • Can be used with aluminum, steel, stainless steel and flux-cored wire
  • 5-pin snap-on trigger connection, quick-connect gas and bolt-on weld power connection offer quick and easy connection to the welder
  • Comfortable, easy-to-use hand grip
  • Includes 2 extra contact tips and a hex wrench

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

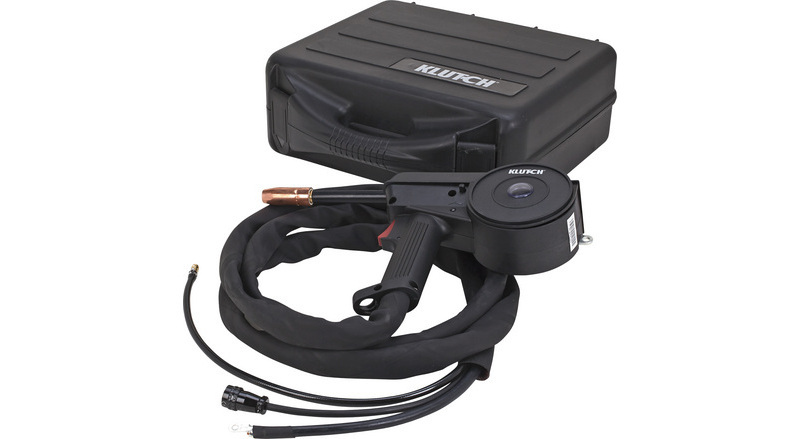

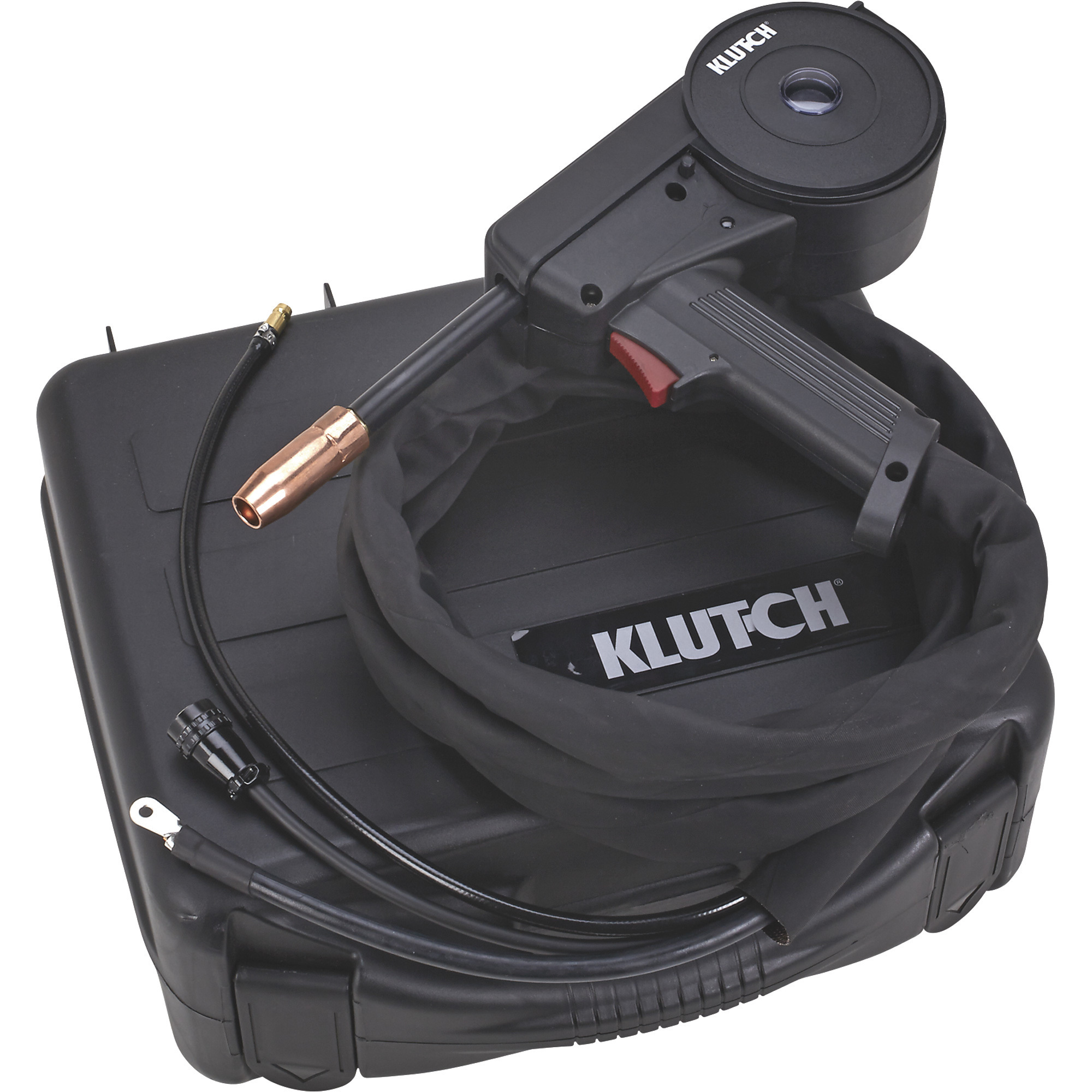

The Klutch® 150 Spool Gun Kit is specially designed for MIG welding aluminum on Klutch Welder models MP140Si (Item# 62502) and MP251SiLCD (Item# 96578), both sold separately. Holds a 4in. dia. spool of wire right on the gun, reducing travel distance of the wire and providing smooth and trouble-free feeding.

What's Included

    (1) 10ft. Quick Draw 150 spool gun (2) Extra contact tips (1) Hex wrench

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Reduces bad welds and frustration caused by hard-to-feed welding wires
  • Can be used with aluminum, steel, stainless steel and flux-cored wire
  • 5-pin snap-on trigger connection, quick-connect gas and bolt-on weld power connection offer quick and easy connection to the welder
  • Comfortable, easy-to-use hand grip
  • Includes 2 extra contact tips and a hex wrench
  • Uses Tweco-style replacement tips and nozzles (sold separately)

Key Specs

AttributeSpecification

item#

44453

Brand

Klutch

Ship Weight

9.05 LB
AttributeSpecification

Cable Length

10 ft

Compatible With

Select Klutch Welders (item#s 62502, 96578 and 96572)

Product Type

Spool Guns

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. wire feed question

    does this spool gun have its own wire feed control?
    what controls the wire speed with this spool gun?

    1. No. The WF is controlled on you welder panel. I found that I had to set the WF on the welder at least 50% higher to get the same speed as the internal MIG wire feed.

      Helpful?

    2. The spool gun does have its own wire feed control. You would switch your welder over to the spool gun and would still make your settings on the welder itself as far as speed control.

      Helpful?

  2. Will this spool gun work with the Klutch cordless 20v welder?

    1 answer

    1. This spool gun is not designed to work with the Klutch 20V welder, item 6651752.

      Helpful?

  3. Does this Spool gun work with this welder? Klutch Dual-Voltage MIG/Flux-Core/TIG/Stick Multi-Process 4-in-1 Welder with Inverter Technology, 120/230 Volts, 200 Amp Max., MIG Ready Item# 5875893 I can't find the model number for this welder.

    1 answer

    1. This spool gun will work with the Klutch multi-process welder, item 5875893.

      Helpful?

  4. Does this have it's own adjustment for wire feed speed?

    1 answer

    1. This spool gun does not have its own speed control. The wire feed speed will be controlled from the welder.

      Helpful?

  5. Will this work with the ESAB EM140 ROUGE

    1 answer

    1. This spool gun is specifically designed for use with the Klutch welder models MP140Si (Item# 62502) and MP251SiLCD (Item# 96578). The Tweco spool gun part #1027-1397, is designed for the ESAB Rogue EM 140 MIG Welder. We do not offer that part at this time.

      Helpful?

  6. Does the 230SiDV welder auto-programs recognize this gun for MIG Steel and Stainless, or only when welding MIG aluminum? MIG Steel/Stainless screens do not have spool gun yes/no options like aluminum option.

    1 answer

    1. This spool gun kit works with the MP140Si (Item# 62502) and MP251SiLCD (Item# 96578) welder models. The MP230SiDV welder already includes a MIG torch and spool gun. To weld aluminum, the spool gun is used. To weld steel and stainless steel, the DC TIG feature is used.

      Helpful?

  7. Will spool gun item number 44453 work with a clutch mig 140 SI item number 44725 .

    1 answer

    1. This spool gun kit will connect the the Klutch MIG 140Si welder, item 44725.

      Helpful?

  8. Would this work on the 140i? Looking at the picture looks like it could fit.

    1 answer

    1. This spool gun kit is compatible with the Klutch MP140Si, item 62502.

      Helpful?

  9. What are the connector pin definitions and function and the drive motor power? In other words; which pins are for the trigger and which are for the drive motor power and what is the voltage range for the drive motor and is it AC or DC or universal?

    1 answer

    1. Pin 1 is a dead pin. Pins 2 and 3 are for the trigger and pins 4 and 5 are for the motor. This has a 24V DC motor which ranges from 2V to 24V.

      Helpful?

  10. Will this gun work on any other brands of welders, namely Lincoln?

    1 answer

    1. This spool gun kit only works with Klutch brand welders. Northern Tool has item #62502 for model MP140Si as a compatible welder with the spool gun kit.

      Helpful?
