Klein Tools, Test Kit with Multimeter, Non-Contact Volt Tester, Model# 69149P

Item# 5998990
11 of 12 reviewers received a sample product or took part in a promotion
Klein Tools, Test Kit with Multimeter, Non-Contact Volt Tester, Model# 69149P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klein Tools, Test Kit with Multimeter, Non-Contact Volt Tester, Model# 69149P

Click or Tap image to Zoom

$39.99

  • Shipping:

  • Store Pickup:

    Not available - online only
  • Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance

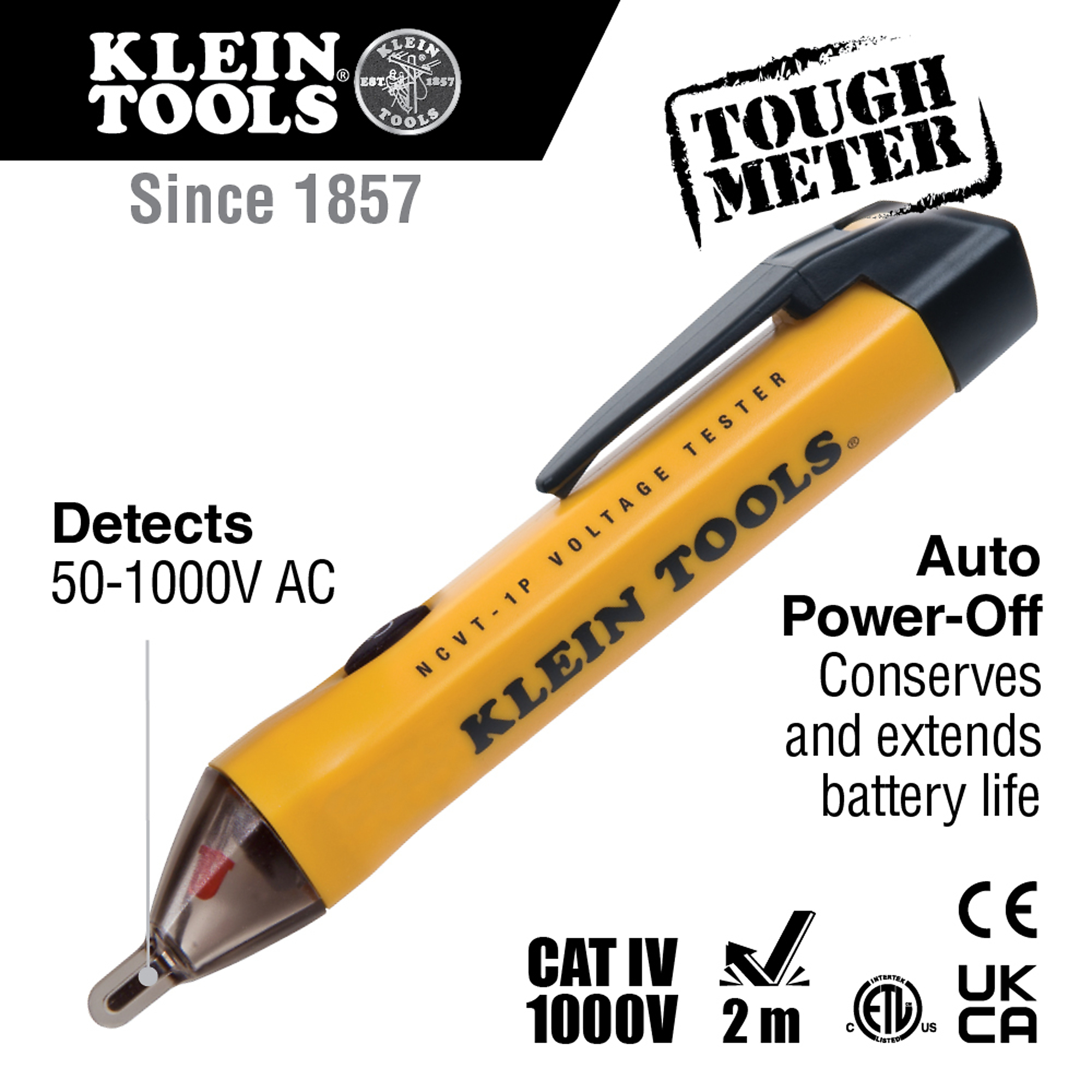

  • Non-Contact Voltage Tester Model NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
  • NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range
  • Receptacle tester Cat. No. RT105 detects wiring configurations and indicates correct wiring, and identifies common wiring faults
  • Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

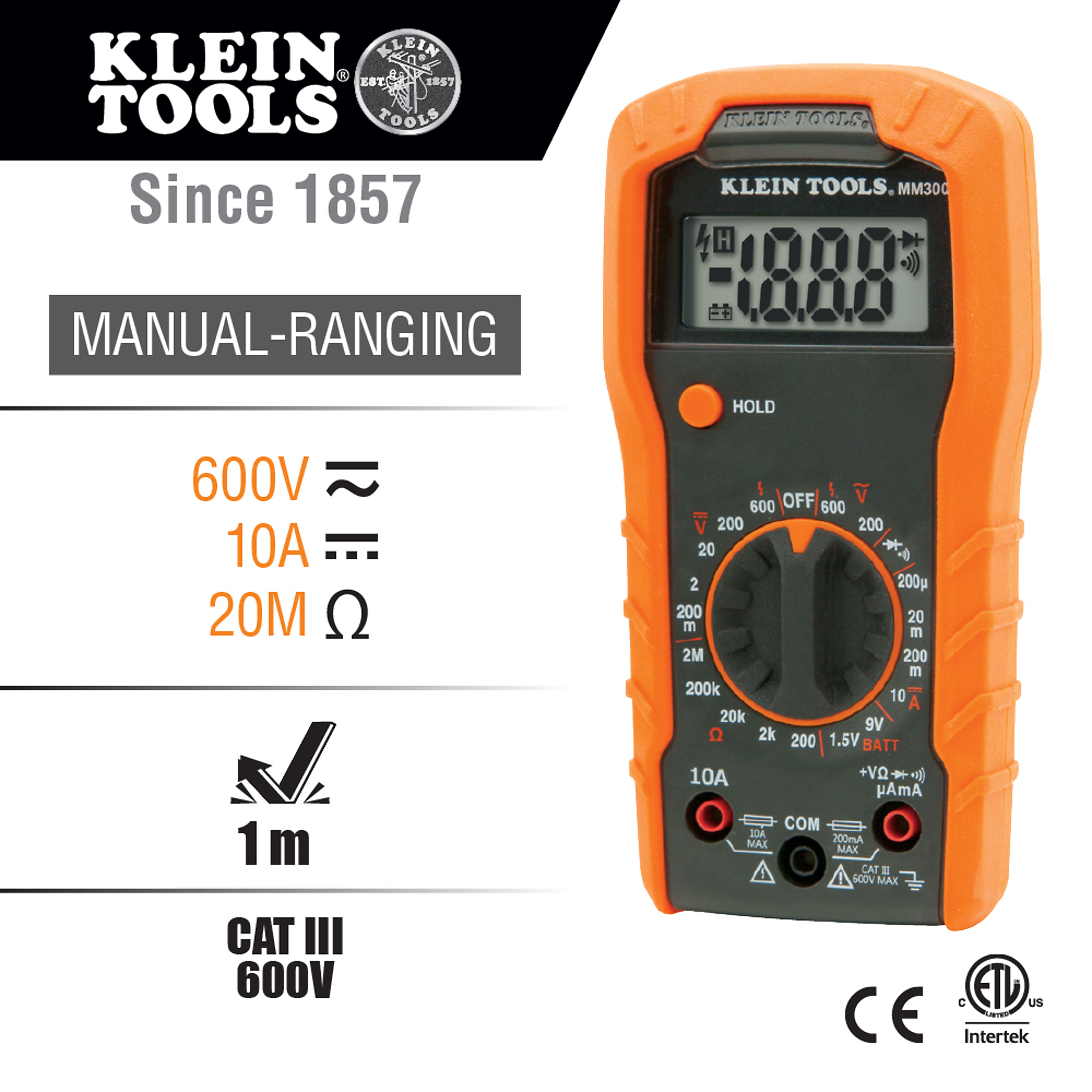

Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.

What's Included

    (1) Electrical Test Kit

Downloads

Safety Data Sheet

Features + Benefits

  • Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance
  • Non-Contact Voltage Tester Model NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
  • NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range
  • Receptacle tester Cat. No. RT105 detects wiring configurations and indicates correct wiring, and identifies common wiring faults
  • Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects

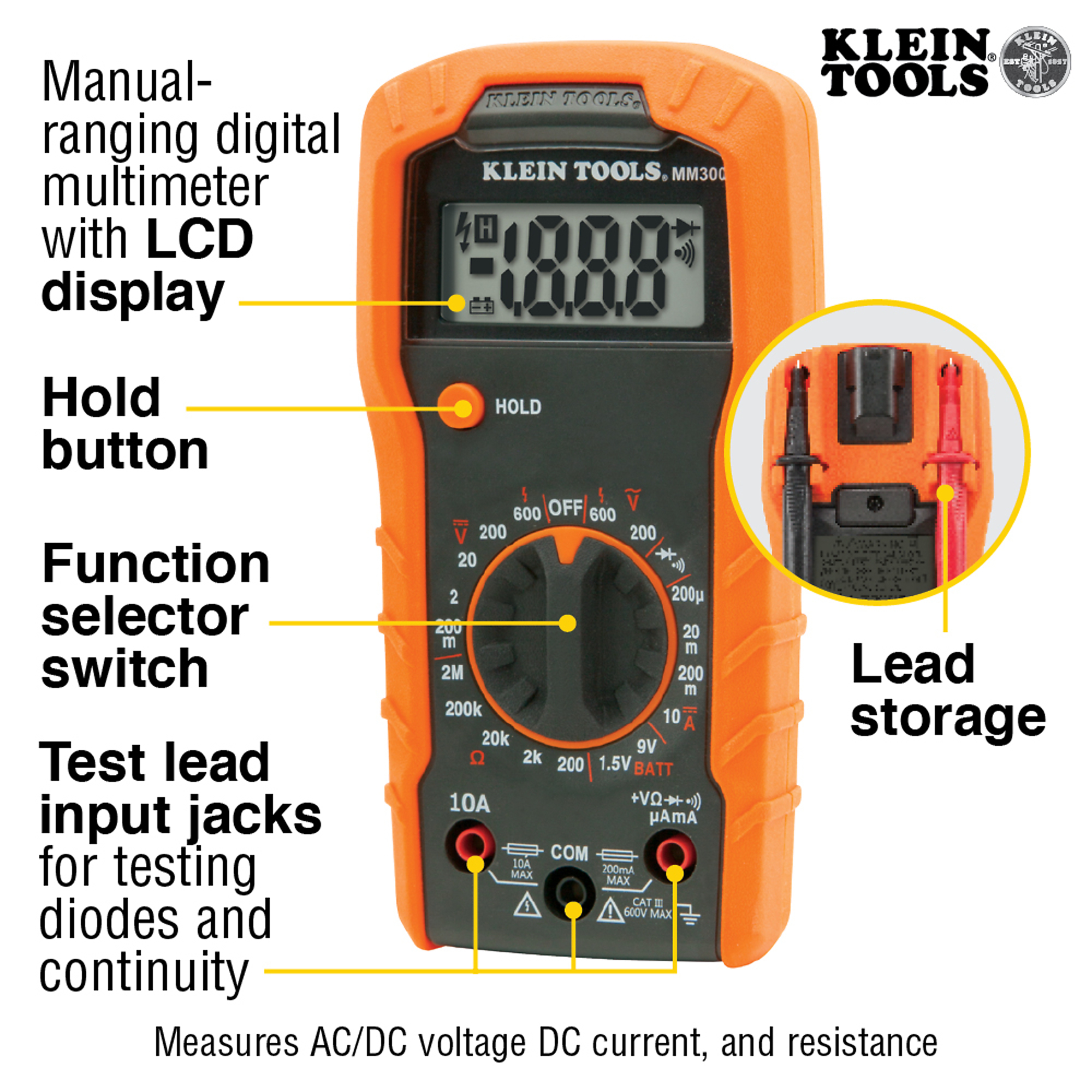

  • MM300 multimeter tests continuity with visual and audible continuity indicators
  • Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300

Key Specs

AttributeSpecification

item#

5998990

Brand

Klein Tools

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.25 LB

Display Type

LCD

Battery Size

AAA

Battery Type

Other

Battery Included

Yes

Charger Included

No

Max. Temperature

122 °F
AttributeSpecification

Case Included

Yes

Common Usage

Identifies Open Ground, Open Hot, Open Neutral, Hot/Ground Reversed

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Material

Polycarbonate

Application

Testing and Measuring Voltage

Includes

MM300 Manual-Ranging Digital Multimeter with Right-angle Test Leads, NCVT1P Non-Contact Voltage Tester, RT105 Receptacle Tester with Test Leads, Instructions, All Required Batteries

Product Weight

0.9440 lb

Dimensions L x W x H (in.)

3.5 x 0.9 x 6.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
