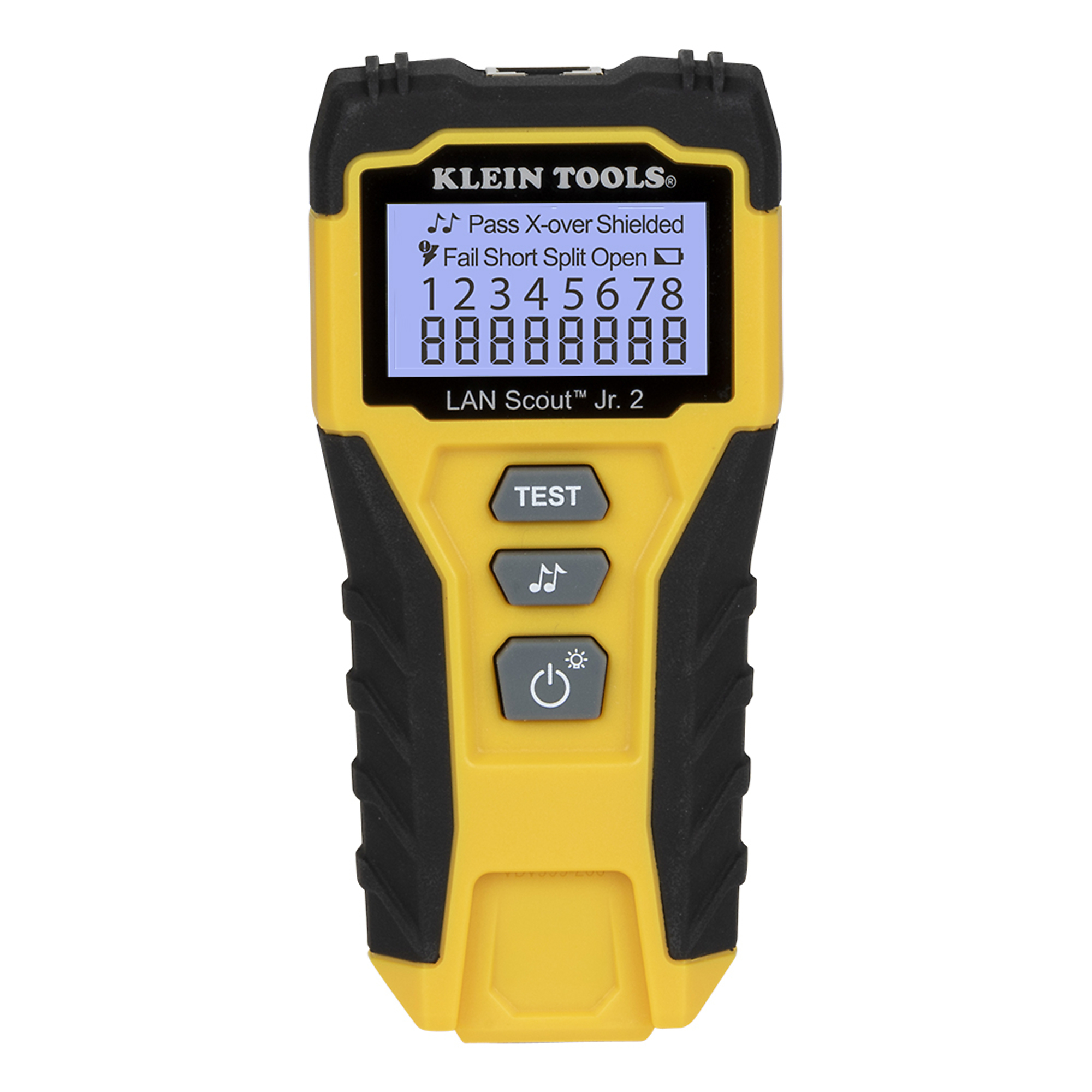

Klein Tools, LAN Scout Jr. 2 Cable Tester, Model# VDV526-200

Item# 5998797
Klein Tools, LAN Scout Jr. 2 Cable Tester, Model# VDV526-200

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klein Tools, LAN Scout Jr. 2 Cable Tester, Model# VDV526-200

Click or Tap image to Zoom

$59.97

  • Shipping:

  • Store Pickup:

    Not Available

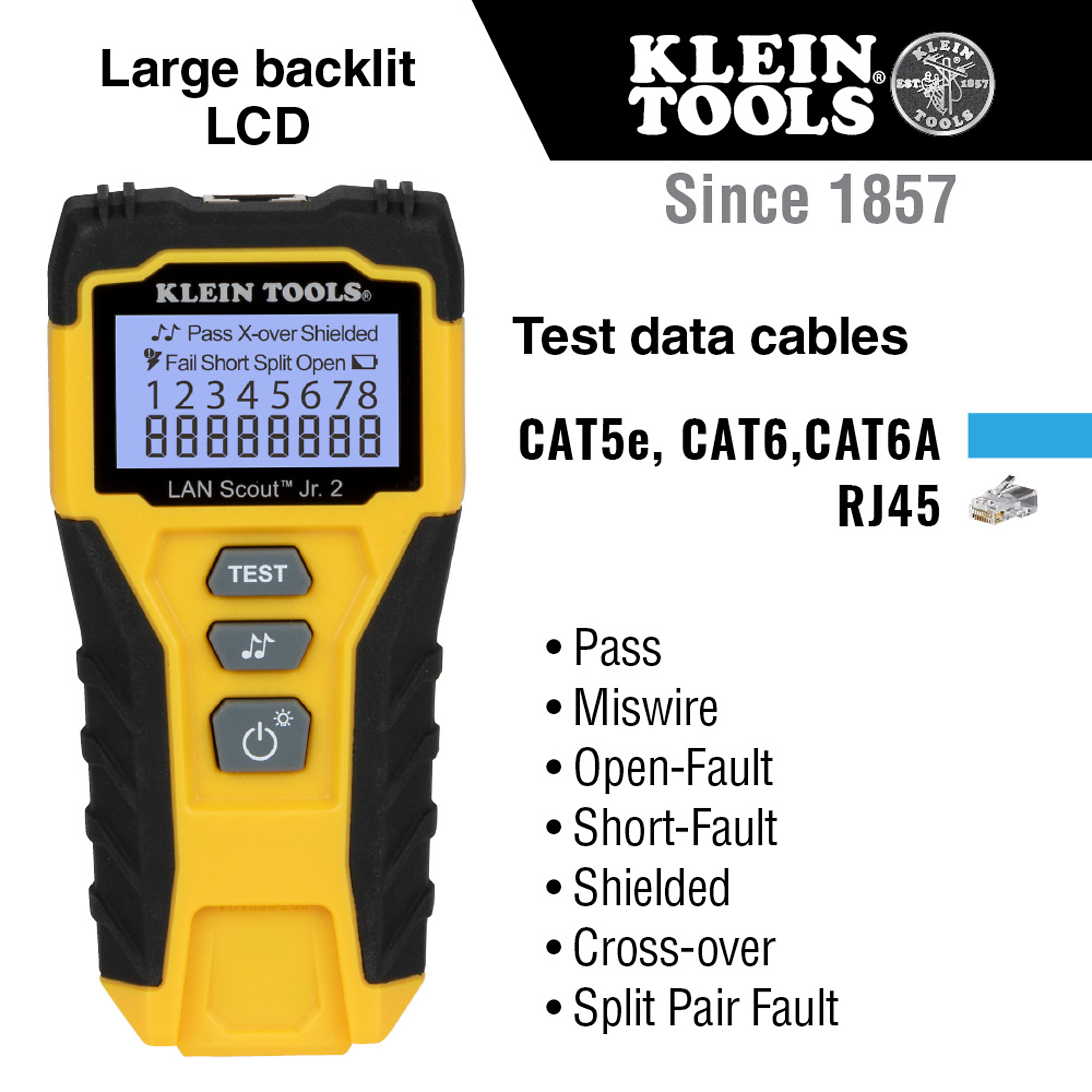

  • Cable tester for data (RJ45) terminated cables and patch cords
  • Large backlit LCD for low lit areas displays pin to pin wiremap results
  • Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
  • Intuitive user interface features three buttons with simple, easy-to-identify test responses
  • Tone on single wire, wire pair or all 8 conductor wires

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

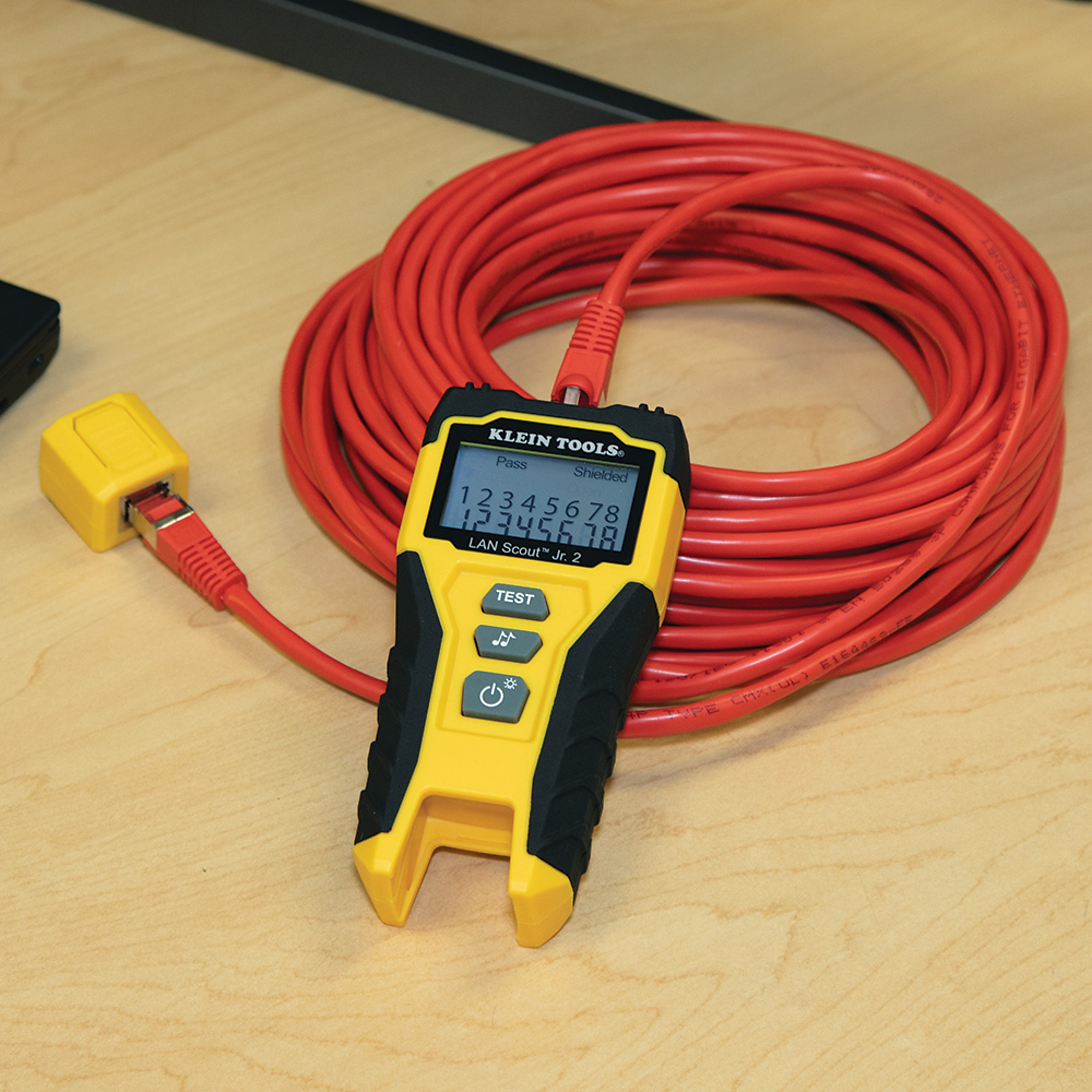

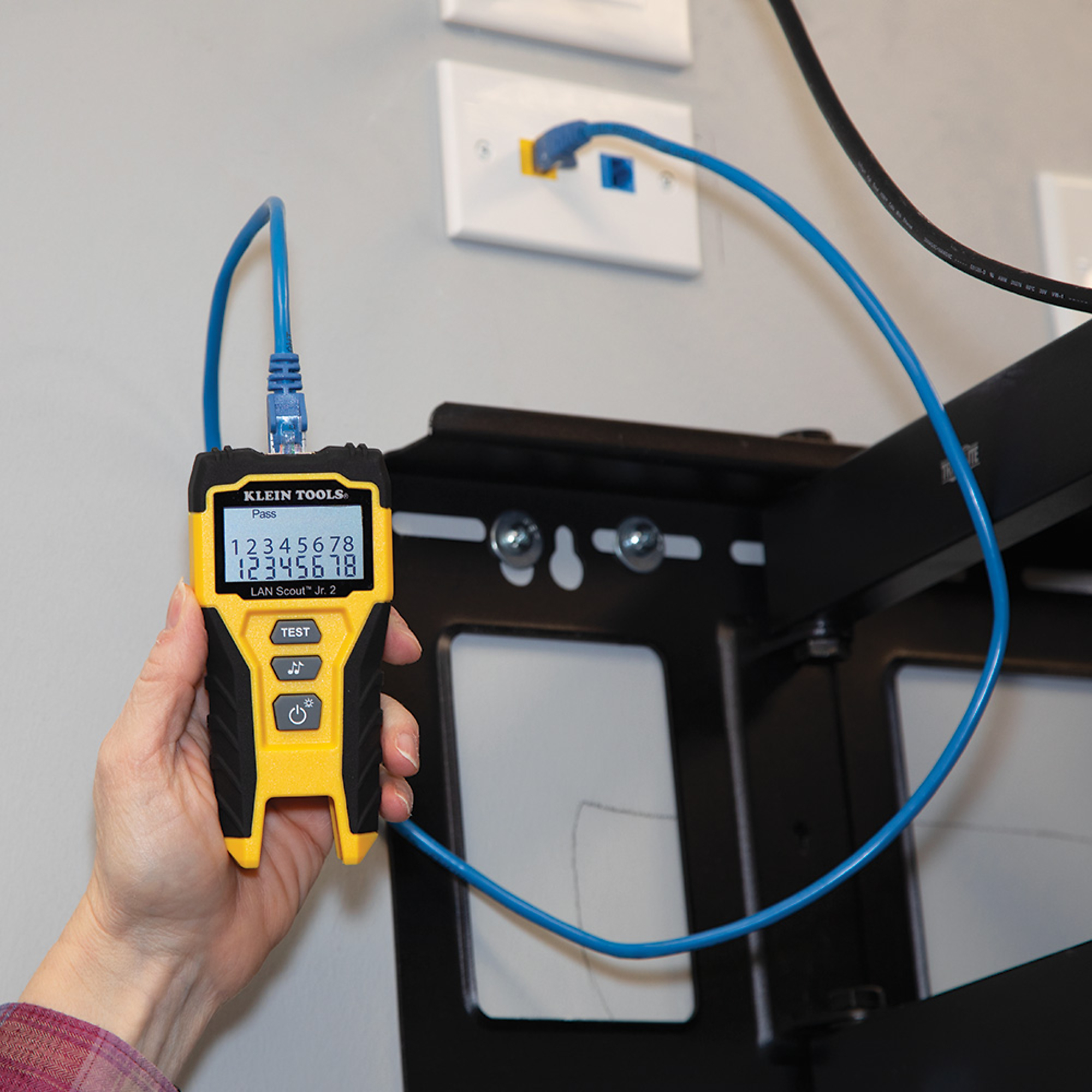

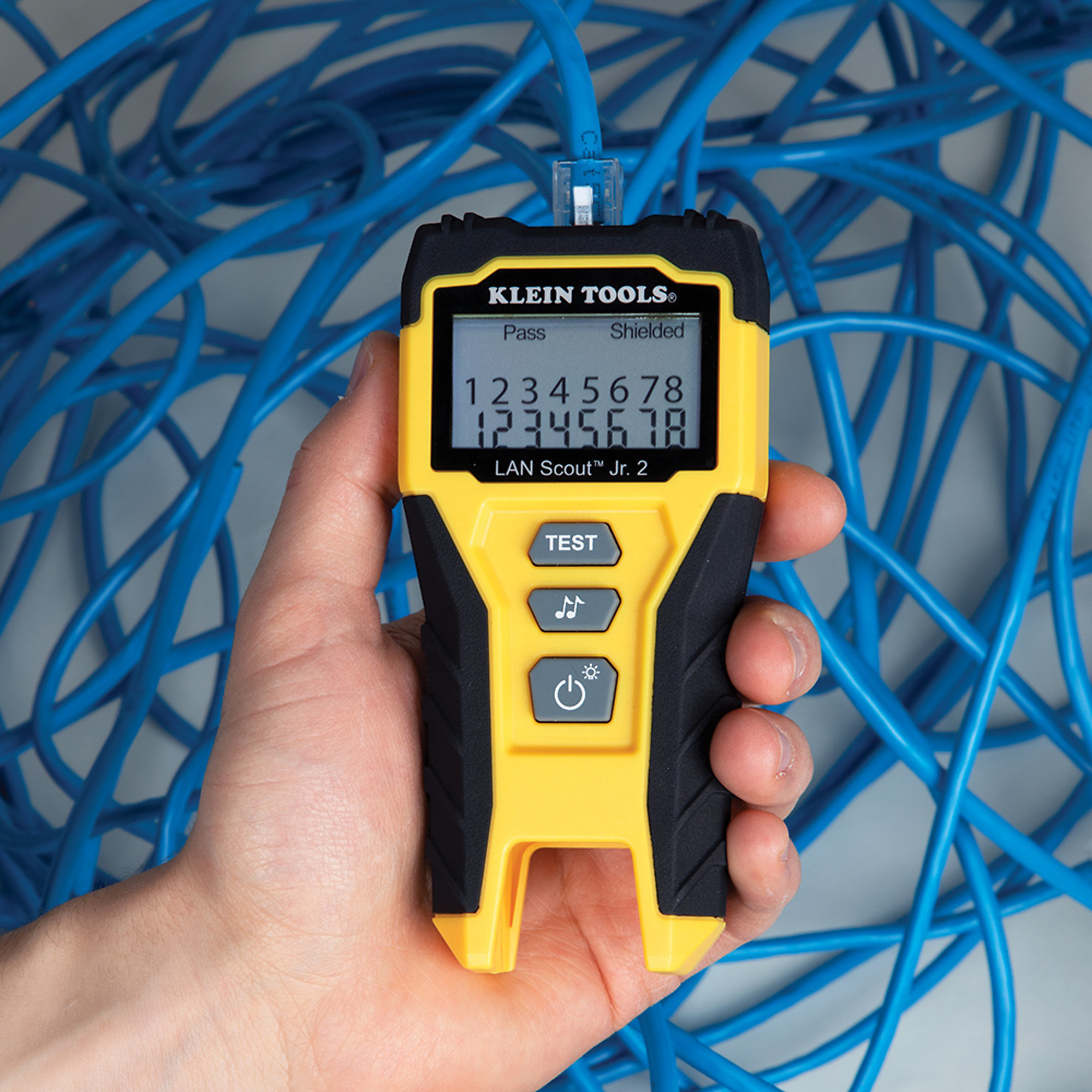

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

What's Included

    (1) LAN Scout Jr. 2 Cable Tester

Downloads

Safety Data Sheet

Features + Benefits

  • Cable tester for data (RJ45) terminated cables and patch cords
  • Large backlit LCD for low lit areas displays pin to pin wiremap results
  • Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
  • Intuitive user interface features three buttons with simple, easy-to-identify test responses
  • Tone on single wire, wire pair or all 8 conductor wires
  • Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
  • Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
  • Soft, slip-resistant, rugged overmold for easy gripping and durability
  • Replaceable 2 x AAA batteries (included)
  • Replaceable self-storing remote (included)
  • Replacement remote available; sold separately (Cat. No. VDV999-200)

Key Specs

AttributeSpecification

item#

5998797

Brand

Klein Tools

Manufacturer's Warranty

12 years limited

Ship Weight

0.68 LB

Display Type

LCD

Battery Size

AAA

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes

Charger Included

No

Polarity Indicator

No

Max. Temperature

122 °F
AttributeSpecification

Case Included

No

Common Usage

Detect Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield

Auto On/Off

Yes

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Material

Multiple

Application

Cable Testing

Includes

Tester, Remote, (2) AAA Alkaline Batteries

Product Weight

0.2720 lb

Dimensions L x W x H (in.)

5.229 x 2.5 x 1.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 years limited
