Klein Tools, HVAC Electrical Test Kit, Model# CL320KIT

Item# 5998885
Top Seller
Klein Tools, HVAC Electrical Test Kit, Model# CL320KIT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klein Tools, HVAC Electrical Test Kit, Model# CL320KIT

Click or Tap image to Zoom

$139.99

  • Shipping:

    Factory shipped

  • HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight

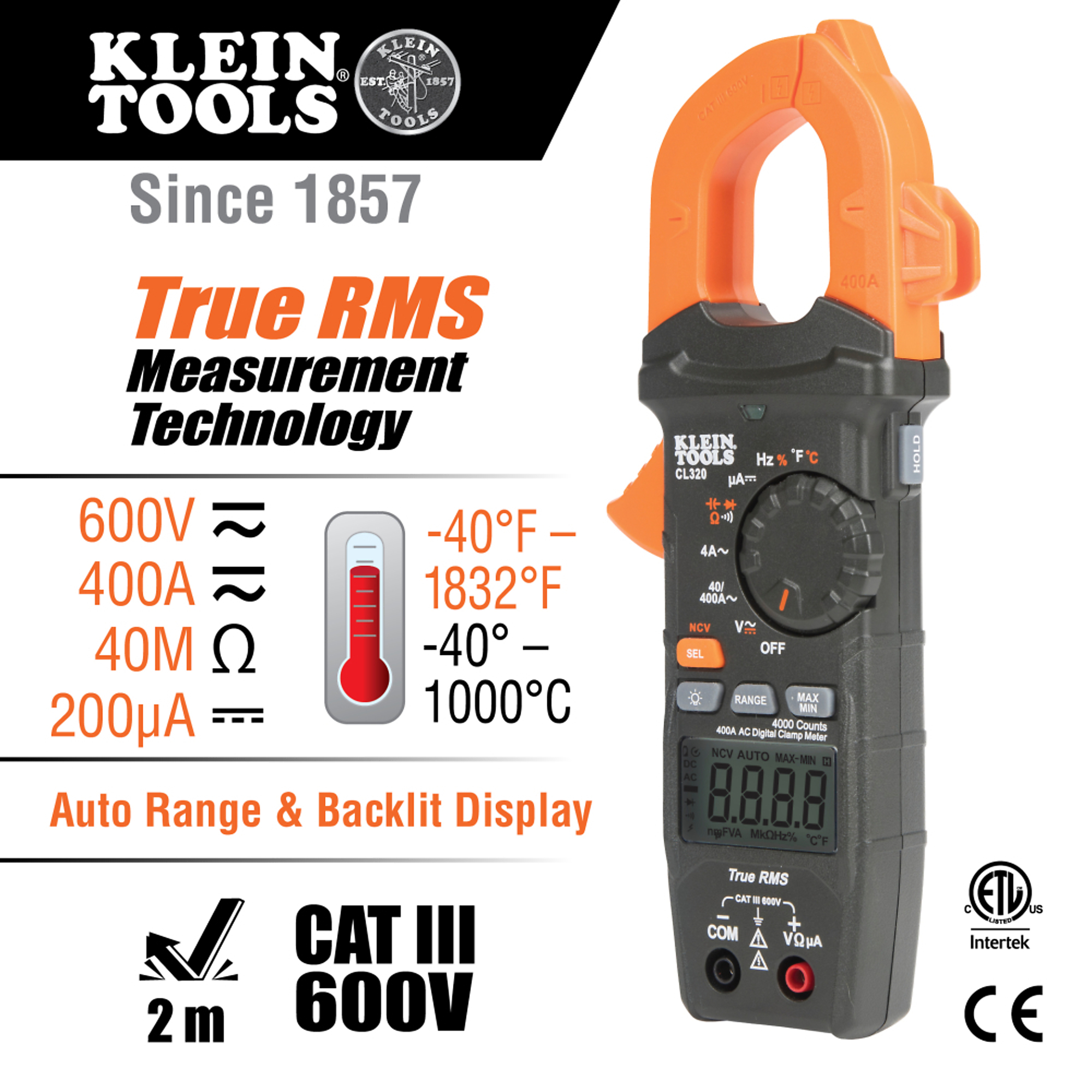

  • Model CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

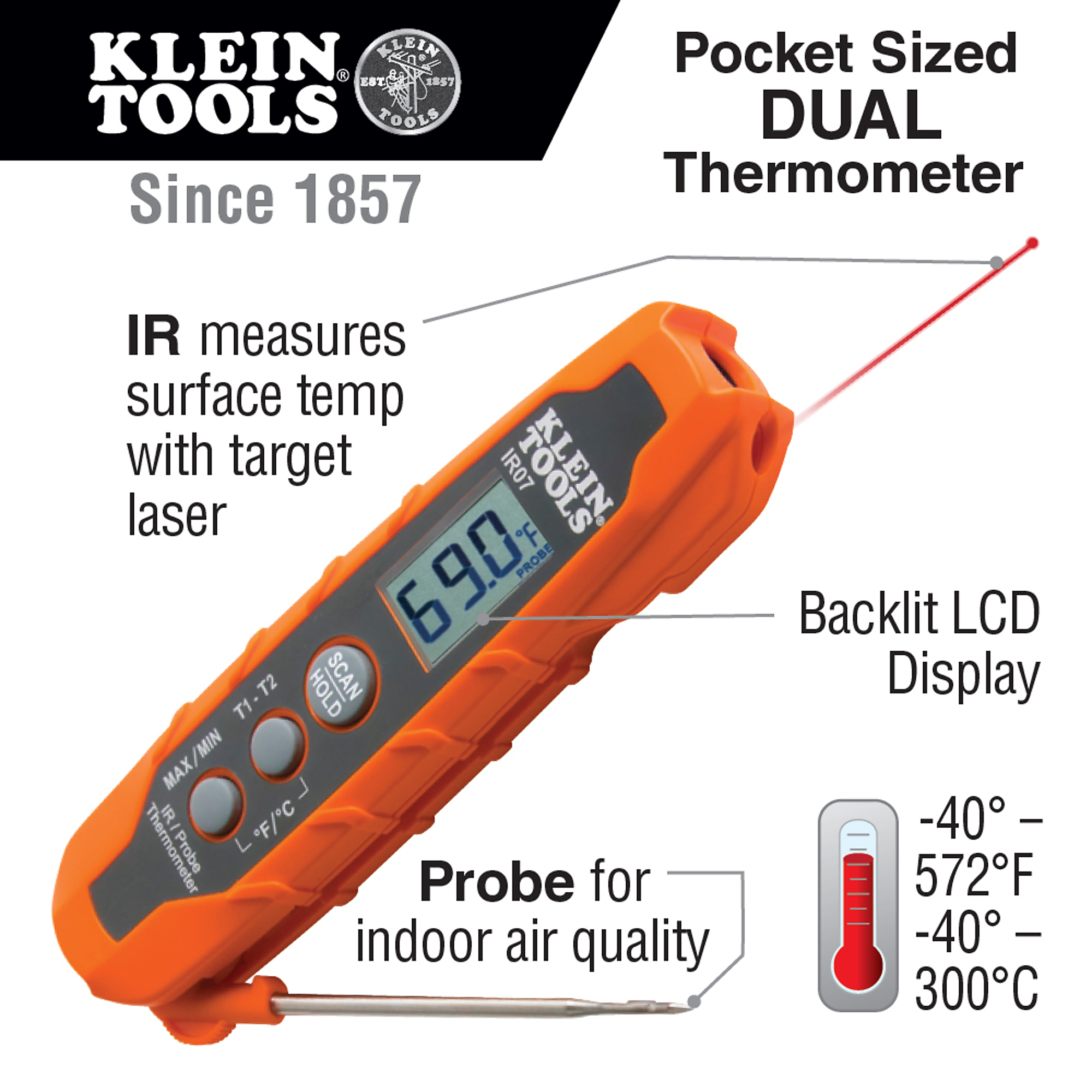

  • Model IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures

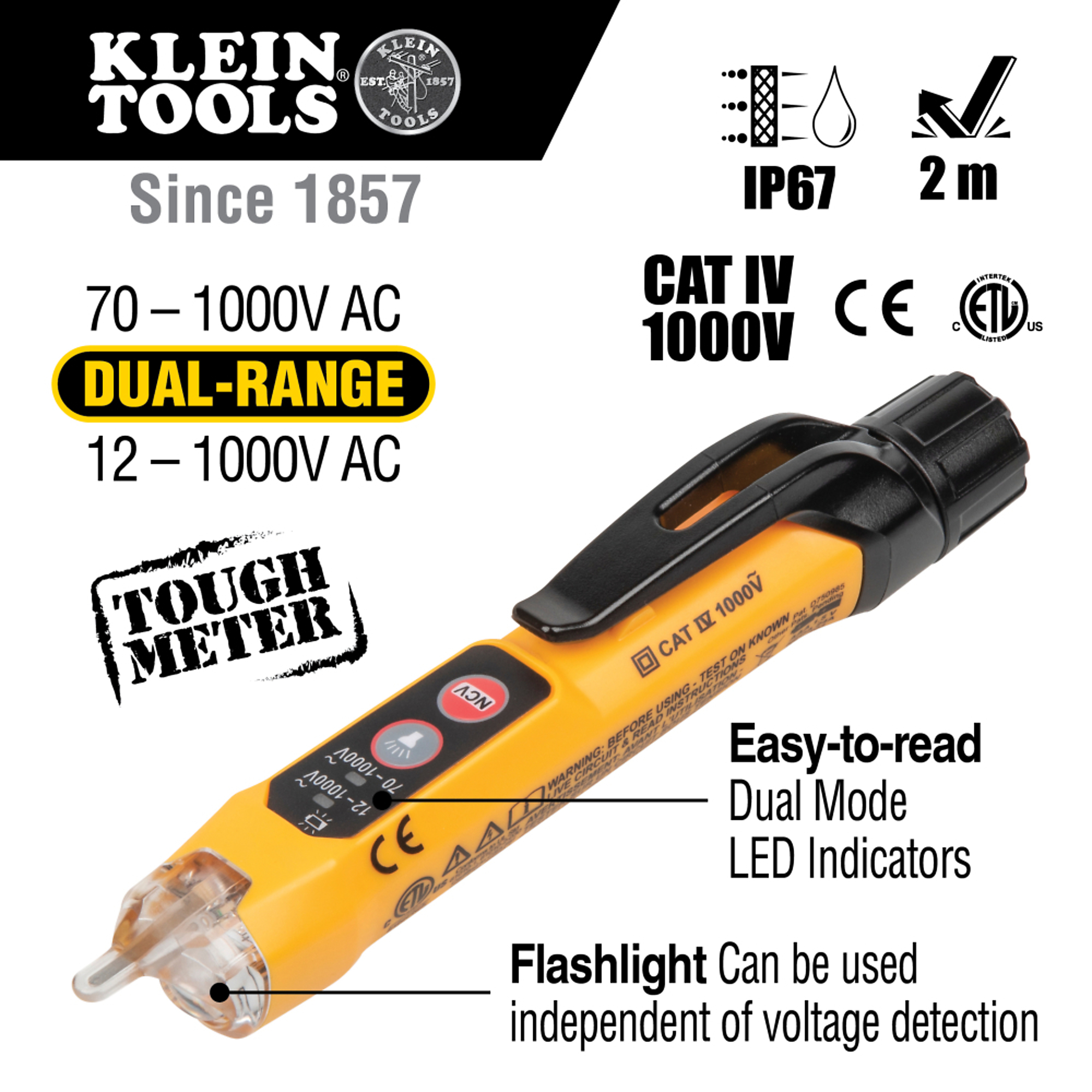

  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

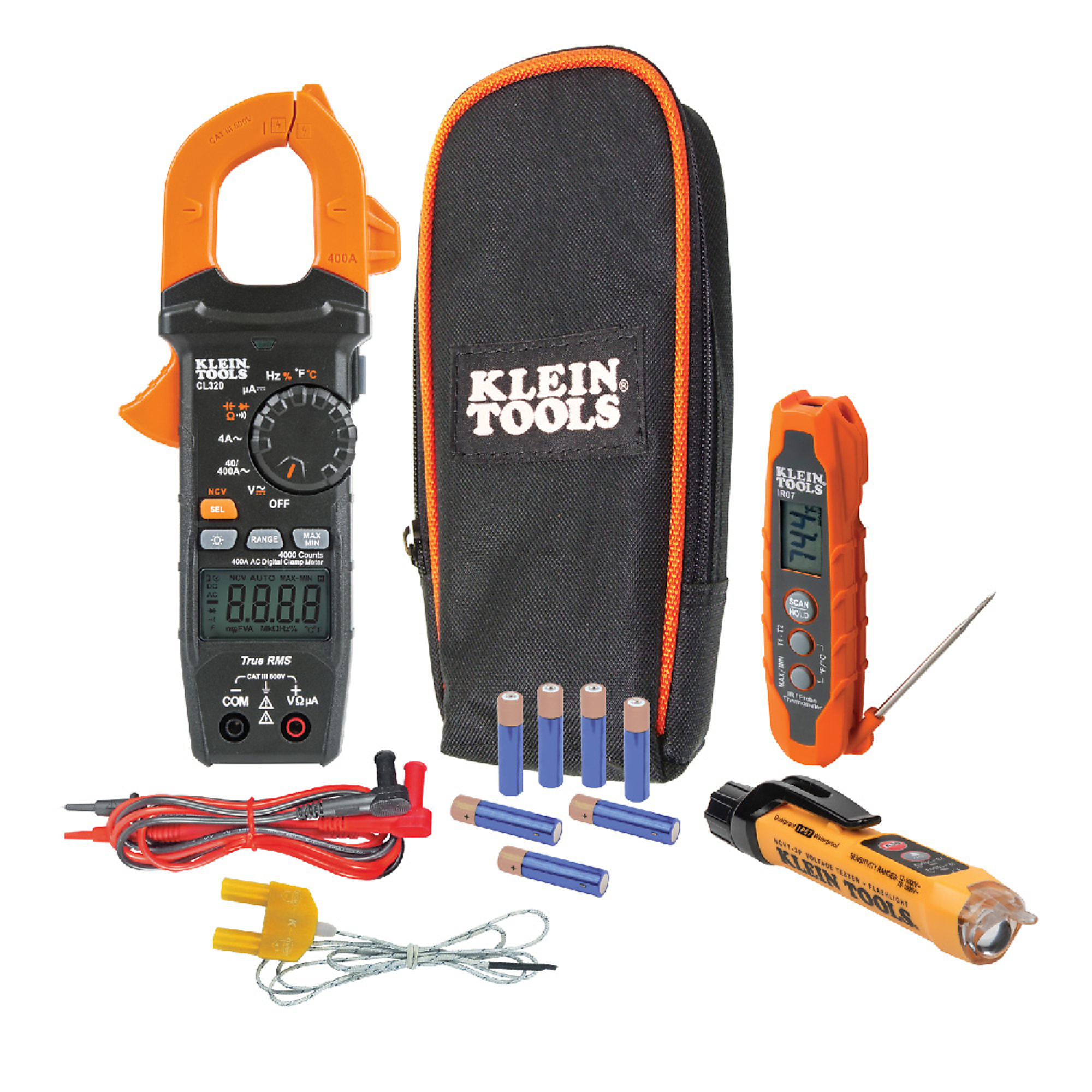

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

What's Included

    (1) HVAC Kit

Features + Benefits

  • HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight
  • Model CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
  • Model IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
  • IR07 Thermometer is not a medical device and is NOT intended for use on people or animals

Key Specs

AttributeSpecification

item#

5998885

Brand

Klein Tools

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.66 LB

Jaw Capacity

1.6 in

Display Type

LCD

Max. DC Volts

600

Max. AC Volts

600

Max. AC Amps

400

Max. Resistance

40 M?

Battery Size

AAA

Battery Type

Other

Battery Included

Yes
AttributeSpecification

Charger Included

No

Capacitance Range

4000 µF

Polarity Indicator

Yes

Case Included

Yes

Auto On/Off

Yes

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Material

ABS

Application

HVAC Electrical and Temperature Testing

Includes

CL320 Digital Clamp Meter with Test Leads and Thermocouple, IR07 Dual IR and Probe Thermometer, NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight, Carrying Pouch, Instructions, All Required Batteries

Product Weight

1.6500 lb

Dimensions L x W x H (in.)

11.0 x 4.5 x 3.25 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
