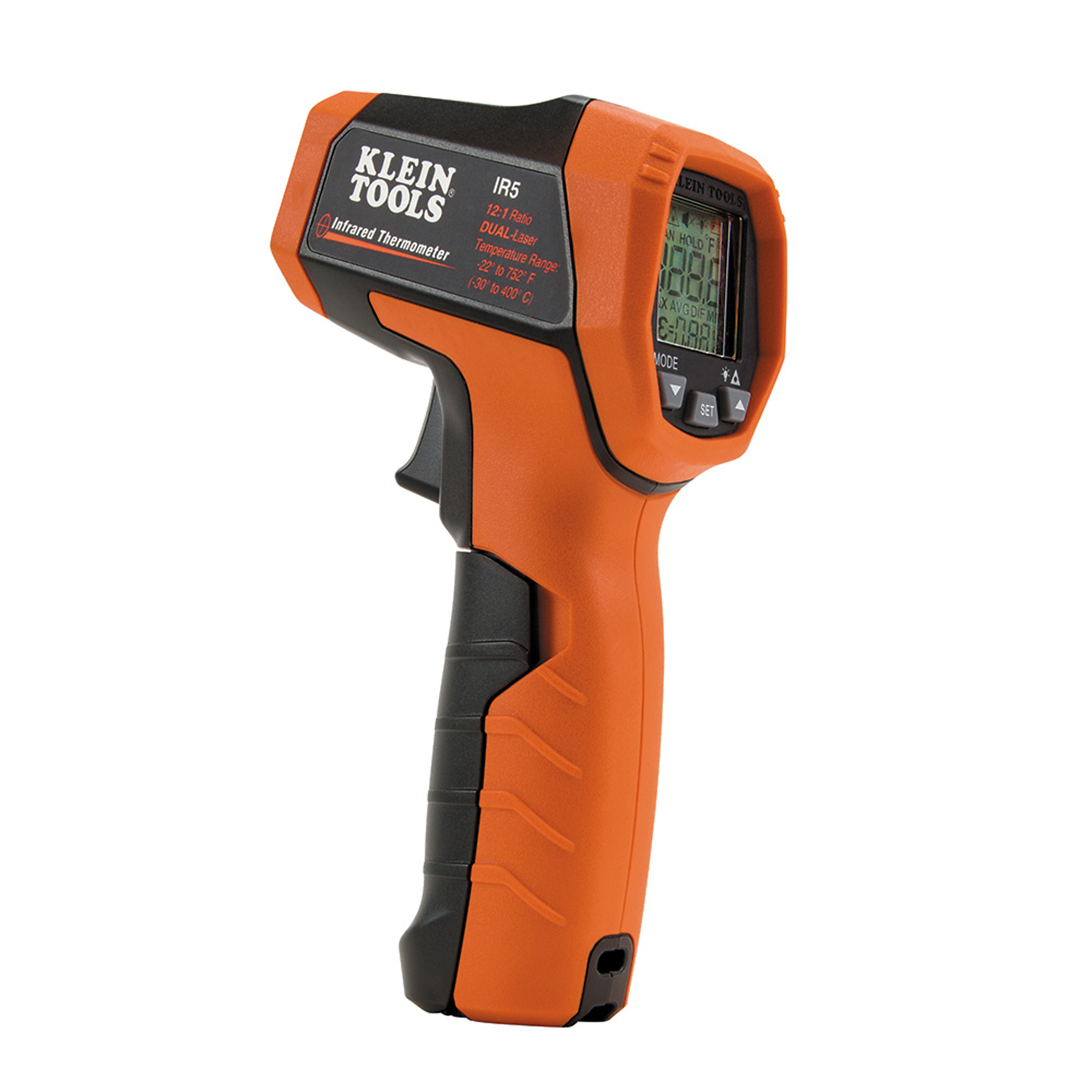

Klein Tools, Dual Laser Infrared Thermometer, Ratio 12:1 Model# IR5

Item# 5901924
1 of 4 reviewers received a sample product or took part in a promotion
1 Included
Klein Tools, Dual Laser Infrared Thermometer, Ratio 12:1 Model# IR5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klein Tools, Dual Laser Infrared Thermometer, Ratio 12:1 Model# IR5

Click or Tap image to Zoom

$74.98

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Optical Resolution (Distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6-feet (2 m)
  • Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
  • Not a medical device; thermometer is NOT intended for use on people or animals.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

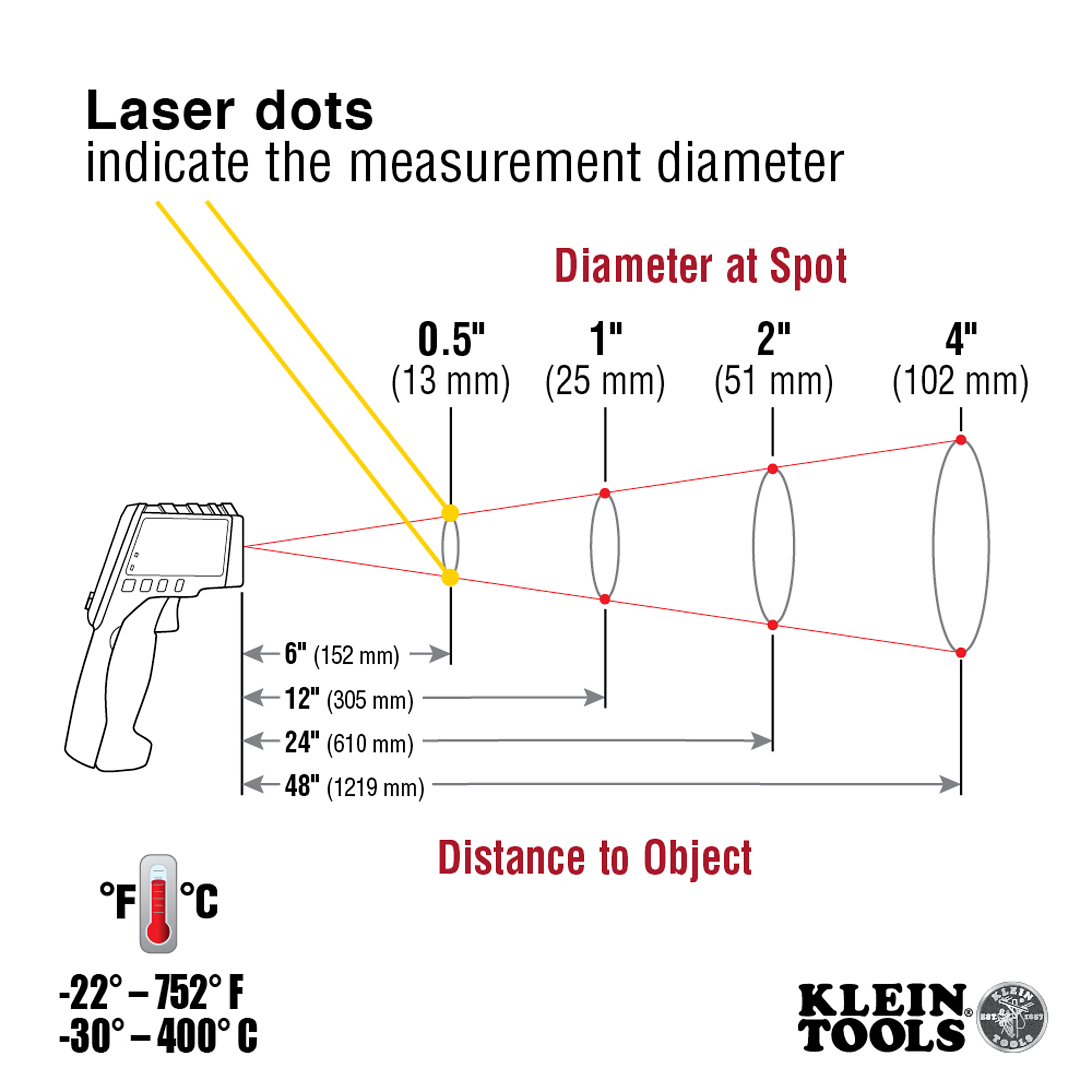

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.

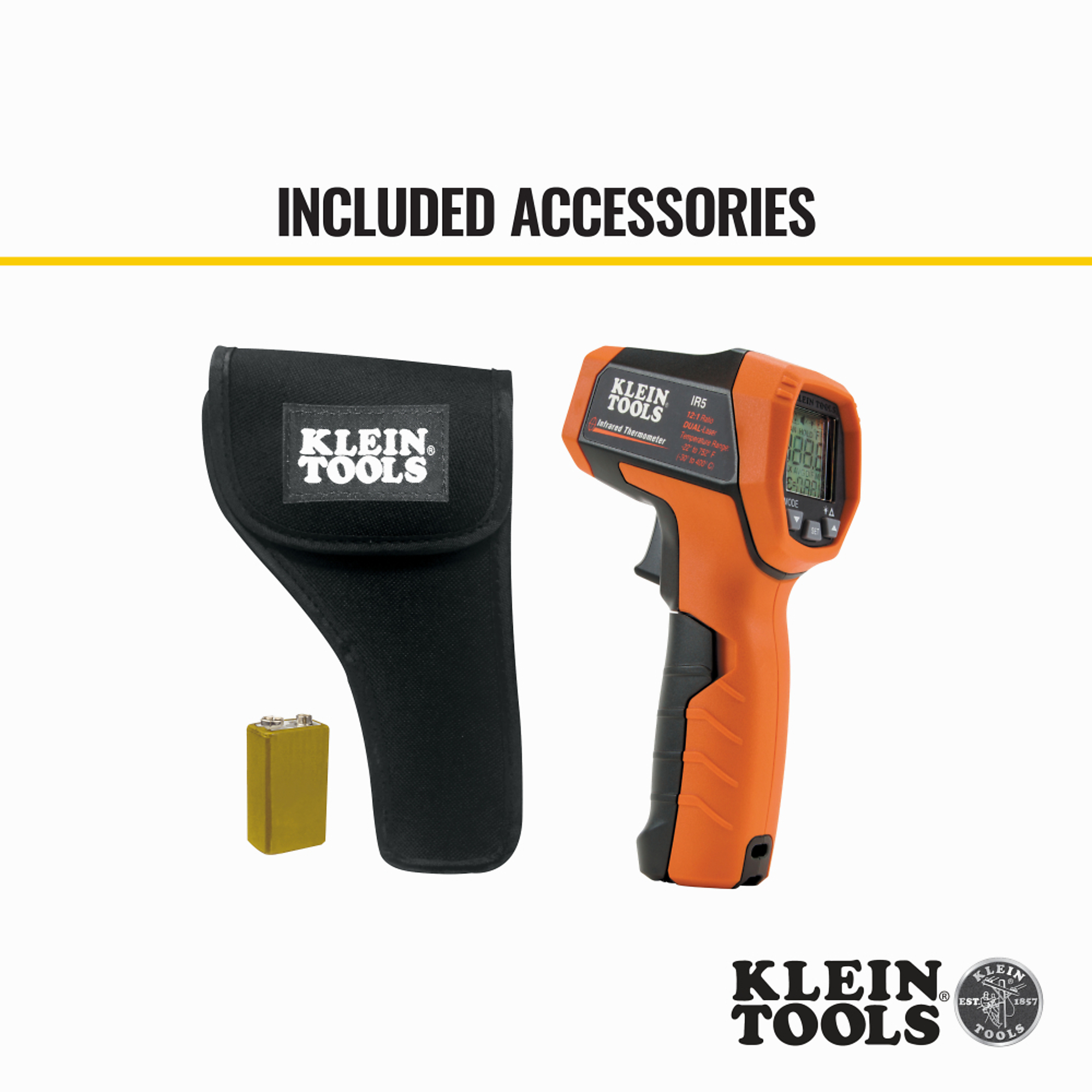

What's Included

    (1) Laser Infrared Thermometer

Downloads

Safety Data Sheet

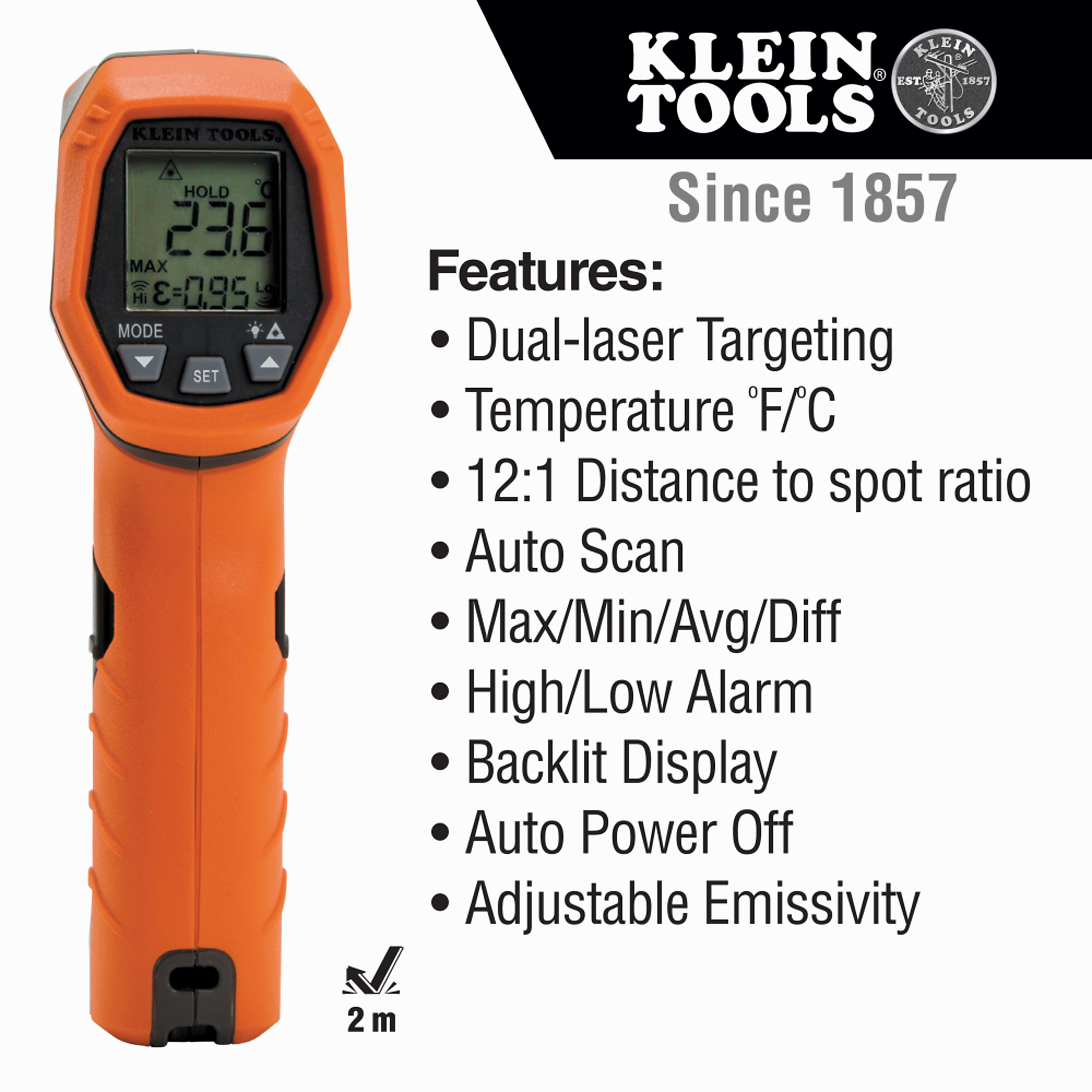

Features + Benefits

  • Optical Resolution (Distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6-feet (2 m)
  • Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
  • Not a medical device; thermometer is NOT intended for use on people or animals.
  • Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Adjustable emissivity
  • Soft-touch, over-mold housing
  • For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F
  • Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

Key Specs

AttributeSpecification

item#

5901924

Brand

Klein Tools

Manufacturer's Warranty

2 year limited warranty

Ship Weight

0.89 LB

Ratio

12:1

Max. Temperature

752 °F

Min. Temperature

-22 °F

Temperature Scale

Fahrenheit and Celsius

Battery Type

9V

Batteries Included

Yes

Display

Digital
AttributeSpecification

Material

Plastic

Accuracy

+/- 4 deg F or +/- 2%

Non-Contact

Yes

Laser Guide

No

Storage Type

Pouch

Application

Surface Temperature

Laser Sighting

Dual

Included (qty.)

1

Product Weight

0.6150 lb

Dimensions L x W x H (in.)

6.83 x 1.85 x 4.53 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
