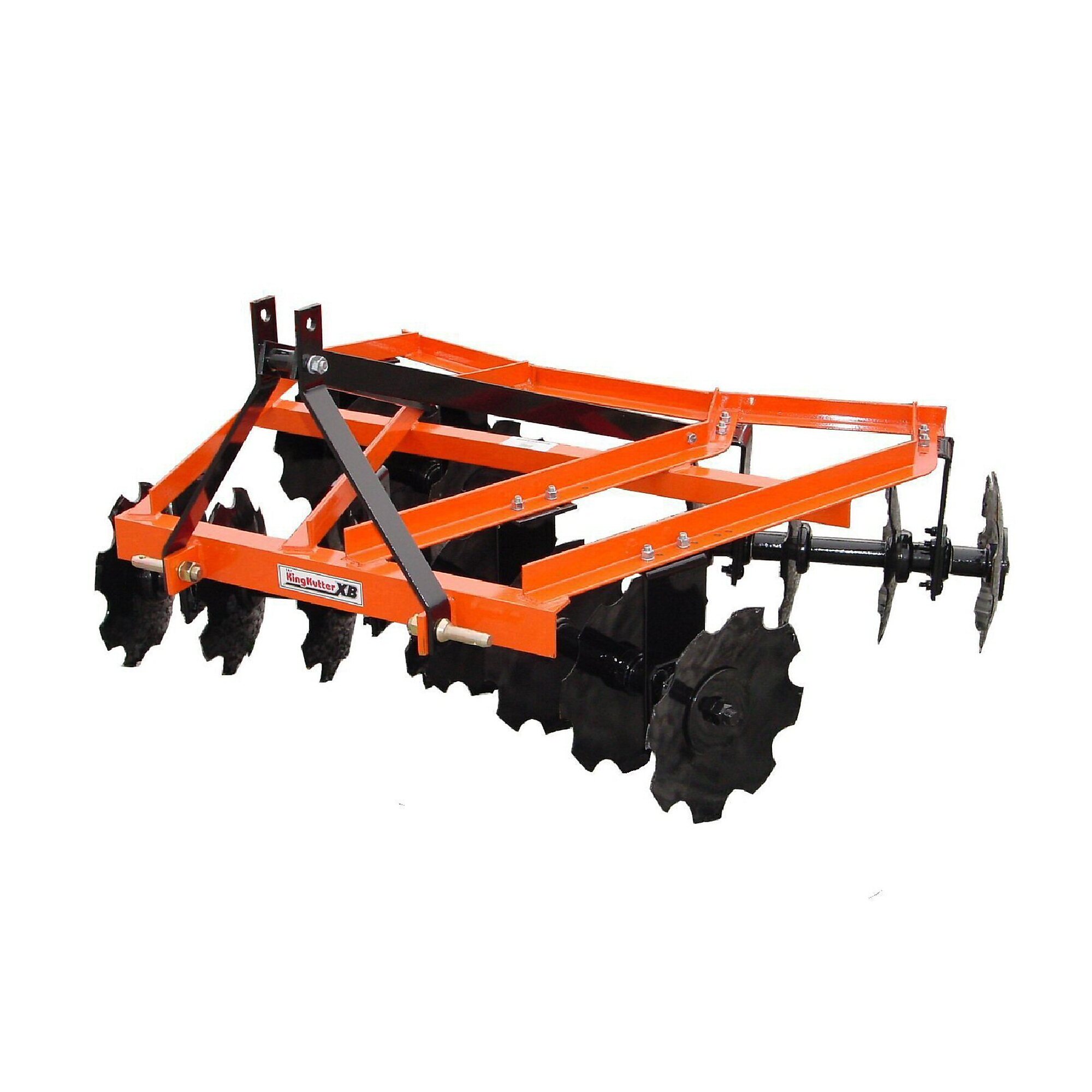

King Kutter XB Angle Frame Disc Harrow, 5ft., Model# 14-16-N-XB

Item# 256002
King Kutter XB Angle Frame Disc Harrow, 5ft., Model# 14-16-N-XB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Kutter XB Angle Frame Disc Harrow, 5ft., Model# 14-16-N-XB

Click or Tap image to Zoom

$1549.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • High carbon notched steel disc blades
  • Limited Cat. 1, 3-point hitch
  • Low maintenance sealed bearings for reliable performance and convenience
  • Heavy angle iron frame construction
  • 1in. high carbon steel axles

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

King Kutters XB Angle Frame Disc features a heavy angle iron frame construction, 1in. square high carbon steel axles, sealed cast iron bearings and adjustable axle angle settings. A field-ready disc harrow thats built to last. Truck ship. U.S.A.

What's Included

    (1) Angle Frame Disc Harrow (XB)

Features + Benefits

  • High carbon notched steel disc blades
  • Limited Cat. 1, 3-point hitch
  • Low maintenance sealed bearings for reliable performance and convenience
  • Heavy angle iron frame construction
  • 1in. high carbon steel axles
  • Adjustable angle settings
  • Truck ship
  • U.S.A.
  • Model 14-16-SB-N-XB

Key Specs

AttributeSpecification

item#

256002

Brand

King Kutter

Manufacturer's Warranty

1 year limited warranty

Ship Weight

425.0 LB

Product Type

Harrow

Category

Category 0
AttributeSpecification

Working Width

60 in

Tines (qty.)

16

Hitch Type

3-Point

Min. Horsepower

18

Max. Horsepower

25

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. is it assembled , or do i have to put it together.

    1 answer

    1. The disc harrow is assembled. The lift arms and lift arm braces lay flat during shipment, so when it is received, they will just need to be stood up and the bolts will need to be placed to secure them.

      Helpful?

  2. How thick are the discs?

    1 answer

    1. The discs are approximately 1/8 inch thick.

      Helpful?

  3. Would you explain what category 1 pins and category 0 spacing means?

    1 answer

    1. The three point hitch comes in 5 different sizes. Category 0-4.
      Category 0 has 5/8" upper link pin size and 5/8" lower link pin size. Category 0 spacing is 20".
      Category 1 has 3/4" upper link pin size and 7/8" lower link pin size. Category 1 spacing is 26"
      Category 0 requires 20 horse power while category 1 requires 20-45 horse power.
      The spacing refers to the width of the lower lift arms.
      The pin size refers to the diameter of the pins.

      Helpful?

  4. Tractor HP

    What tractor HP is recommended to pull this disc

    1 answer

    1. This disc harrow is designed for use with tractors rated 25 HP or less. This implement has category 1 pins with category 0 spacing.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
