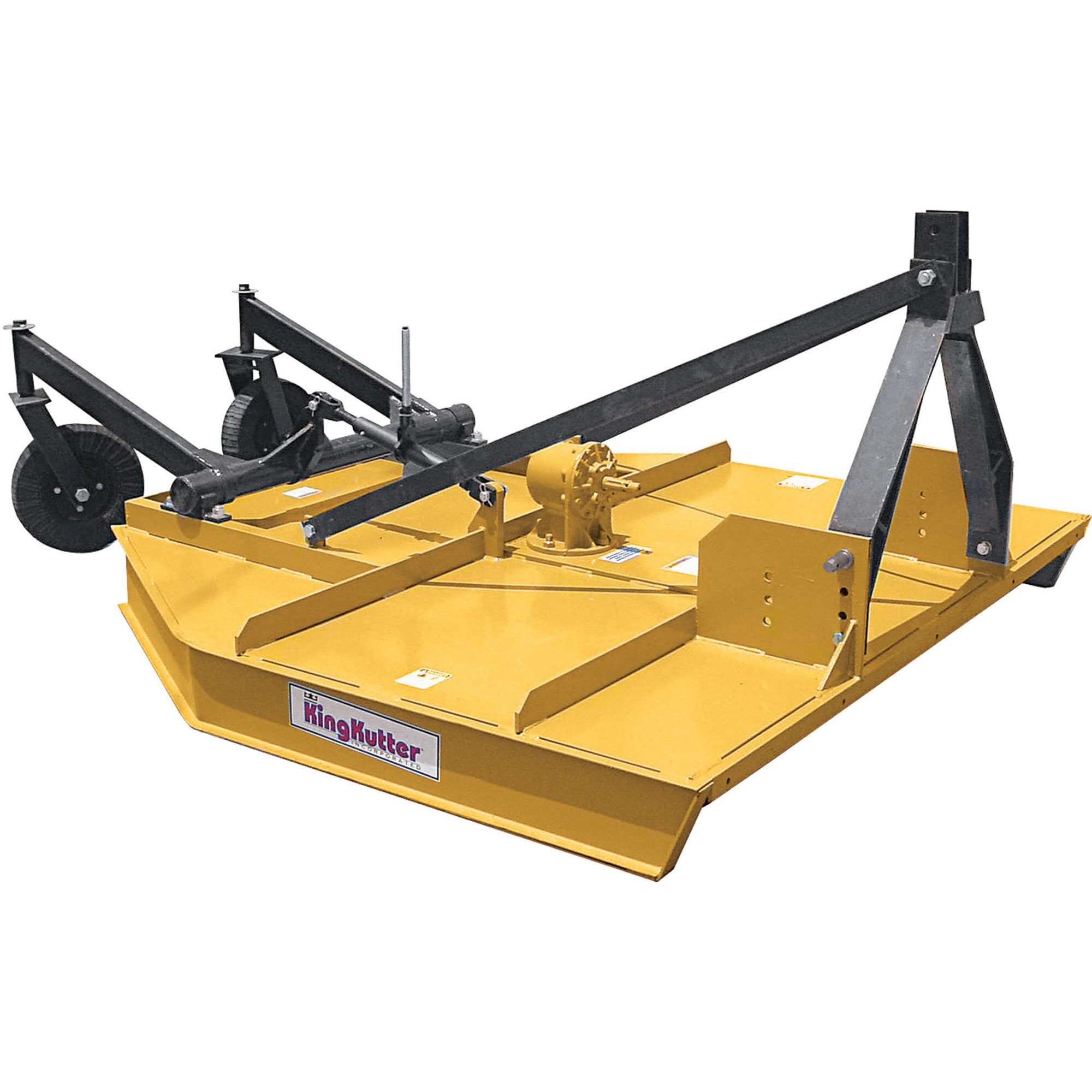

King Kutter Heavy-Duty Rotary Lawn Mower, 84in. Deck, Model# L-84-60-HD

Item# 256027
King Kutter Heavy-Duty Rotary Lawn Mower, 84in. Deck, Model# L-84-60-HD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Kutter Heavy-Duty Rotary Lawn Mower, 84in. Deck, Model# L-84-60-HD

Click or Tap image to Zoom

$5002.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Blade Size: 1/2in. x 4in. x 30in.
  • Gearbox rating: 60HP
  • Rugged, 8in. I-beam side rails
  • Heavy-duty, cast iron gearbox
  • Heavy-duty cross & spider bracing

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The King Kutter Heavy-Duty Rotary Mower is designed to meet the needs of any tough job. It is constructed of extra-heavy material, 8in. I-beam side rails, and a top deck that is fully reinforced with cross and spider bracing. This kutter is built to perform. Each kutter has a splined cast iron gearbox, a shielded PTO shaft with slip clutch, a solid 3/4in. thick steel plate blade carrier, a heavy-duty wheel fork(s), a top link swivel and adjustable laminated tail wheel(s). Category 2 , requires 45-70 HP. U.S.A.

What's Included

    (1) Rotary lawn mower

Downloads

Product Manual

Features + Benefits

  • Blade Size: 1/2in. x 4in. x 30in.
  • Gearbox rating: 60HP
  • Rugged, 8in. I-beam side rails
  • Heavy-duty, cast iron gearbox
  • Heavy-duty cross & spider bracing
  • Shielded PTO shaft with slip clutch
  • 3/4in. thick blade carrier with heavy forged, heat treated blades
  • Dual tail wheel

Key Specs

AttributeSpecification

item#

256027

Brand

King Kutter

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1450.0 LB

Product Type

Rotary Mower

Category

Category 2

Working Width

84 in
AttributeSpecification

RPM

540

Hitch Type

3-Point

Blades (qty.)

2

Min. Horsepower

40

Max. Horsepower

70

Min. Cutting Height

4 in

Max. Cutting Height

8 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Does it come with pto shaft to connect to tractor pto

    1 answer

    1. The lawn mower does include the PTO shaft.

      Helpful?

  2. what size material will the L-84-60-HD bush hog handle?

    as to brush size.

    1 answer

    1. This mower can handle brush up to 2" thick (diameter).

      Helpful?

  3. Can the ratchet wheel adjustment be changed to a hydraulic cylinder?

    If so, what equipment do I need to convert to hydraulic?

    1 answer

    1. The ratchet wheel adjustment cannot be changed to a hydraulic cylinder.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
