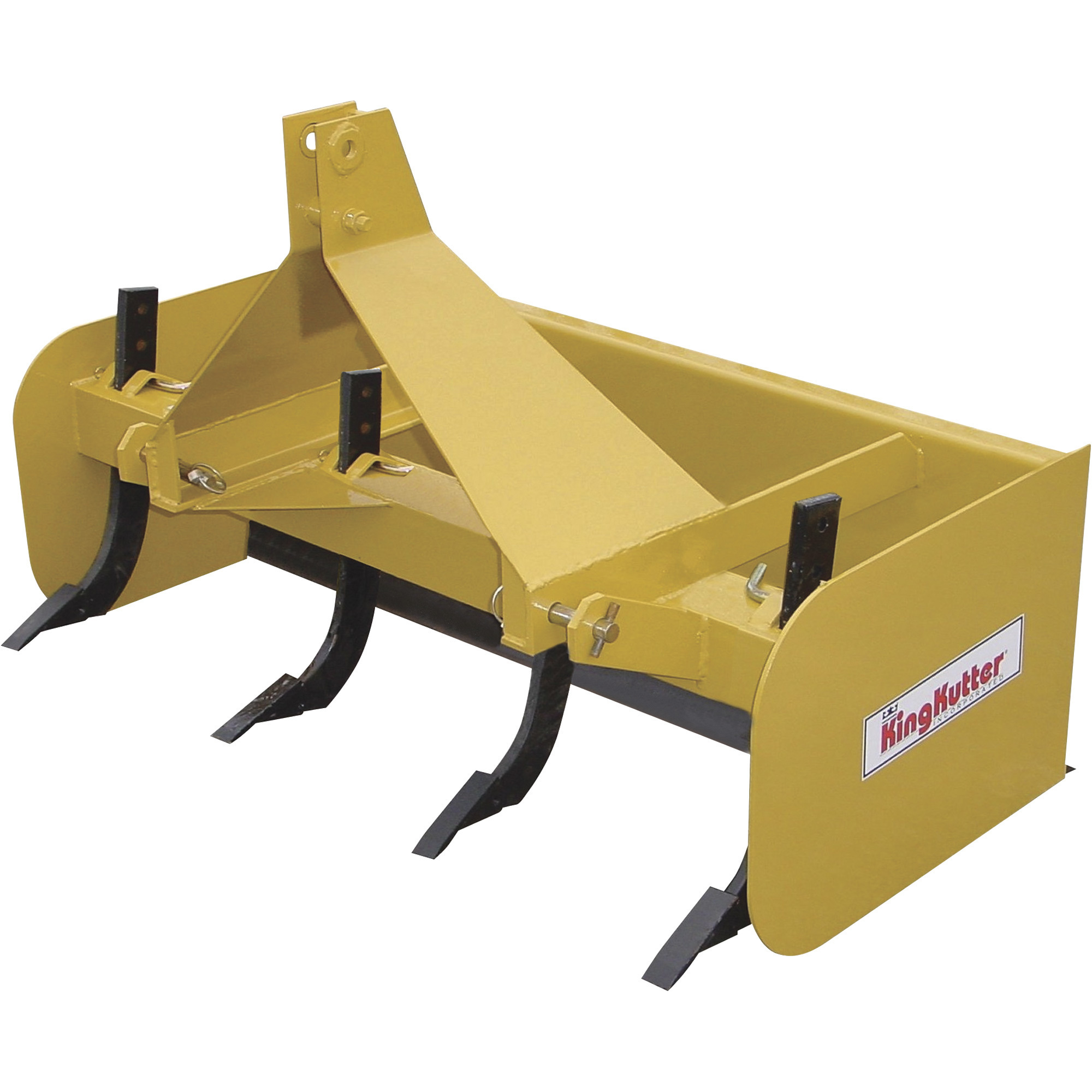

King Kutter Box Blade, 48in., Model# BB-48

Item# 256069
"King Kutter Box Blade, 48in., Model# BB-48"
King Kutter Box Blade, 48in., Model# BB-48

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Kutter Box Blade, 48in., Model# BB-48

Click or Tap image to Zoom

$1003.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Approximately 48in. wide
  • 4 shanks
  • 15-1/2in. specially formed self-cleaning moldboard
  • 2 high carbon steel reversing cutting edges (one front and one rear)
  • Heavy-duty, heat-treated ripper shanks with replaceable heat-treated teeth

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

KING KUTTER'S BOX BLADES are proven performers in the field. The box blades have a heavy duty, all welded construction, with a Cat. 1 quick hitch compatible hitch that makes this box blade great for homeowners, farmers, and landscapers. Whether you’re building a road, grading a yard for sod or grass seed, or just moving dirt, a King Kutter box blade will get the job done for years to come. Upper A-frame is fully welded so no assembly is required. 3-pt. Category 1 hitch.

What's Included

    (1) Box Blade

Features + Benefits

  • Approximately 48in. wide
  • 4 shanks
  • 15-1/2in. specially formed self-cleaning moldboard
  • 2 high carbon steel reversing cutting edges (one front and one rear)
  • Heavy-duty, heat-treated ripper shanks with replaceable heat-treated teeth
  • Shank has 4-position adjustment holes that pin to reinforced frame
  • 1/4in. x 4in. x 4in. shank housing box with slotted holes and pins

Key Specs

AttributeSpecification

item#

256069

Brand

King Kutter

Manufacturer's Warranty

1 year limited warranty

Ship Weight

377.0 LB

Product Type

Combination

Category

Category 1
AttributeSpecification

Working Width

48 in

Material

Steel

Hitch Type

3-Point

Adjustable

Yes

Shanks (qty.)

4

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Will this work on a kubota bx1500 subcompact tractor. This tractor has same engine (15 hp 2 cylinder liquid cooled diesel ) as the bobcat 450 skidsteer

    1 answer

    1. The box blade would not be recommended for a sub-compact tractor, as it would be too large and heavy. A smaller box blade would be recommended.

      Helpful?

  2. how high are the lower lift pins?

    My MF GC1710 could not pick up a KK tiller high enough to back up thru even a small dip and it isn't flat in East TN.

    1 answer

    1. The height of the lower lift pins is 16 inches.

      Helpful?

  3. What gauge steel are the side panels made from?

    1 answer

    1. The outside panels are approximately 1/4" or 0 gauge.

      Helpful?

  4. how wide are the connection points for the 3 point connections ?

    Need to know if my 3 point will fit the slots

    1 answer

    1. This box blade fits a standard 3 point, category 1 hitch. The opening for the lift pins is 26.25" at the narrowest point and 30" at the widest point.

      Helpful?

  5. is this box blade compatible with three point quick connect?

    1 answer

    1. This King Kutter Box Blade is compatible with a 3-point, category 1 quick change hitch like item 12610 shown below.

      Helpful?

  6. Is there a curved cutting blade on the back outside of the box for grading in reverse?

    "King Kutter Box Blade - 48in., Model# BB-48"

    1 answer

    1. There is a blade for forward and reverse on this box blade.

      Helpful?

  7. Is the blade a straight blade or curved blade?

    1 answer

    1. The blade is curved on this unit.

      Helpful?

  8. How much does it weigh? (not shipping weight)

    1 answer

    1. This King Kutter box blade weighs 372 pounds.

      Helpful?

  9. How many tangs on King Kutter BB-48?

    the spec sheet states that there are only 4 tangs on the 48" BB-48 box blade but the picture for this model shows 6 tangs. Are there 6 or 4 tangs on this model? Thank you.

    1 answer

    1. This 48" box blade comes with four tangs. The pictures are for reference only and may differ slightly from the description list for the product.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
