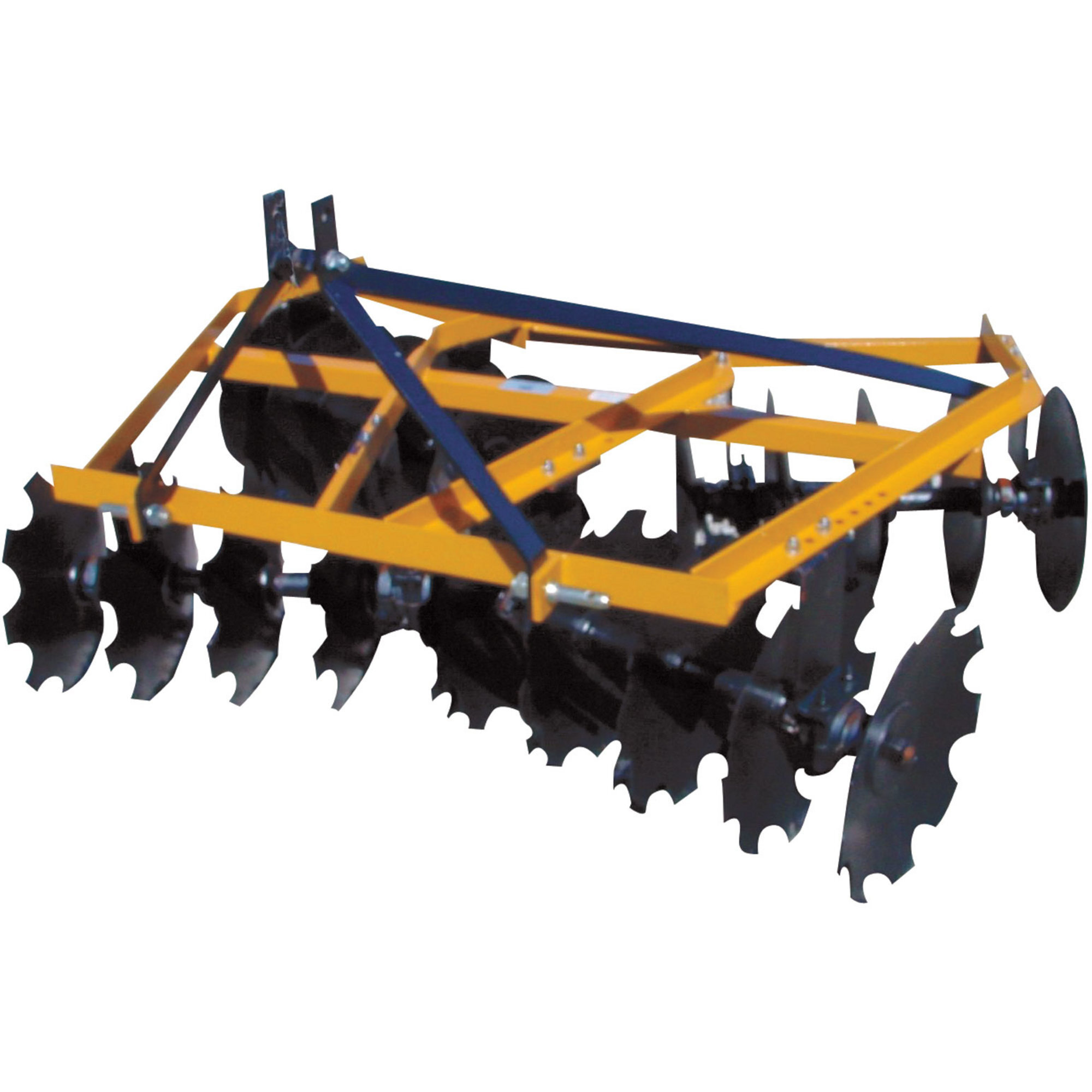

King Kutter Angle Frame Disc Harrow, 6 1/2-Ft., Notched, Model# 16-20-N

Item# 256094
"King Kutter Angle Frame Disc Harrow, 6 1/2-Ft., Notched, Model# 16-20-N"
King Kutter Angle Frame Disc Harrow, 6 1/2-Ft., Notched, Model# 16-20-N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Kutter Angle Frame Disc Harrow, 6 1/2-Ft., Notched, Model# 16-20-N

Click or Tap image to Zoom

$1729.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Adjustable settings: 3
  • CAT. 1, Quick hitch compatible, 3-point hitch- Easy hook up
  • Low maintenance sealed bearings for reliable performance and convenience
  • Adjustable angle setting
  • 1in. solid steel axle

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

KING KUTTER’S ANGLE FRAME DISCS are field tested and built to last. They are quick hitch compatible, available in two disc blade sizes (16” 18”), two disc blades styles (notched or smooth), and widths of (4-1/2’, 5-1/2’, 6-1/2’). Truck ship. U.S.A.

What's Included

    (1) Angle Frame Disc Harrow

Features + Benefits

  • Adjustable settings: 3
  • CAT. 1, Quick hitch compatible, 3-point hitch- Easy hook up
  • Low maintenance sealed bearings for reliable performance and convenience
  • Adjustable angle setting
  • 1in. solid steel axle
  • High carbon steel 3.0mm disc blades
  • 7 1/2in. blade spacing
  • Required horsepower: 25-40
  • U.S.A.
  • Model 16-20-G-SB-N

Key Specs

AttributeSpecification

item#

256094

Brand

King Kutter

Manufacturer's Warranty

1 year limited warranty

Ship Weight

540.0 LB

Category

Category 1
AttributeSpecification

Working Width

78 in

Tines (qty.)

20

Hitch Type

3-Point

Min. Horsepower

25

Max. Horsepower

40

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. The description says "Notched" but the photo indicates smoot disc on rear. Are all disc notched?

    1 answer

    1. The model 16-20-N will come with notched blades.

      Helpful?

  2. With adequate moisture in ground will this unit cut thru fairly dense sod?

    1 answer

    1. It may take multiple passes to get the desired results when cutting through dense sod.

      Helpful?

  3. When it says 3 adjustable settings. What does that mean exactly?

    1 answer

    1. The frame has 3 different sets holes where you mount the bearing hangers (which support the gangs of discs). Changing which set you use for mounting adjusts the pitch of those discs.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
