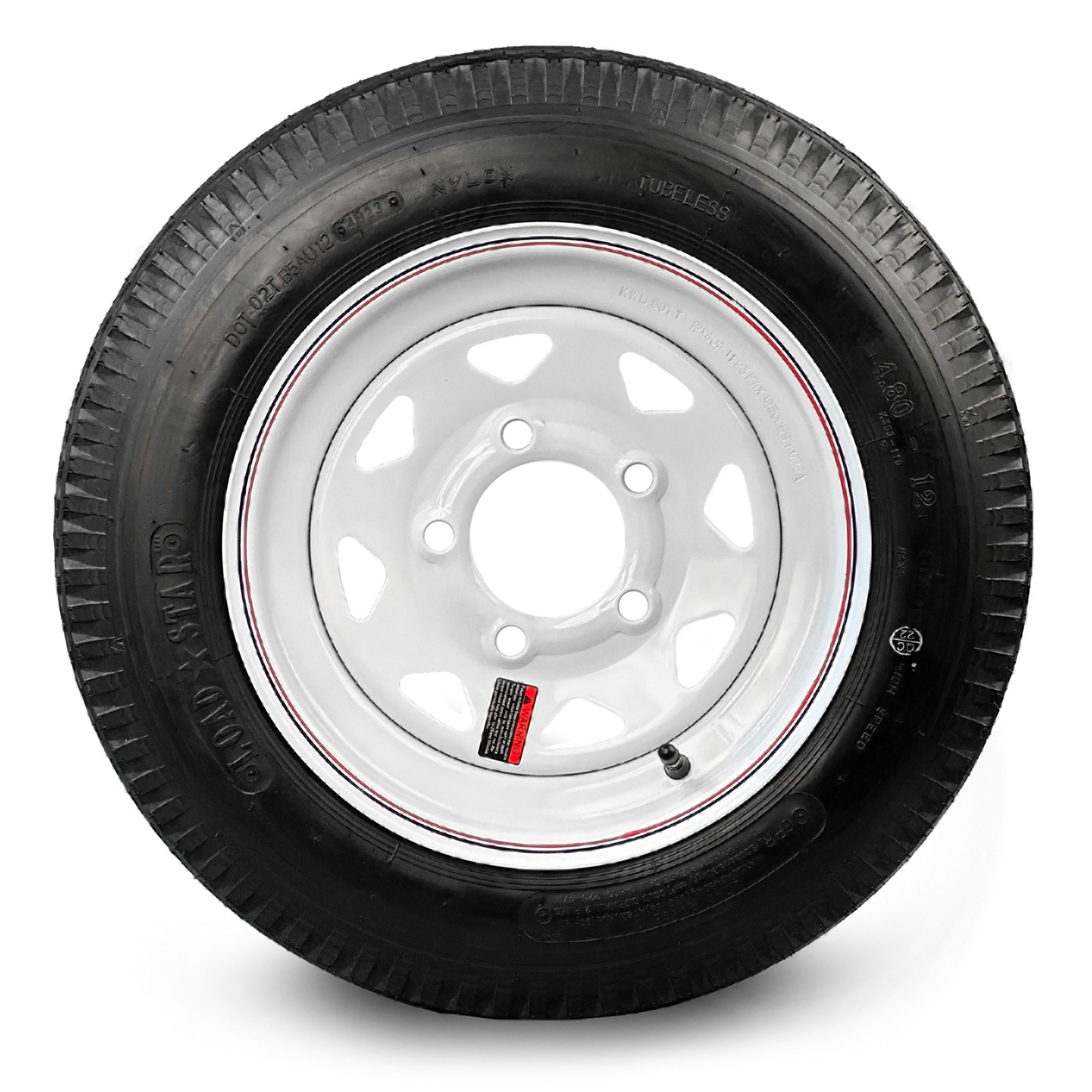

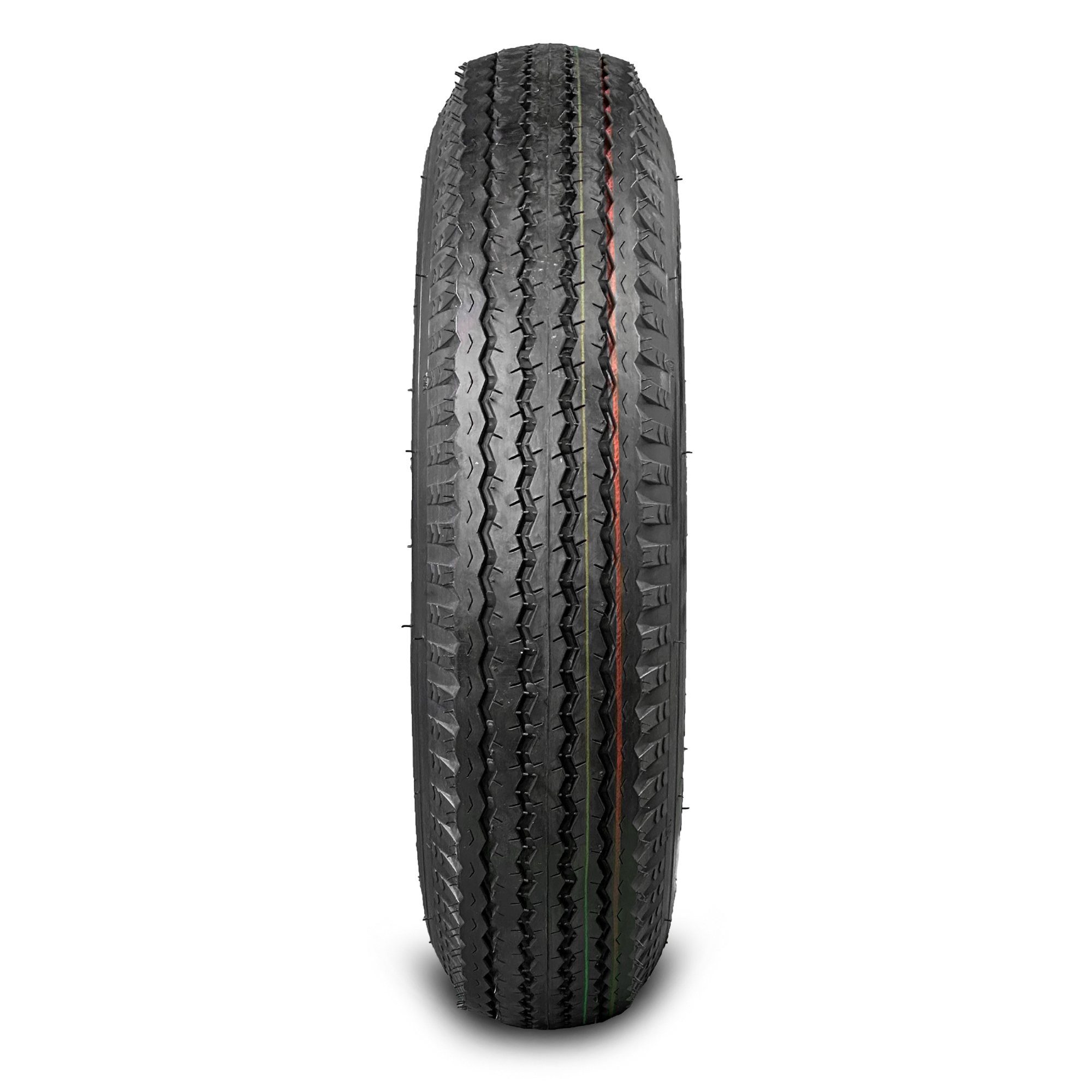

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 480-12, 5-Hole, Load Range C, Model# DM412C-5C-IN

Item# 12129
Top Seller
Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 480-12, 5-Hole, Load Range C, Model# DM412C-5C-IN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 480-12, 5-Hole, Load Range C, Model# DM412C-5C-IN

Click or Tap image to Zoom

$79.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 3.19"
  • Speed Rating: 65 mph

See full description

Complete Your Solution

  • Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 480-12, 5-Hole, Load Range C, Model# DM412C-5C-IN
  • Ultra-Tow Spare Tire Carrier, 100-Lb. Capacity, Locking Bracket, Mounts to Trailer Tongue
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all three:

$152.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Here is the best replacement wheel for utility trailers, campers and boat trailers. With the low rolling resistance design of the Kenda Loadstar K353, you’ll enjoy improved handling and enhanced ride characteristics of your towed vehicle. The Loadstar K353 provides dependable and durable bias-ply construction; these tires are continually tested to ensure they exceed the Department of Transportation requirements. For a tire that's designed for your journey, ride with Kenda!

What's Included

    (1) Bias-ply Tire, Wheel, Valve Stem (Assembled)

Features + Benefits

  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 3.19"
  • Speed Rating: 65 mph
  • Advanced rubber compound gives longer tread wear and low rolling resistance
  • Flatter tread profile allows for increased towing stability
  • Powder-coat finish resists chipping, scratching, fading and corrosion for a great appearance and longer life
  • Exceeds DOT requirements for highway use

Key Specs

AttributeSpecification

item#

12129

Brand

Kenda

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.4 LB

Tire Diameter

20.5 in

Style of Tire

Tire and Rim

Tire Size

480-12

Load Range Rating

C

Bolt Pattern

5

Tire Type

Bias Ply

Load Capacity

990 lb
AttributeSpecification

Flat Free

No

Pneumatic

Yes

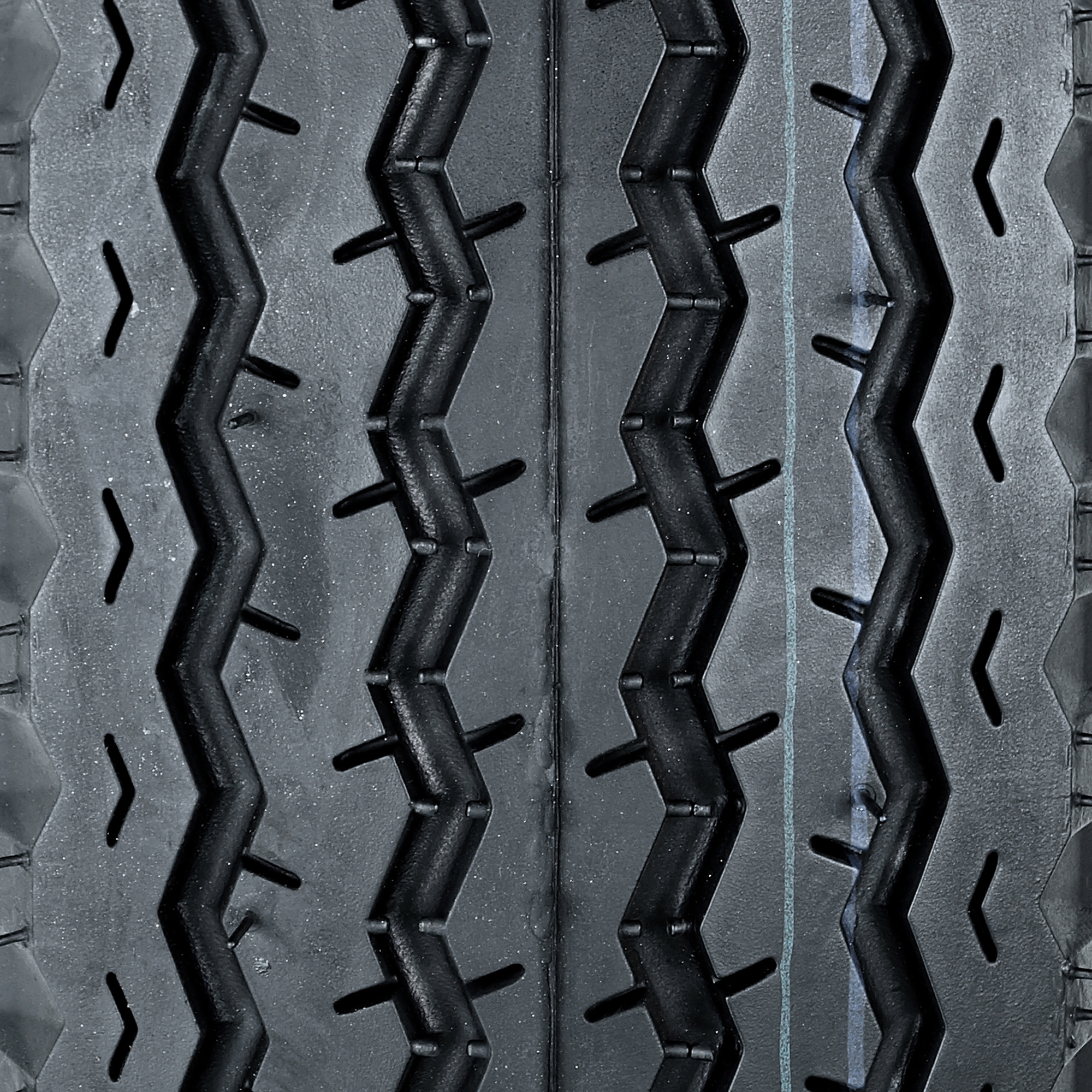

Tread Type

Kenda K353

Rim Diameter

12 in

Tire Speed Rating

65 MPH

Bolt Circle Diameter

4.5 in

Rim Material

Forged Steel

Tire Width

5.04 in

Tubeless

Yes

Ply Rating

6

Reviews

Questions & Answers

45 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

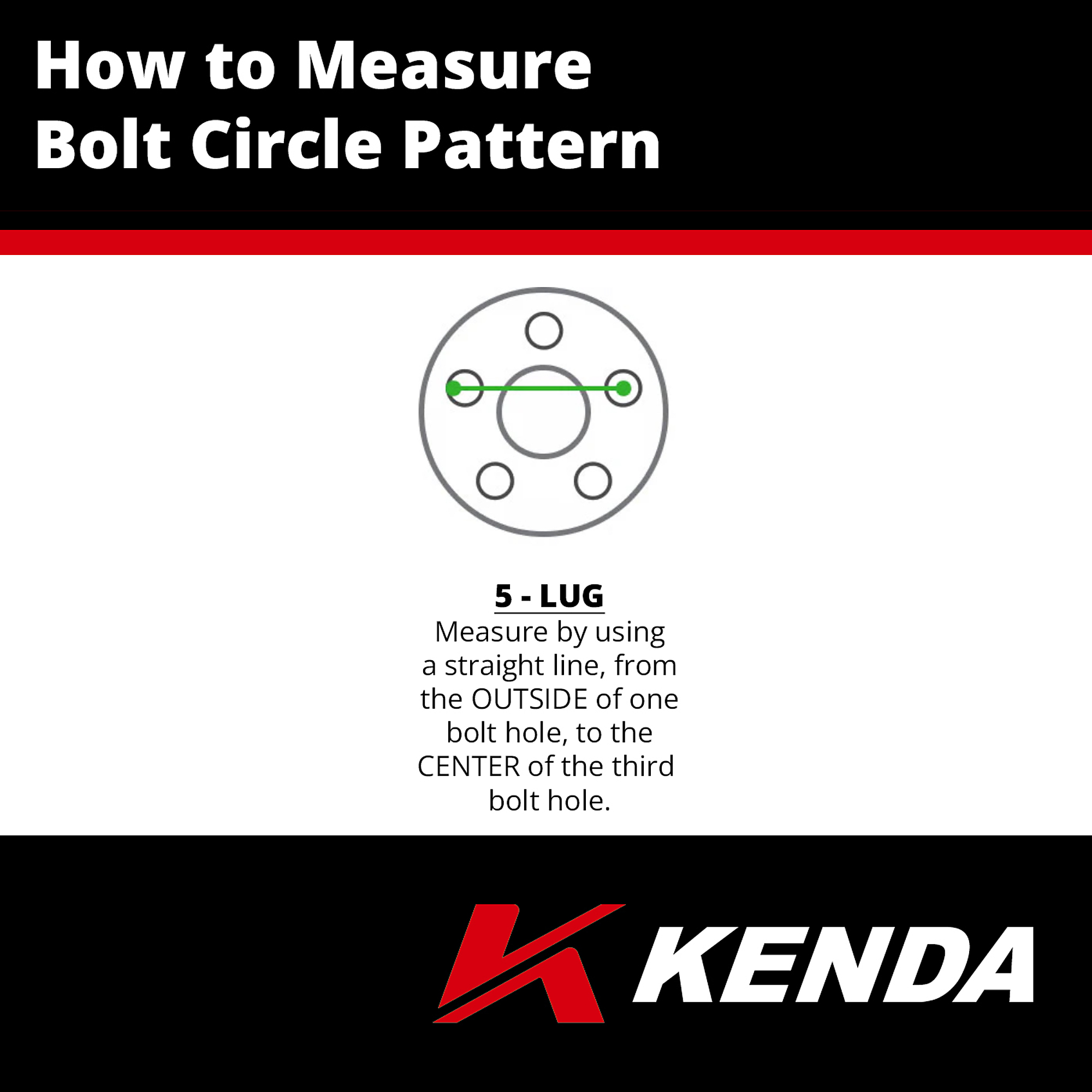

  1. What lug distance inches

    1 answer

    1. The rim would have a 5 hole bolt pattern on a 4.5" bolt circle. The bolts holes measure 2.645" apart.

      Helpful?

  2. What is the difference between this model (Model# DM412C-5C-IN) and the similar tire Model# DM412C-5MMIN?

    1 answer

    1. The difference between these two tire and wheel assemblies is the aesthetics of the rim. The rest of the specifications are the same.

      Helpful?

  3. Is this wheel galvanized?

    1 answer

    1. The rim is not a galvanized finish. The rim is a white painted finish with blue-red pin striping around the edge.

      Helpful?

  4. Do you sell tires without rim?

    1 answer

    1. Please see item number 5326481 for a recommendation of a tire this size without the rim.

      Helpful?

  5. What color are the wheels?

    1 answer

    1. The color of the rim will be white.

      Helpful?

  6. What tire pressure should I run on this tire

    1 answer

    1. These Kenda Loadstar 12" trailer tires are rated for 990 pounds at 90 PSI.

      Helpful?

  7. you say high speed , what speed is it rated for

    1 answer

    1. This tire is rated for speeds up to 62 miles per hour when fully loaded.

      Helpful?

  8. Greetings to know if the purchase includes the metal ring

    1 answer

    1. This tire comes with a 12in x 4in spoked rim that the tire is mounted on.

      Helpful?

  9. diameter of center hole ?

    center of wheel where bearing housing sticks threw. 2 and 3/4 inch or 3 inch

    1 answer

    1. The rim on this tire assembly has a center hole that is three inches in diameter.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
