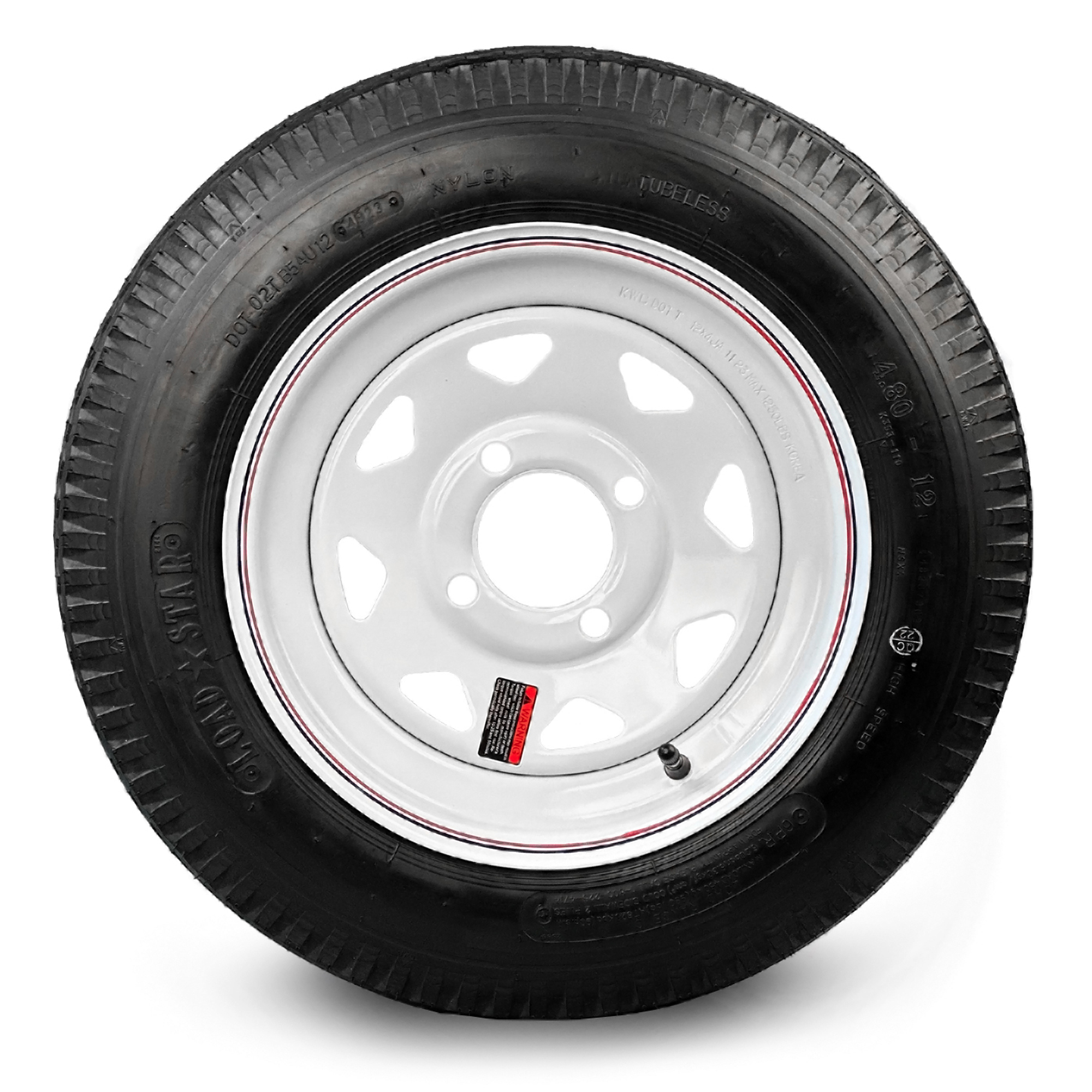

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly 4.80-12, 4-Hole, Load Range C, Model# DM412C-4C-I

Item# 12139
"Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly 4.80-12, 4-Hole, Load Range C, Model# DM412C-4C-I"
On Sale
Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly 4.80-12, 4-Hole, Load Range C, Model# DM412C-4C-I

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly 4.80-12, 4-Hole, Load Range C, Model# DM412C-4C-I

Click or Tap image to Zoom

$71.99
Reg $79.99Save $8.00

Order today to get this price.

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 2.84"
  • Speed Rating: 65 mph

See full description

Complete Your Solution

  • Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly 4.80-12, 4-Hole, Load Range C, Model# DM412C-4C-I
  • Ultra-Tow Spare Tire Carrier, 100-Lb. Capacity, Locking Bracket, Mounts to Trailer Tongue
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all three:

$144.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Here is the best replacement wheel for utility trailers, campers and boat trailers. With the low rolling resistance design of the Kenda Loadstar K353, you’ll enjoy improved handling and enhanced ride characteristics of your towed vehicle. The Loadstar K353 provides dependable and durable bias-ply construction; these tires are continually tested to ensure they exceed the Department of Transportation requirements. For a tire that's designed for your journey, ride with Kenda!

What's Included

    (1) Bias-ply Tire, Wheel, Valve Stem (Assembled)

Features + Benefits

  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 2.84"
  • Speed Rating: 65 mph
  • Advanced rubber compound gives longer tread wear and low rolling resistance
  • Flatter tread profile allows for increased towing stability
  • Powder-coat finish resists chipping, scratching, fading and corrosion for a great appearance and longer life
  • Exceeds DOT requirements for highway use

Key Specs

AttributeSpecification

item#

12139

Brand

Kenda

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.4 LB

Tire Diameter

20.5 in

Style of Tire

Tire and Rim

Tire Size

4.80-12

Load Range Rating

C

Bolt Pattern

4

Tire Type

Bias Ply

Load Capacity

990 lb
AttributeSpecification

Flat Free

No

Pneumatic

Yes

Tread Type

Kenda K353

Rim Diameter

12 in

Tire Speed Rating

65 MPH

Bolt Circle Diameter

4 in

Rim Material

Steel

Tire Width

5.04 in

Tubeless

Yes

Ply Rating

6

Reviews

Questions & Answers

42 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Weight lniit

    1 answer

    1. The maximum load capacity is 990 pounds.

      Helpful?

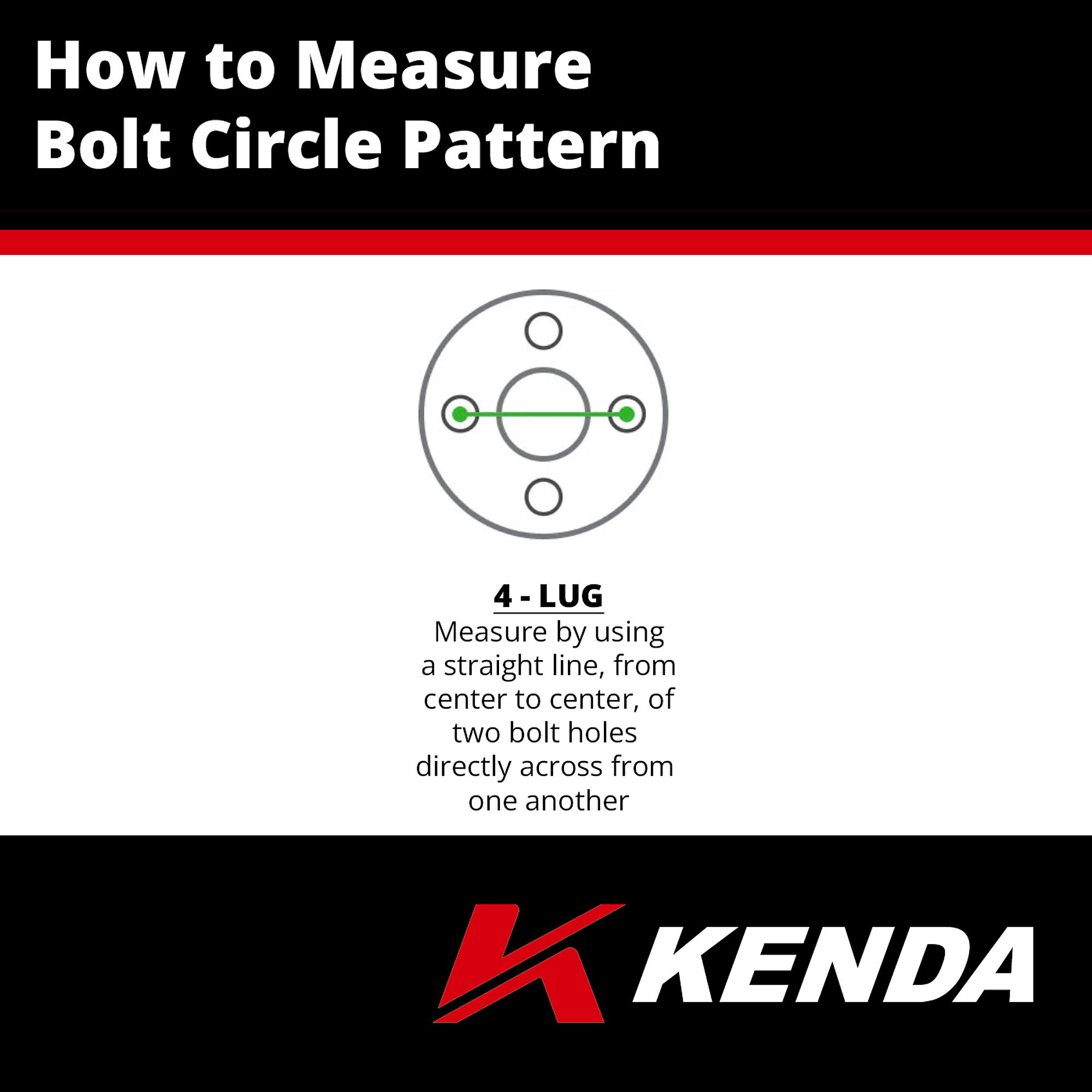

  2. What is the bolt pattern

    1 answer

    1. The bolt hole circle is 4 X 4.

      Helpful?

  3. what is the measurement from lug hole to lug hole

    1 answer

    1. The measurement from center of lug hole to center of lug hole is 2.828".

      Helpful?

  4. Will this fit your ultratow trailer (14717-2556)?

    The tires on the trailer are just under 20" diameter, and the hub hole is about 2.5", compared to 20.7" and 2.84" on this wheel/tire. Is there another product that is a better match, or will this work OK?

    1 answer

    1. The best answer is to buy exact replacement wheel/tire assemblies for the trailer, part #ITI14717-A15. This can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. Does product #12139 have tubed or tubeless tires?

    1 answer

    1. This wheel utilizes a tubed tire.

      Helpful?

  6. What is the ply rating? 4ply---6ply

    1 answer

    1. These trailer tires are 6 ply.

      Helpful?

  7. What are the max highway speeds for your trailer tires?

    What is the recommended highway speed for your 4 hole 12" tires

    1 answer

    1. High speed trailer tires have a recommended speed of 45 mph.

      Helpful?

  8. What is the hub clearance hole diameter?

    1 answer

    1. The hub hole diameter for the 480-12 tire is 2.84".

      Helpful?

  9. what is the recommended tire pressure for the 480-12?

    used on trailer hitch for 14 ft boat

    1 answer

    1. It would be recommended to be at 90 PSI and is rated for 990 pounds and maximum 50 MPH.

      Helpful?
