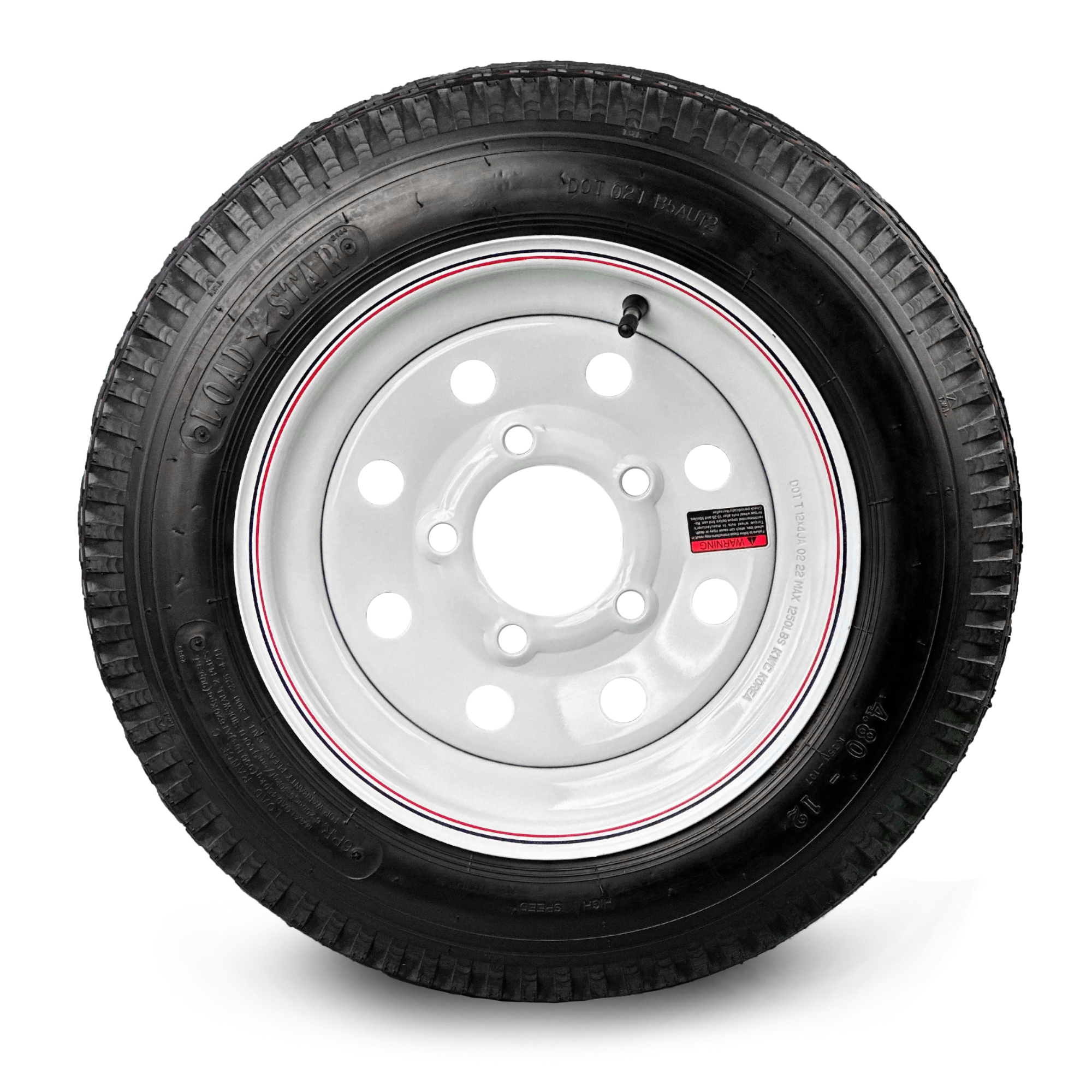

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 20.5 x 4.80 x 12, 5-Hole, Load Range C, Model# DM412C-5MMIN

Item# 121671
On Sale
Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 20.5 x 4.80 x 12, 5-Hole, Load Range C, Model# DM412C-5MMIN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 20.5 x 4.80 x 12, 5-Hole, Load Range C, Model# DM412C-5MMIN

Click or Tap image to Zoom

$78.39
Reg $97.99Save $19.60

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    10 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 3.19"
  • Speed Rating: 65 mph

See full description

Complete Your Solution

  • Kenda Loadstar 12in. Bias-Ply Trailer Tire and Wheel Assembly, 20.5 x 4.80 x 12, 5-Hole, Load Range C, Model# DM412C-5MMIN
  • Ultra-Tow Spare Tire Carrier, 100-Lb. Capacity, Locking Bracket, Mounts to Trailer Tongue
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all three:

$151.37

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Here is the best replacement wheel for utility trailers, campers and boat trailers. With the low rolling resistance design of the Kenda Loadstar K353, you’ll enjoy improved handling and enhanced ride characteristics of your towed vehicle. The Loadstar K353 provides dependable and durable bias-ply construction; these tires are continually tested to ensure they exceed the Department of Transportation requirements. For a tire that's designed for your journey, ride with Kenda!

What's Included

    (1) Bias-ply Tire, Wheel, Valve Stem (Assembled)

Features + Benefits

  • Tire Dimensions: 480-12
  • Outside Diameter: 20.5"
  • Section Width: 5.04"
  • Pilot Hole: 3.19"
  • Speed Rating: 65 mph
  • Advanced rubber compound gives longer tread wear and low rolling resistance
  • Flatter tread profile allows for increased towing stability
  • Powder-coat finish resists chipping, scratching, fading and corrosion for a great appearance and longer life
  • Exceeds DOT requirements for highway use

Key Specs

AttributeSpecification

item#

121671

Brand

Kenda

Ship Weight

19.6 LB

Tire Diameter

20.5 in

Style of Tire

Tire and Rim

Tire Size

480-12

Load Range Rating

C

Bolt Pattern

5

Tire Type

Bias Ply

Load Capacity

990 lb
AttributeSpecification

Flat Free

No

Pneumatic

Yes

Tread Type

Kenda K353

Rim Diameter

12 in

Tire Speed Rating

65 MPH

Bolt Circle Diameter

4.5 in

Rim Material

Forged Steel

Tire Width

5.04 in

Tubeless

Yes

Ply Rating

6

Reviews

Questions & Answers

57 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the speed rating of this 12" tire and wheel assembly?

    What is the speed rating of this tire and wheel assembly? Is it have a DOT rating? I live in Texas where the max day time trailer towing speed is 70mph and with speed limits up to 85mph. I do not wish to be stuck with a tire only rated for 55mph.

    1. I drive whatever the speed limit (65-75 mph) is and have not had any issues. Drive down to LA yearly (1,000 miles RT) when the outside temp is above 90 degrees. No issues yet....(knock on wood)

      Helpful?

    2. This high speed tire is DOT approved for a towing vehicle. It is rated for a maximum speed of 62 MPH. It is designed as a load range C tire which means it has a 990 lbs. maximum load capacity at 90 PSI.

      Helpful?

  2. What is the air pressure minimum and maximum for this tire, "KENDA, MODEL# DM412C-5MMIN?

    1 answer

    1. The maximum air pressure for the tier is 90 PSI. The tire is designed to carry its full weight capacity at the maximum pressure. A lower minimum pressure is not given.

      Helpful?

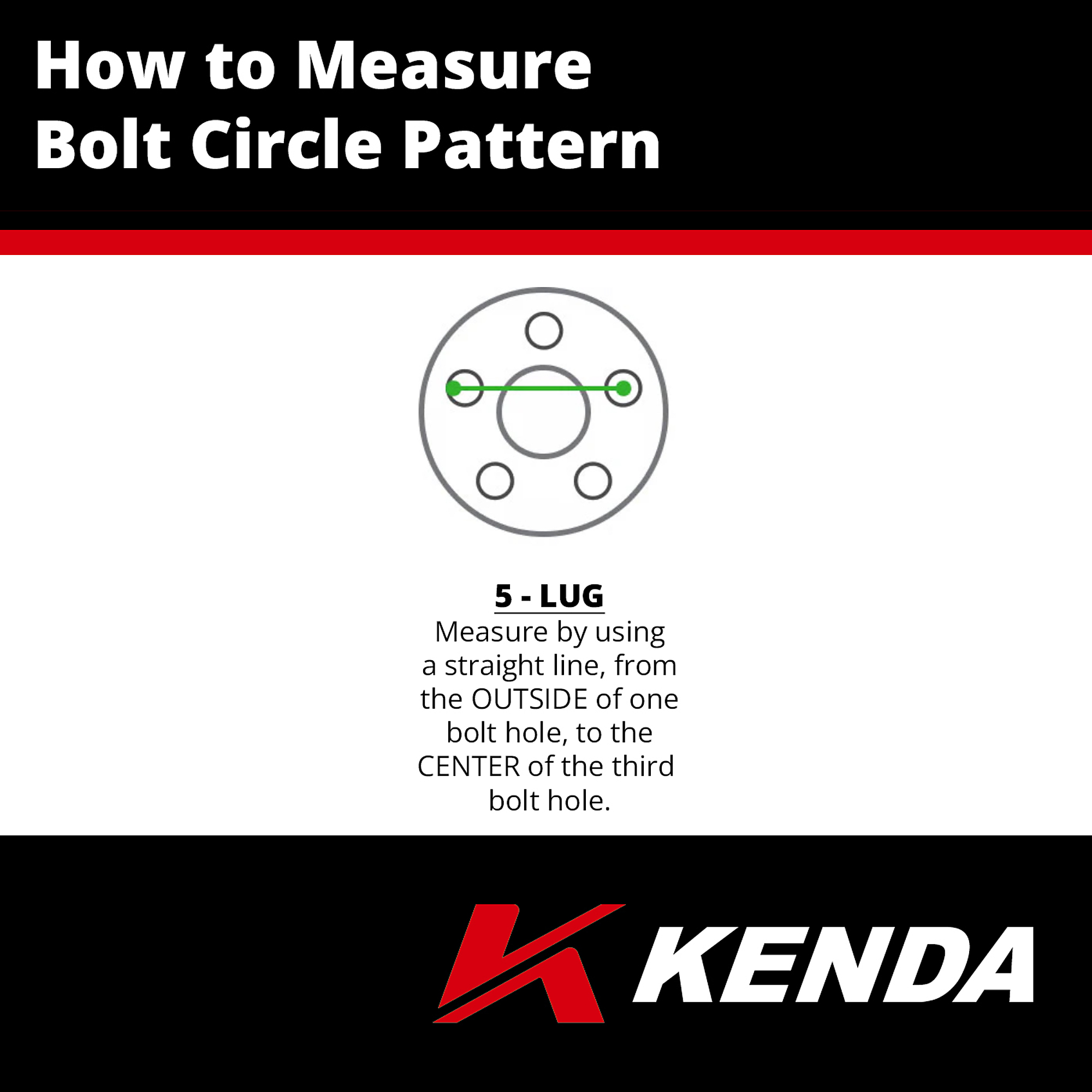

  3. Are these wheels a 5 lug on a 4 1/2

    1 answer

    1. This wheel is a 5 lug on a 4-1/2'' bolt circle.

      Helpful?

  4. What is the size and psi

    1 answer

    1. The size is 20.5 x 4.80 x 12. It is rated for a maximum speed of 62 MPH and a psi rating of 90.

      Helpful?

  5. Is this a 6 ply tire?

    1 answer

    1. This tire is rated at 6-ply with 4-ply side walls.

      Helpful?

  6. What is the load capacity for these tires

    1 answer

    1. The High Speed Modular Rim Tire Assembly is rated for a Load Range C which is a load capacity of 990 lbs.

      Helpful?

  7. Do these tires have a warranty?

    1 answer

    1. These tires are considered a wear item and do not have a warranty.

      Helpful?
