The air hose fittings on this tire changer electric lever are the a Japanese style and are 1/4 inch ones.

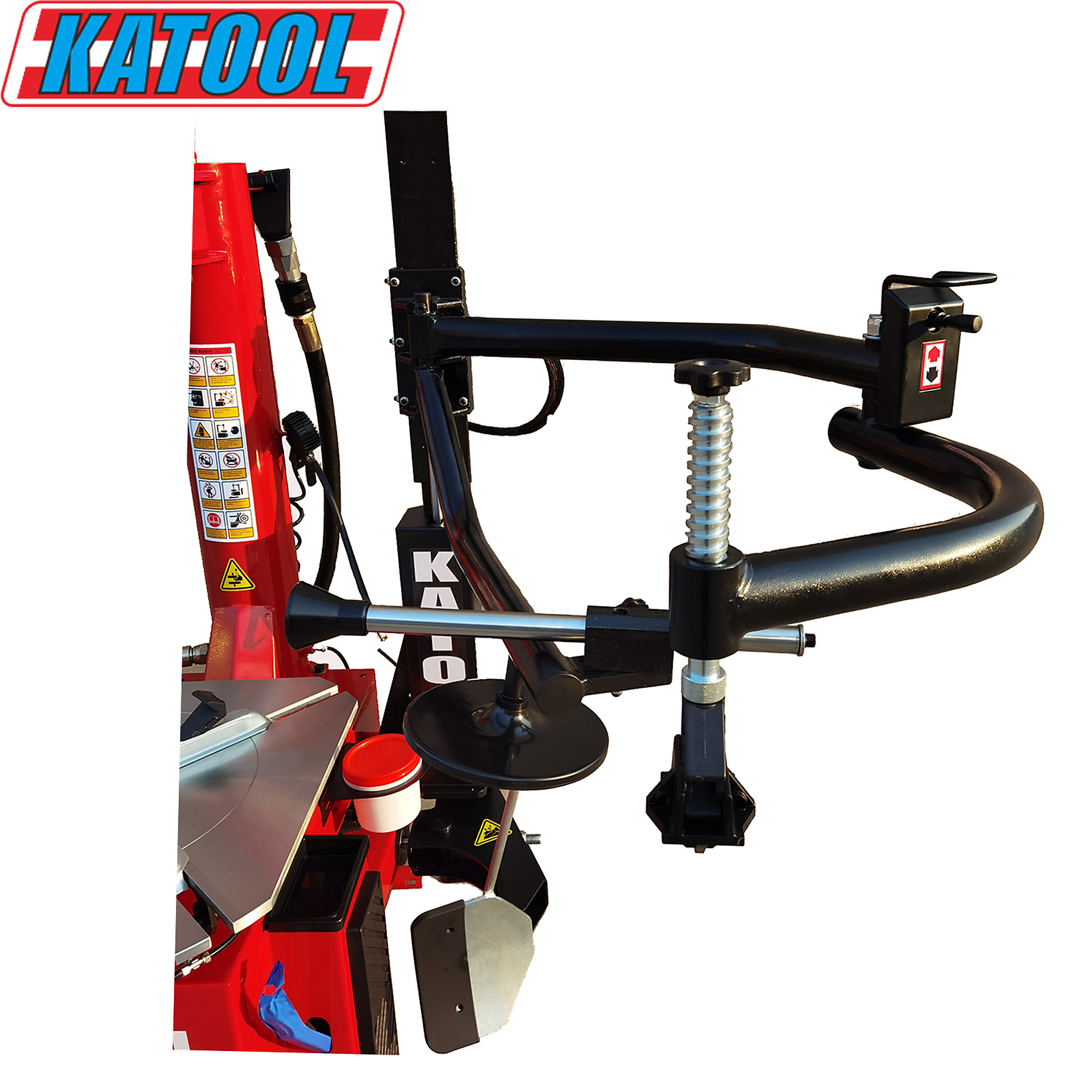

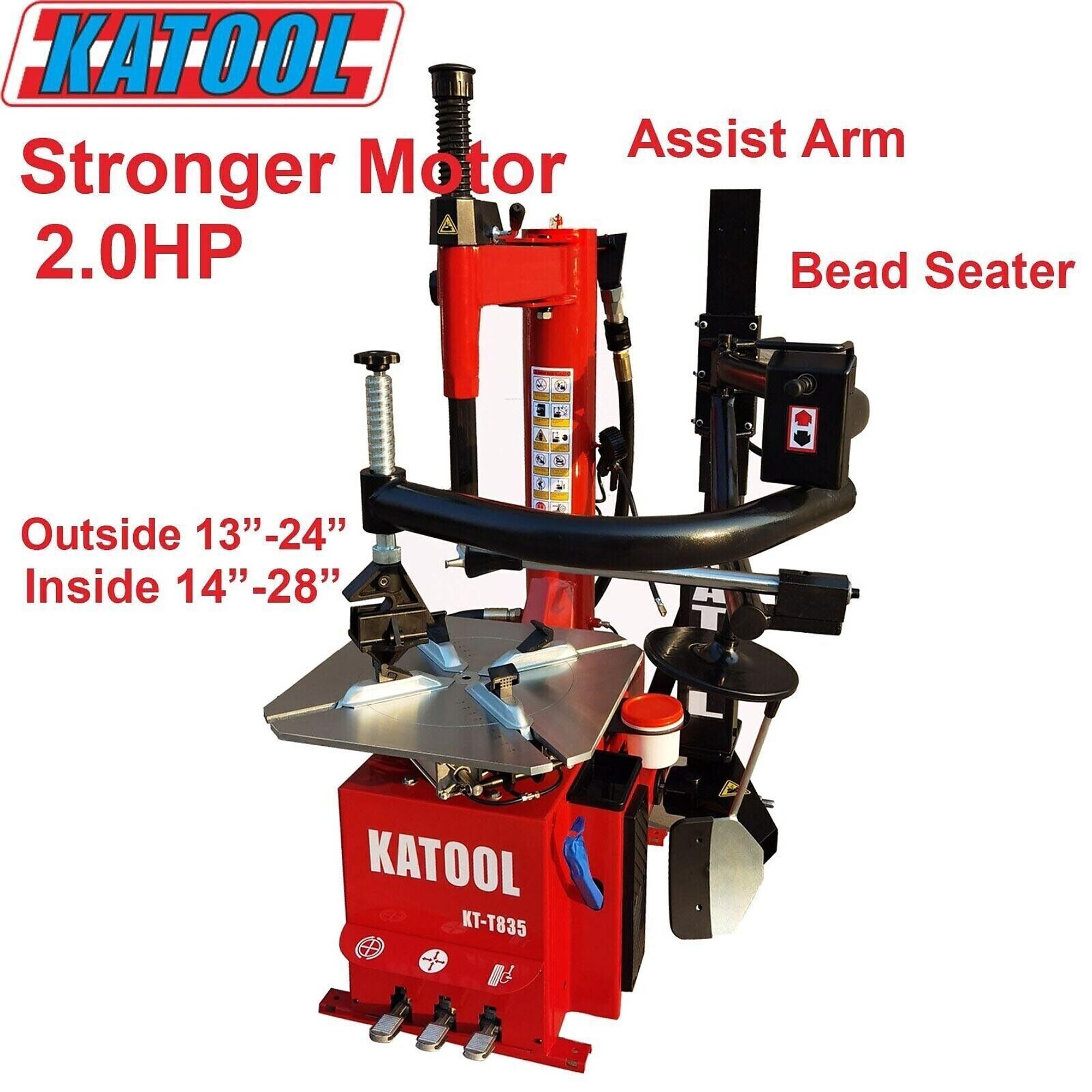

KATOOL, Swing Arm Tire Changer Electric Lever, Volts 110, Model# KT-T835
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1999.99
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
See full description
What's Included
- (1) Tire Changer
Features + Benefits
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
- Bead blast seater head with post tank
- 186mm stainless bead breaker cylinder
- Closed body for protect inside parts
See All Tire Changers
See All KATOOL Tire Changers
Currently Viewing This Product
Specifications
Specifications
KATOOL, Swing Arm Tire Changer Electric Lever, Volts 110, Model# KT-T835
TSI Manual Tire Changing Station, Without Floor Plate, Model# CH-22/23
Ame International Super Golden Tire Changing Kit, For Standard/Super Single Tires, Model# 71055
Golden Buddy Tire Changing System, Model# 71050
Power Type
Same
Electric
Manual
-
Manual
Control Type
Same
Lever
-
-
-
Volts
Same
110
-
-
-
Min. Wheel Diameter
Same
12 in
-
-
-
Max. Wheel Diameter
Same
28 in
-
-
-
Product Type
Same
Electric Tire Changer
Manual Tire Changer
Combos/Kits
Manual Tire Changer
Horsepower
Same
2 HP
-
-
-
Motor Phase
Same
Single-phase
-
-
-
Product Weight
Same
539.0000 lb
lb
-
lb
Dimensions L x W x H (in.)
Same
76.0 x 36.0 x 46.0 in
24.0 x 25.5 x 35.5 in
-
11.0 x 9.0 x 43.0 in
Max. Bead Breaking
Same
-
24.5 in
-
-
Material
Same
-
Steel
Steel
Steel
