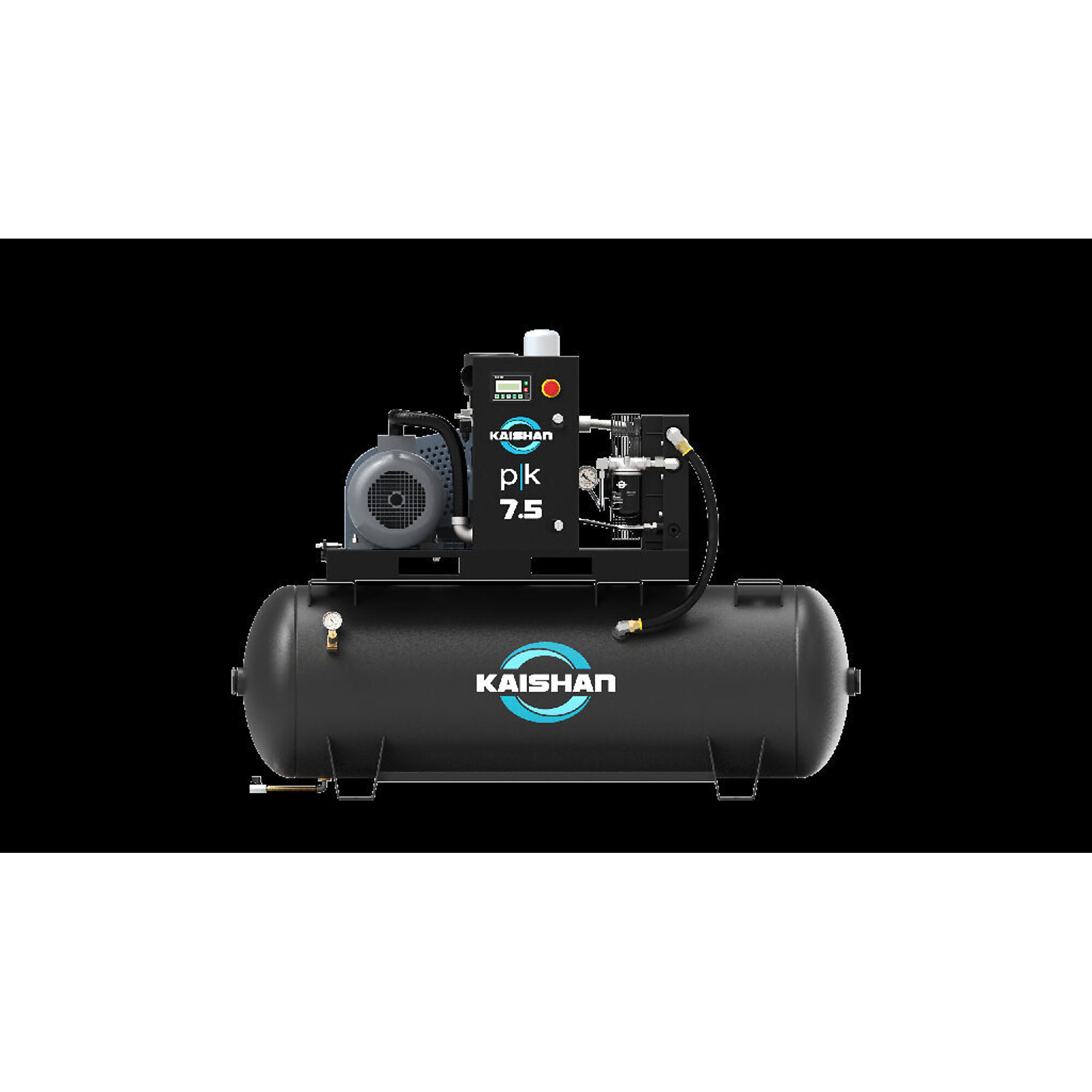

Kaishan USA Rotary Screw Air Compressor — 7.5 HP, 460V, 3-Phase, 150 PSI, Tank-Mounted, Model# PK T-7.5A3F4S8U

Item# 6693303
Kaishan USA Rotary Screw Air Compressor — 7.5 HP, 460V, 3-Phase, 150 PSI, Tank-Mounted, Model# PK T-7.5A3F4S8U

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kaishan USA Rotary Screw Air Compressor — 7.5 HP, 460V, 3-Phase, 150 PSI, Tank-Mounted, Model# PK T-7.5A3F4S8U

Click or Tap image to Zoom

$4999.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • A 1-year full warranty comes as part of the standard package

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Kaishan PK Series Rotary Screw Air Compressor is a V-belt driven, single-stage, positive displacement, fluid-flooded air compressor that is available in 5 or 7.5 HP models. All models include a heavy-duty TEFC motor, encapsulated SKY-40 airend, air-cooled aftercooler, MAM-890 digital controller, and stainless steel tubes/fittings. Available in either a base-mounted version or an 80-gallon air receiver tank-mounted model. Tank-mounted models have the additional option of an air dryer, creating a compact, all-in-one compressor package.

What's Included

    (1) 7.5HP Compressor, Tank

Downloads

Product Manual Product Manual2
Additional Product Info

Features + Benefits

  • A 1-year full warranty comes as part of the standard package

Key Specs

AttributeSpecification

item#

6693303

Brand

Kaishan USA

Manufacturer's Warranty

1 year limited warranty

Ship Weight

635.0 LB

Air Tank Size

80 Gal

Volts

460

Motor Phase

3

Stage

1

Tank Orientation

Horizontal

Horsepower

7.5 HP

Max. PSI

150

Air Outlets (qty.)

1

Duty Cycle

88.5 %

Working Pressure

150 PSI
AttributeSpecification

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

24

Noise Level

70 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

Yes

Air Dryer

None

Drain Type

Manual

Product Weight

635.0000 lb

Dimensions L x W x H (in.)

65.0 x 23.0 x 49.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
