K2 PRO 1 HP Cast Iron Convertible Deep Well Jet Pump, Max. Flow 1440 GPH, Port Size 1 in, Model# WPD10001K

Item# 6114906
K2 PRO 1 HP Cast Iron Convertible Deep Well Jet Pump, Max. Flow 1440 GPH, Port Size 1 in, Model# WPD10001K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K2 PRO 1 HP Cast Iron Convertible Deep Well Jet Pump, Max. Flow 1440 GPH, Port Size 1 in, Model# WPD10001K

Click or Tap image to Zoom

  • Both shallow well (single pipe) and deep well (two pipe) ejector kits included
  • Heavy-duty, dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Capacitor Start Induction Run (CSIR) motor design ensures higher starting torque
  • Mechanical seal and stainless steel shaft
  • Pre-mounted 30-50 pressure switch for automated operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

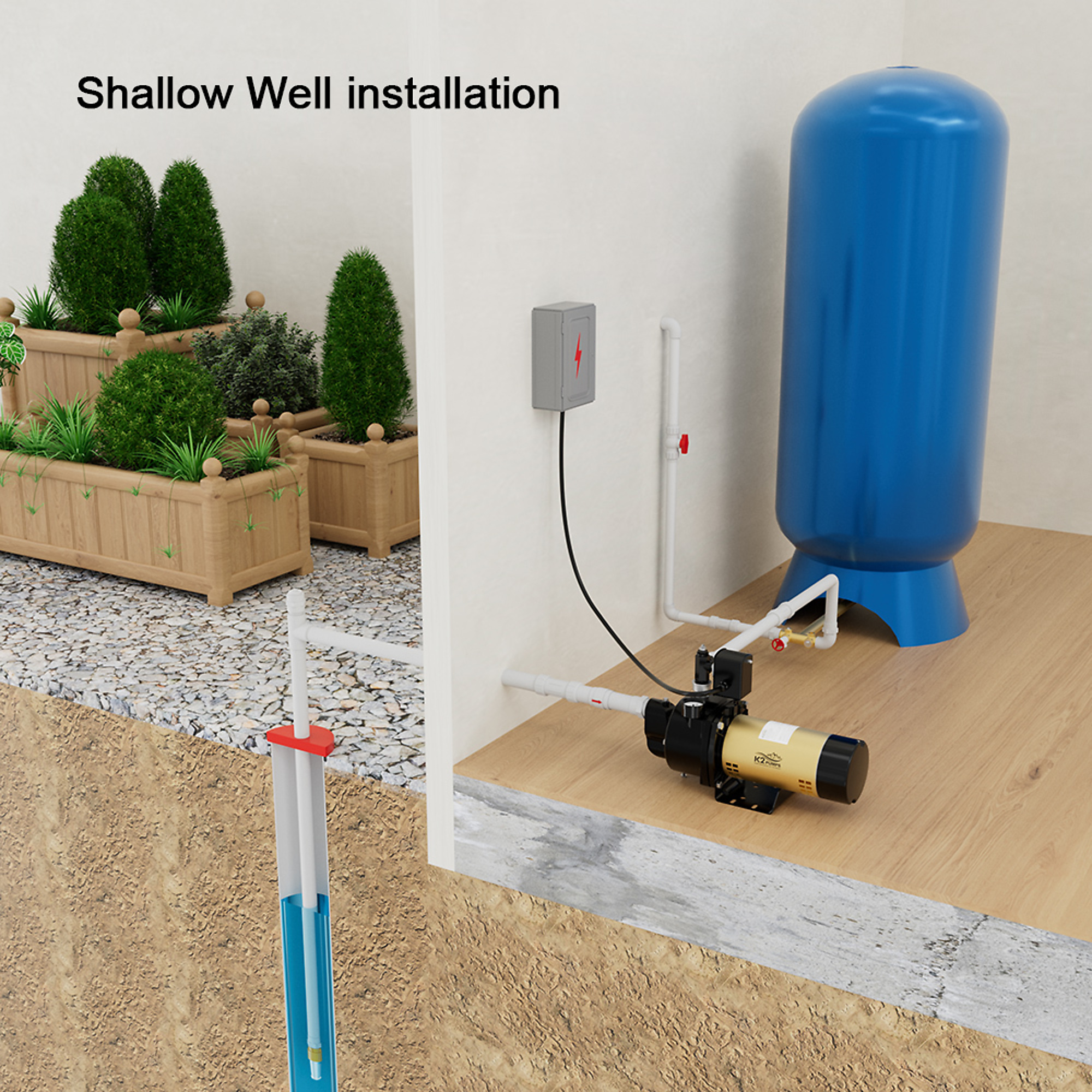

The K2 PRO 1 HP Convertible Deep Well Jet Pump was engineered with the construction materials and performance the PRO prefers. It can be used for shallow well applications (single pipe) with depth to water 25ft. or deep well applications (two pipes) with depth to water up to 110ft. This may include drilled wells, driven wells, bored wells, creeks, lakes, ponds, and other water sources when the distance to the water is 90ft. or less. Typical applications would be water supply for homes, cabins, farms, low-flow sprinkler systems, and utility water.

What's Included

    (1) Pump

Features + Benefits

  • Both shallow well (single pipe) and deep well (two pipe) ejector kits included
  • Heavy-duty, dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Capacitor Start Induction Run (CSIR) motor design ensures higher starting torque
  • Mechanical seal and stainless steel shaft
  • Pre-mounted 30-50 pressure switch for automated operation
  • Pressure gauge included for monitoring pressure
  • 1-1/4 inch NPT suction and 1 inch discharge

Key Specs

AttributeSpecification

item#

6114906

Brand

K2

Manufacturer's Warranty

3 year limited warranty

Ship Weight

57.0 LB

Max. Flow

1,440 GPH

Port Size

1 in

Volts

115/230

Solar Powered

No

Phase

Single-phase

Max. Head Pressure

110 ft
AttributeSpecification

Amps

17.6

Vertical Lift

110 ft

Discharge Flow @ 0 Ft.

1,440 GPH

Discharge Flow @ 10 Ft.

822 GPH

Min. Working Temperature

32 °F

Max. Working Temperature

104 °F

Housing Material

Cast-Iron

Horsepower

1

Product Weight

53.0000 lb

Dimensions L x W x H (in.)

13.0 x 20.3 x 7.8 in

Reviews

Questions & Answers

Questions

  1. What is the smallest well pipe will the deep well head fit through?

    1 answer

    1. The smallest well pipe this pump will fit through is 4 inches.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
