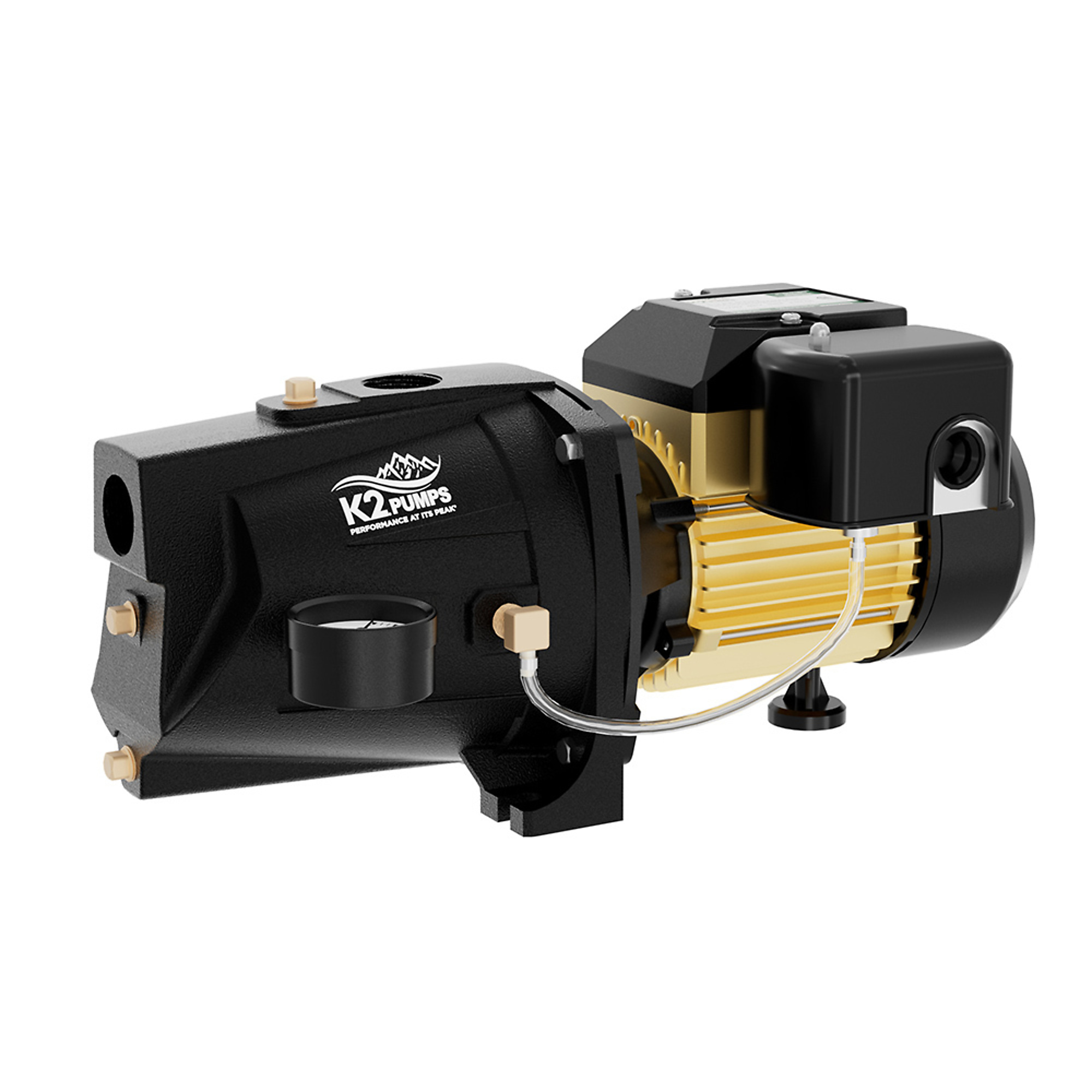

K2 3/4 HP Cast Iron Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07502K

Item# 6114754
"K2 3/4 HP Cast Iron Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07502K"
K2 3/4 HP Cast Iron Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07502K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K2 3/4 HP Cast Iron Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07502K

Click or Tap image to Zoom

$229.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements
  • Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Pre-mounted 30-50 pressure switch for automated operation
  • Pressure gauge included for monitoring pressure
  • 1 inch NPT suction and 1 inch NPT discharge

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

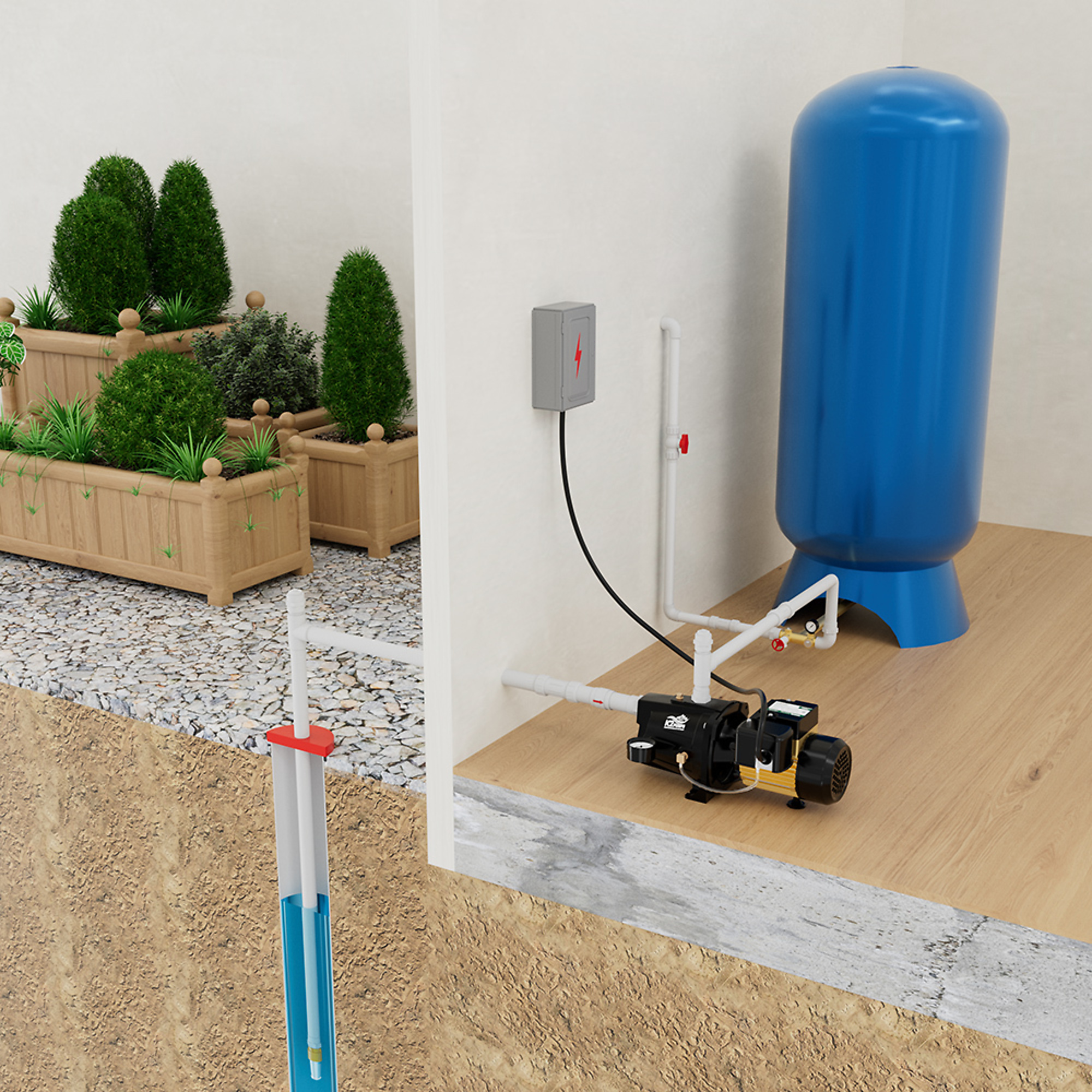

The K2 Pumps 3/4 HP Shallow Well Jet Pump may be used for shallow well applications with water depths up to 25ft. This may include drilled wells, driven wells, bored wells, creeks, lakes, ponds, and other water sources when the distance to the water is 25ft. or less. Typical applications would be water supply for homes, cabins, farms, low flow sprinkler systems, and utility water.

What's Included

    (1) Pump

Downloads

Product Manual

Features + Benefits

  • Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements
  • Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Pre-mounted 30-50 pressure switch for automated operation
  • Pressure gauge included for monitoring pressure
  • 1 inch NPT suction and 1 inch NPT discharge
  • Self-priming after pump housing is initially filled and foot valve or check valve is installed
  • Certified to NSF/ANSI CAN 61 Standard for Safe Drinking Water and NSF/ANSI 372 Lead-Free Standard

Key Specs

AttributeSpecification

item#

6114754

Brand

K2

Manufacturer's Warranty

2 year limited warranty

Ship Weight

27.0 LB

Max. Flow

552 GPH

Port Size

1 in

Volts

115/230

Solar Powered

No

Phase

Single-phase

Max. Head Pressure

25 ft
AttributeSpecification

Amps

8.4

Vertical Lift

25 ft

Discharge Flow @ 0 Ft.

552 GPH

Discharge Flow @ 10 Ft.

486 GPH

Min. Working Temperature

32 °F

Max. Working Temperature

95 °F

Housing Material

Cast-Iron

Product Weight

21.8300 lb

Dimensions L x W x H (in.)

7.99 x 15.4 x 7.36 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
