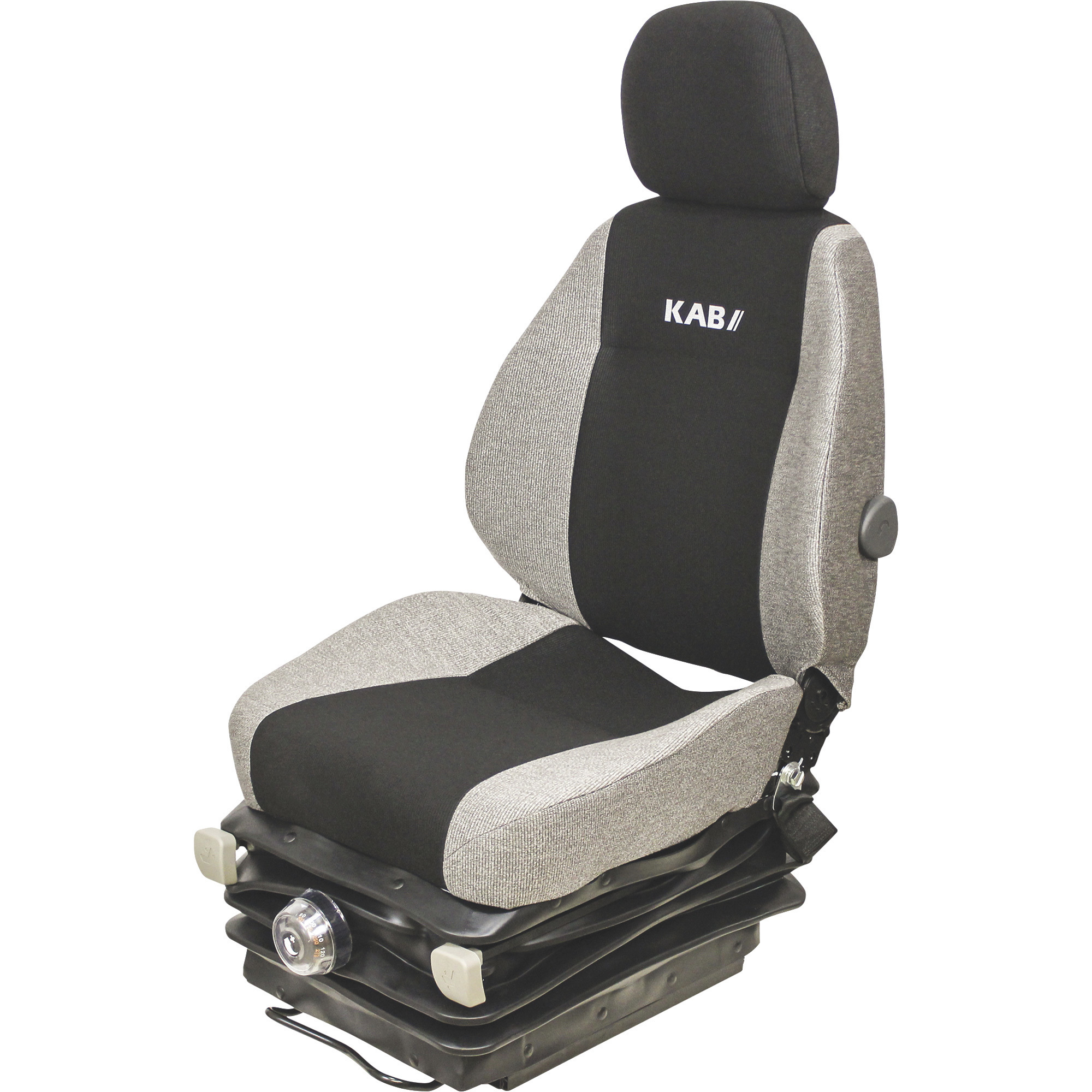

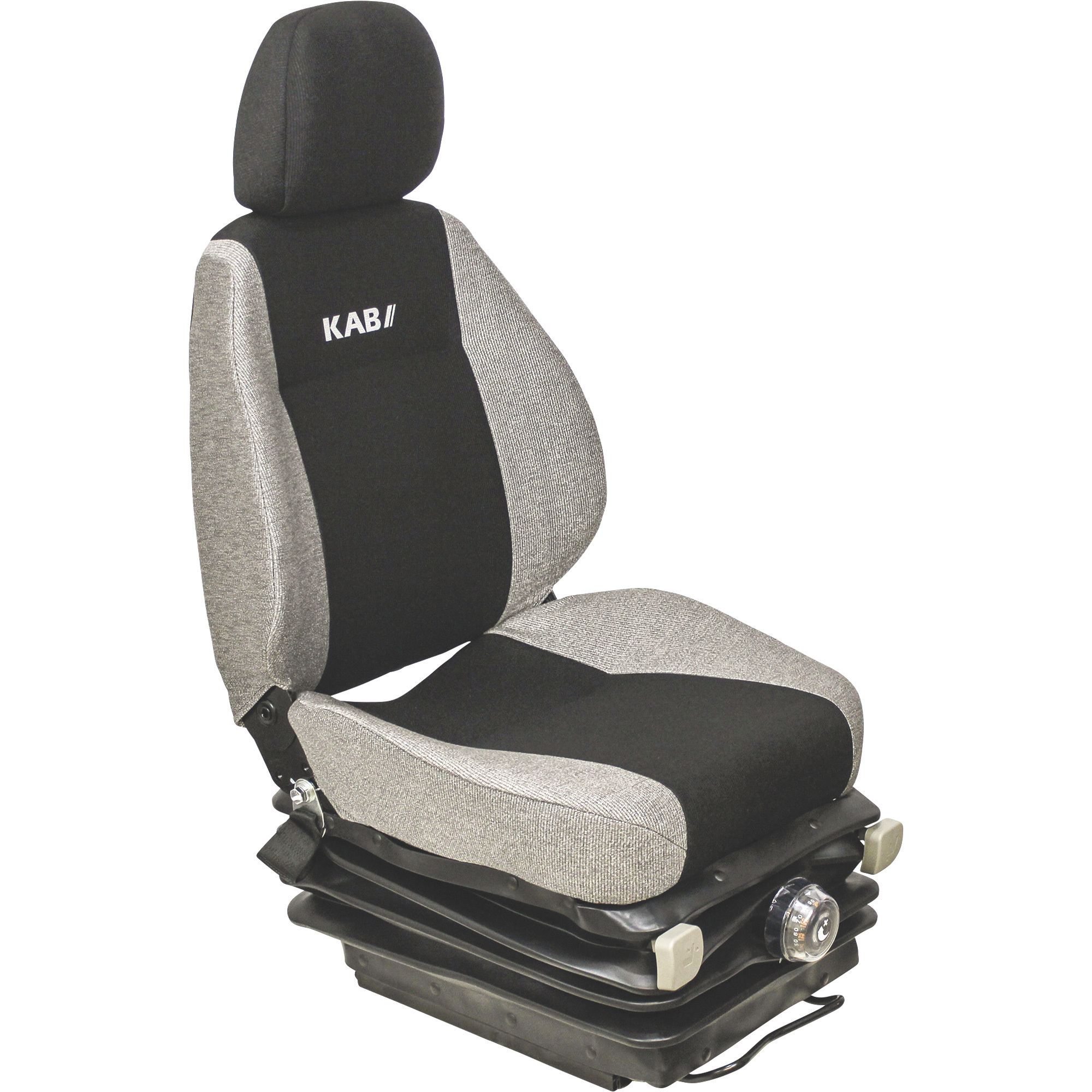

K & M, HEAVY-DUTY MECH SUSP FAB SEAT, Model# 8395

Item# 54640
K & M, HEAVY-DUTY MECH SUSP FAB SEAT, Model# 8395

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K & M, HEAVY-DUTY MECH SUSP FAB SEAT, Model# 8395

Click or Tap image to Zoom

$1599.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Seat adjusts to fit any user, with 7.9in. fore/aft adjustable slide rails, 110 to 265-lb. weight adjustment, 5-position lumbar support, adjustable headrest and adjustable backrest
  • 2.4in. seat height/tilt adjustment for added versatility and optimal driving position
  • Mechanical suspension with 2 springs and 4in. vertical suspension stroke for ultimate comfort and a smooth ride
  • Durable rubber molded suspension cover keeps suspension components free of dirt, dust and debris
  • 4in. suspension travel

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This K M Uni-Pro Heavy-Duty Mechanical Suspension Tractor Seat is designed especially for construction applications. Seat adjusts to fit any user, with 7.9in. slide rails, height, weight and tilt adjustment and adjustable backrest. 19.5in.W x 32.5in.H. Meets ISO 7069 specifications for vibration isolation.

What's Included

    (1) Seat

Features + Benefits

  • Seat adjusts to fit any user, with 7.9in. fore/aft adjustable slide rails, 110 to 265-lb. weight adjustment, 5-position lumbar support, adjustable headrest and adjustable backrest
  • 2.4in. seat height/tilt adjustment for added versatility and optimal driving position
  • Mechanical suspension with 2 springs and 4in. vertical suspension stroke for ultimate comfort and a smooth ride
  • Durable rubber molded suspension cover keeps suspension components free of dirt, dust and debris
  • 4in. suspension travel
  • Folding armrests fold out of the way for easy entry/exit
  • Durable multi-gray fabric covering
  • Built-in document pouch holds registration or other important information

Key Specs

AttributeSpecification

item#

54640

Brand

Uni Pro

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

102.0 LB

Adjustable

Yes
AttributeSpecification

Suspension

Yes

Color

Gray

Material

Fabric

Arm Rests

Yes

Universal Fit

No

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What is the height of the seat from the floor at the lowest adjustable height and at the highest adjustable height?

    1 answer

    1. The seat index position is 14.63". The minimum height is 15". The suspension travel is 4". The maximum height is 19".

      Helpful?

  2. Could you please tell me the bolt pattern for mounting this seat. Thank you in advance. Oh, one other thing. Is there an option of arm rests for this seat?

    1 answer

    1. This seat has an adjustable bolt pattern. The bolt pattern for this seat is 11.02" wide x 11.97" - 13" long. An armrest kit, model 8144, is available through the manufacturer directly.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
