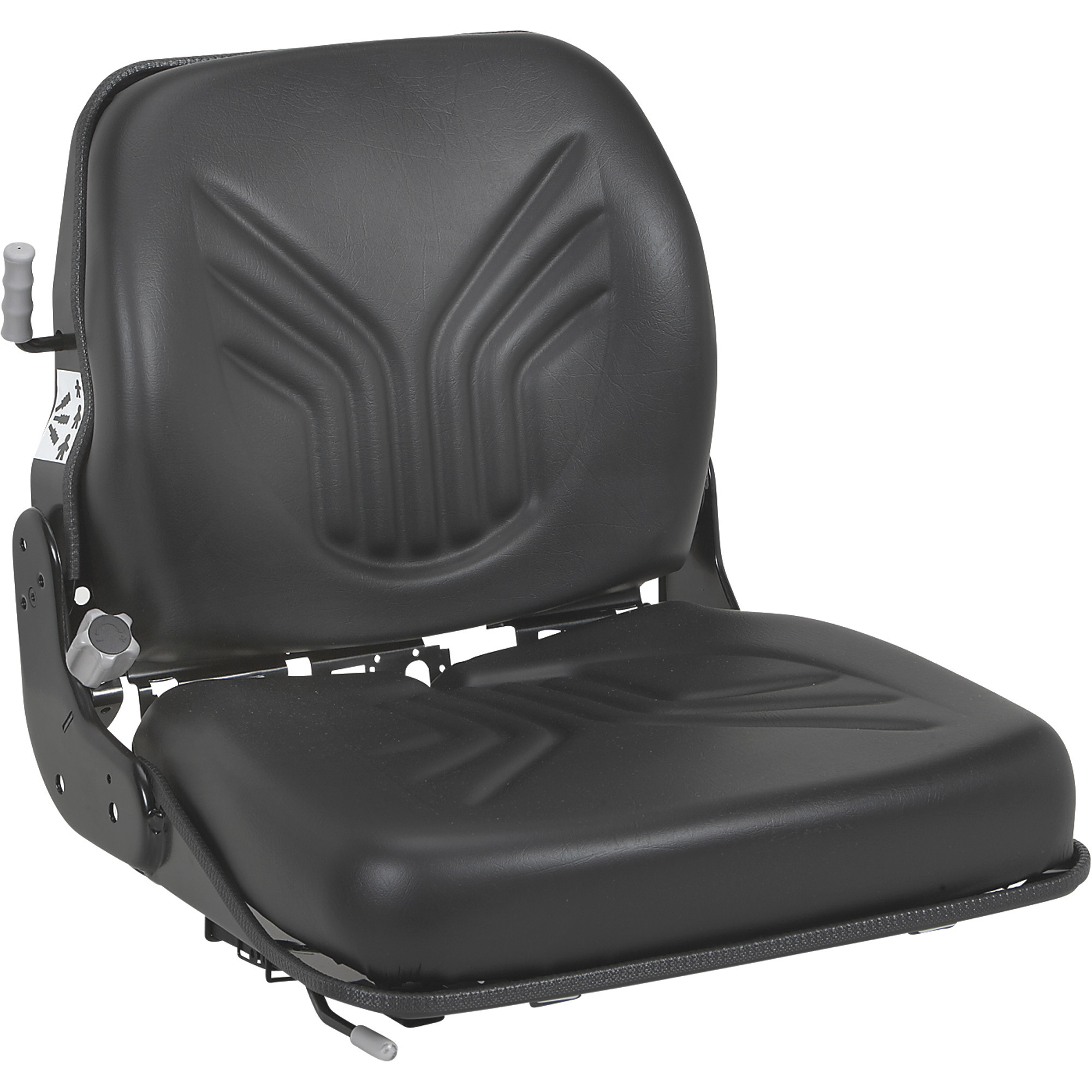

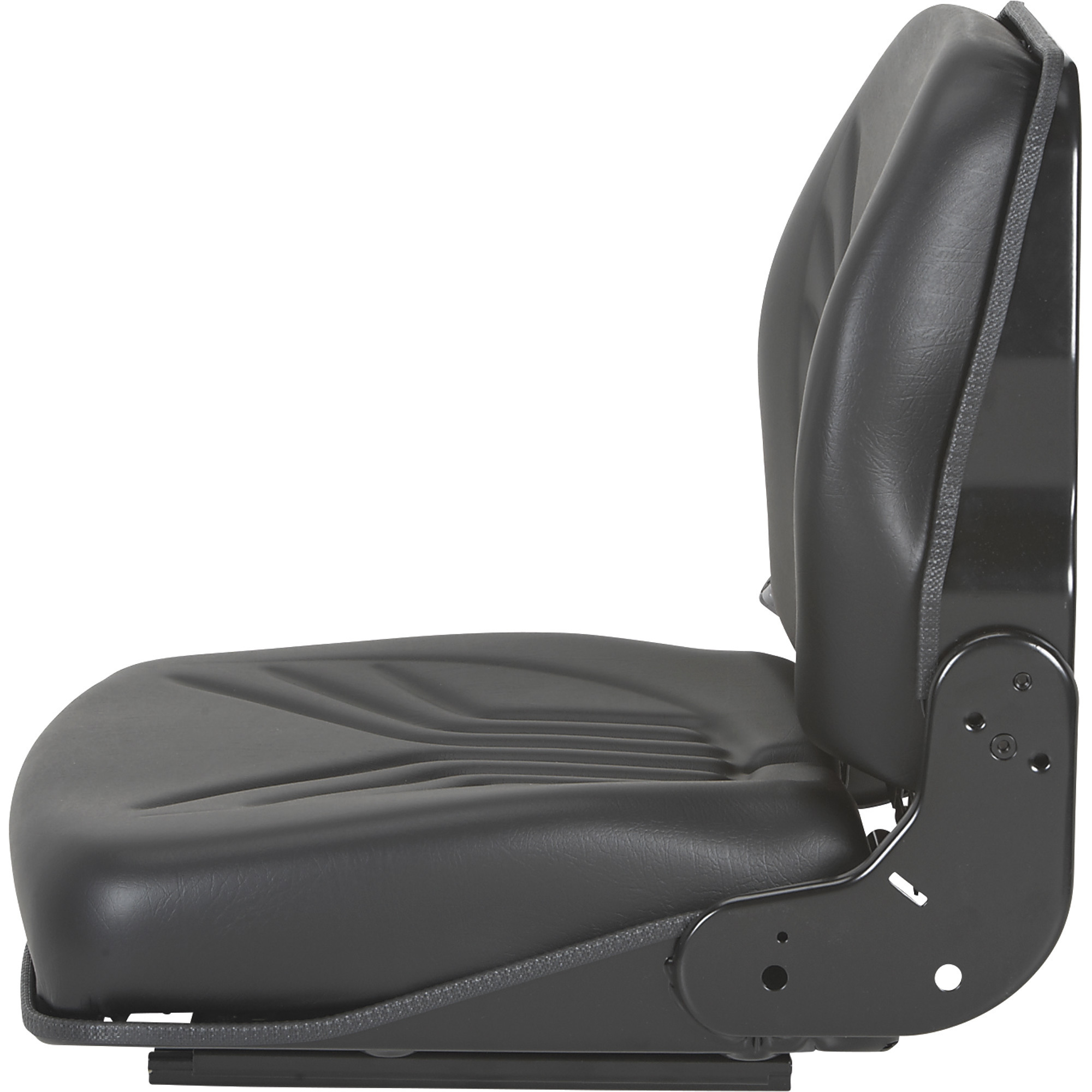

Grammer, SEAT-INTEGRATED SUSPENSION, Capacity 265 lb, Model# 8074

Item# 17496
Grammer, SEAT-INTEGRATED SUSPENSION, Capacity 265 lb, Model# 8074

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grammer, SEAT-INTEGRATED SUSPENSION, Capacity 265 lb, Model# 8074

Click or Tap image to Zoom

$264.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjusts to operator weight of 110 to 265 lbs.
  • Backrest angle adjusts 15° for the optimal riding angle

See full description

Complete Your Solution

  • Grammer, SEAT-INTEGRATED SUSPENSION, Capacity 265 lb, Model# 8074
  • Classic Accessories Deluxe Riding Lawn Mower Seat Cover, Medium, Fits 14in.-16 1/2in.H backrests, Model# 12324
Price for all two:

$294.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

This KM Grammer Bucket Seat with Integrated Suspension features suspension in the backrest to reduce jolts for greater relief from fatigue. Fore and aft adjustment: 5 7/8in. Suspension stroke: ±1 1/2in. Adjusts to operator weight of 110 to 265 lbs. Backrest angle adjusts 15 degrees. Rugged black PVC cover protects padding. Lap belt not included. Seat dimensions: 18 7/8in.W x 19in.D x 19in.H.

What's Included

    (1) Bucket seat with suspension

Features + Benefits

  • Adjusts to operator weight of 110 to 265 lbs.
  • Backrest angle adjusts 15° for the optimal riding angle

Key Specs

AttributeSpecification

item#

17496

Brand

Grammer

Ship Weight

36.8 LB

Adjustable

Yes

Suspension

Yes

Capacity

265 lb
AttributeSpecification

Color

Black

Material

PVC

Frame Material

Steel

Arm Rests

No

Universal Fit

No

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Does this seat have the safety 'deadman' switch under the bottom cushion?

    If not, is the seat base under the bottom cushion designed to accept a switch? Thank you.

    1. No

      Helpful?

    2. This seat does not have a safety deadman switch and is not designed to accept one.

      Helpful?

  2. Need width between the rails

    1 answer

    1. From slide rail to slide rail is 14-1/2".

      Helpful?

  3. Will this work with a Grammer msg 44/520? Are the cushions the same?

    1 answer

    1. To determine if this seat is a fit for your application, the side-to-side bolt pattern needs to be measured. This seat has a 8", 10.25" or 13" side-to-side bolt pattern. This has the standard Grammer seat cushion.

      Helpful?

  4. will this sea t replace a gs 15 grammer seat

    1 answer

    1. This seat would not replace the GS 15 Grammer Seat.

      Helpful?

  5. Do you sell the armrest kit to fit this seat?

    And if so what is the part # to order Grammer # is 126288

    1 answer

    1. The arm rest kit is no longer available through Northern Tool + Equipment. It can be purchased directly with the manufacturer.

      Helpful?

  6. will seat work with KM mod#5006swivel

    1 answer

    1. This seat will not work with the model 5006 K & M swivel mount.

      Helpful?

  7. Is the suspension vertical in the seat base?

    1 answer

    1. This seat does not feature a vertical suspension support in the seat base. The suspension system is in the backrest.

      Helpful?

  8. What is measurement from bottom of the mounting rail to top of seat cushion

    1 answer

    1. This seat is 15" from the bottom of the mounting rail to the top of the seat cushion.

      Helpful?

  9. Can you provide the center to center mounting hole measurements?

    1 answer

    1. The bolt pattern is 9" front to back and 12" left to right.

      Helpful?

  10. product dimensions

    Hi, i need a drawing or additional dimensions for this seat. i am attempting to fit it in a small space and need more dimensions.

    1 answer

    1. This Seat with Integrated Suspension has dimensions: 18 7/8in.W x 19in.D x 19in.H.

      Helpful?
